Product Description
Product Overview:

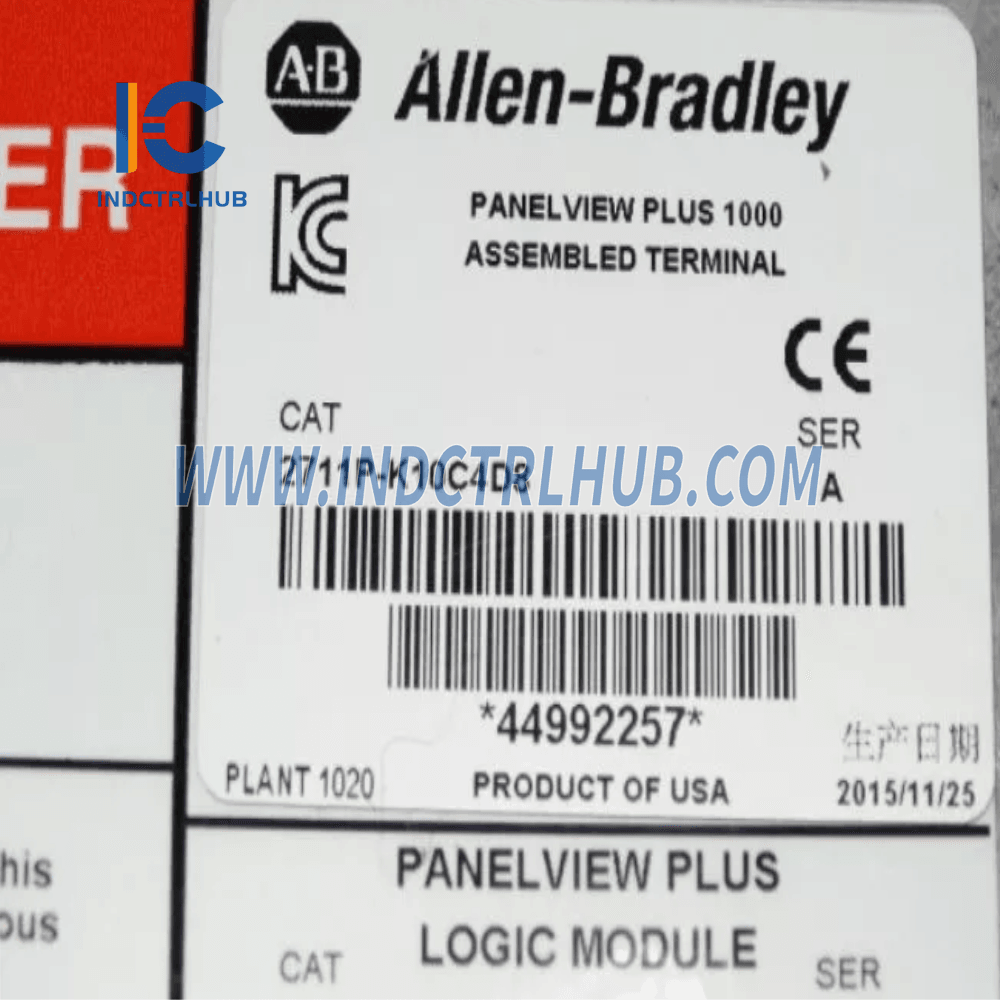

- Manufacturer: Allen-Bradley
- Model/Part Number: 2711P-K10C4D8
- Description: PanelView Plus 6 Terminal
- Series: PanelView Plus 6 (700 to 1500 terminals without extended features)
- Display Size: 10.4 inches
- Display Type: Color active-matrix TFT
- Input Type: Keypad
- Operating System: Windows CE 6.0 (without extended features and file viewers)
Electrical Specifications:
| Attribute | Specification |
|---|---|
| Supply Voltage Type | DC (18-32 V DC, nominal 24V DC) |
| Power Consumption | Max 70 W (2.9 A @ 24 V DC), Typical 39 W (1.6 A @ 24 V DC) |
| Communication Ports | 1 x Ethernet (10/100 Mbps, Auto-MDI/MDI-X) 1 x RS-232 2 x USB Host Ports |
| Supported Protocols | TCP/IP, EtherNet/IP |
| Real-Time Clock Battery | Battery-backed clock, ±2 minutes per month accuracy, 4-year battery life at 25°C |
| External Storage | Supports Secure Digital (SD) card (hot-swappable SD card slot) USB flash drives (hot-swappable USB 2.0 host ports) |
Key Features:
| Attribute | Specification |
|---|---|
| Number of Function Keys | 32 Programmable function keys (F1...F16, K1...K16) |
| Supported Languages | 79 Online languages |
| Supports Recipes | Yes |
| Message System | Yes (with buffer and confirmation) |
| Display Resolution | 640 x 480 pixels (horizontal x vertical) |
| Luminance | 300 cd/m² (Nits) |
| Touch Technology | None (Keypad only) |
| Keypad Description | Stainless-steel membrane, numeric, navigation, and function keys |
| Memory | 512 MB RAM, 512 MB non-volatile memory (approx. 79 MB free user memory) |
Environmental Specifications:
| Attribute | Specification |
|---|---|
| Enclosure Rating (NEMA) | NEMA: 12, 13, 4X IP54, IP65 (front side) |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -25°C |
| Humidity | 5% to 95%, non-condensing |
| Vibration | 10 to 57 Hz (0.012 peak-to-peak displacement) 57 to 500 Hz (2 G peak acceleration) |
| Shock | Operating: 15 G at 11 ms |
| Altitude (Operating) | 2000 meters |
Mechanical Specifications:
| Attribute | Specification |
|---|---|
| Dimensions (HxWxD) | Height: 248 mm (9.76 in) Width: 399 mm (15.7 in) Depth: 55 mm (2.17 in) |
| Cutout Dimensions | 211 x 158 mm |
| Weight | Approx. 2.5 kg (5.5 lbs) |
| Wall Mounting/Direct Mounting | Yes (Rail mounting not supported) |
Software Compatibility:
| Attribute | Specification |
|---|---|
| Supported Software | FactoryTalk View Machine Edition (version 6.0 or later) FactoryTalk ViewPoint (version 1.2 or later) |
Enclosure and Protection Ratings:
| Attribute | Specification |
|---|---|
| Enclosure | NEMA/UL Type 12, 13, 4X (for indoor use only) |
| Protection Ratings | IP54, IP65 (front panel) |
Additional Information:
- Keypad Actuation Force: 340 g (1 million presses)
- Backlight: CCFL (Cold Cathode Fluorescent Lamp) with a minimum 50,000-hour lifespan at 25°C (77°F), field replaceable
- Battery Life: 4 years minimum at 25°C (77°F)
- Heat Dissipation: 240 BTU/hr
- Operating Altitude: Up to 2000 meters
