Product Description
Product Details
Manufacturer: Allen-Bradley

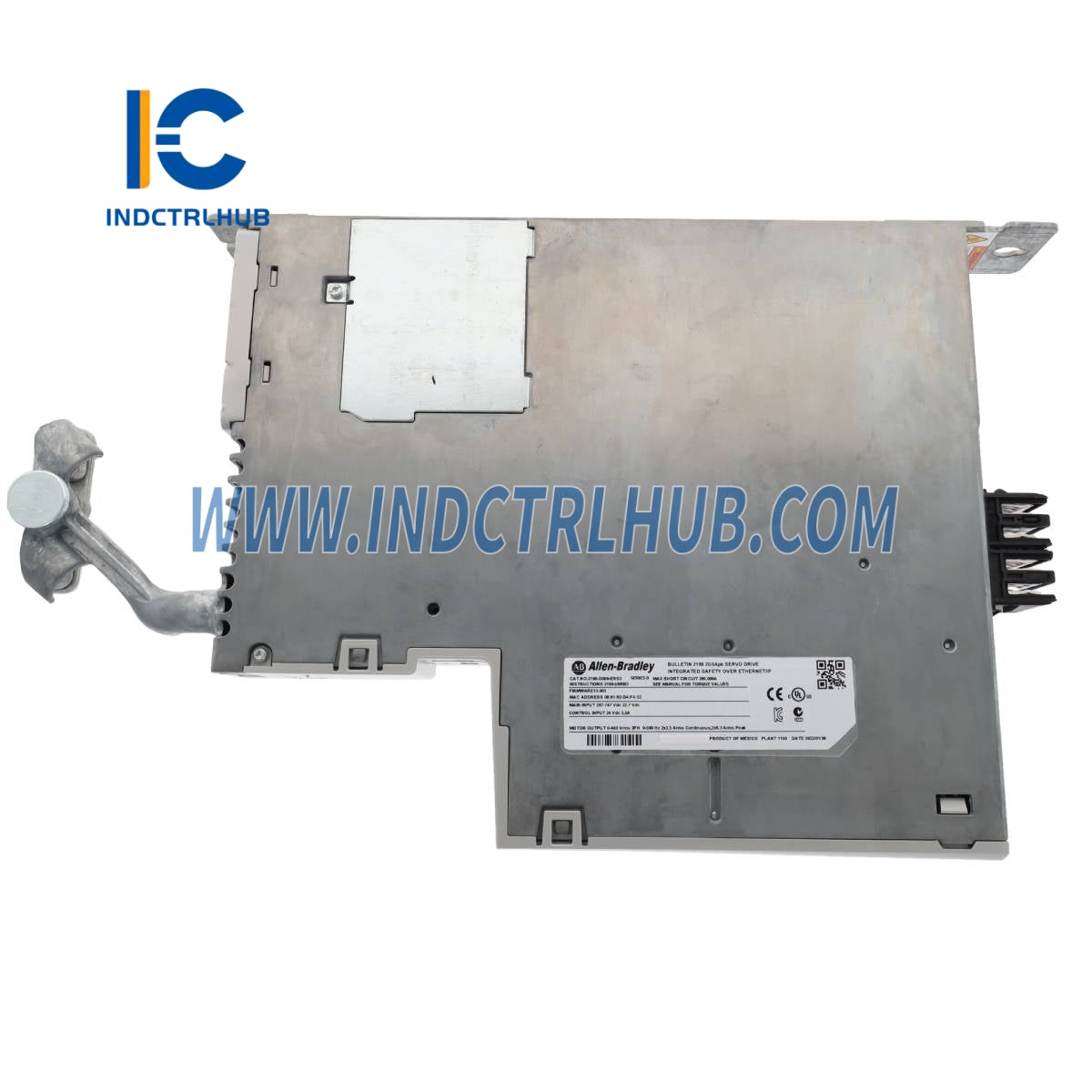

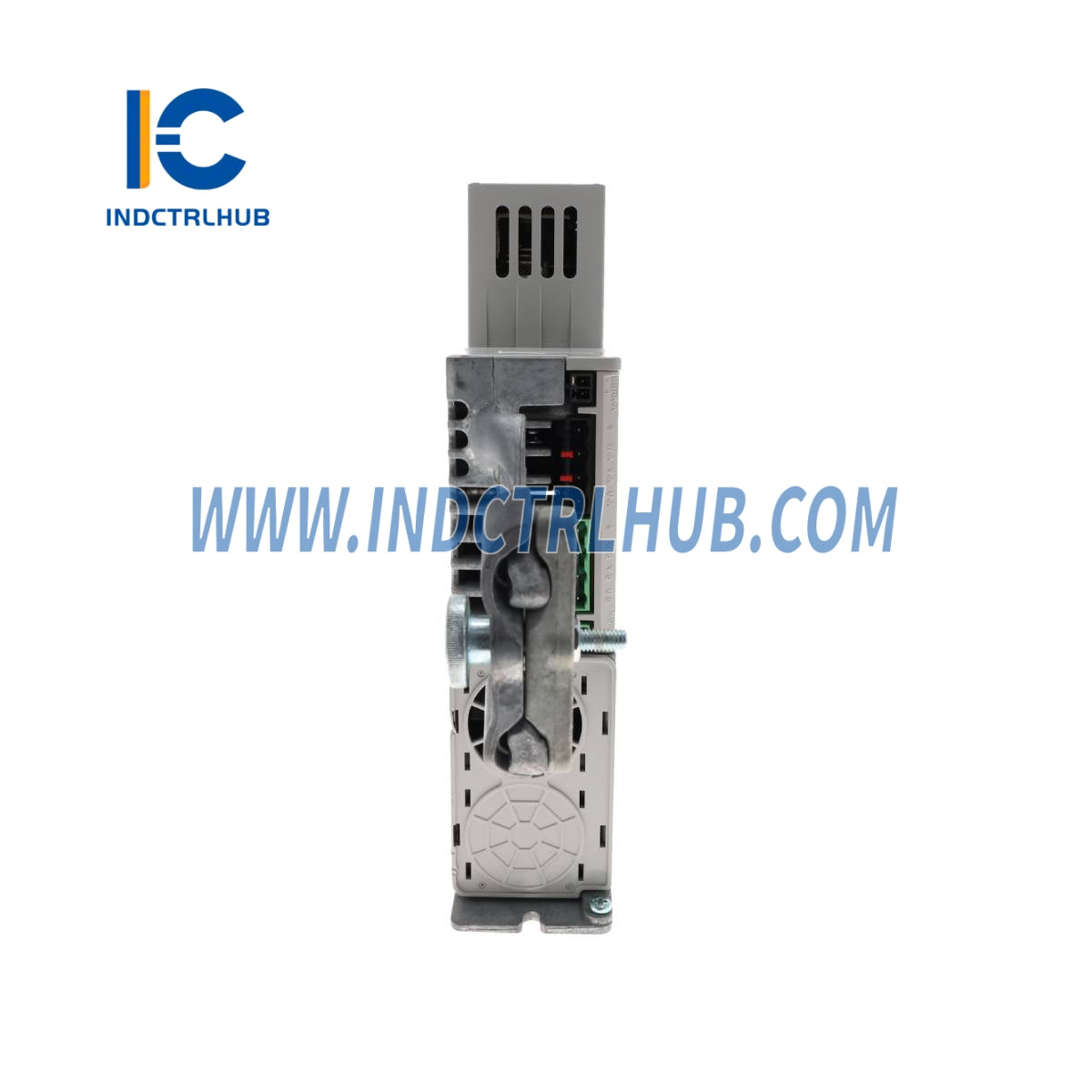

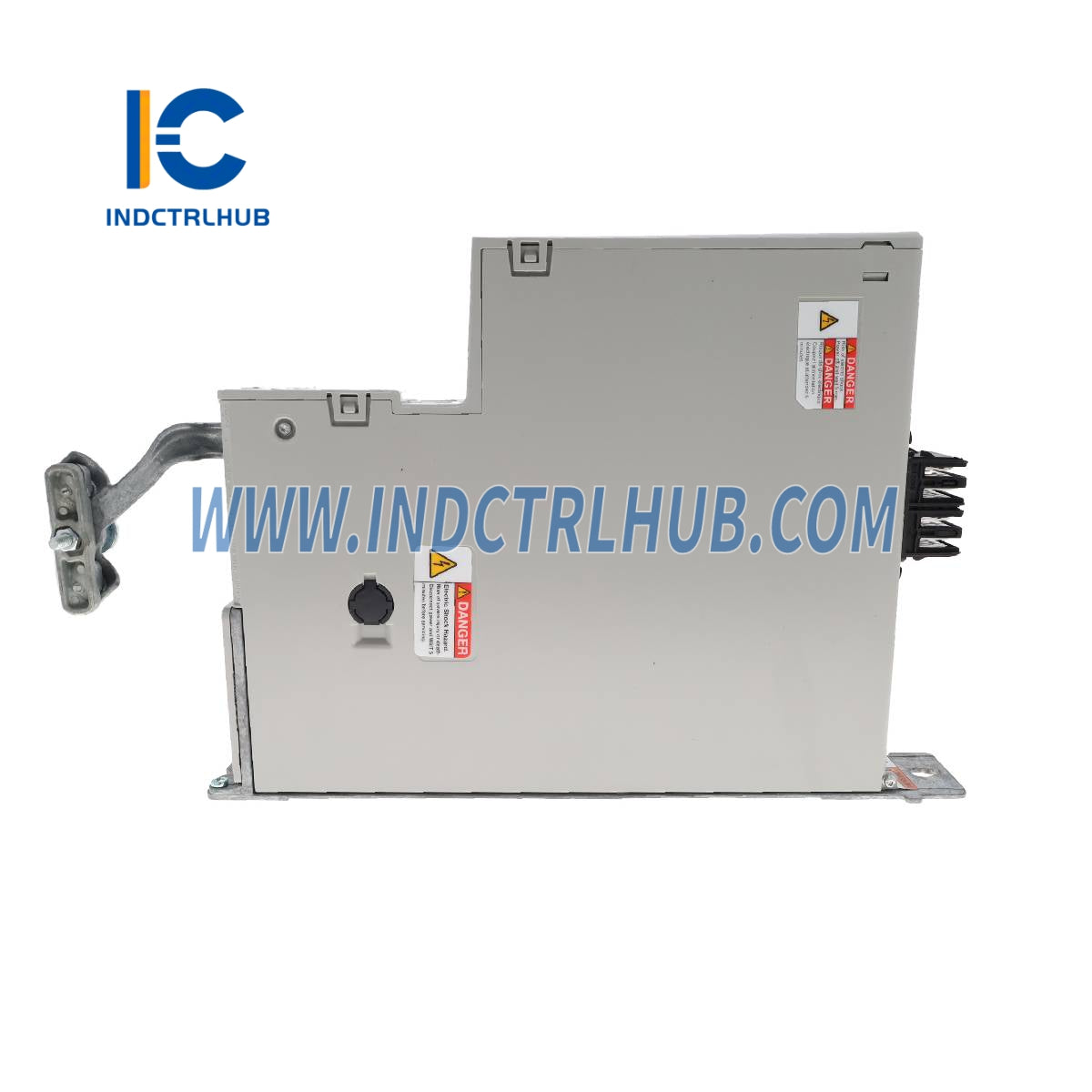

Model/Part Number: 2198-D006-ERS3
Description: Kinetix 5700 Servo Drives
Dual-Axis Inverter Power Specifications
|
Attribute |
Value |
|---|---|
|
Bandwidth (Velocity loop, max) |
400 Hz |
|
Bandwidth (Current loop) |
1000 Hz |
|
PWM Frequency |
4 kHz |
|
Continuous Output Current (rms) |
2.5 A, 5.0 A, 8.0 A, 13.0 A, 23.0 A |
|
Continuous Output Current (0-pk) |
3.5 A, 7.0 A, 11.3 A, 18.3 A, 32.5 A |
|
Peak Output Current (rms) (1 sec duration) |
6.3 A, 12.5 A, 20.0 A, 32.5 A, 57.5 A |
|
Peak Output Current (0-pk) (1 sec duration) |
8.8 A, 17.6 A, 28.2 A, 45.9 A, 81.3 A |
|
Continuous Power Output (Nominal at 240V, 3-phase, ½ power) |
0.9 kW, 1.7 kW, 2.8 kW, 4.5 kW, 8.0 kW |
|
Continuous Power Output (Nominal at 480V, 3-phase) |
1.7 kW, 3.4 kW, 5.5 kW, 8.9 kW, 15.9 kW |
|
DC Input Current @ 276–747V DC |
2.7 ADC, 5.3 ADC, 8.5 ADC, 13.7 ADC, 24.5 ADC |
|
Internal Capacitance |
165 µF, 330 µF, 390 µF, 705 µF |
