Product Description
Product Overview

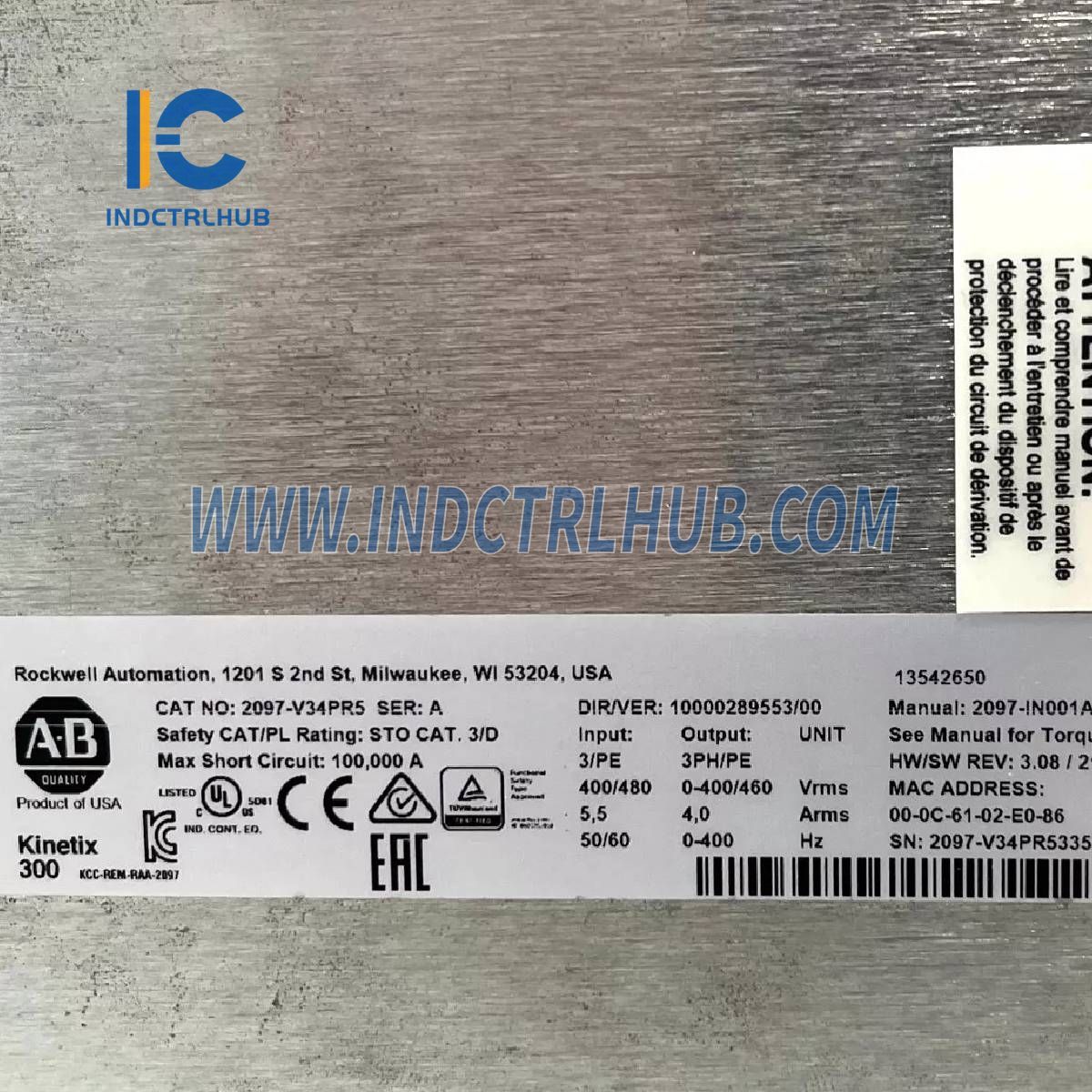

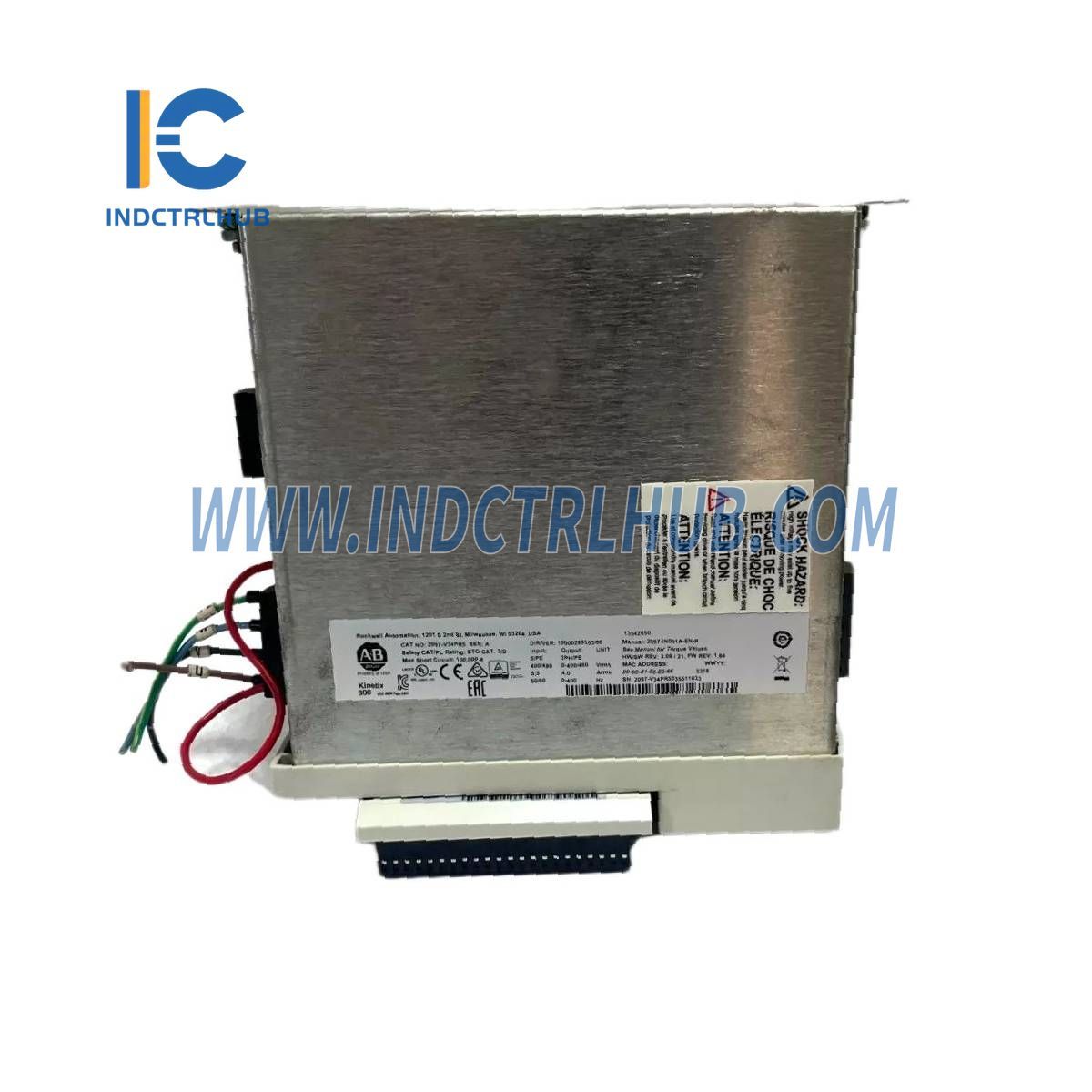

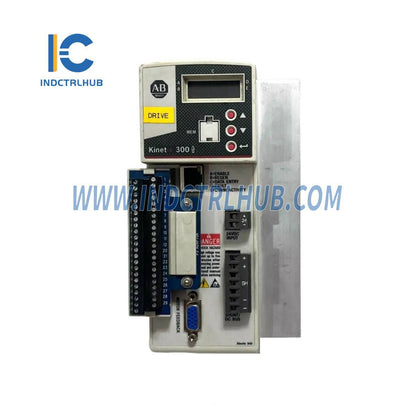

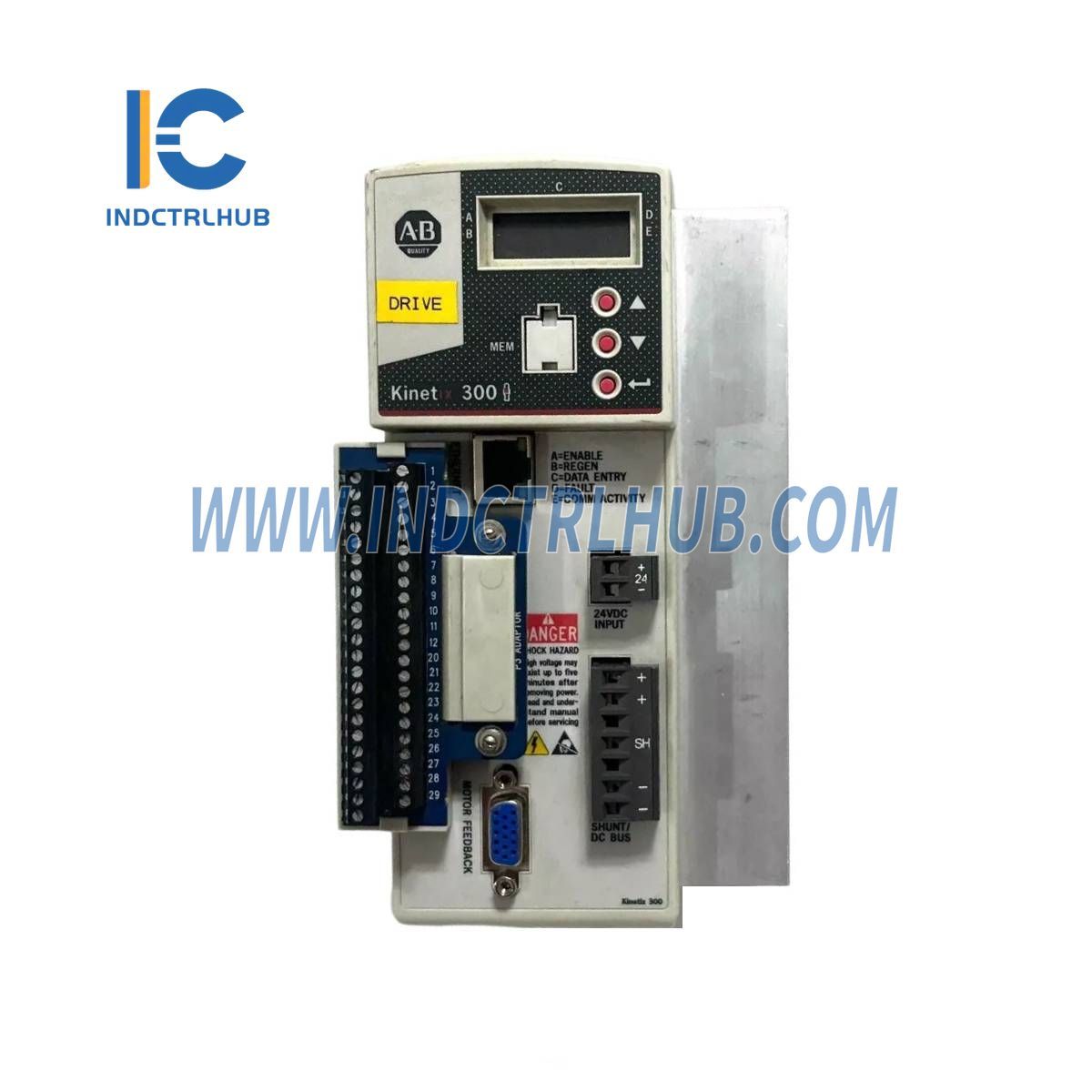

The Allen-Bradley 2097-V34PR5 is a Kinetix 300 EtherNet/IP Indexing Servo Drive designed for high-performance motion control applications. It supports 480V AC three-phase input and delivers 2.0 kW of power.
Technical Specifications
Electrical Ratings
| Attribute | Value |
|---|---|
| Input Voltage (Three-Phase, Nominal) | 415V AC (rms) |
| Input Voltage (Min - Max) | 320V AC – 528V AC (rms) |
| Input Frequency (Nominal) | 50/60 Hz |
| Input Frequency (Min - Max) | 48 Hz – 62 Hz |
| Input Current (Nominal) | 5.5 A |
| Input Current (Max, 0-peak) | 4.5 A |
| Output Current (Continuous, rms) | 4 A |
| Output Current (Continuous, 0-peak) | 5.7 A |
| Output Current (Peak, rms) | 12 A |
| Output Current (Peak, 0-peak) | 17 A |
Safety and Compliance
- Safety Performance Level: ISO 13849:2006 PLd
- SIL Rating: IEC/EN 61508 SIL 2
- Safety Category: EN 954 / ISO 13849:1999 Category 3
Communication & Network
- Supported Protocols: EtherNet/IP, EtherNet/OCPP
- Integration: Network Capable
Environmental Ratings
| Attribute | Value |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Relative Humidity | Up to 95% (non-condensing) |
| Altitude (Operating) | Up to 1500m |
| Altitude Derating | 1% power reduction per 300m above 1500m |
Physical Dimensions & Mechanical Characteristics
| Attribute | Value |
|---|---|
| Height | 190 mm |
| Width | 94 mm |
| Depth | 185 mm |
| Weight | 2 kg |
| Shock Acceleration (Max) | 15 g |
| Shock Duration (Max) | 11 ms |
| Vibration Acceleration (Max) | 2.5 m/s² |
| Vibration Displacement (Peak-to-Peak, Max) | 0.015 mm |
| Vibration Frequency (Operational, Max) | 2000 Hz |
Compatible Motor Series
- MPM (Medium Inertia)
- MPL (Low Inertia)
- MPS (Stainless Steel)
- MPF (Food Grade)
- TLY-Series
- LDAT (Integrated Linear Thruster)
- MPAI (Heavy Duty Electric Cylinder)
- MPMA (Integrated Linear Stage)
- TLAR (Electric Cylinder)
- MPAR (Electric Cylinder)
- MPAS (Integrated Linear Stage)
Standards & Certifications
- UL 508C
- EN 61800-3, EN 61800-5-1, EN 61800-5-2
- EN 50178
- EN 954 / ISO 13849:1999 Category 3
- ISO 13849:2006 PLd
- IEC/EN 61508 SIL 2
- CE, C-Tick, C-UL, KC (KCC), UL, ODVA - EtherNet/IP, TUV PLd, TUV Category 3, TUV SIL2
