Product Description
Product Details

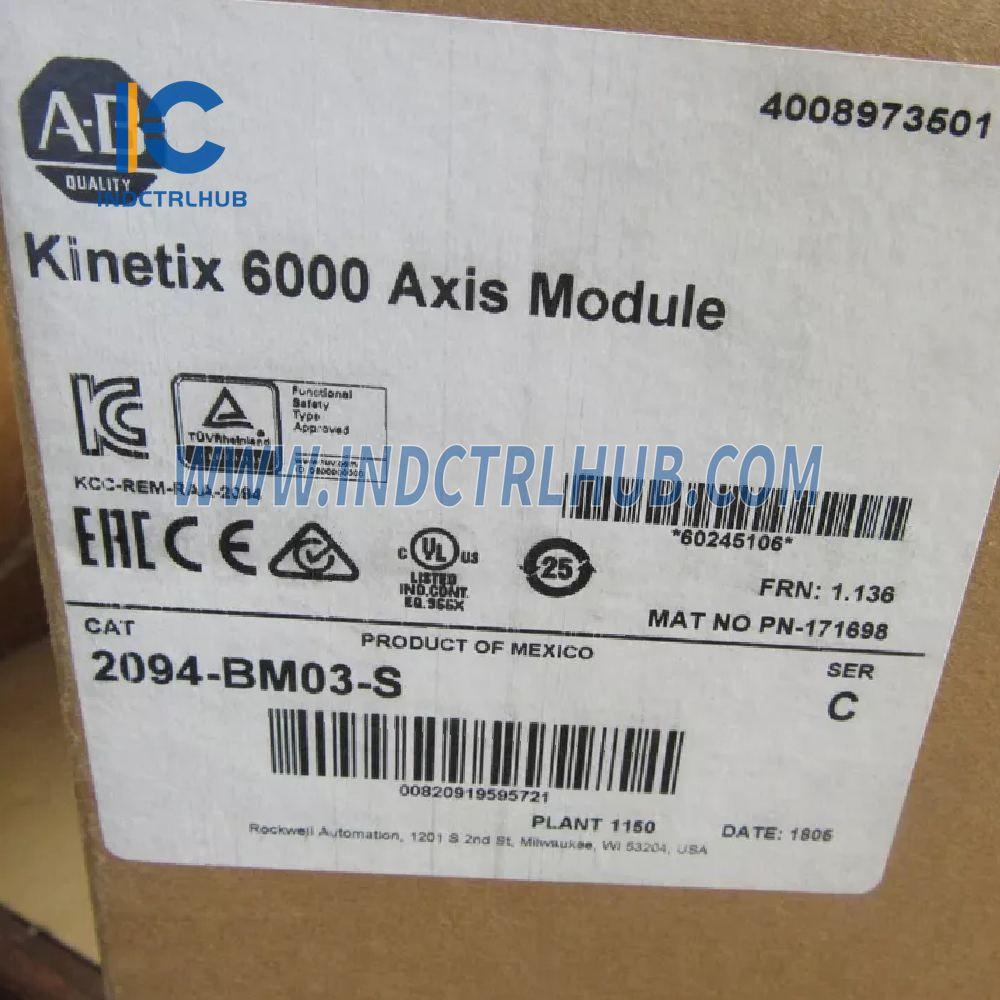

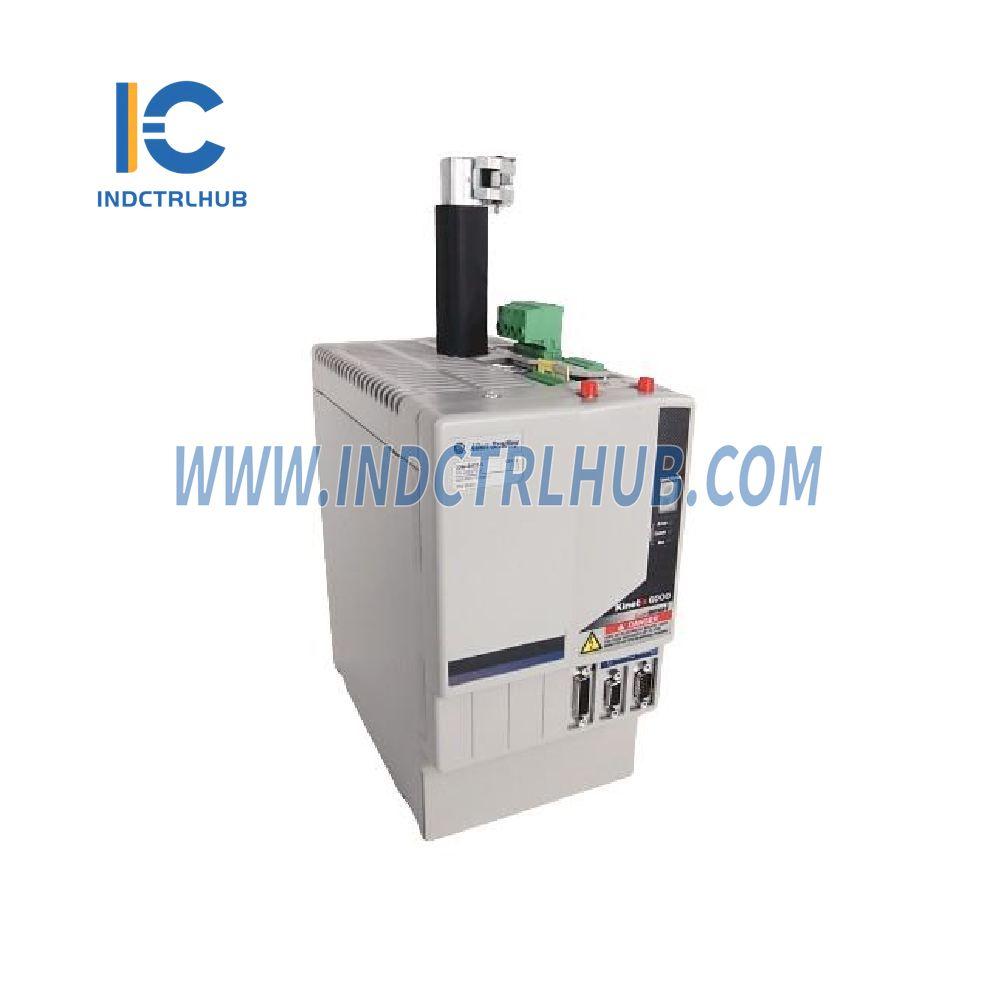

- Manufacturer: Allen-Bradley
- Model/Part Number: 2094-BM03-S
- Description: AM (Inverter) 460V Module Power, Kinetix 6000 Drive Module
Specifications
Bandwidth
- Velocity loop: 500 Hz
- Current loop: 1300 Hz
PWM Frequency
- 4 kHz
Input Voltage (Nominal)
- 650V DC
Current Specifications
- Continuous Current (RMS): 21.2 A
- Continuous Current (Sine, 0-pk): 30.0 A
- Peak Current (RMS): 31.8 A
- Peak Current (0-pk): 45.0 A
Power Output
- Continuous Power Output (Nominal): 13.5 kW
Internal Shunt
- Continuous Power: 200 W
- Peak Power: 22,300 W
- Resistor: 28.75 Ω
- Shunt On: 805V DC
- Shunt Off: 755V DC
Other Specifications
- Efficiency: 97%
- Capacitance: 840 μF
- Capacitive Energy Absorption: 108 J
Power Dissipation Specifications
- At 20% of rated power output: 95 W
- At 40% of rated power output: 132 W
- At 60% of rated power output: 171 W
- At 80% of rated power output: 212 W
- At 100% of rated power output: 256 W
