Product Description
Product Details

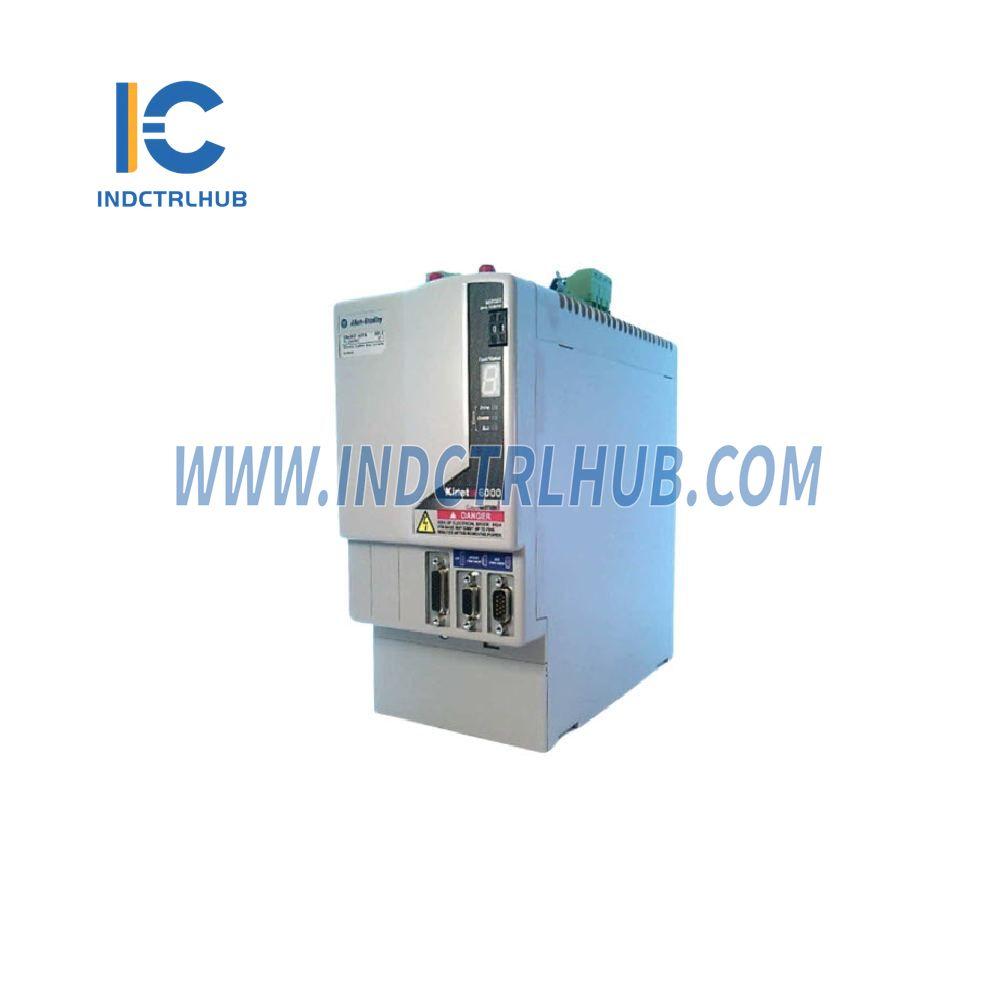

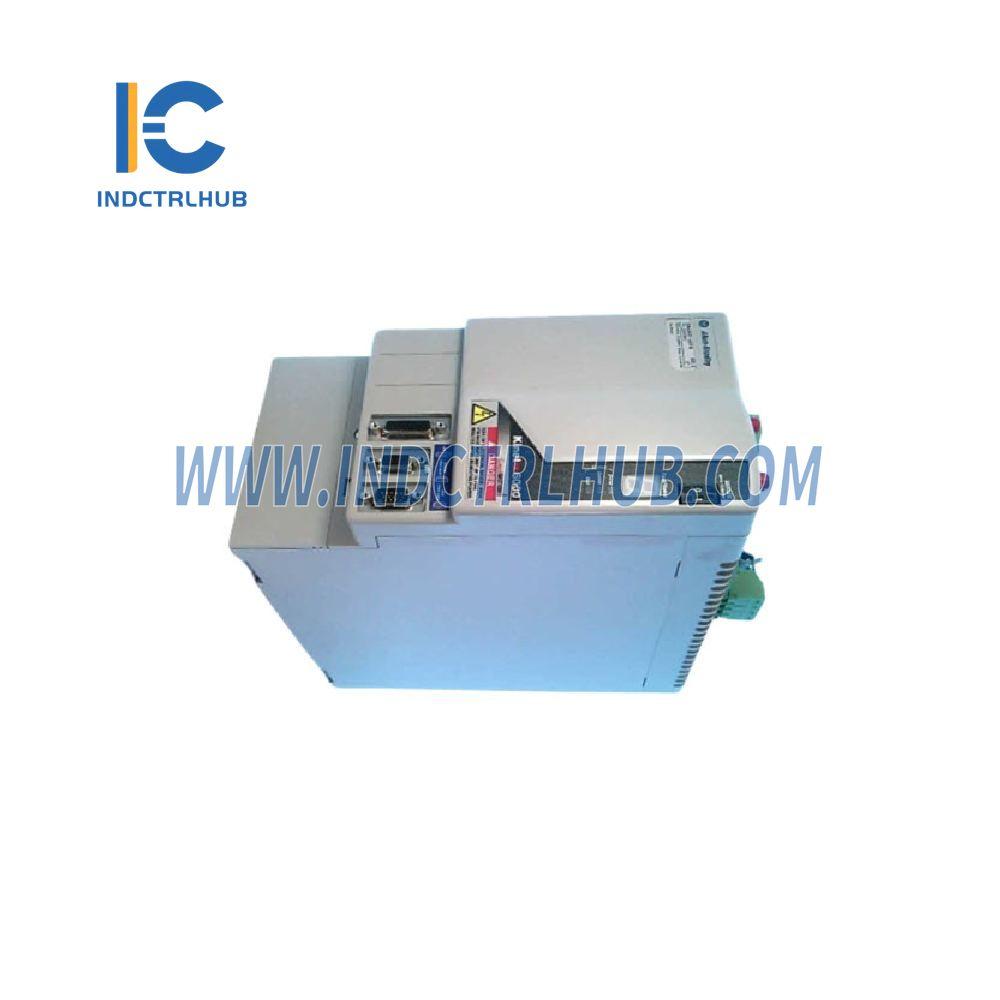

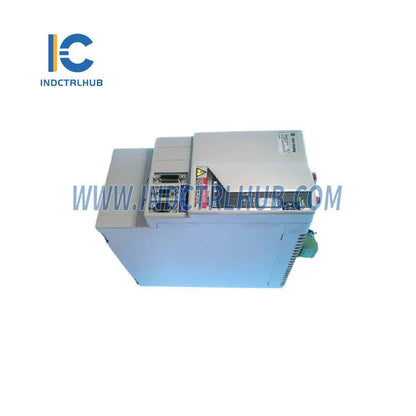

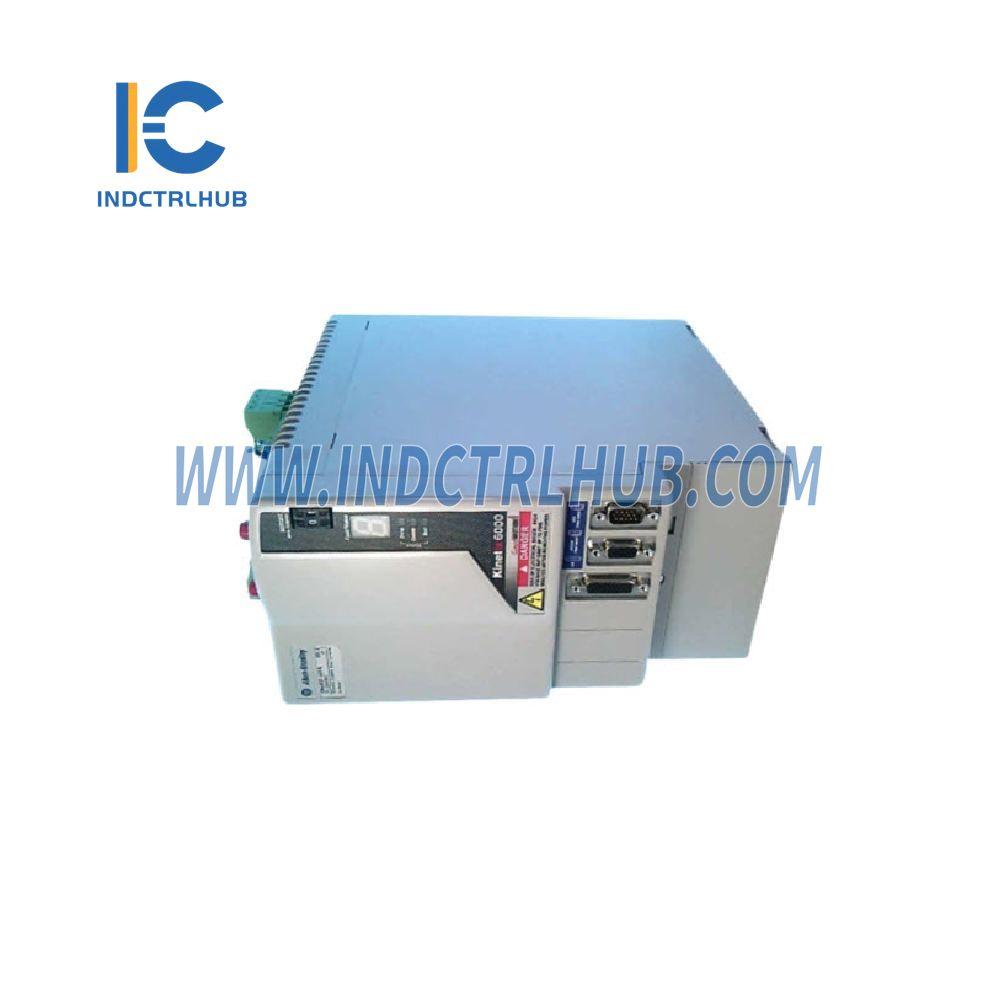

Manufacturer: Allen-Bradley
Model/Part Number: 2094-BC01-M01-S
Description: IAM (460V) Modules Power Kinetix 6000 Drives
Specifications
| Parameter |
Value |
| AC Input Voltage |
324…528V rms (three-phase), 360…480V nominal |
| AC Input Frequency |
47…63 Hz |
| Main AC Input Current |
Nominal: 10 A (rms), Max Inrush: 10 A (0-pk) |
| DC Input Voltage (Common Bus Follower) |
458…747V dc |
| DC Input Current (Common Bus Follower) |
10 A |
| Control Power AC Input Voltage |
95…264V rms (single-phase), 230V nominal |
| Control Power AC Input Current |
Nominal (@ 220/230V): 3 A (rms), Nominal (@ 110/115V): 6 A (rms), Max Inrush: 25 A |
| Nominal Bus Output Voltage |
650V dc |
| Line Loss Ride Through |
20 ms |
| Continuous Output Current to Bus |
10 A |
| Intermittent Output Current to Bus |
20 A |
| Bus Overvoltage |
825V dc |
| Bus Undervoltage |
275V dc |
| Internal Shunt |
Continuous Power: 50 W, Peak Power: 5600 W |
| Internal Shunt Resistor |
115 Ω |
| Shunt On |
805V dc |
| Shunt Off |
755V dc |
| Continuous Power Output to Bus |
6 kW |
| Peak Power Output |
12 kW |
| Efficiency |
95% |
| Converter Inductance |
250 μH |
| Converter Capacitance |
110 μF |
Power Dissipation Specifications
| Kinetix 6000 Drive Module |
20% Usage (watts) |
40% Usage (watts) |
60% Usage (watts) |
80% Usage (watts) |
100% Usage (watts) |
| Power Dissipation |
15 |
20 |
25 |
30 |
35 |
