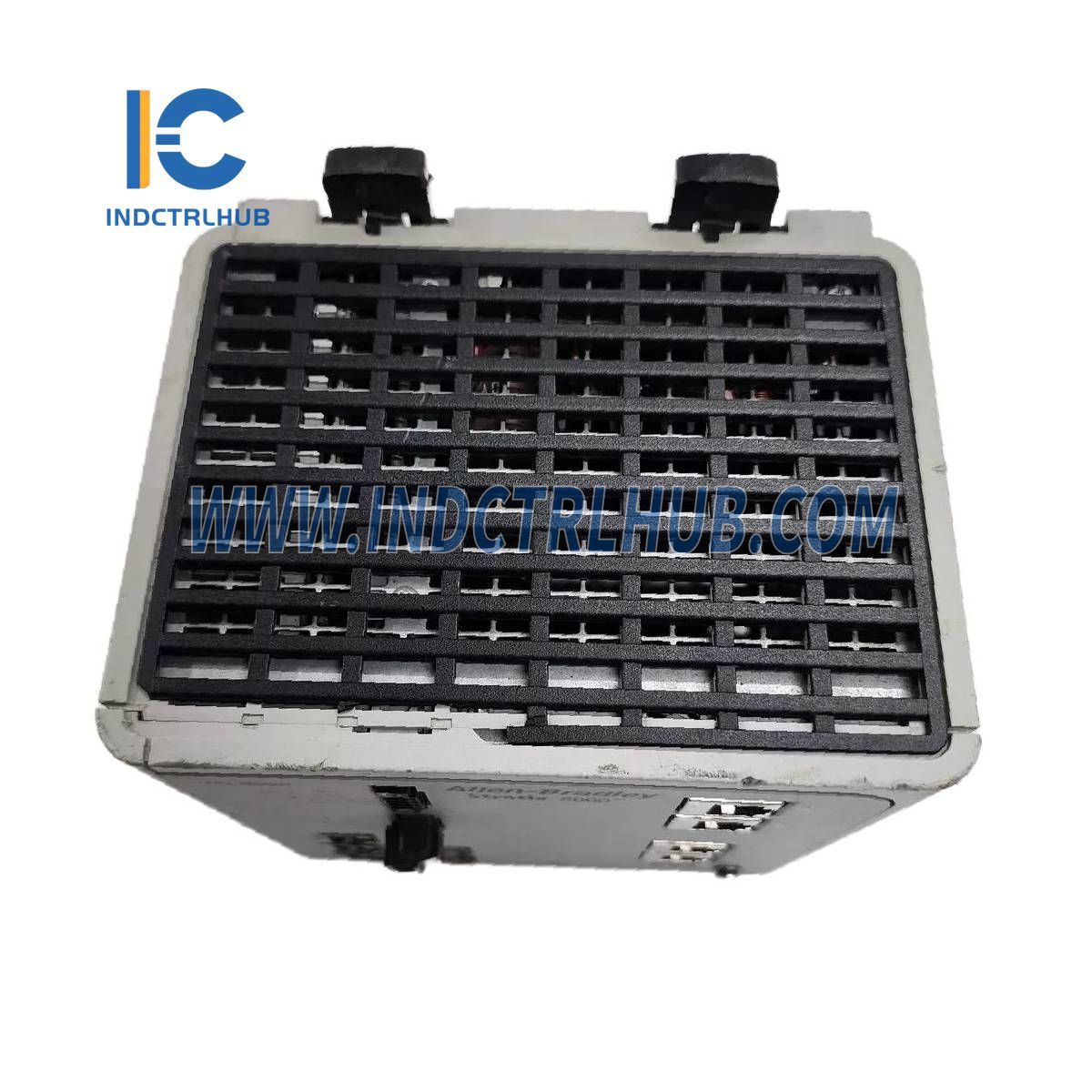

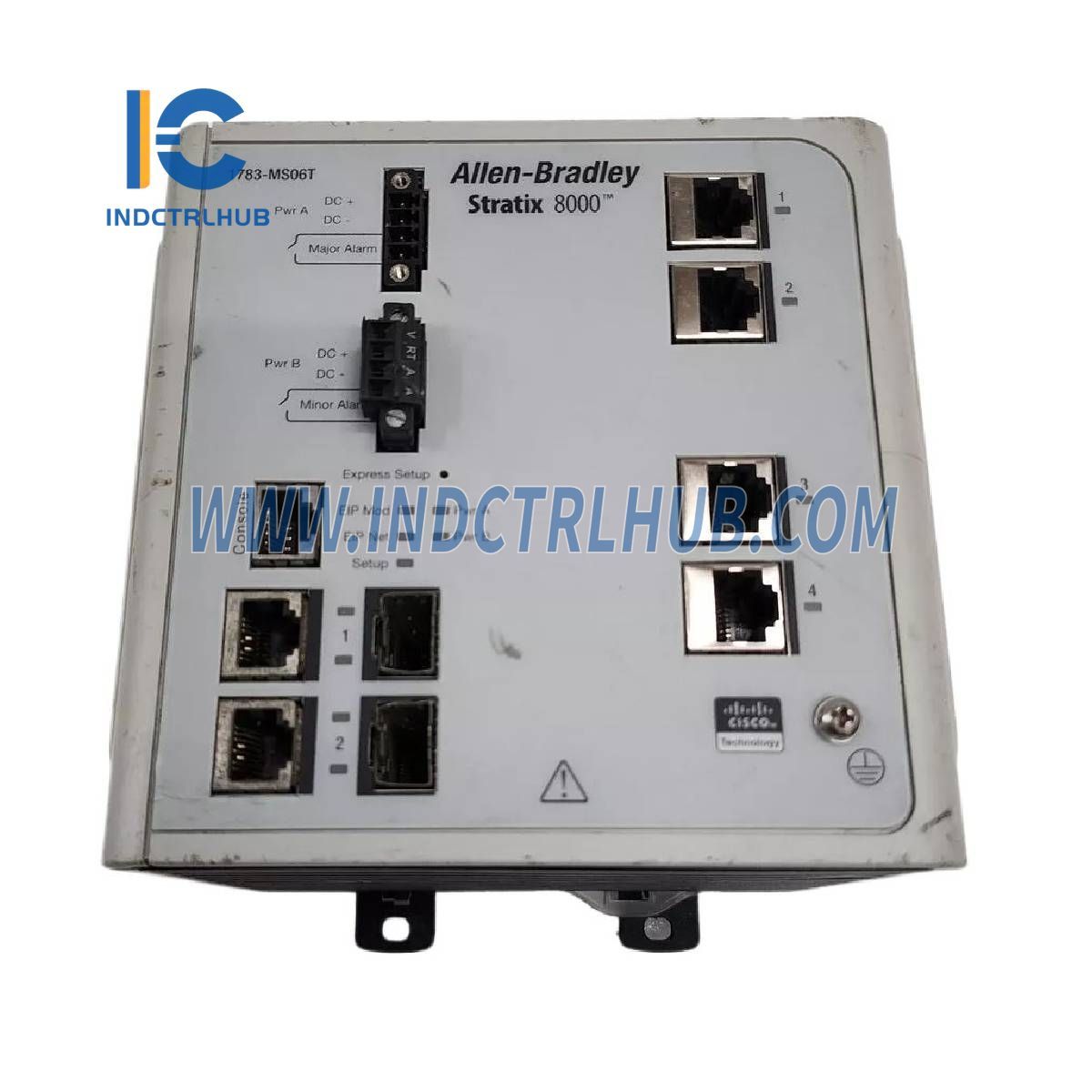

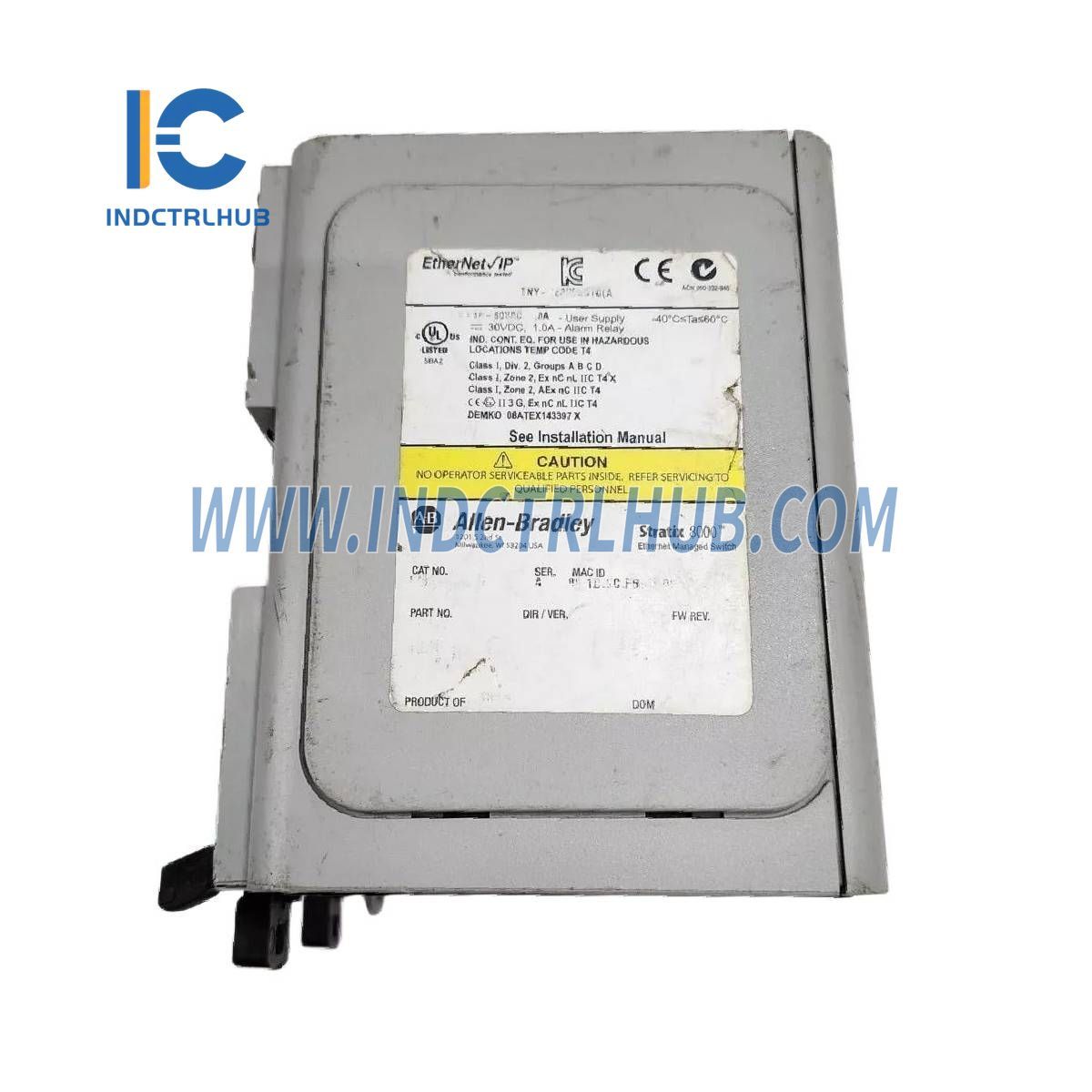

Allen-Bradley 1783-MS06T Stratix 8000 managed switch

Allen-Bradley 1783-MS06T Stratix 8000 managed switch

  • Manufacturer: Allen-Bradley

  • Product No.: 1783-MS06T

  • Condition:1000 in stock

  • Product Type: Stratix 8000 managed switch

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Allen-Bradley 1783-MS06T is a Stratix 8000 managed switch designed for industrial Ethernet applications. This Layer 2 switch offers six ports and provides high reliability and advanced network management features.

Technical Specifications

Power and Electrical Characteristics

Attribute Value
Inrush Current (Max) 2.0 A
Power Input (Max) 2 A @ 18–60V DC, CL 2/SELV
Alarm Relay (Max) 1 A @ 30V DC, CL 2/SELV
Power Consumption (Max) 15.1 W
Power Dissipation 15.1 W

Voltage and Isolation

  • Isolation Voltage:
    • 75V (continuous), basic insulation type
    • Power to ground, power to network channels, and power to alarm
    • No isolation between individual Ethernet ports
    • No isolation between console port and system
    • Type tested at 1000V AC for 60 seconds

Wiring and Connectivity

Connection Type Specifications
Ethernet RJ45 connector (IEC 60603-7)
Supports Category 5e (minimum) cable (TIA 568-B.1)
Compatible with Category 5 cable (ISO/IEC 24702)
DC Power & Alarm Wire Size: 0.5–0.8 mm² (20–18 AWG) solid or stranded copper wire
Wire Insulation: Rated at 90°C (194°F) or greater, 1.2 mm (3/64 in.) max insulation
Ground Connection Wire Size: 3.3–5.3 mm² (12–10 AWG) solid or stranded copper wire
Wire Insulation: Rated at 75°C (167°F) or greater
Screw Torque Power & Alarm Terminals: 0.23 N•m (2.0 in•lb)

Wiring Category

Port Type Category
Alarm Ports 2
Power Ports 2
Ethernet Ports 2

Physical and Environmental Ratings

Attribute Value
Enclosure Type None (open-style)
Pilot Duty Rating Not rated
Temperature Ratings North American Temp Code: T4
IEC Temp Code: T4

Supported SFP Modules

This switch is compatible with a range of SFP modules, which are supported on combo ports or SFP slots:

  • 100 Mbps Modules:
    • 1783-SFP100FX
    • 1783-SFP100LX
    • 1783-SFP100EXC
    • 1783-SFP100ZXC
    • 1783-SFP100T (Requires firmware revision 12.001 or later)
View full details

Product Description

Product Overview

The Allen-Bradley 1783-MS06T is a Stratix 8000 managed switch designed for industrial Ethernet applications. This Layer 2 switch offers six ports and provides high reliability and advanced network management features.

Technical Specifications

Power and Electrical Characteristics

Attribute Value
Inrush Current (Max) 2.0 A
Power Input (Max) 2 A @ 18–60V DC, CL 2/SELV
Alarm Relay (Max) 1 A @ 30V DC, CL 2/SELV
Power Consumption (Max) 15.1 W
Power Dissipation 15.1 W

Voltage and Isolation

  • Isolation Voltage:
    • 75V (continuous), basic insulation type
    • Power to ground, power to network channels, and power to alarm
    • No isolation between individual Ethernet ports
    • No isolation between console port and system
    • Type tested at 1000V AC for 60 seconds

Wiring and Connectivity

Connection Type Specifications
Ethernet RJ45 connector (IEC 60603-7)
Supports Category 5e (minimum) cable (TIA 568-B.1)
Compatible with Category 5 cable (ISO/IEC 24702)
DC Power & Alarm Wire Size: 0.5–0.8 mm² (20–18 AWG) solid or stranded copper wire
Wire Insulation: Rated at 90°C (194°F) or greater, 1.2 mm (3/64 in.) max insulation
Ground Connection Wire Size: 3.3–5.3 mm² (12–10 AWG) solid or stranded copper wire
Wire Insulation: Rated at 75°C (167°F) or greater
Screw Torque Power & Alarm Terminals: 0.23 N•m (2.0 in•lb)

Wiring Category

Port Type Category
Alarm Ports 2
Power Ports 2
Ethernet Ports 2

Physical and Environmental Ratings

Attribute Value
Enclosure Type None (open-style)
Pilot Duty Rating Not rated
Temperature Ratings North American Temp Code: T4
IEC Temp Code: T4

Supported SFP Modules

This switch is compatible with a range of SFP modules, which are supported on combo ports or SFP slots:

  • 100 Mbps Modules:
    • 1783-SFP100FX
    • 1783-SFP100LX
    • 1783-SFP100EXC
    • 1783-SFP100ZXC
    • 1783-SFP100T (Requires firmware revision 12.001 or later)
