Product Description
Product Details

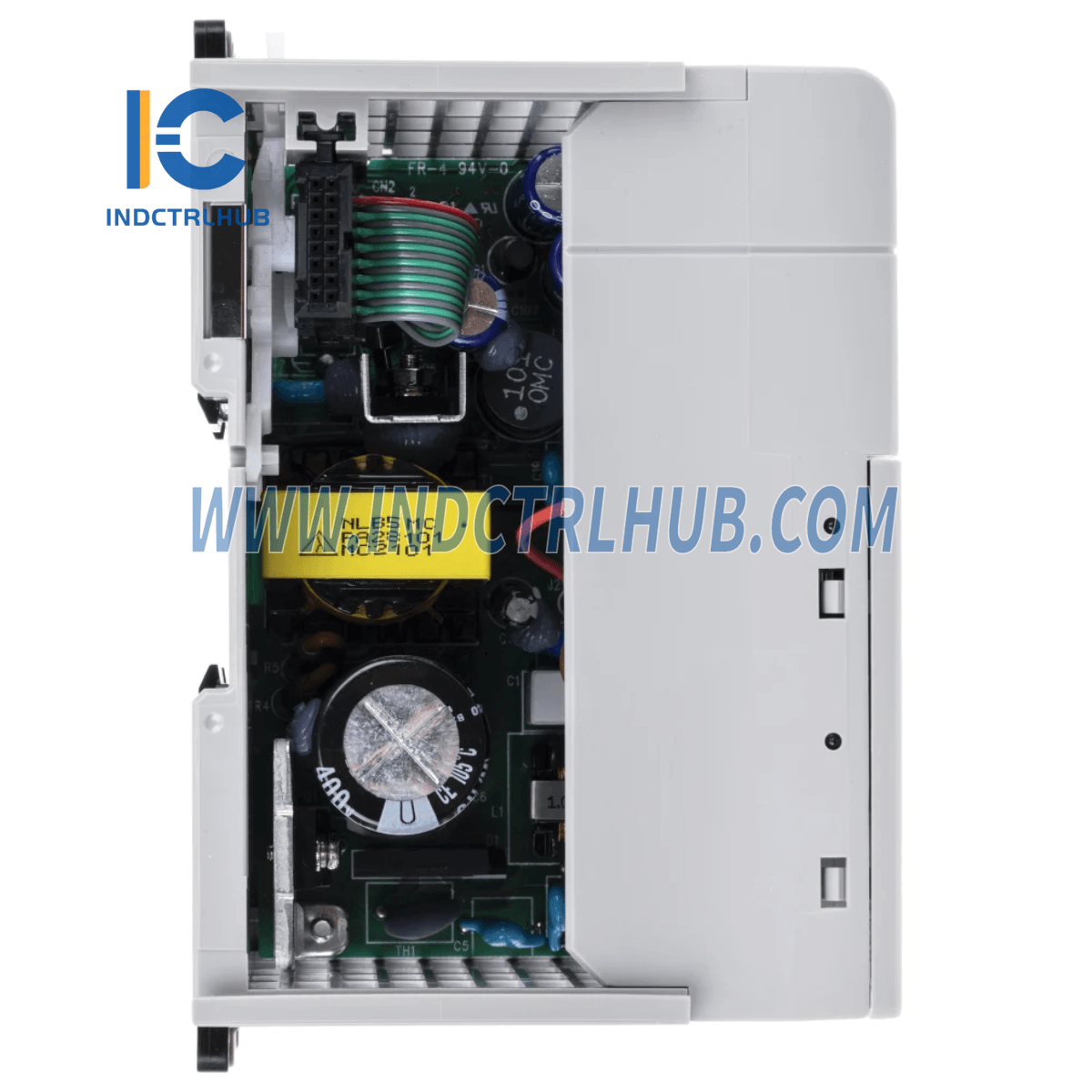

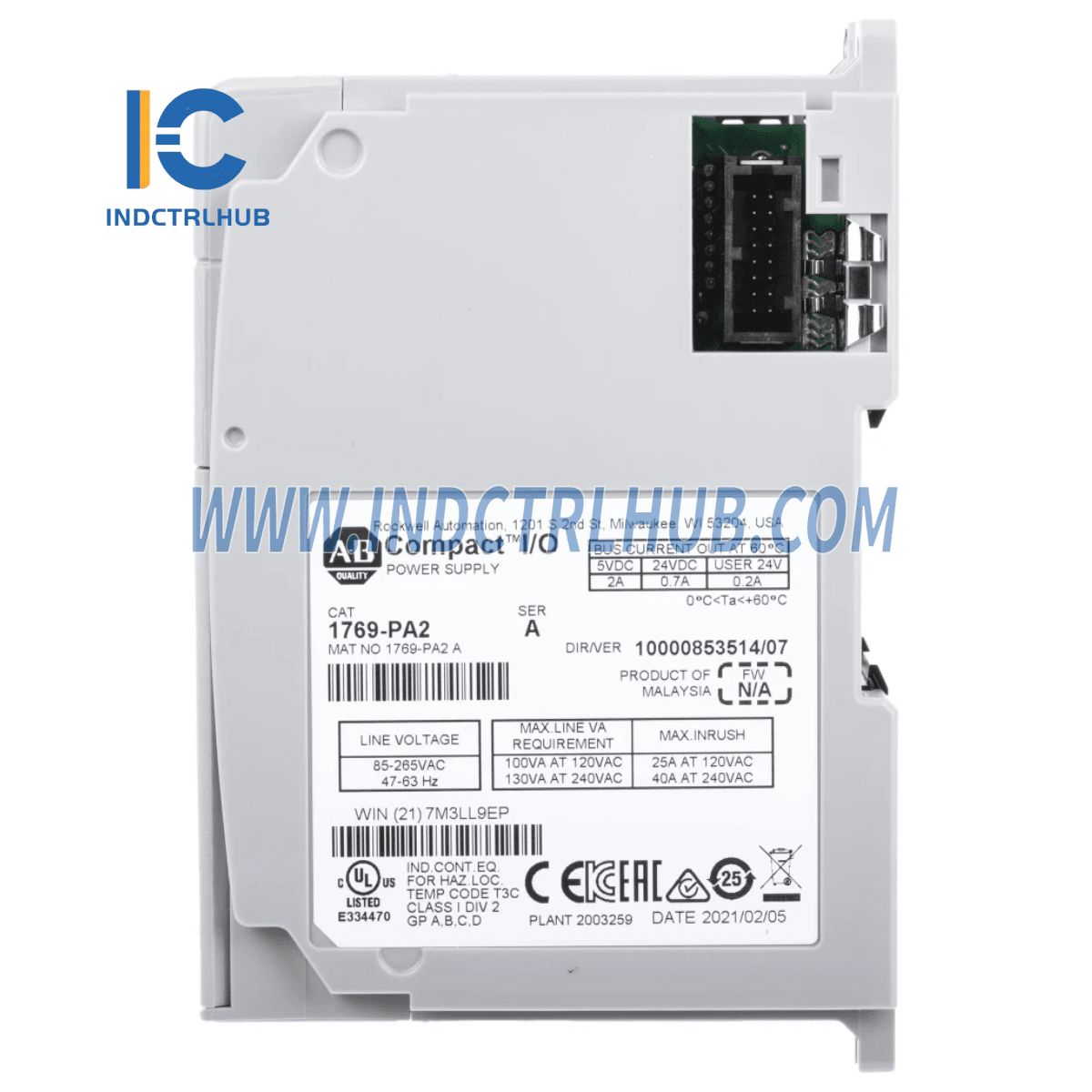

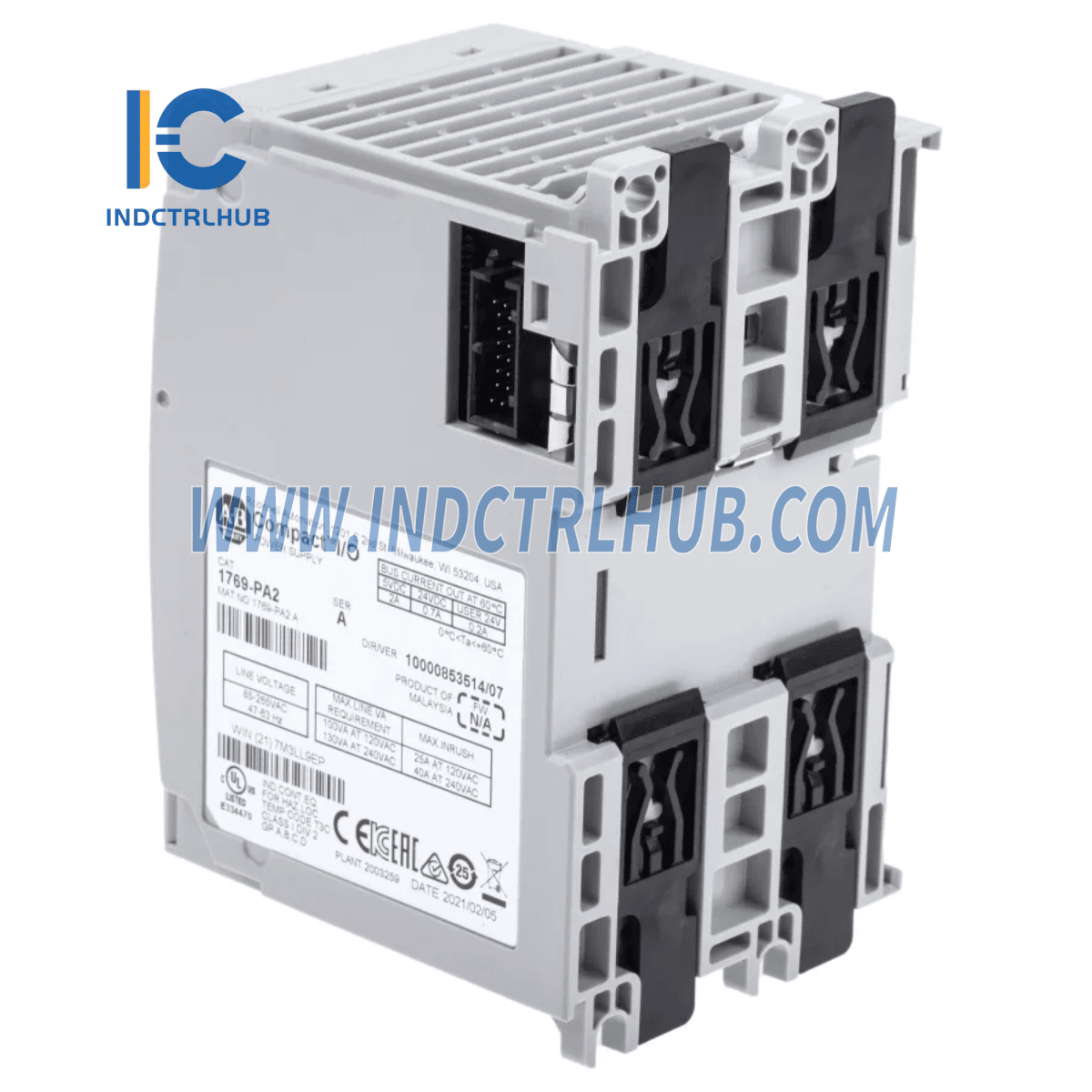

- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-PA2
- Model Type: CompactLogix AC 2A/0.8A Power Supply
Key Specifications
| Attribute | Description |
|---|---|
| Input Voltage Range | 85…265V AC or 19.2…31.2V DC |
| Input Frequency Range | 47…63 Hz (AC only) |
| Isolation Voltage | 265V (AC power input), 75V (DC power input) |
| Current Capacity @ 5V DC | 2.0 A |
| Current Capacity @ 24V DC | 0.8 A |
| Fuse Type | Littelfuse 02153.15MXP |
| Wire Size | 2.5 mm² (14 AWG) solid copper wire |
| Enclosure Type Rating | None (open-style) |
| Weight | Approx. 525 g (1.16 lb) |
| Dimensions (H x W x D) | 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) |
Temperature Specifications
| Attribute | Description |
|---|---|
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| North American Temp Code | T3C |
| UKEX/ATEX/IECEx Temp Code | N/A or T4 depending on model variant |
Electrical Specifications
| Attribute | Description |
|---|---|
| Isolation Voltage (AC) | Routine tested at 2596V DC for 1 second |
| Isolation Voltage (DC) | Routine tested at 1697V DC for 1 second |
| Current Capacity @ 5V DC | 2.0 A |
| Current Capacity @ 24V DC | 0.8 A |
Enclosure and Installation
| Attribute | Description |
|---|---|
| Mounting Type | Open-style |
| Wire Type | Rated at 90°C (194°F), insulation max 1.2mm (3/64 in.) |
| Wire Size | 2.5 mm² (14 AWG) solid copper wire |
