Product Description
Product Details
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

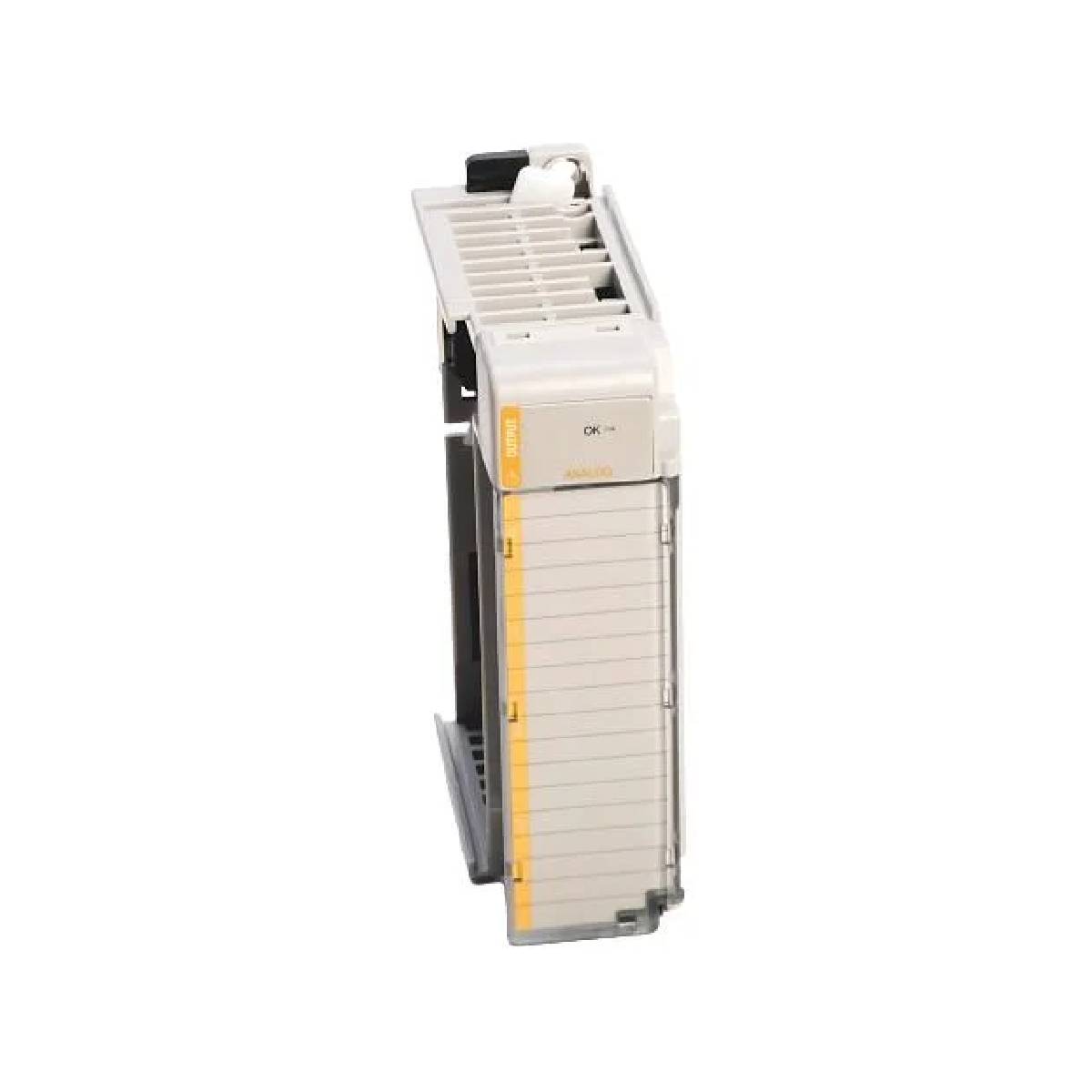

1769-OF4K |
|
Description |
Analog I/O Module |
Technical Specifications
|
Attribute |
Specification |
|---|---|
|
Inductive Load, Max |
0.1 mH (current load) 1.0 µF (voltage load) |
|
Field Calibration |
None required |
|
Accuracy |
0.5% full-scale at 25 °C (77 °F) |
|
Accuracy Drift with Temperature |
±0.0086% of full-scale per °C |
|
Output Ripple |
±0.05% @ 0…50 kHz |
|
Nonlinearity |
±0.05% |
|
Repeatability |
±0.05% |
|
Module Error (0…60 °C / 32…140 °F) |
±0.8% of full-scale |
|
Output Impedance |
Voltage output: < 1 Ω Current output: > 1 MΩ |
|
Open and Short-Circuit Protection |
Yes |
|
Short-Circuit Protection, Max |
40 mA |
|
Output Overvoltage Protection |
Yes |
|
Output Response at System Powerup/Power Down |
2.5…-1.0V DC spike for < 15 ms |
|
Rated Working Voltage |
30V AC / 30V DC |
|
Isolation Voltage |
510V AC or 720V DC for 1 min (qualification test) 30V AC/30V DC working voltage (IEC Class II reinforced insulation) |
|
Weight, Approx. |
280 g (0.61 lb) |
|
Dimensions (HxWxD), Approx. |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) |
|
Height with Mounting Tabs |
138 mm (5.43 in.) |
|
Slot Width |
1 |
|
Module Location |
DIN rail or panel mount |
|
Power Supply Compatibility |
1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
|
Power Supply Distance Rating |
8 modules |
|
Terminal Screw Torque |
0.68 N•m (6 lb•in) |
|
Retaining Screw Torque |
0.46 N•m (4.1 lb•in) |
|
Wire Size |
(22…14 AWG) solid (22…16 AWG) stranded |
|
Wire Type |
Cu-90 °C (194 °F) |
|
Replacement Terminal Block |
1769-RTBN18 (1 per kit) |
|
Replacement Door Label |
1769-RL2 (2 per kit) |
|
Replacement Door |
1769-RD (2 per kit) |
|
Vendor ID Code |
1 |
|
Product Type Code |
10 |
|
Product Code |
48 |
|
Input Words |
5 |
|
Output Words |
5 |
|
Configuration Words |
32 |
|
Enclosure Type Rating |
None (open style) |
