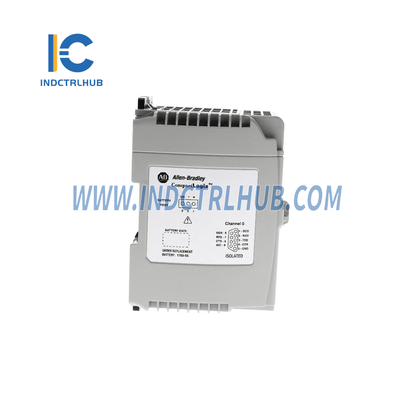

Allen-Bradley 1769-L32E CompactLogix 750KB Enet Controller

Allen-Bradley 1769-L32E CompactLogix 750KB Enet Controller

  • Manufacturer: Allen-Bradley

  • Product No.: 1769-L32E

  • Condition:1000 in stock

  • Product Type: CompactLogix 750KB Enet Controller

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-L32E
  • Model Type: CompactLogix 750KB Ethernet Controller

Description

The Allen-Bradley 1769-L32E is a CompactLogix™ 5370 modular controller designed for mid-range automation applications that require Ethernet/IP communication and high-speed processing. It features 750KB of user memory, support for up to 30 I/O modules, and RS-232 and Ethernet communication ports for enhanced connectivity.

Key Features

  • 750KB user memory for program and data storage.
  • Supports up to 30 local 1769 I/O modules for flexible expansion.
  • Built-in 10/100BASE-T Ethernet port for high-speed network connectivity.
  • RS-232 serial communication port for additional device integration.
  • Modular design for easy expansion and customization.
  • DIN rail or panel mountable for easy installation.

Technical Specifications

Attribute 1769-L32E
User Memory 750KB
Non-Volatile Memory 1784-CF128 (optional)
Max Local I/O Modules 30 (1769 modules)
Max I/O Banks 3
Current Draw @ 5V DC 660mA
Current Draw @ 24V DC 90mA
Power Dissipation 5.5W
Replacement Battery 1769-BA
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power Supply Distance Rating 4 modules
Isolation Voltage 30V (continuous), Basic Insulation Type (Tested at 710V DC for 60s)

Communication & Connectivity

Attribute Specification
Ethernet Port 10/100BASE-T
RS-232 Port Fully isolated, supports DF1, DH-485, ASCII, max 38.4 Kbps
Serial Cables 1756-CP3 or 1747-CP3, 3m (right-angle connector to controller)

Environmental Specifications

Attribute Value
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Max Surrounding Air Temp 60°C (140°F)
Relative Humidity 5% to 95% (non-condensing)
Vibration Resistance 5g @ 10–500Hz
Shock Resistance (DIN Rail Mount) Operating: 20g, Non-operating: 30g
Shock Resistance (Panel Mount) Operating: 30g, Non-operating: 40g
ESD Immunity IEC 61000-4-2 (6kV contact, 8kV air discharges)
EFT/B Immunity IEC 61000-4-4 (±2kV at 5kHz on communication ports, ±3kV at 5kHz on power ports)
Surge Immunity IEC 61000-4-5 (±2kV line-earth CM on communication ports)
Radiated RF Immunity IEC 61000-4-3 (10V/m from 80–2000MHz, 3V/m from 2000–2700MHz)

Mounting & Installation

Attribute Specification
Module Location DIN Rail or Panel Mount
Panel Mount Screw Torque 1.1–1.8 N•m (10–16 lb•in)
Slot Width 1
Weight 0.32kg (0.70lb)
Enclosure Type Rating None (Open-Style)

Applications

The Allen-Bradley 1769-L32E CompactLogix Controller is ideal for:

  • Mid-sized machine control and process automation.
  • Ethernet-based distributed control systems.
  • Manufacturing, packaging, and material handling.
  • Integration with SCADA and HMI systems for real-time monitoring.
  • Applications requiring flexible I/O expansion and high-speed communication.
