Product Description
Product Details
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

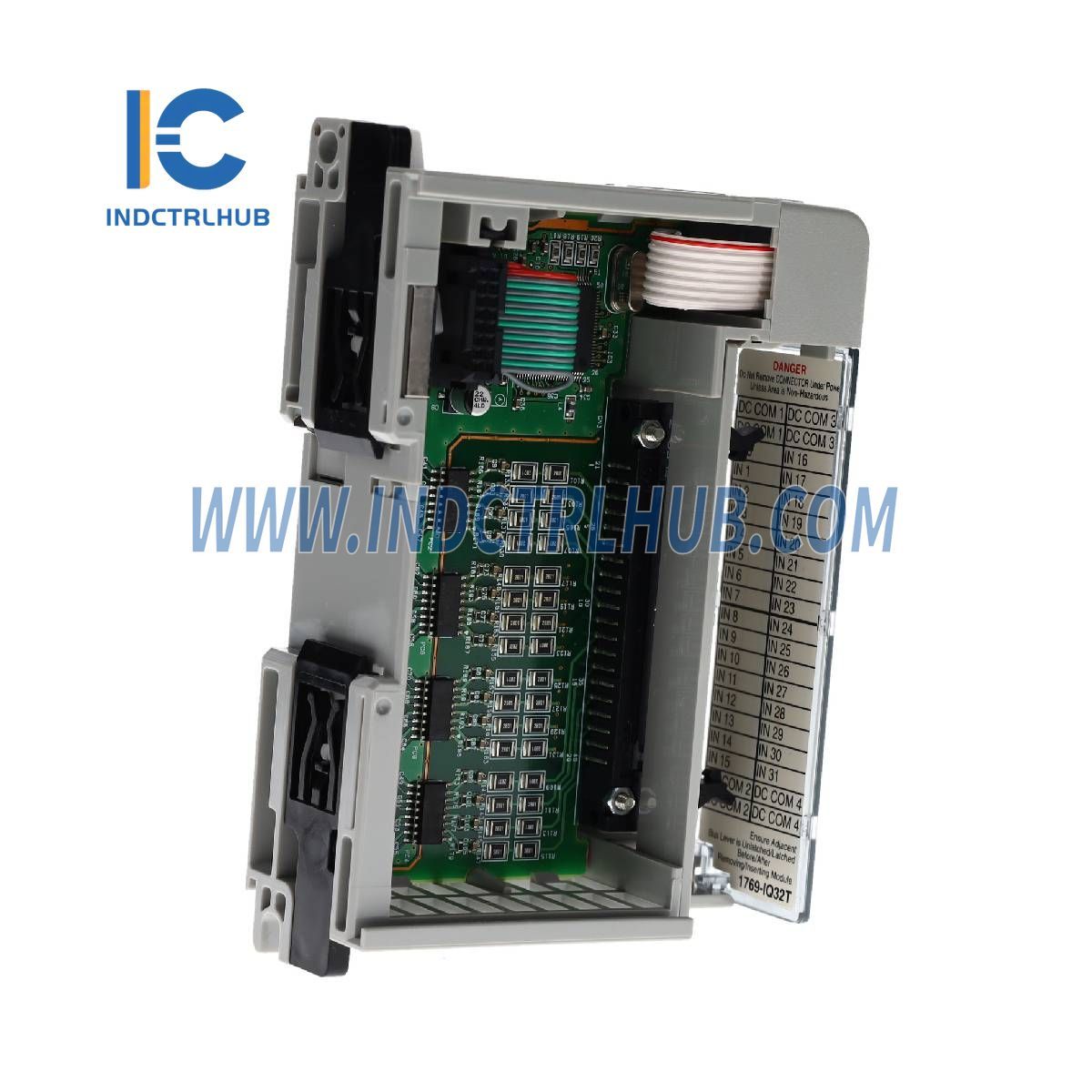

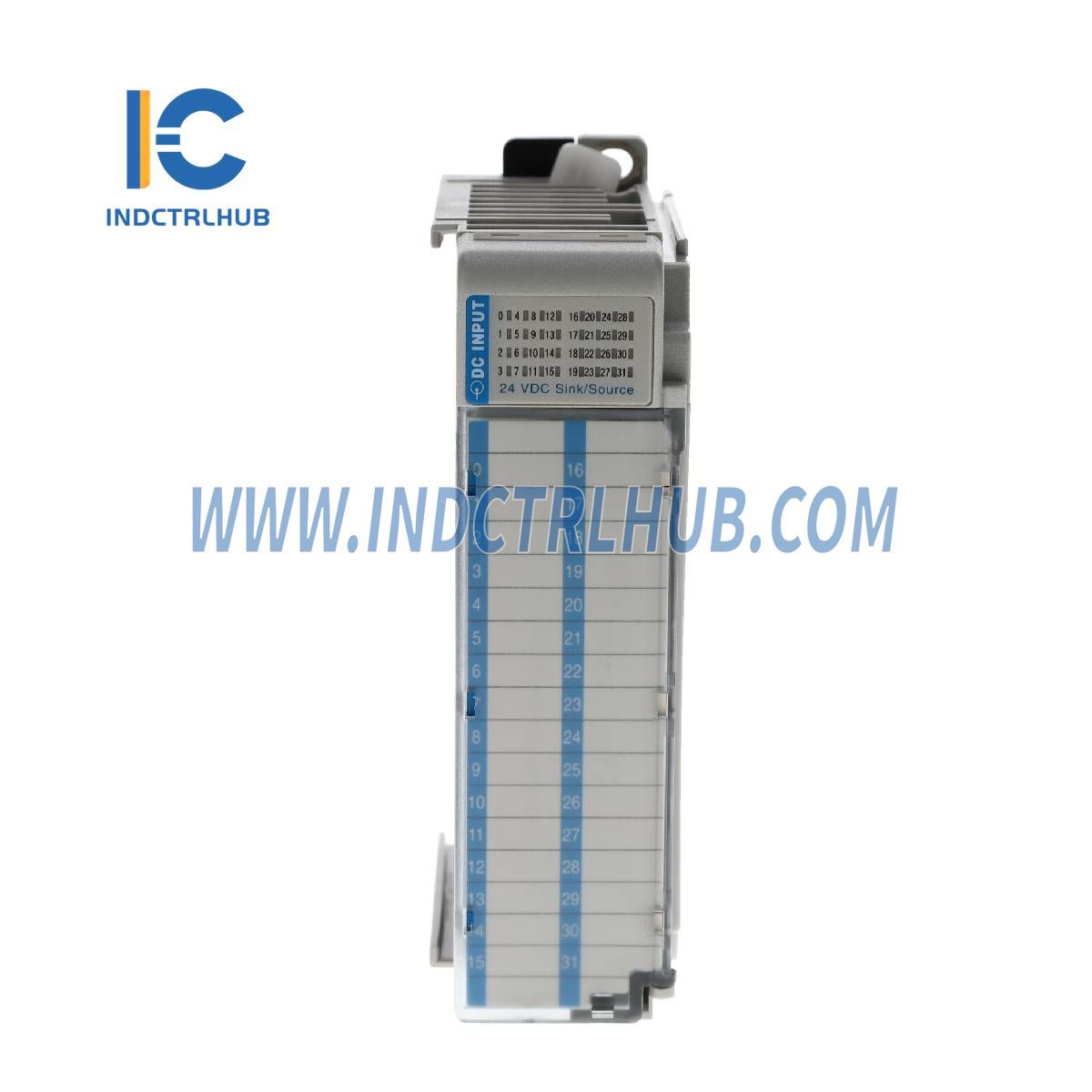

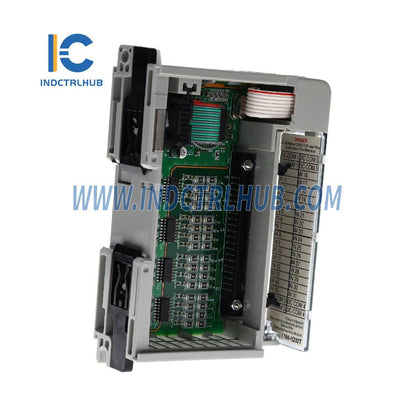

1769-IQ32/T |
|
Description |
Compact 32-point 24V DC Sink/Source Input Module |
Input Specifications
|
Attribute |
Specification |
|---|---|
|
Voltage Category |
24V DC (sink/source) |
|
Operating Voltage Range |
10 to 30V DC at 30°C (86°F) / 10 to 26.4V DC at 60°C (140°F) |
|
Number of Inputs |
32 |
|
Bus Current Draw (max.) |
170 mA at 5V DC (0.85W) |
|
Heat Dissipation |
4.6 W (Total Watts with all points energized) |
|
Signal Delay (max.) |
On Delay: 8.0 ms, Off Delay: 8.0 ms |
|
Off-State Voltage (max.) |
5V DC |
|
Off-State Current (max.) |
1.5 mA |
|
On-State Voltage (min.) |
10V DC |
|
On-State Current (min.) |
2.0 mA |
|
Inrush Current (max.) |
250 mA |
|
Nominal Impedance |
5.2 kΩ at 24V DC, 6.1 kΩ at 30V DC |
|
IEC Input Compatibility |
Type 1+ |
|
Power Supply Distance Rating |
8 modules (Max distance from power supply/controller) |
|
Input Point to Bus (Compact Bus) Isolation |
1200V AC for 1 sec. or 1697V DC for 1 sec. |
|
Working Voltage |
75V DC (IEC Class 2 reinforced insulation) |
|
Isolated Groups |
Group 1: Inputs 0-7, Group 2: Inputs 8-15, Group 3: Inputs 16-23, Group 4: Inputs 24-31 |
|
Input Group to Input Group Isolation |
1200V AC for 1 sec. or 1697V DC for 1 sec. |
|
Vendor I.D. Code |
1 |
|
Product Type Code |
7 |
|
Product Code |
68 |
