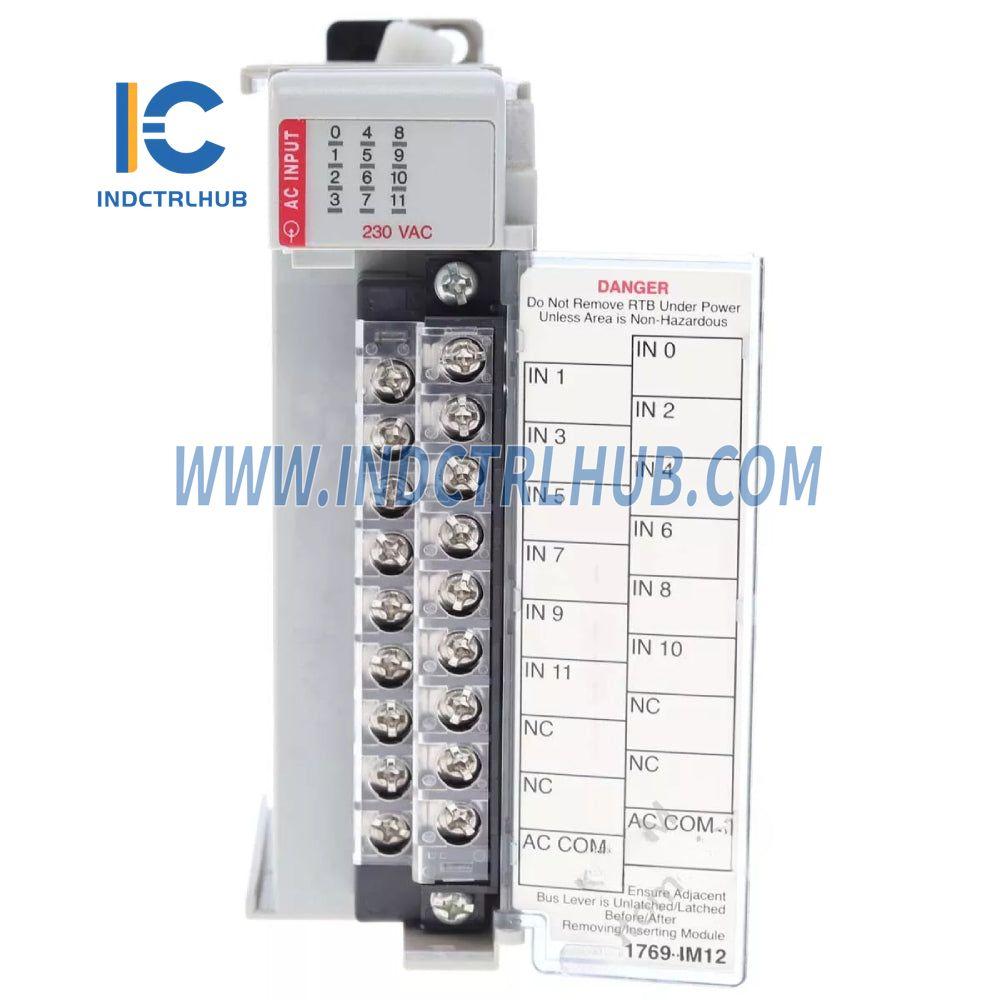

Allen-Bradley 1769-IM12 Compact I/O Modules

Allen-Bradley 1769-IM12 Compact I/O Modules

  • Manufacturer: Allen-Bradley

  • Product No.: 1769-IM12

  • Condition:1000 in stock

  • Product Type: Compact I/O Modules

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Allen-Bradley 1769-IM12 Compact I/O Module

Manufacturer: Allen-Bradley
Model/Part Number: 1769-IM12
Description: Compact I/O Module for Industrial Automation Systems

Technical Specifications

Attribute Specification
Inputs 12 (12 points/group, internally connected commons)
Voltage Category 200/240V AC
Operating Voltage Range 159…265V AC, 47…63 Hz
Input Delay (On) 20 ms
Input Delay (Off) 20 ms
Current Draw @ 5.1V 100 mA
Heat Dissipation (max) 3.65 W
Off-State Voltage (max) 40V AC
Off-State Current (max) 2.5 mA
On-State Voltage (min) 159V AC
On-State Current (min) 5 mA @ 74V AC
On-State Current (max) 12 mA @ 120V AC
Inrush Current (max) 250 mA
Input Impedance (max) 27 kΩ @ 50 Hz, 23 kΩ @ 60 Hz
Isolation Voltage 1836V AC for 1 s or 2596V DC for 1 s, input point to bus
Working Voltage (IEC Class II) 132V AC
Weight 300 g (0.61 lb)
Dimensions (HxWxD) 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with Mounting Tabs 138 mm (5.43 in.)
Slot Width 1 Module
Module Location DIN rail or panel mount
Power Supply Compatibility 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power Supply Distance Rating 8 modules
Terminal Screw Torque 0.68 N•m (6 lb•in)
Retaining Screw Torque 0.46 N•m (4.1 lb•in)
Wire Size Solid: 22…14 AWG, Stranded: 22…16 AWG
Wire Type Cu-90°C (194°F)
IEC Input Compatibility Type 1+
Replacement Terminal Block 1769-RTBN18 (1 per kit)
Replacement Door Label 1769-RL1 (2 per kit)
Replacement Door 1769-RD (2 per kit)
Vendor ID Code 1
Product Type Code 7
Product Code 83
Enclosure Type Rating None (open-style)

Environmental and Mechanical Specifications

Attribute Specification
Operating Temperature 0…60°C (32…140°F)
Non-operating Temperature -40…+85°C (-40…+185°F)
Relative Humidity 5…95% non-condensing (IEC 60068-2-30 Test Db)
Vibration (Operating) 5 g @ 10…500 Hz (IEC 60068-2-6 Test Fc)
Vibration (Relay Operating) 2 g @ 10…500 Hz
Shock (Operating) 30 g (panel mount), 20 g (DIN rail mount) (IEC 60068-2-27 Test Ea)
Shock (Relay Operating) 7.5 g (panel mount), 5 g (DIN rail mount) (IEC 60068-2-27 Test Ea)
Shock (Non-operating) 40 g (panel mount), 30 g (DIN rail mount) (IEC 60068-2-27 Test Ea)


View full details

Product Description

Allen-Bradley 1769-IM12 Compact I/O Module

Manufacturer: Allen-Bradley
Model/Part Number: 1769-IM12
Description: Compact I/O Module for Industrial Automation Systems

Technical Specifications

Attribute Specification
Inputs 12 (12 points/group, internally connected commons)
Voltage Category 200/240V AC
Operating Voltage Range 159…265V AC, 47…63 Hz
Input Delay (On) 20 ms
Input Delay (Off) 20 ms
Current Draw @ 5.1V 100 mA
Heat Dissipation (max) 3.65 W
Off-State Voltage (max) 40V AC
Off-State Current (max) 2.5 mA
On-State Voltage (min) 159V AC
On-State Current (min) 5 mA @ 74V AC
On-State Current (max) 12 mA @ 120V AC
Inrush Current (max) 250 mA
Input Impedance (max) 27 kΩ @ 50 Hz, 23 kΩ @ 60 Hz
Isolation Voltage 1836V AC for 1 s or 2596V DC for 1 s, input point to bus
Working Voltage (IEC Class II) 132V AC
Weight 300 g (0.61 lb)
Dimensions (HxWxD) 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with Mounting Tabs 138 mm (5.43 in.)
Slot Width 1 Module
Module Location DIN rail or panel mount
Power Supply Compatibility 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power Supply Distance Rating 8 modules
Terminal Screw Torque 0.68 N•m (6 lb•in)
Retaining Screw Torque 0.46 N•m (4.1 lb•in)
Wire Size Solid: 22…14 AWG, Stranded: 22…16 AWG
Wire Type Cu-90°C (194°F)
IEC Input Compatibility Type 1+
Replacement Terminal Block 1769-RTBN18 (1 per kit)
Replacement Door Label 1769-RL1 (2 per kit)
Replacement Door 1769-RD (2 per kit)
Vendor ID Code 1
Product Type Code 7
Product Code 83
Enclosure Type Rating None (open-style)

Environmental and Mechanical Specifications

Attribute Specification
Operating Temperature 0…60°C (32…140°F)
Non-operating Temperature -40…+85°C (-40…+185°F)
Relative Humidity 5…95% non-condensing (IEC 60068-2-30 Test Db)
Vibration (Operating) 5 g @ 10…500 Hz (IEC 60068-2-6 Test Fc)
Vibration (Relay Operating) 2 g @ 10…500 Hz
Shock (Operating) 30 g (panel mount), 20 g (DIN rail mount) (IEC 60068-2-27 Test Ea)
Shock (Relay Operating) 7.5 g (panel mount), 5 g (DIN rail mount) (IEC 60068-2-27 Test Ea)
Shock (Non-operating) 40 g (panel mount), 30 g (DIN rail mount) (IEC 60068-2-27 Test Ea)
