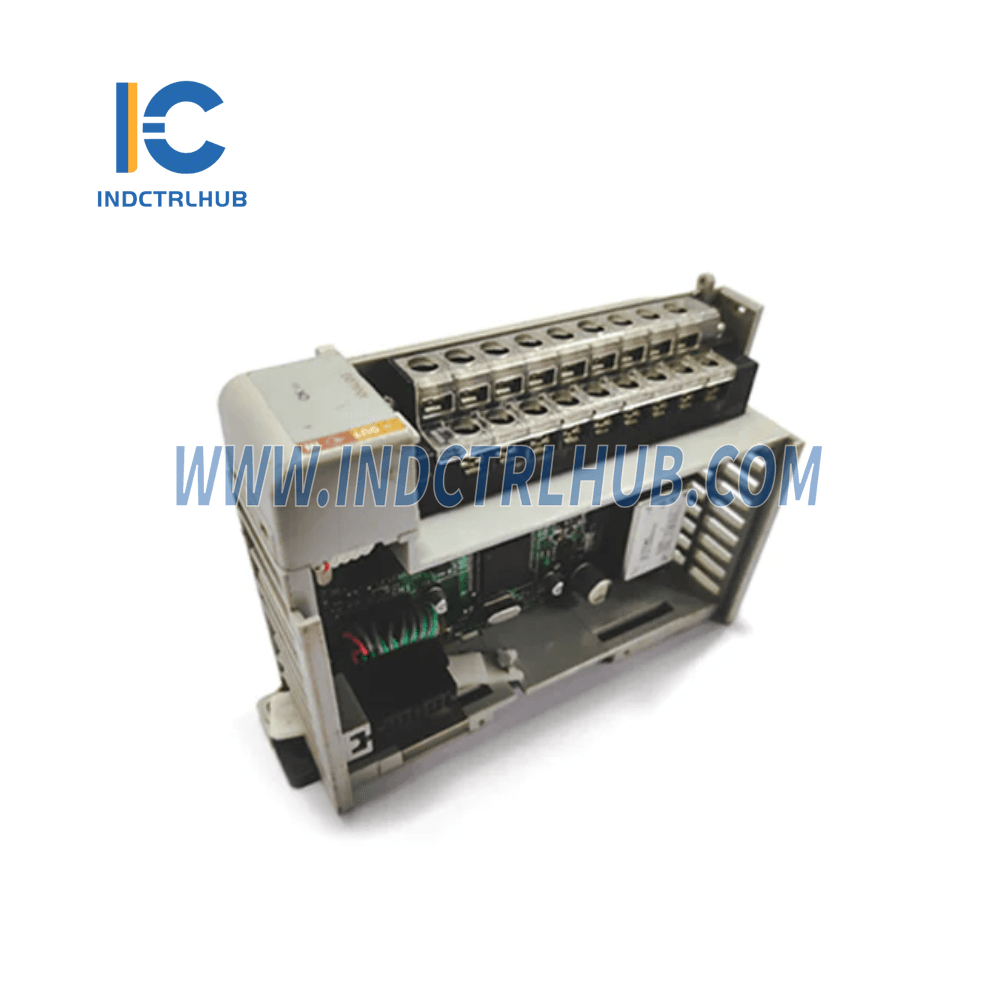

Allen-Bradley 1769-IF4XOF2 Compact I/O Analog Combination Module
Allen-Bradley 1769-IF4XOF2 Compact I/O Analog Combination Module
Manufacturer: Allen-Bradley
Product No.: 1769-IF4XOF2
Condition:1000 in stock
Product Type: Compact I/O Analog Combination Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 290g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Allen-Bradley 1769-IF4XOF2V Compact I/O Analog Combination Module
Manufacturer: Allen-Bradley
Model/Part Number: 1769-IF4XOF2V
Description: Compact I/O Analog Combination Module
General Specifications
| Attribute | Specification |
|---|---|
| Dimensions | 118 mm (height) x 87 mm (depth) x 35 mm (width); height including mounting tabs is 138 mm |
| Approximate Shipping Weight | 290g (0.64 lbs.) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 2000 meters (6561 feet) |
| Vibration | Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak |
| Shock (Operating) | 30G, 11 ms (panel mounted), 20G, 11 ms (DIN rail mounted) |
| Shock (Relay Operation) | 7.5G panel mounted, 5G DIN rail mounted |
| Shock (Non-Operating) | 40G panel mounted, 30G DIN rail mounted |
| Bus Current Draw (max.) | 120 mA at 5V dc, 160 mA at 24V dc |
| Heat Dissipation | 3.03 Total Watts |
| System Power Supply Distance Rating | Maximum of 8 modules away from the system power supply |
| Recommended I/O Cable | Belden™ 8761 (shielded) |
| Maximum I/O Cable Length | 200m (656 feet), exceeding cable length reduces accuracy |
Agency Certifications and Compliance
- C-UL: Certified under CSA C22.2 No. 142
- UL 508: Listed
- CE: Compliant for all applicable directives
- C-Tick: Compliant for all applicable directives
- Hazardous Location Class: Class I, Division 2, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
Electrical/EMC Immunity Testing
| Test Type | Specification |
|---|---|
| ESD Immunity (IEC61000-4-2) | 4 kV contact, 8 kV air, 4 kV indirect |
| Radiated Immunity (IEC61000-4-3) | 10 V/m , 80 to 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier |
| Fast Transient Burst (IEC61000-4-4) | 2 kV, 5kHz |
| Surge Immunity (IEC61000-4-5) | 1 kV galvanic gun |
| Conducted Immunity (IEC61000-4-6) | 10 V, 0.15 to 80 MHz |
Module Diagnostics and Configuration
-
Module OK LED:
- On: The module has power, has passed internal diagnostics, and is communicating over the bus.
- Off: Any of the above is not true.
Key Features
- Versatile Application: Combines multiple analog input/output functions into a single module, ideal for compact systems.
- Robust Environmental Protection: Suitable for use in hazardous locations (Class I, Division 2), ensuring durability and safety in demanding industrial environments.
- Excellent EMI/EMC Immunity: Passed rigorous immunity testing to ensure reliable performance in electrically noisy environments.
- Long Cable Distance Support: With proper cabling, it supports up to 200 meters (656 feet), ideal for large installations.
This Allen-Bradley 1769-IF4XOF2V module is an ideal solution for applications requiring analog inputs and outputs in a compact, high-performance package. It's designed to withstand harsh industrial environments while maintaining excellent accuracy and communication reliability
