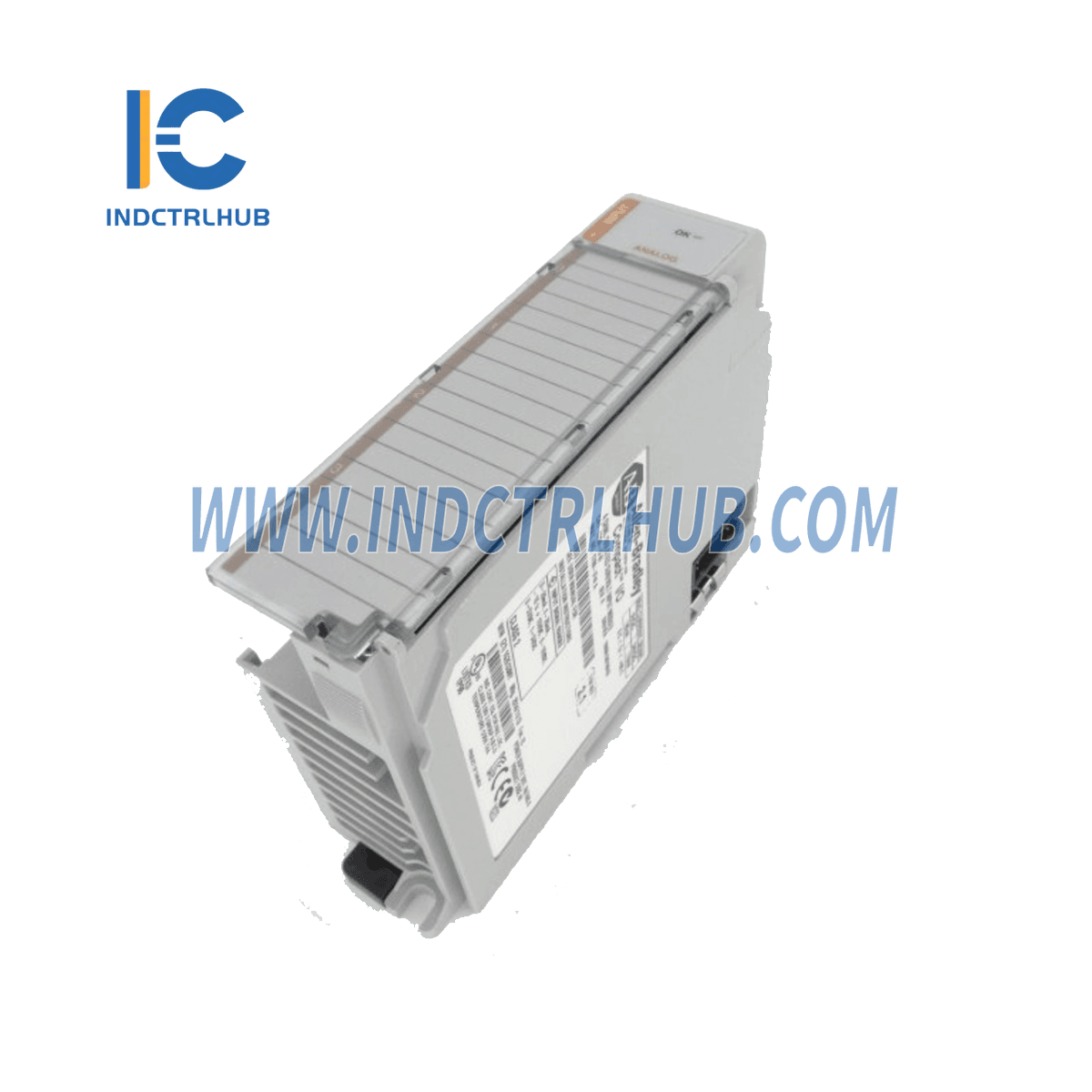

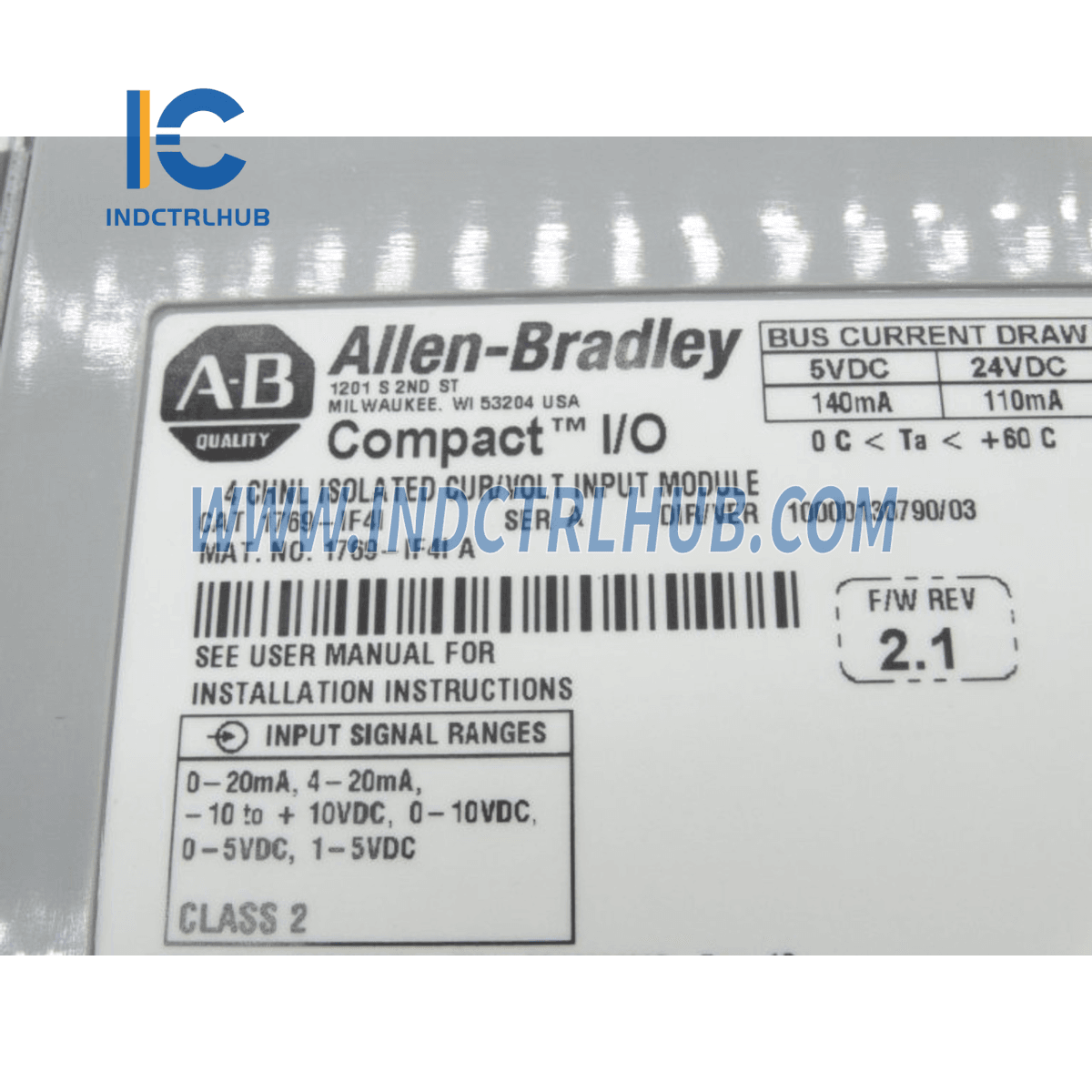

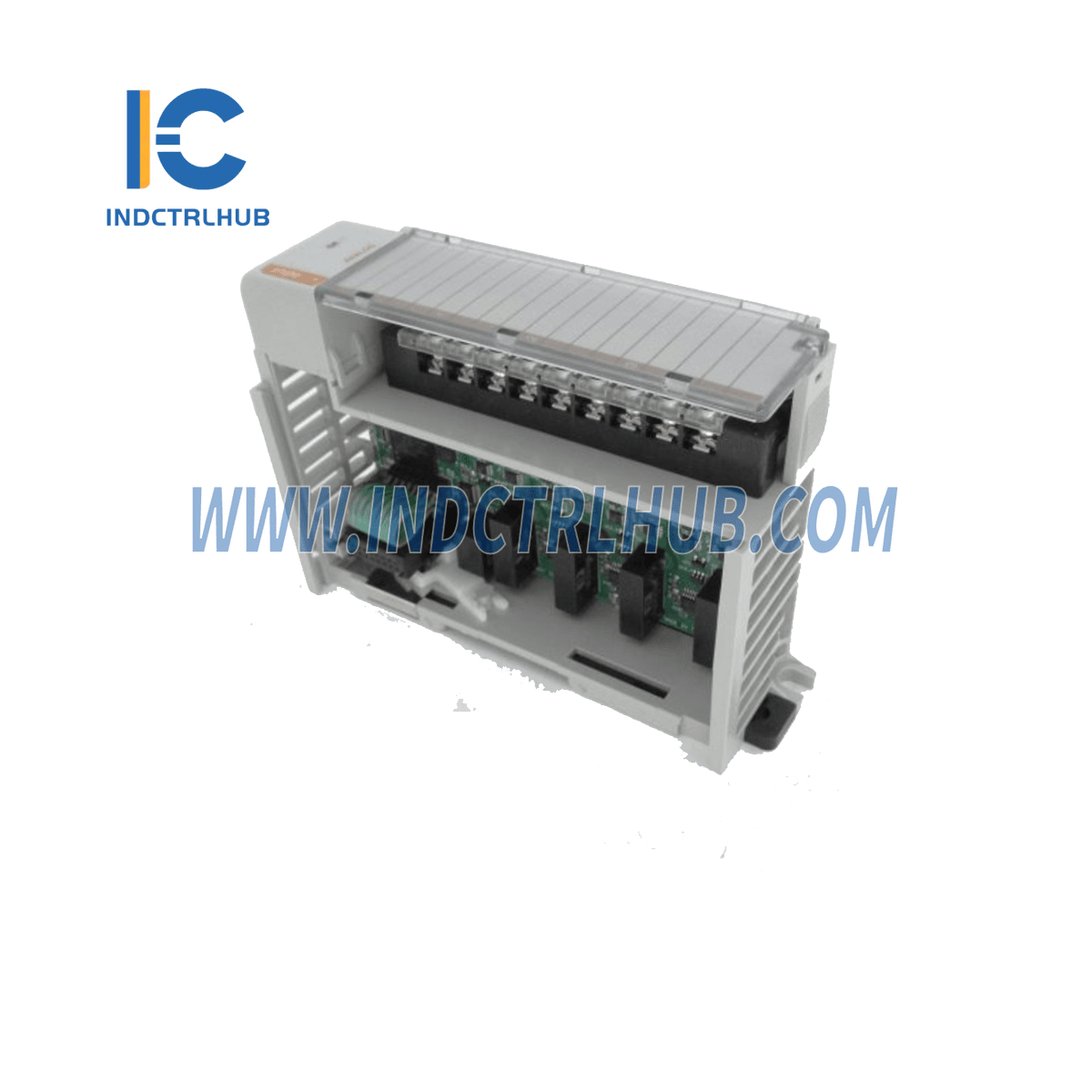

Allen-Bradley 1769-IF4I CompactLogix 4 Pt A/I C and V Iso Module

Allen-Bradley 1769-IF4I CompactLogix 4 Pt A/I C and V Iso Module

  • Manufacturer: Allen-Bradley

  • Product No.: 1769-IF4I

  • Condition:1000 in stock

  • Product Type: CompactLogix 4 Pt A/I C and V Iso Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-IF4I
  • Model Type: CompactLogix 4-Point Analog Input (Current and Voltage, Isolated) Module

Technical Specifications

Attribute 1769-IF4I
Enclosure Type Rating None (open-style)
Dimensions (HxWxD) 118 mm x 35 mm x 87 mm
Height (with mounting tabs) 138 mm (5.43 in.)
Approximate Shipping Weight 300 g (0.66 lbs.)
Wire Size 0.32–2.1 mm² (22–14 AWG) solid copper wire or 0.32–1.3 mm² (22–16 AWG) stranded copper wire rated at 90°C (194°F) insulation max
Wiring Category(1) 2 - on signal ports
North American Temperature Code T4A

Input Specifications

Attribute 1769-IF4I
Analog Normal Operating Ranges(1) Voltage: ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC; Current: 0–20 mA, 4–20 mA
Full Scale Analog Ranges(1) Voltage: ±10.5V DC, 0–10.5V DC, 0–5.25V DC, 0.5–5.25V DC; Current: 0–21 mA, 3.2–21 mA
Number of Inputs 4 isolated differential
Bus Current Draw (Max.) 145 mA at 5V DC, 125 mA at 24V DC
Heat Dissipation 3.0W (Total Watts with all points energized)
Converter Type Delta Sigma
Response Speed per Channel Input filter and configuration dependent (Refer to user manual)
Resolution (Max.)(2) 16 bits (unipolar), 15 bits plus sign (bipolar)
Rated Working Voltage(3) 30V AC / 30V DC
Common Mode Rejection >60 dB at 50 and 60 Hz with the 10 Hz filter selected
Normal Mode Rejection Ratio -50 dB at 50 and 60 Hz with the 10 Hz filter selected
Input Impedance Voltage Terminal: 1MΩ (typical), Current Terminal: 249Ω
Overall Accuracy(4) Voltage Terminal: ±0.2% full scale at 25°C (77°F), Current Terminal: ±0.35% full scale at 25°C (77°F)
View full details

Product Description

Product Overview

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-IF4I
  • Model Type: CompactLogix 4-Point Analog Input (Current and Voltage, Isolated) Module

Technical Specifications

Attribute 1769-IF4I
Enclosure Type Rating None (open-style)
Dimensions (HxWxD) 118 mm x 35 mm x 87 mm
Height (with mounting tabs) 138 mm (5.43 in.)
Approximate Shipping Weight 300 g (0.66 lbs.)
Wire Size 0.32–2.1 mm² (22–14 AWG) solid copper wire or 0.32–1.3 mm² (22–16 AWG) stranded copper wire rated at 90°C (194°F) insulation max
Wiring Category(1) 2 - on signal ports
North American Temperature Code T4A

Input Specifications

Attribute 1769-IF4I
Analog Normal Operating Ranges(1) Voltage: ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC; Current: 0–20 mA, 4–20 mA
Full Scale Analog Ranges(1) Voltage: ±10.5V DC, 0–10.5V DC, 0–5.25V DC, 0.5–5.25V DC; Current: 0–21 mA, 3.2–21 mA
Number of Inputs 4 isolated differential
Bus Current Draw (Max.) 145 mA at 5V DC, 125 mA at 24V DC
Heat Dissipation 3.0W (Total Watts with all points energized)
Converter Type Delta Sigma
Response Speed per Channel Input filter and configuration dependent (Refer to user manual)
Resolution (Max.)(2) 16 bits (unipolar), 15 bits plus sign (bipolar)
Rated Working Voltage(3) 30V AC / 30V DC
Common Mode Rejection >60 dB at 50 and 60 Hz with the 10 Hz filter selected
Normal Mode Rejection Ratio -50 dB at 50 and 60 Hz with the 10 Hz filter selected
Input Impedance Voltage Terminal: 1MΩ (typical), Current Terminal: 249Ω
Overall Accuracy(4) Voltage Terminal: ±0.2% full scale at 25°C (77°F), Current Terminal: ±0.35% full scale at 25°C (77°F)
