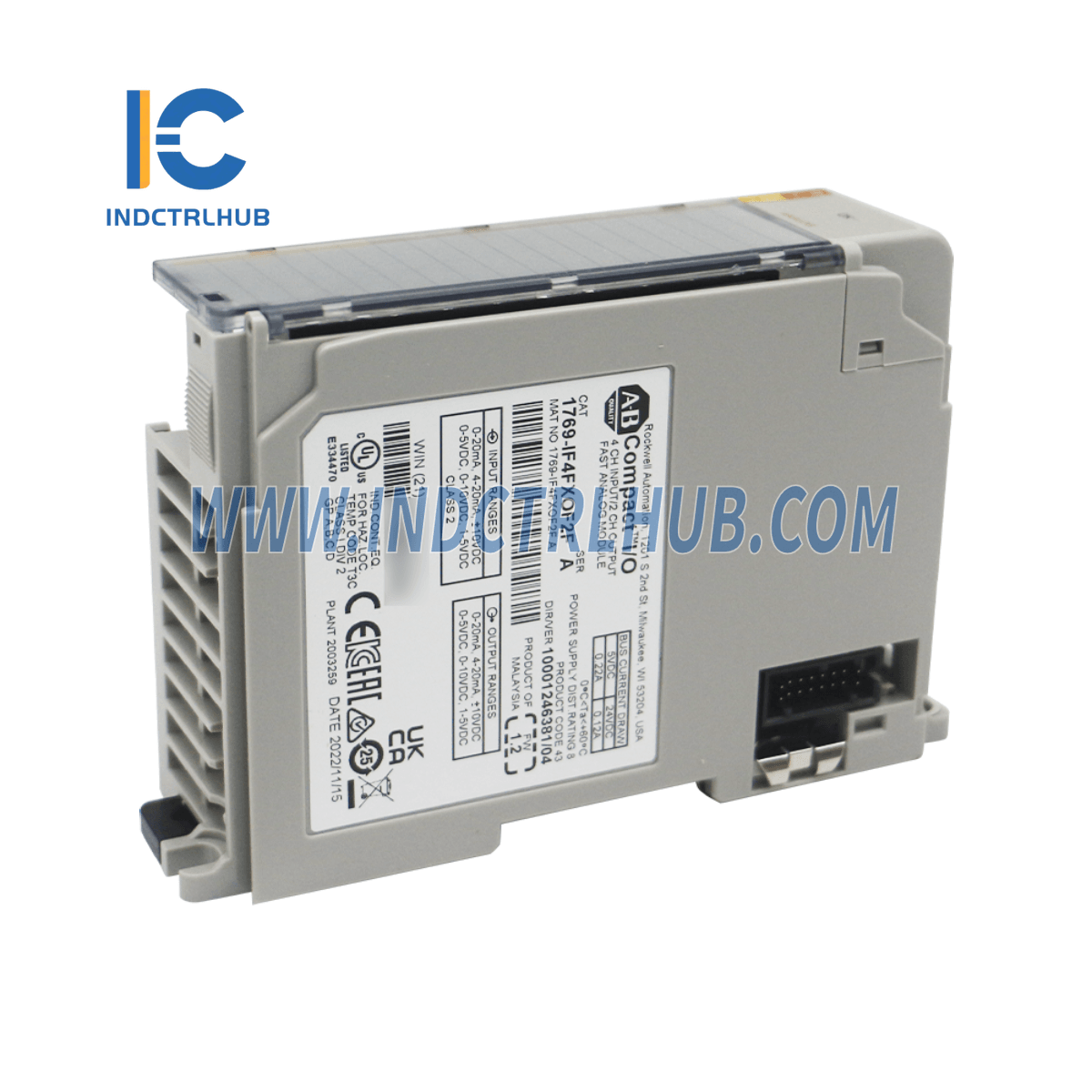

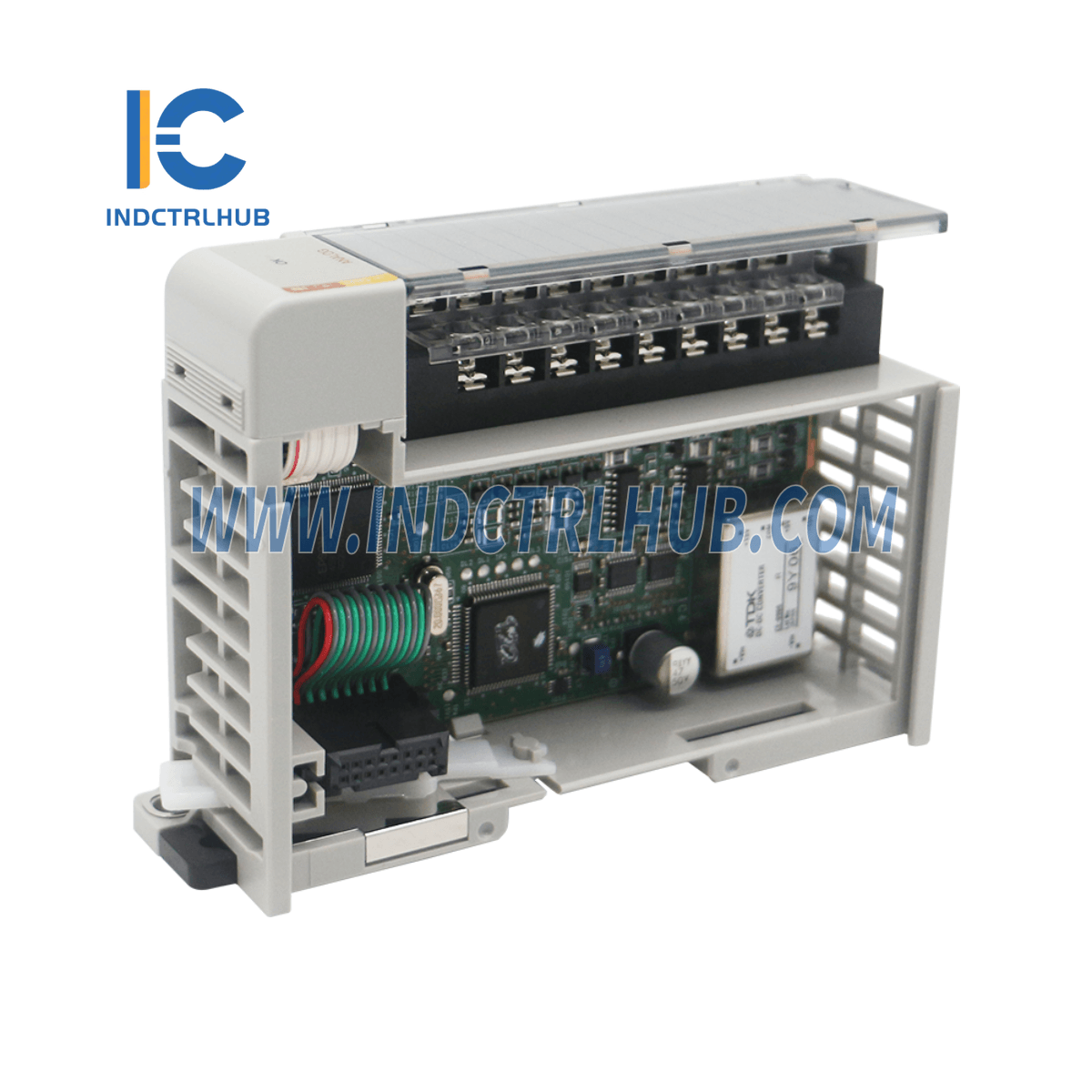

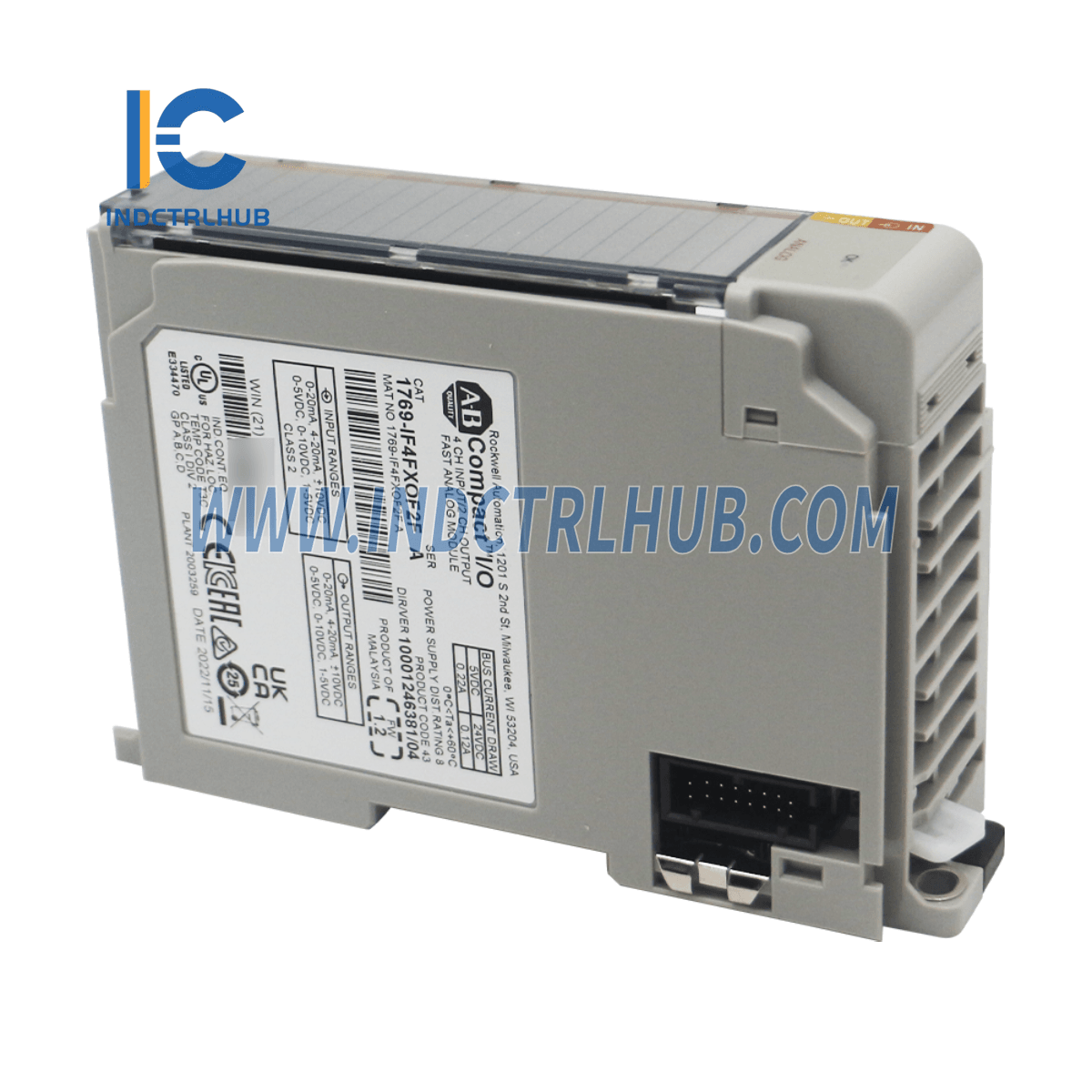

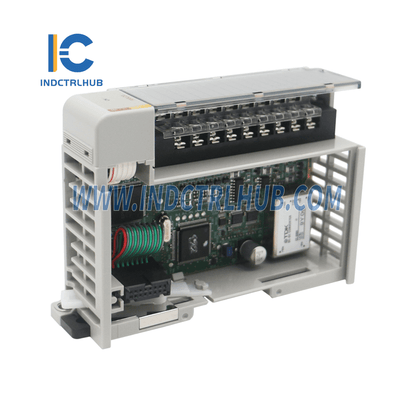

Allen-Bradley 1769-IF4FXOF2F CMPLX 6 Pt High Speed A/I and A/O Module

Allen-Bradley 1769-IF4FXOF2F CMPLX 6 Pt High Speed A/I and A/O Module

  • Manufacturer: Allen-Bradley

  • Product No.: 1769-IF4FXOF2F

  • Condition:1000 in stock

  • Product Type: CMPLX 6 Pt High Speed A/I and A/O Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-IF4FXOF2F
  • Model Type: CMPLX 6-Point High-Speed Analog Input/Output Module

Technical Specifications

General Specifications

Attribute Specification
Current Draw @ 5.1V 220 mA
Current Draw @ 24V 120 mA
Heat Dissipation (Max) 3.39 W
Weight (Approx) 290 g (0.64 lb)
Dimensions (HxWxD) 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with Mounting Tabs 138 mm (5.43 in.)
Slot Width 1
Module Location DIN Rail or Panel Mount
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power Supply Distance Rating 8 Modules
Terminal Screw Torque 0.68 N•m (6 lb•in)
Retaining Screw Torque 0.46 N•m (4.1 lb•in)
Wire Size 22–14 AWG (Solid), 22–16 AWG (Stranded)
Wire Type Cu-90°C (194°F)
Enclosure Type Rating None (Open-Style)

Input Specifications

Attribute Specification
Inputs 4 (Differential or Single-Ended)
Input Range ±10V, 0–10V, 0–5V, 1–5V, 0–20mA, 4–20mA
Full-Scale Range ±10.5V, -0.5…10.5V, -0.5…5.25V, 0.5…5.25V, 0…21mA, 3.2…21mA
Converter Type Successive Approximation
Resolution 14 bits (Unipolar), 14 bits plus sign (Bipolar)
Accuracy (@ 25°C) Current: ±0.2% full-scale, Voltage: ±0.15% full-scale
Accuracy Drift with Temperature Current: ±0.0045% per °C, Voltage: ±0.003% per °C
Common Mode Voltage Range ±10V DC max per channel
Common Mode Rejection >70 dB @ 50Hz and 60Hz with 10Hz filter selected
Input Impedance Current: 250Ω, Voltage: 220kΩ
Overload Protection Current: ±32mA continuous, ±7.6V DC; Voltage: ±30V DC continuous, 0.1mA
Isolation Voltage 500V AC or 710V DC for 1 min (qualification test)

Output Specifications

Attribute Specification
Outputs 2 (Single-Ended)
Output Range ±10V, 0–10V, 0–5V, 1–5V, 0–20mA, 4–20mA
Full-Scale Range ±10.5V, -0.5…10.5V, -0.5…5.25V, 0.5…5.25V, 0…21mA, 3.2…21mA
Resolution 13 bits (Unipolar), 13 bits plus sign (Bipolar)
Conversion Rate 1ms (Max, All Channels)
Step Response (63%) 2.0ms
Current Load on Voltage Output Max 10mA
Resistive Load Current: 0–500Ω, Voltage: 1kΩ or greater
Inductive Load (Max) Current: 0.1mH, Voltage: 1µF
Accuracy (@ 25°C) Current: ±0.2% full-scale, Voltage: ±0.3% full-scale
Accuracy Drift with Temperature Current: ±0.0058% per °C, Voltage: ±0.0086% per °C
Output Ripple ±0.05% @ 0–50kHz
Short-Circuit Protection Yes (50mA Max)
Output Overvoltage Protection Yes
Isolation Voltage 500V AC or 710V DC for 1 min (qualification test)
View full details

Product Description

Product Overview

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-IF4FXOF2F
  • Model Type: CMPLX 6-Point High-Speed Analog Input/Output Module

Technical Specifications

General Specifications

Attribute Specification
Current Draw @ 5.1V 220 mA
Current Draw @ 24V 120 mA
Heat Dissipation (Max) 3.39 W
Weight (Approx) 290 g (0.64 lb)
Dimensions (HxWxD) 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with Mounting Tabs 138 mm (5.43 in.)
Slot Width 1
Module Location DIN Rail or Panel Mount
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power Supply Distance Rating 8 Modules
Terminal Screw Torque 0.68 N•m (6 lb•in)
Retaining Screw Torque 0.46 N•m (4.1 lb•in)
Wire Size 22–14 AWG (Solid), 22–16 AWG (Stranded)
Wire Type Cu-90°C (194°F)
Enclosure Type Rating None (Open-Style)

Input Specifications

Attribute Specification
Inputs 4 (Differential or Single-Ended)
Input Range ±10V, 0–10V, 0–5V, 1–5V, 0–20mA, 4–20mA
Full-Scale Range ±10.5V, -0.5…10.5V, -0.5…5.25V, 0.5…5.25V, 0…21mA, 3.2…21mA
Converter Type Successive Approximation
Resolution 14 bits (Unipolar), 14 bits plus sign (Bipolar)
Accuracy (@ 25°C) Current: ±0.2% full-scale, Voltage: ±0.15% full-scale
Accuracy Drift with Temperature Current: ±0.0045% per °C, Voltage: ±0.003% per °C
Common Mode Voltage Range ±10V DC max per channel
Common Mode Rejection >70 dB @ 50Hz and 60Hz with 10Hz filter selected
Input Impedance Current: 250Ω, Voltage: 220kΩ
Overload Protection Current: ±32mA continuous, ±7.6V DC; Voltage: ±30V DC continuous, 0.1mA
Isolation Voltage 500V AC or 710V DC for 1 min (qualification test)

Output Specifications

Attribute Specification
Outputs 2 (Single-Ended)
Output Range ±10V, 0–10V, 0–5V, 1–5V, 0–20mA, 4–20mA
Full-Scale Range ±10.5V, -0.5…10.5V, -0.5…5.25V, 0.5…5.25V, 0…21mA, 3.2…21mA
Resolution 13 bits (Unipolar), 13 bits plus sign (Bipolar)
Conversion Rate 1ms (Max, All Channels)
Step Response (63%) 2.0ms
Current Load on Voltage Output Max 10mA
Resistive Load Current: 0–500Ω, Voltage: 1kΩ or greater
Inductive Load (Max) Current: 0.1mH, Voltage: 1µF
Accuracy (@ 25°C) Current: ±0.2% full-scale, Voltage: ±0.3% full-scale
Accuracy Drift with Temperature Current: ±0.0058% per °C, Voltage: ±0.0086% per °C
Output Ripple ±0.05% @ 0–50kHz
Short-Circuit Protection Yes (50mA Max)
Output Overvoltage Protection Yes
Isolation Voltage 500V AC or 710V DC for 1 min (qualification test)
