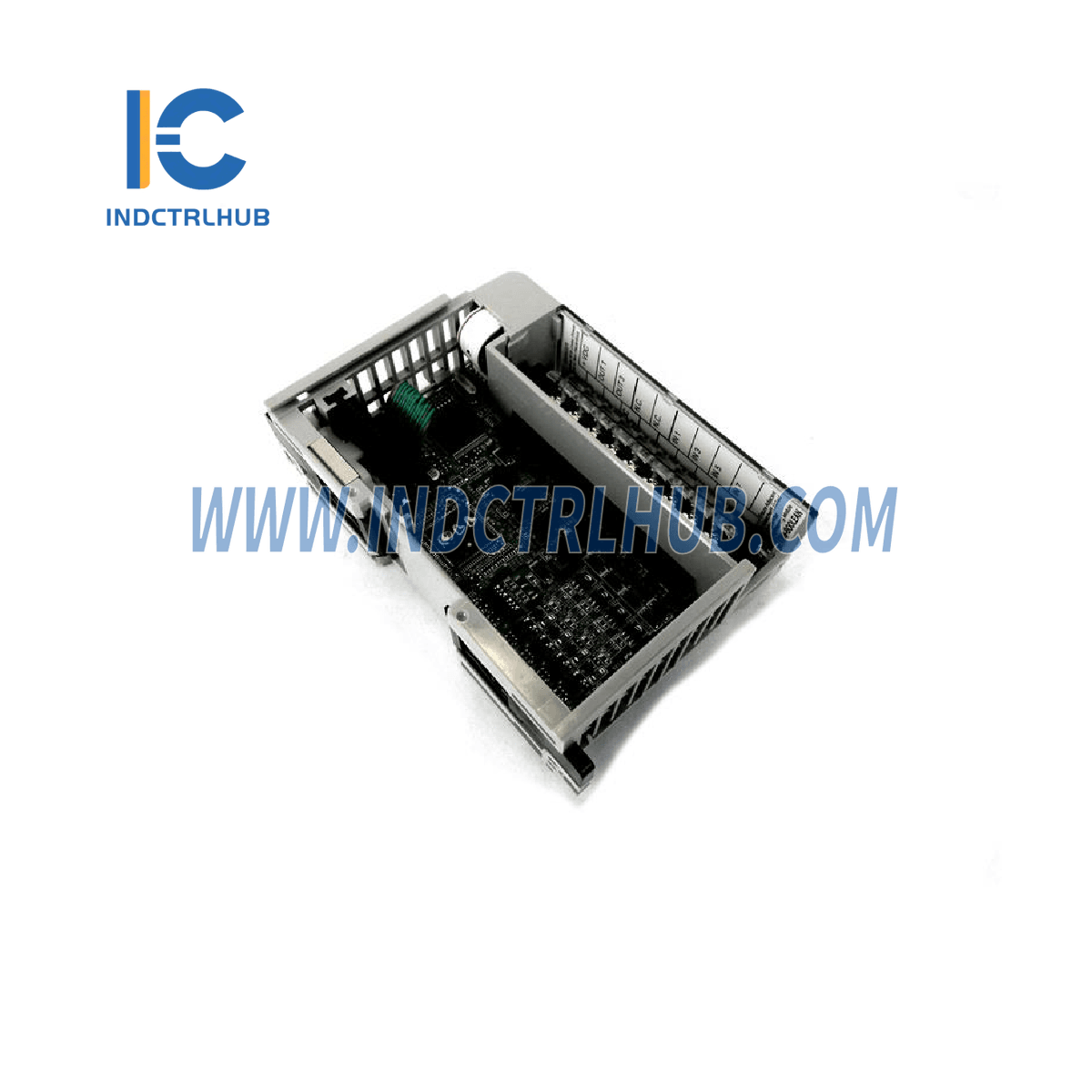

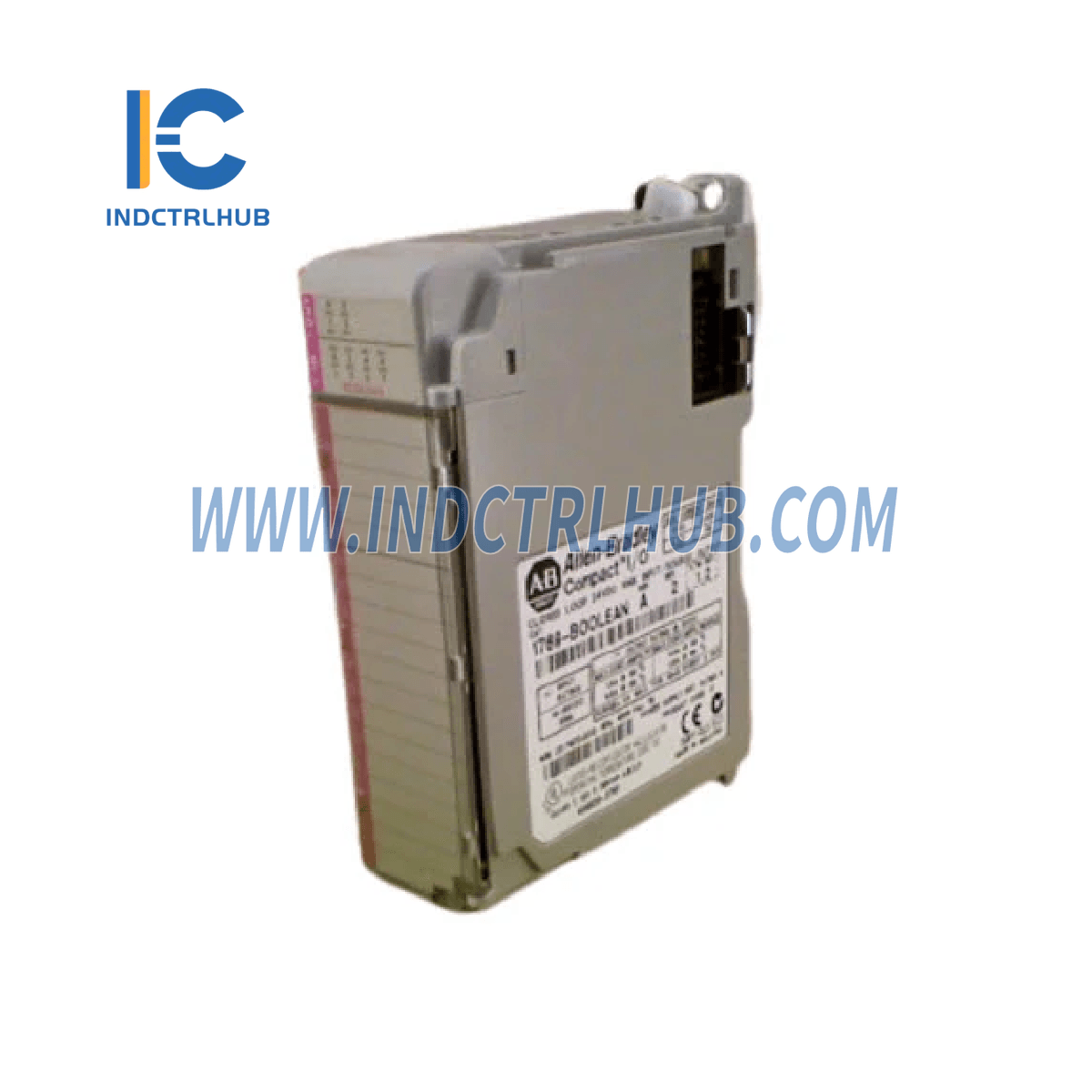

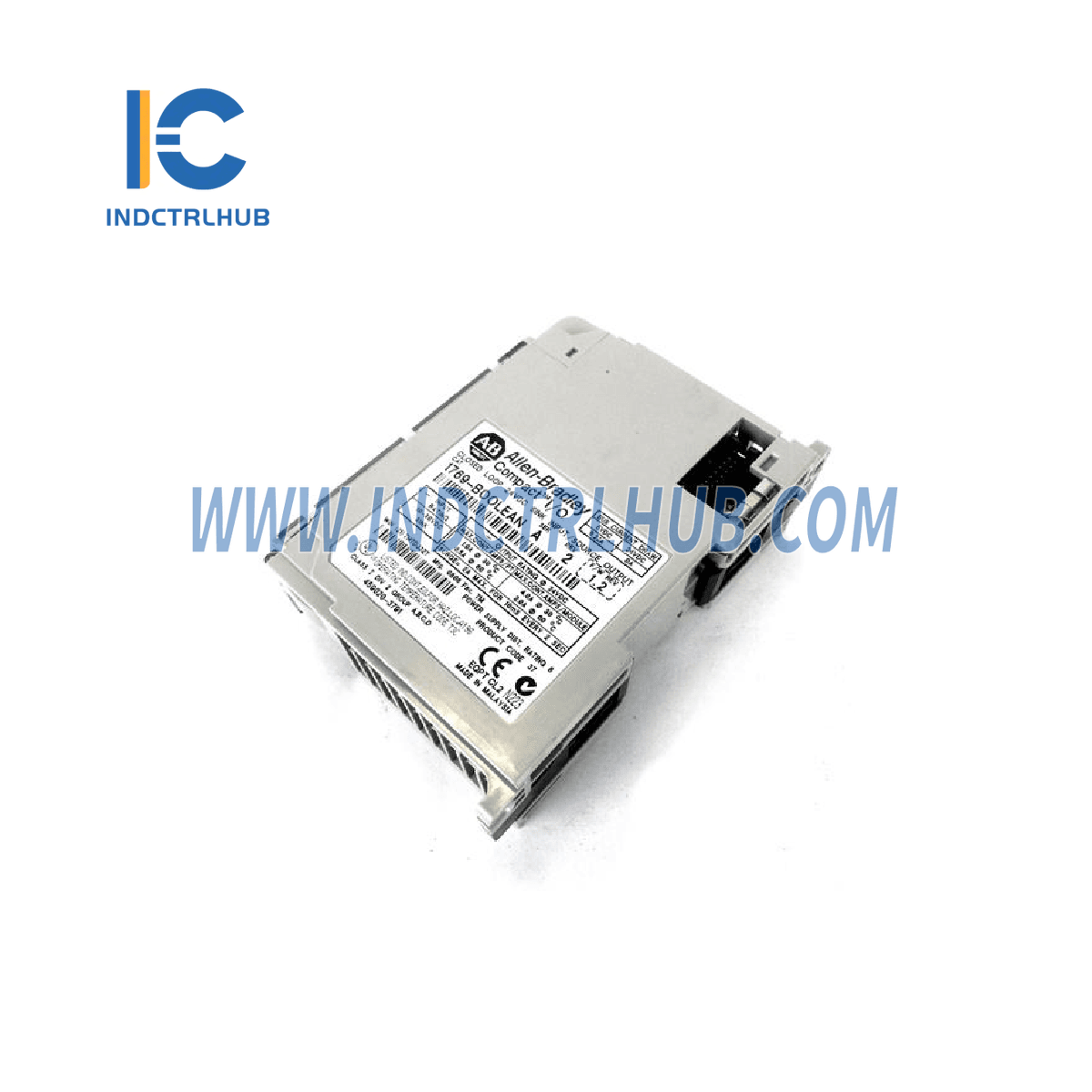

Allen-Bradley 1769-BOOLEAN Compact I/O BOOLEAN Module User Manual

Allen-Bradley 1769-BOOLEAN Compact I/O BOOLEAN Module User Manual

  • Manufacturer: Allen-Bradley

  • Product No.: 1769-BOOLEAN

  • Condition:1000 in stock

  • Product Type: Compact I/O BOOLEAN Module User Manual

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 282g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-BOOLEAN
  • Model Type: Compact I/O BOOLEAN Module

Technical Specifications - Compact I/O 1769-BOOLEAN Module

General Specifications

Specification Value
Closed Loop Time (Digital Filter = 0) Output on-state current > 5 mA: 100 µs max
Output on-state current < 5 mA: 150 µs max
Bus Current Draw (Max) 220 mA at 5V DC
Heat Dissipation 3.55 W Total (all points energized)
Power Supply Distance Rating 8 modules max from power supply/controller
Isolated Groups Group 1: Inputs 0-7
Group 2: Outputs 0-3
Input to Output Isolation 1200V AC for 1 s or 1697V DC for 1 s
75V DC working voltage (IEC Class 2 reinforced insulation)
Vendor ID Code 1
Product Type Code 109
Product Code 37
Dimensions (HxDxW) 118 mm x 87 mm x 35 mm
(4.65 in. x 3.43 in. x 1.38 in.)
Height (including mounting tabs) 138 mm (5.43 in.)
Approximate Shipping Weight 282 g (0.625 lbs.)

Input Specifications

Specification Value
Voltage Category 24V DC (sink)
Operating Voltage Range 10-30V DC @ 30°C (86°F)
10-26.4V DC @ 60°C (140°F)
Number of Inputs 8 real, 8 virtual
Digital Filter Settings OFF to ON: 0 µs, 100 µs, 200 µs, 500 µs, 1 ms, 2 ms, 4 ms, 8 ms
ON to OFF: 0 µs, 100 µs, 200 µs, 500 µs, 1 ms, 2 ms, 4 ms, 8 ms
Hardware Delay (Max) OFF to ON: 10 µs
ON to OFF: 10 µs
Off-state Voltage (Max) 5V DC
Off-state Current (Max) 1.5 mA
On-state Voltage (Min) 10V DC
On-state Current (Min) 2.0 mA
Inrush Current (Max) 250 mA
Nominal Impedance 2.0 kΩ @ 24V DC
2.3 kΩ @ 30V DC
IEC Input Compatibility Type 1+
Input to Bus (CompactBus) Isolation 1200V AC for 1 s or 1697V DC for 1 s
75V DC working voltage (IEC Class 2 reinforced insulation)
View full details

Product Description

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1769-BOOLEAN
  • Model Type: Compact I/O BOOLEAN Module

Technical Specifications - Compact I/O 1769-BOOLEAN Module

General Specifications

Specification Value
Closed Loop Time (Digital Filter = 0) Output on-state current > 5 mA: 100 µs max
Output on-state current < 5 mA: 150 µs max
Bus Current Draw (Max) 220 mA at 5V DC
Heat Dissipation 3.55 W Total (all points energized)
Power Supply Distance Rating 8 modules max from power supply/controller
Isolated Groups Group 1: Inputs 0-7
Group 2: Outputs 0-3
Input to Output Isolation 1200V AC for 1 s or 1697V DC for 1 s
75V DC working voltage (IEC Class 2 reinforced insulation)
Vendor ID Code 1
Product Type Code 109
Product Code 37
Dimensions (HxDxW) 118 mm x 87 mm x 35 mm
(4.65 in. x 3.43 in. x 1.38 in.)
Height (including mounting tabs) 138 mm (5.43 in.)
Approximate Shipping Weight 282 g (0.625 lbs.)

Input Specifications

Specification Value
Voltage Category 24V DC (sink)
Operating Voltage Range 10-30V DC @ 30°C (86°F)
10-26.4V DC @ 60°C (140°F)
Number of Inputs 8 real, 8 virtual
Digital Filter Settings OFF to ON: 0 µs, 100 µs, 200 µs, 500 µs, 1 ms, 2 ms, 4 ms, 8 ms
ON to OFF: 0 µs, 100 µs, 200 µs, 500 µs, 1 ms, 2 ms, 4 ms, 8 ms
Hardware Delay (Max) OFF to ON: 10 µs
ON to OFF: 10 µs
Off-state Voltage (Max) 5V DC
Off-state Current (Max) 1.5 mA
On-state Voltage (Min) 10V DC
On-state Current (Min) 2.0 mA
Inrush Current (Max) 250 mA
Nominal Impedance 2.0 kΩ @ 24V DC
2.3 kΩ @ 30V DC
IEC Input Compatibility Type 1+
Input to Bus (CompactBus) Isolation 1200V AC for 1 s or 1697V DC for 1 s
75V DC working voltage (IEC Class 2 reinforced insulation)
