Product Description
Product Overview
- Manufacturer: Allen-Bradley

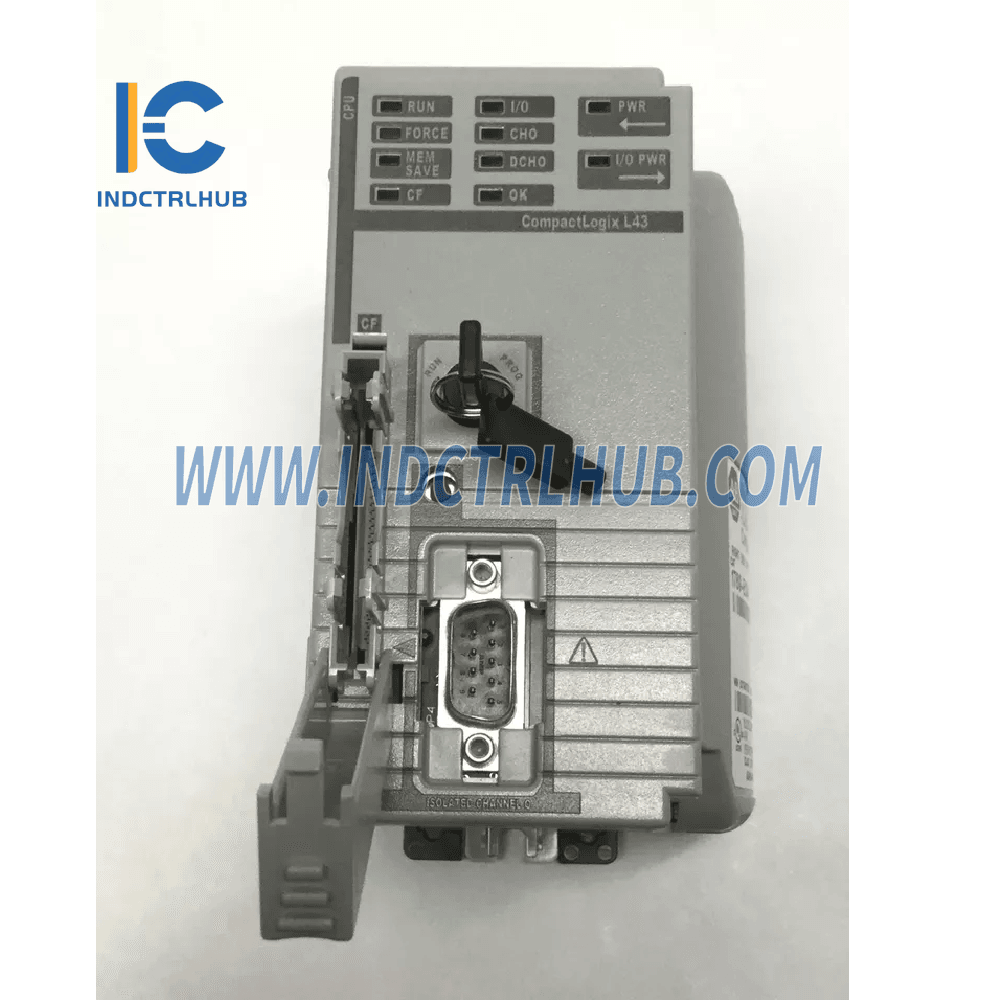

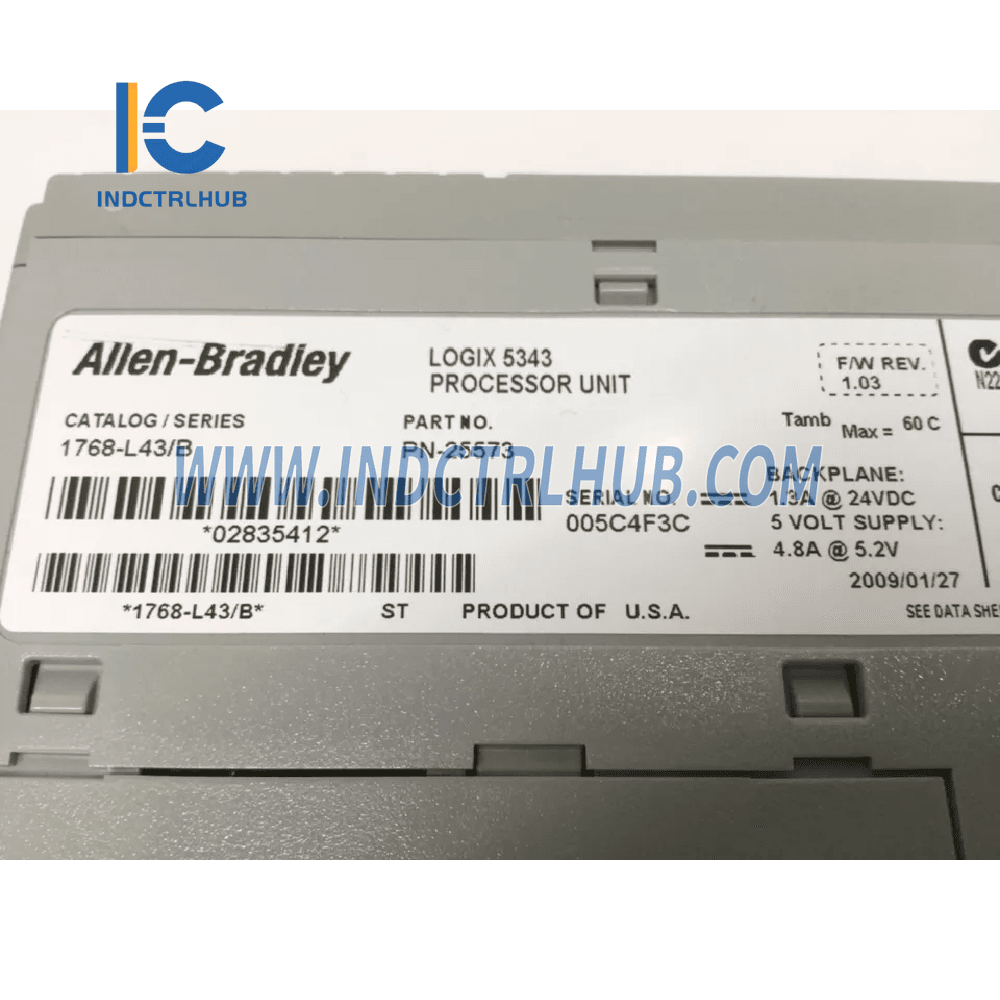

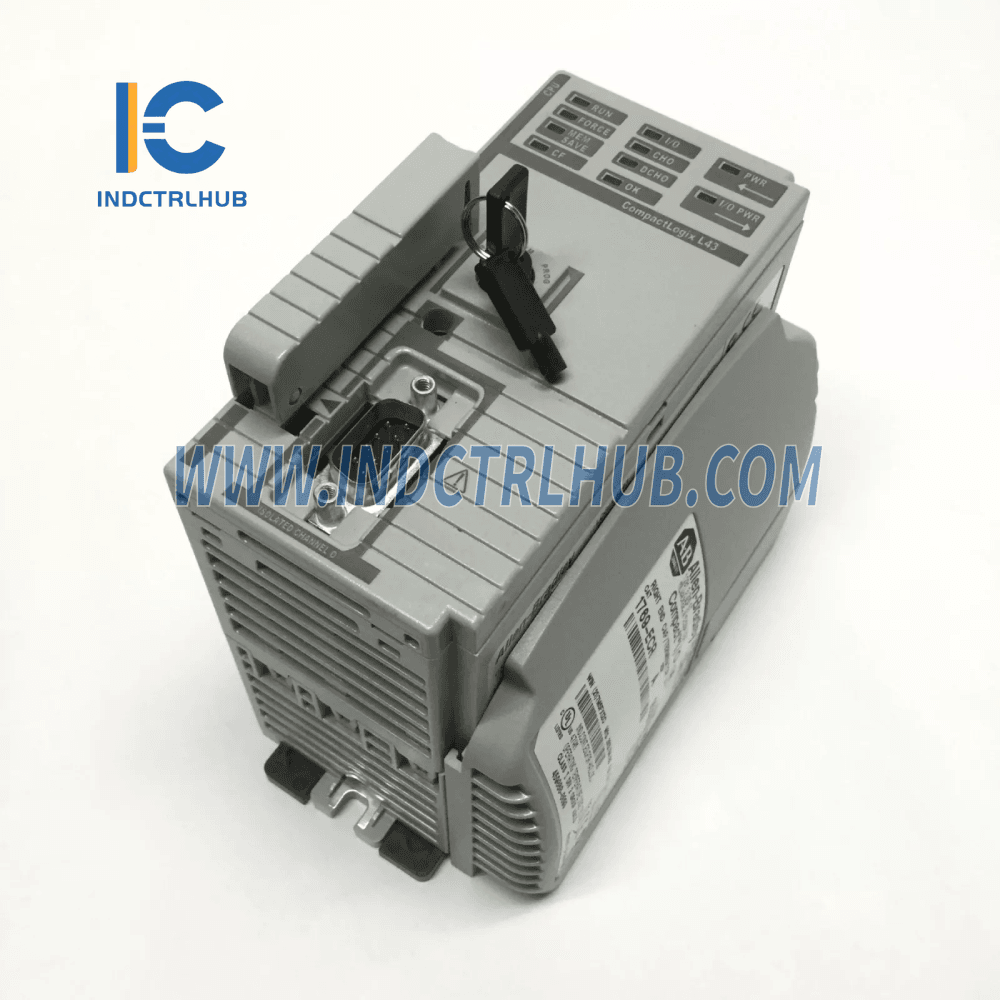

- Model/Part Number: 1768-L43/B
- Description: CompactLogix Series Industrial Controller, CompactLogix L43 Processor with 2MB memory
- Type: CompactLogix Controller designed for industrial applications with EtherNet/IP communication.
Key Specifications
| Attribute | 1768-L43/B |
|---|---|
| User Memory | 2 MB |
| Communication Ports | RS-232 |
| Max Number of 1768 Modules | 2 |
| Max Number of 1769 I/O Modules | 16 |
| Max Number of I/O Banks | 2 |
| Backplane Current Draw @ 24V DC | 1.3 A |
| 5V Supply Current Draw | 4.8 A at 5.2V DC |
| Power Consumption | 31.3 W |
| Power Dissipation | N/A |
| Mounting | DIN Rail or Panel Mount |
| Dimensions (HxWxD) | 5.7 cm x 14.8 cm x 12.4 cm (2.3 in x 5.8 in x 4.9 in) |
| Weight | 0.3 kg |
| Tariff Code | 8537109060 |
Environmental Specifications
| Attribute | 1768-L43/B |
|---|---|
| Temperature (Operating) | 0…60 °C (32…140 °F) |
| Temperature (Storage) | -40…+85 °C (-40…+185 °F) |
| Relative Humidity | 5…95% noncondensing |
| Vibration (Operating) | 5 g @ 10…500 Hz |
| Shock (Operating) | 30 g |
| Shock (Nonoperating) | 50 g |
Key Features
- CompactLogix Processor: A high-performance processor designed to control various industrial applications with a focus on modularity and EtherNet/IP communication.
- DIN Rail or Panel Mounting: Offers flexibility in system design and installation.
- Low Power Consumption: 31.3W total power consumption, making it suitable for environments with power constraints.
- Memory: 2MB of user memory to store programs, data, and configuration settings for complex automation tasks.
This 1768-L43/B CompactLogix Series Industrial Controller from Allen-Bradley is ideal for medium-scale industrial control applications that require robust, flexible, and high-performance control and communication capabilities.
