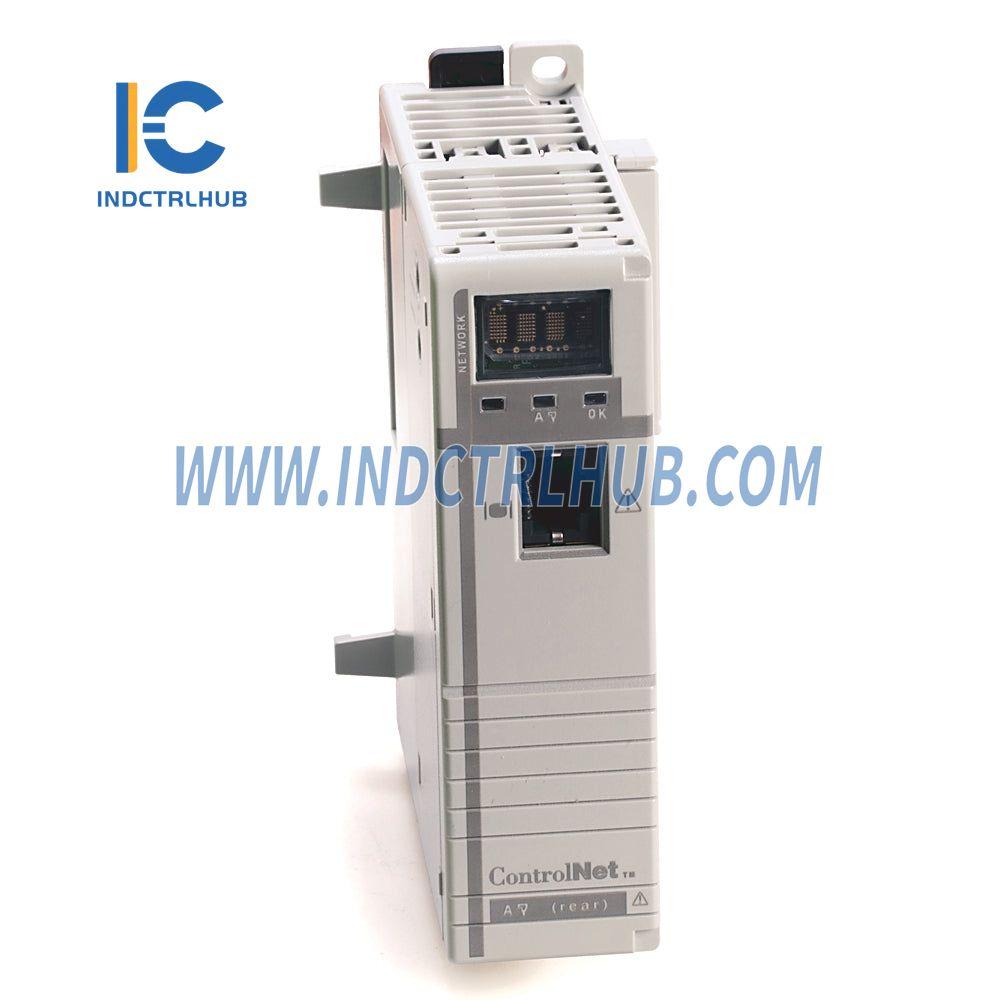

Allen-Bradley 1768-ENBT CompactLogix Communication Module

Allen-Bradley 1768-ENBT CompactLogix Communication Module

  • Manufacturer: Allen-Bradley

  • Product No.: 1768-ENBT

  • Condition:1000 in stock

  • Product Type: CompactLogix Communication Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 213g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1768-ENBT
  • Description: CompactLogix Communication Module

Key Specifications

Attribute Value
Backplane Current 834 mA at 5.2V DC
Power Consumption 4.34 W
Power Dissipation 4.38 W
Isolation (Continuous Voltage Rating) 30V, Functional Insulation Type, Ethernet network to system
Wire Size Ethernet network connections: RJ45 connector, Category 5e or Category 5 cable
Wiring Category Category 2 on communication ports
North American Temperature Code T4A
IEC Temperature Code T4
Mounting Screw Torque 1.16 N•m (10 lb•in), using M4 or #8 screws
Dimensions (HxWxD) 132 x 56.7 x 105.1 mm (5.20 x 2.23 x 4.12 in.)
Weight 0.213 kg (7.5 oz)

Environmental Specifications

Attribute Value
Operating Temperature 0…60 °C (32...140 °F), IEC 60068-2-1 (Test Ad), IEC 60068-2-2 (Test Bd)
Non-Operating Temperature -40…85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab), IEC 60068-2-2 (Test Bb)
Relative Humidity 5…95% noncondensing, IEC 60068-2-30 (Test Db)
Vibration (Operating) 5 g @ 10…500 Hz, IEC 60068-2-6 (Test Fc)
Operating Shock 30 g, IEC 60068-2-27 (Test Ea)
Non-Operating Shock 50 g, IEC 60068-2-27 (Test Ea)

Immunity & Emissions

Attribute Value
Emissions CISPR 11: Group 1, Class A
ESD Immunity IEC 61000-4-2: 4 kV contact discharges, 8 kV air discharges
Radiated RF Immunity IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80%AM from 30…2000 MHz
EFT/B Immunity IEC 61000-4-4: ±2 kV at 5 kHz on communication ports
Surge Transient Immunity IEC 61000-4-5: ±2 kV line-earth (CM) on communication ports
Conducted RF Immunity IEC 61000-4-6: 10V rms with 1 kHz sine-wave 80%AM from 150 kHz…80 MHz

Enclosure Type Rating

  • Enclosure: None (open-style)

Certifications

Certification Value
c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E65584.
CE Compliant with EU EMC Directive, EN 61326-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2
C-Tick Compliant with Australian Radiocommunications Act, AS/NZS CISPR 11
Ex Compliant with ATEX Directive, EN 60079-15, EN 60079-0 (II 3 G Ex nA IIC T4)
EtherNet/IP ODVA conformance tested to EtherNet/IP specifications
View full details

Product Description

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1768-ENBT
  • Description: CompactLogix Communication Module

Key Specifications

Attribute Value
Backplane Current 834 mA at 5.2V DC
Power Consumption 4.34 W
Power Dissipation 4.38 W
Isolation (Continuous Voltage Rating) 30V, Functional Insulation Type, Ethernet network to system
Wire Size Ethernet network connections: RJ45 connector, Category 5e or Category 5 cable
Wiring Category Category 2 on communication ports
North American Temperature Code T4A
IEC Temperature Code T4
Mounting Screw Torque 1.16 N•m (10 lb•in), using M4 or #8 screws
Dimensions (HxWxD) 132 x 56.7 x 105.1 mm (5.20 x 2.23 x 4.12 in.)
Weight 0.213 kg (7.5 oz)

Environmental Specifications

Attribute Value
Operating Temperature 0…60 °C (32...140 °F), IEC 60068-2-1 (Test Ad), IEC 60068-2-2 (Test Bd)
Non-Operating Temperature -40…85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab), IEC 60068-2-2 (Test Bb)
Relative Humidity 5…95% noncondensing, IEC 60068-2-30 (Test Db)
Vibration (Operating) 5 g @ 10…500 Hz, IEC 60068-2-6 (Test Fc)
Operating Shock 30 g, IEC 60068-2-27 (Test Ea)
Non-Operating Shock 50 g, IEC 60068-2-27 (Test Ea)

Immunity & Emissions

Attribute Value
Emissions CISPR 11: Group 1, Class A
ESD Immunity IEC 61000-4-2: 4 kV contact discharges, 8 kV air discharges
Radiated RF Immunity IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80%AM from 30…2000 MHz
EFT/B Immunity IEC 61000-4-4: ±2 kV at 5 kHz on communication ports
Surge Transient Immunity IEC 61000-4-5: ±2 kV line-earth (CM) on communication ports
Conducted RF Immunity IEC 61000-4-6: 10V rms with 1 kHz sine-wave 80%AM from 150 kHz…80 MHz

Enclosure Type Rating

  • Enclosure: None (open-style)

Certifications

Certification Value
c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E65584.
CE Compliant with EU EMC Directive, EN 61326-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2
C-Tick Compliant with Australian Radiocommunications Act, AS/NZS CISPR 11
Ex Compliant with ATEX Directive, EN 60079-15, EN 60079-0 (II 3 G Ex nA IIC T4)
EtherNet/IP ODVA conformance tested to EtherNet/IP specifications

Download PDF file here:

Click to Download PDF
