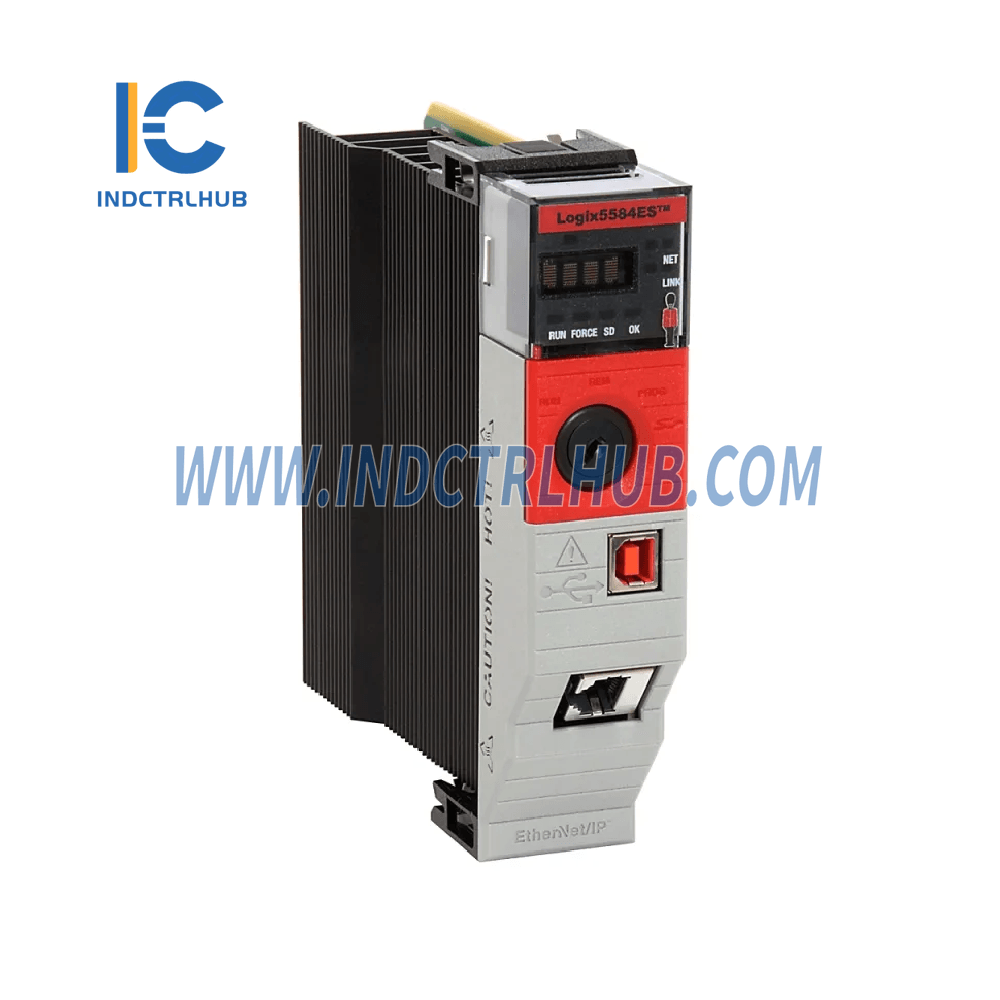

Allen-Bradley 1756-L81ES ControlLogix 5580 Controllers

Allen-Bradley 1756-L81ES ControlLogix 5580 Controllers

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-L81ES

  • Condition:1000 in stock

  • Product Type: ControlLogix 5580 Controllers

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 394g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Model/Part Number: 1756-L81ES - ControlLogix 5580 Controller

Technical Specifications

Attribute 1756-L81ES
User Memory 3 MB
Safety Memory 1.5 MB
Configured I/O Digital I/O, max 128,000
Analog I/O, max 4000
Optional Memory Storage 2 GB Secure Digital Card (1784-SD2)
Energy Storage Module Embedded, nonremovable
Number of Power Cycles 80,000
Current Draw @ 1.2V DC: 5.0 mA
@ 5.1V DC: 1.20 A
Power Dissipation 6.2 W
Thermal Dissipation 21.2 BTU/hr
Isolation Voltage 50V (continuous)
Weight 0.394 kg (.868 lb)
Slot Width 1
Module Location Chassis-based, any slot

Power Supply Requirements

  • Standard Power Supply:
    1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75, 1756-PB75K, 1756-PH75, 1756-PC75

  • Redundant Power Supply:
    1756-PA75R, 1756-PA75RK, 1756-PB75R, 1756-PB75RK, 1756-PSCA2, 1756-PSCA2K

Environmental Specifications

Attribute Value
Operating Temperature (SIL 2/PLd) 0 °C to +60 °C (+32 °F to +140 °F)
Series C Chassis: 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature (SIL 3/PLe) 0 °C to +60 °C (+32 °F to +140 °F)
Series C Chassis: 0 °C to +50 °C (+32 °F to +122 °F)
Non-Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Relative Humidity 5% to 95% noncondensing
Vibration 2 g @ 10…500 Hz (IEC 60068-2-6)
Operating Shock 30 g (IEC 60068-2-27)
Non-Operating Shock 30 g (IEC 60068-2-27)

EMC (Electromagnetic Compatibility)

  • ESD immunity: IEC 61000-4-2 6 kV contact, 8 kV air discharges
  • Radiated RF immunity: IEC 61000-4-3 10V/m, 80% AM from 80–2000 MHz
  • Surge Transient Immunity: IEC 61000-4-5 ±2 kV line-earth (CM) on Ethernet ports
  • Conducted RF Immunity: IEC 61000-4-6 10V rms, 1 kHz sine wave 80% AM from 150 kHz…80 MHz
View full details

Product Description

Model/Part Number: 1756-L81ES - ControlLogix 5580 Controller

Technical Specifications

Attribute 1756-L81ES
User Memory 3 MB
Safety Memory 1.5 MB
Configured I/O Digital I/O, max 128,000
Analog I/O, max 4000
Optional Memory Storage 2 GB Secure Digital Card (1784-SD2)
Energy Storage Module Embedded, nonremovable
Number of Power Cycles 80,000
Current Draw @ 1.2V DC: 5.0 mA
@ 5.1V DC: 1.20 A
Power Dissipation 6.2 W
Thermal Dissipation 21.2 BTU/hr
Isolation Voltage 50V (continuous)
Weight 0.394 kg (.868 lb)
Slot Width 1
Module Location Chassis-based, any slot

Power Supply Requirements

  • Standard Power Supply:
    1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75, 1756-PB75K, 1756-PH75, 1756-PC75

  • Redundant Power Supply:
    1756-PA75R, 1756-PA75RK, 1756-PB75R, 1756-PB75RK, 1756-PSCA2, 1756-PSCA2K

Environmental Specifications

Attribute Value
Operating Temperature (SIL 2/PLd) 0 °C to +60 °C (+32 °F to +140 °F)
Series C Chassis: 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature (SIL 3/PLe) 0 °C to +60 °C (+32 °F to +140 °F)
Series C Chassis: 0 °C to +50 °C (+32 °F to +122 °F)
Non-Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Relative Humidity 5% to 95% noncondensing
Vibration 2 g @ 10…500 Hz (IEC 60068-2-6)
Operating Shock 30 g (IEC 60068-2-27)
Non-Operating Shock 30 g (IEC 60068-2-27)

EMC (Electromagnetic Compatibility)

  • ESD immunity: IEC 61000-4-2 6 kV contact, 8 kV air discharges
  • Radiated RF immunity: IEC 61000-4-3 10V/m, 80% AM from 80–2000 MHz
  • Surge Transient Immunity: IEC 61000-4-5 ±2 kV line-earth (CM) on Ethernet ports
  • Conducted RF Immunity: IEC 61000-4-6 10V rms, 1 kHz sine wave 80% AM from 150 kHz…80 MHz
