Product Details
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1756-L72 |
|
Description |

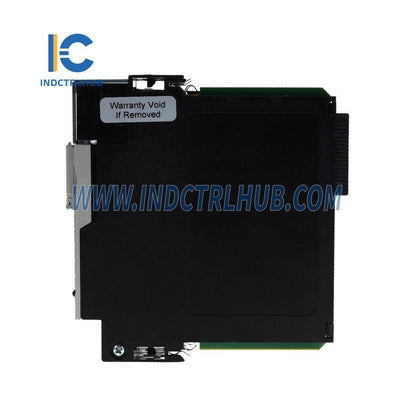

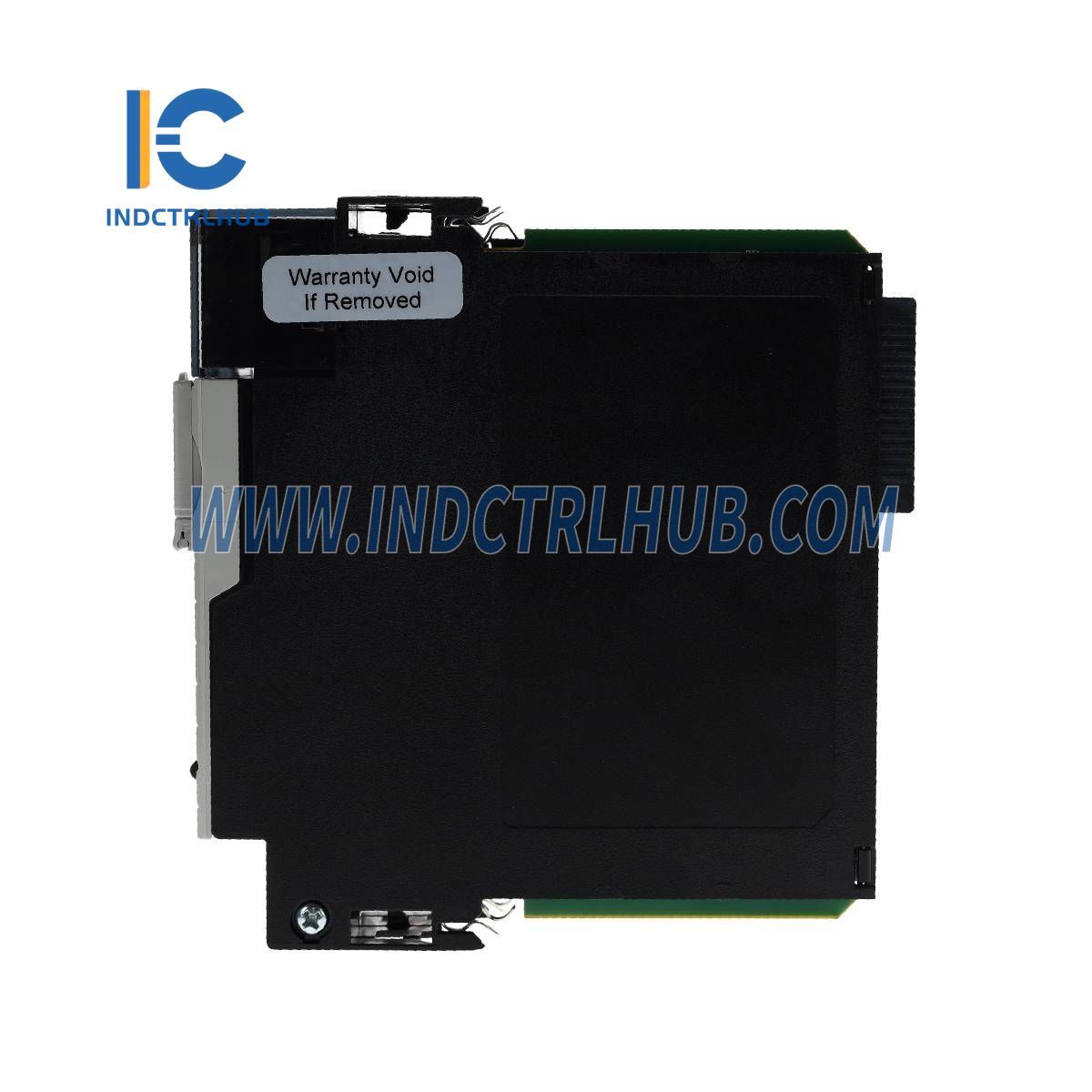

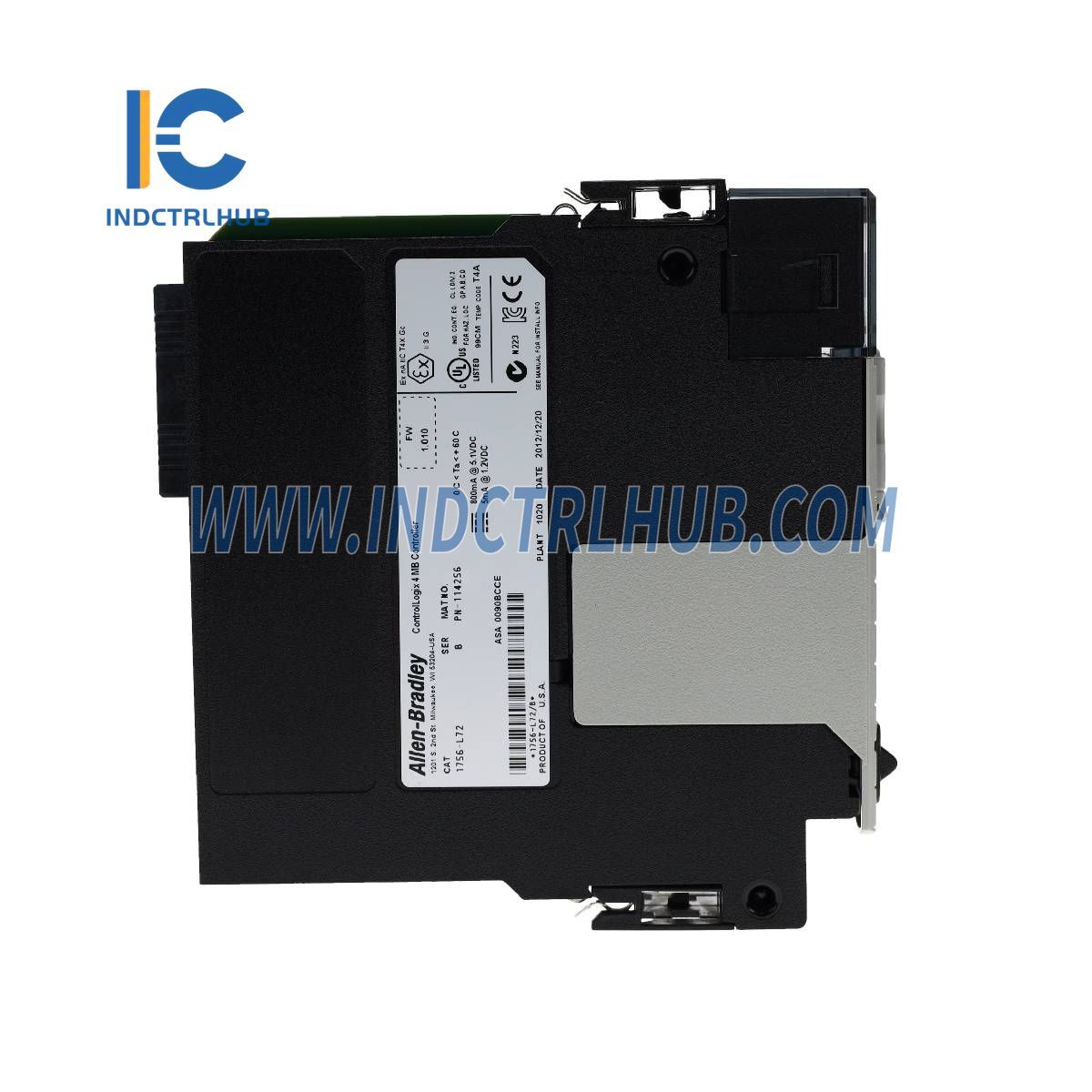

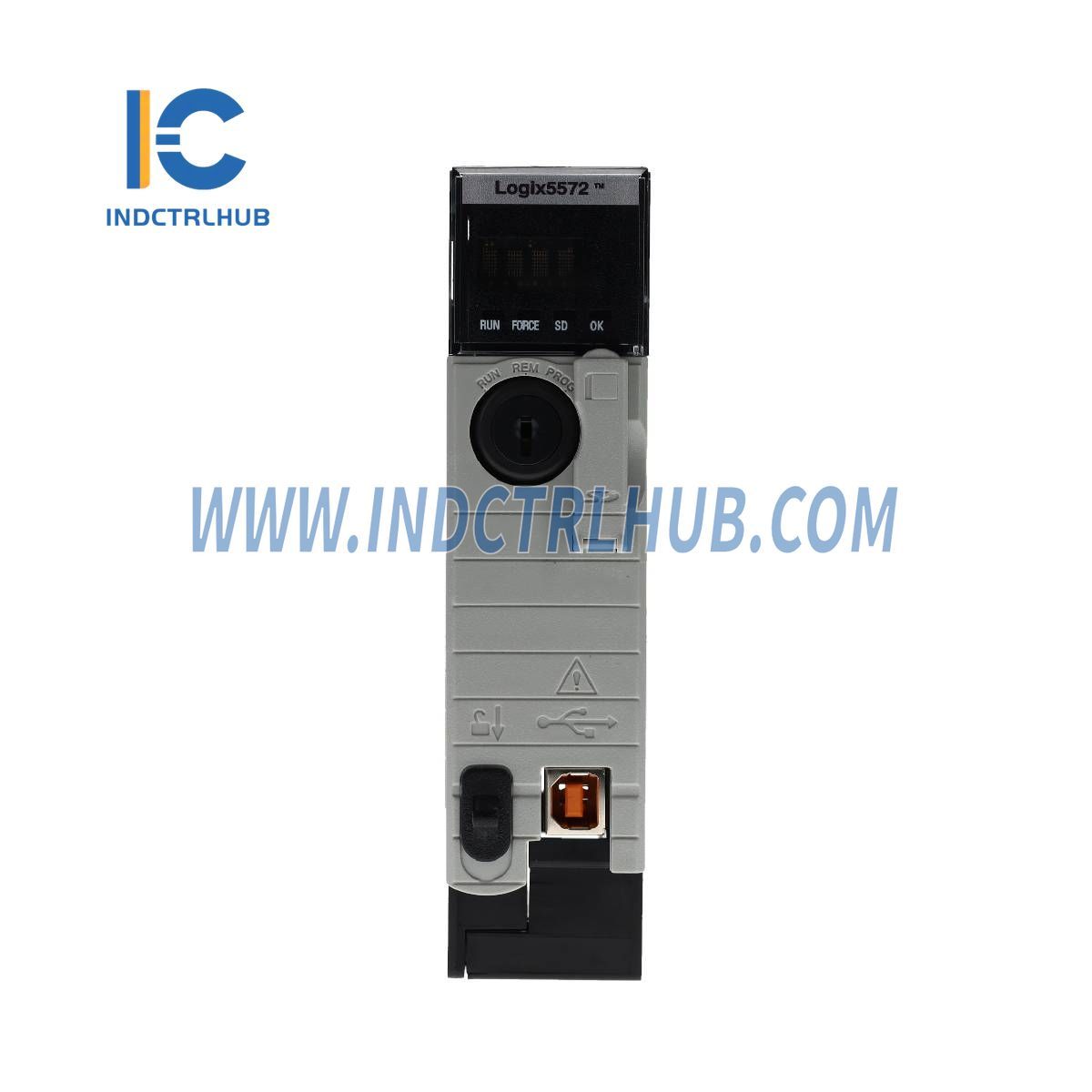

ControlLogix 5570 Controller |
Technical Specifications
|
Attribute |
1756-L72 |
|---|---|
|
User Memory |
4 MB |
|
I/O Memory |
0.98 MB |
|
Optional Nonvolatile Memory Storage |
1 GB (1784-SD1, ships with controller), 2 GB (1784-SD2) |
|
Digital I/O Max |
128,000 |
|
Analog I/O Max |
4,000 |
|
Total I/O Max |
128,000 |
|
Energy Storage Module |
1756-ESMCAP, 1756-ESMCAPK, 1756-ESMNSE, 1756-ESMNSEK, 1756-ESMNRM, 1756-ESMNRMK |
|
Current Draw @ 1.2V DC |
5 mA |
|
Current Draw @ 5.1V DC |
800 mA |
|
Power Dissipation |
2.5 W |
|
Thermal Dissipation |
8.5 BTU/hr |
|
Isolation Voltage |
30V (continuous), basic insulation type, USB port-to-system (IEC/UL 61010-1 compliant) |
|
USB Port |
USB 2.0, full speed (12 Mbps) (for temporary local programming only) |
|
Weight (Approx.) |
0.25 kg (0.55 lb) |
|
Slot Width |
1 |
|
Module Location |
Chassis-based, any slot |
|
Compatible Chassis |
1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, 1756-A17K |
|
Standard Power Supply |
1756-PA50, 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB50, 1756-PB72, 1756-PB72K, 1756-PB75, 1756-PB75K, 1756-PH75 |
|
Redundant Power Supply |
1756-PA75R, 1756-PA75RK, 1756-PB75R, 1756-PB75RK, 1756-PSCA2, 1756-PSCA2K |
|
Wire Category |
3 - on USB port |
|
Temperature Code |
T4 |
|
Enclosure Type Rating |
None (open-style) |
