Product Description

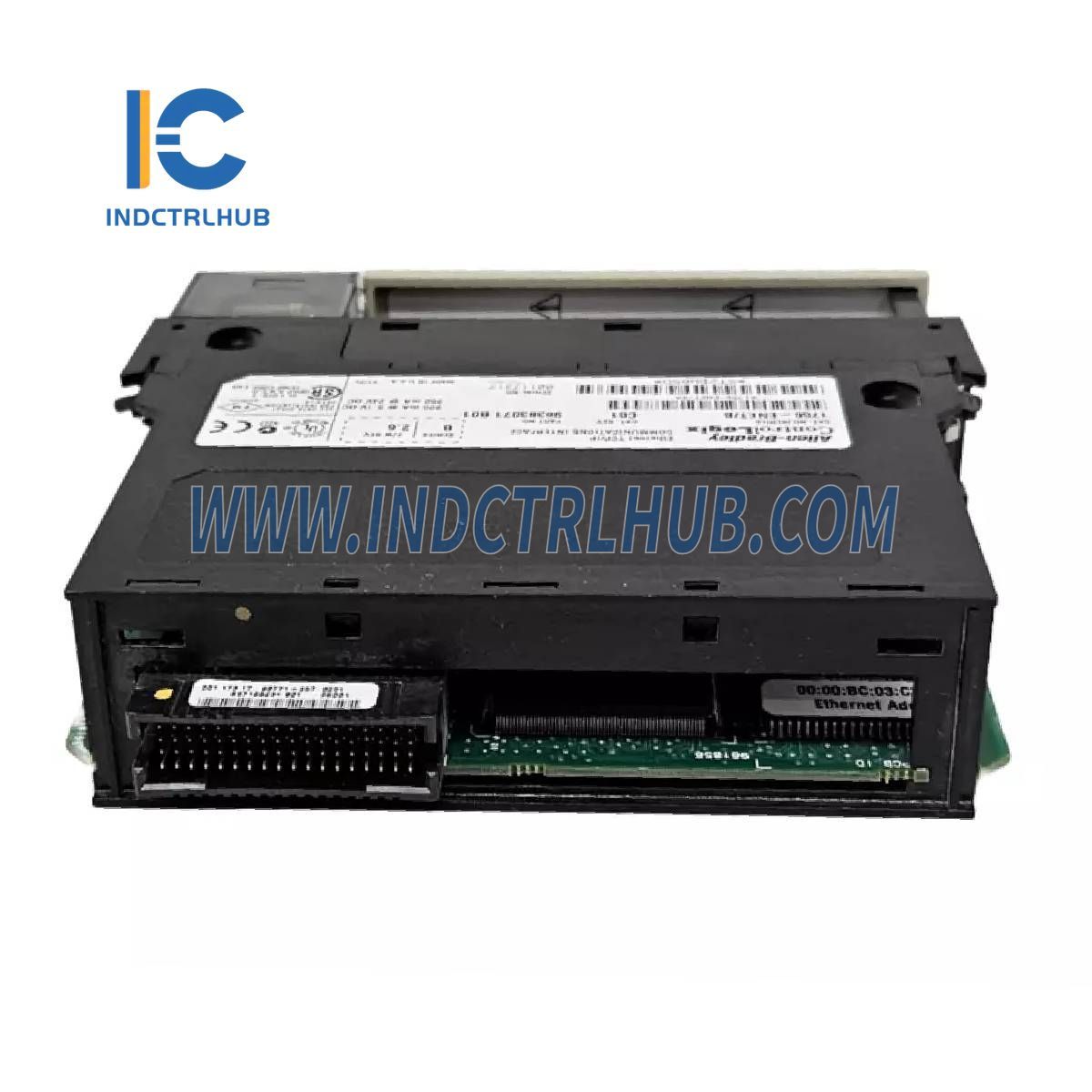

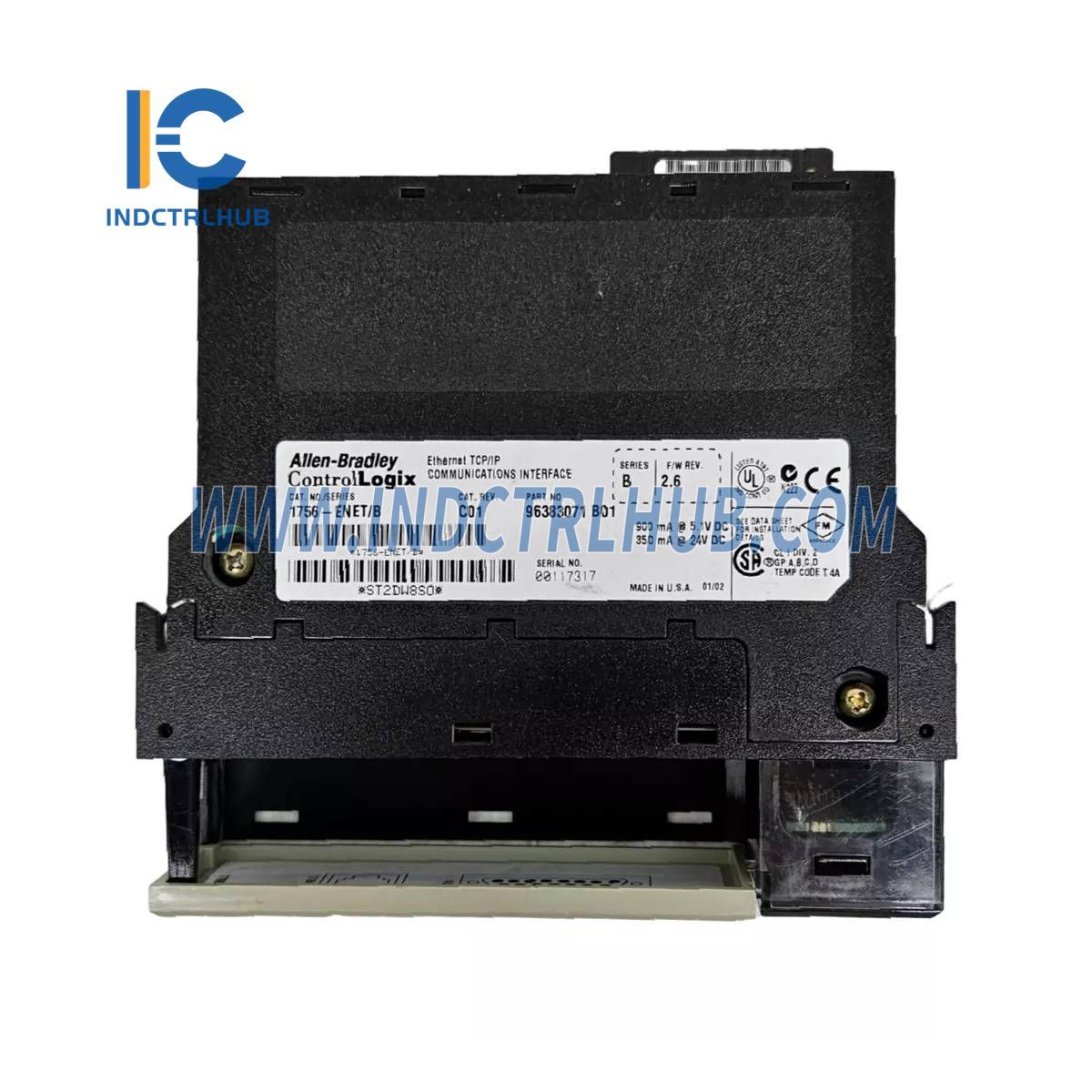

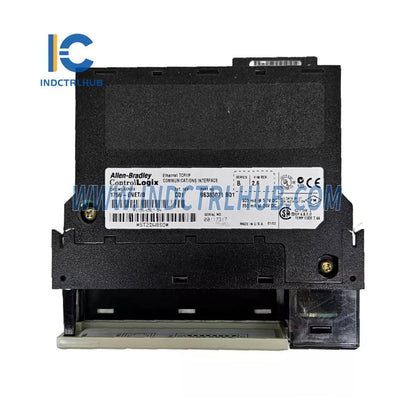

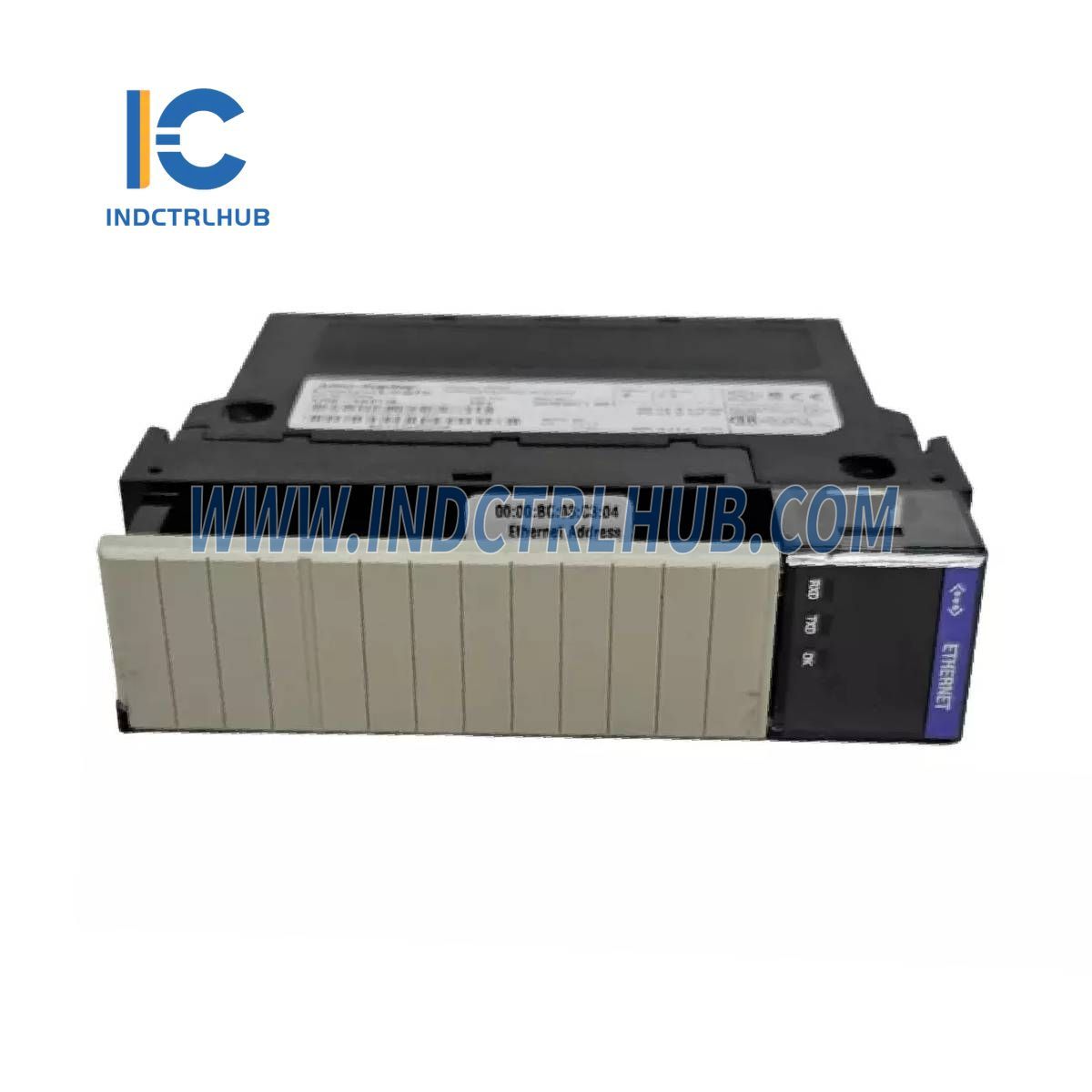

Product Details: Allen-Bradley 1756-ENET/B Communication Interface Module
| Manufacturer | Model/Part Number | Description |
|---|---|---|
| Allen-Bradley | 1756-ENET/B | Communication Interface Module |
Specifications
| Attribute | 1756-ENET/B |
|---|---|
| Module Location | Any slot in the ControlLogix chassis |
| Maximum Backplane Current Load | 900mA @ 5.1V DC / 350mA @ 24V DC from I/O chassis backplane |
| Power Dissipation (Max) | 13.3W |
Environmental Specifications
| Attribute | 1756-ENET/B |
|---|---|
| Operating Temperature | 0 to 60°C (32 to 140°F) (IEC 60068-2-1, 60068-2-2, 60068-2-14) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5 to 95% non-condensing (IEC 60068-2-30) |
| Shock (Operating) | 30g (IEC 60068-2-27) |
| Shock (Non-Operating) | 50g (IEC 60068-2-27) |
| Vibration | 5g @ 10-500Hz (IEC 60068-2-6) |
| Enclosure Type Rating | None (open-style) |
EMC and Electrical Immunity
| Standard | Specification |
|---|---|
| Emissions | CISPR 11, Group 1, Class A |
| ESD Immunity | IEC 61000-4-2 (6kV contact, 8kV air discharges) |
| Radiated RF Immunity | IEC 61000-4-3 (10V/m with 1kHz sine-wave 80% AM from 30MHz to 1000MHz, 10V/m with 200Hz 50% Pulse 100% AM at 900MHz) |
| EFT/B Immunity | IEC 61000-4-4 (±2kV at 5kHz on communications ports) |
| Surge Transient Immunity | IEC 61000-4-5 (+2kV line-earth (CM) on shielded ports) |
| Conducted RF Immunity | IEC 61000-4-6 (10Vrms with 1kHz sine-wave 80% AM from 150kHz to 80MHz) |
Communication & Wiring
| Attribute | 1756-ENET/B |
|---|---|
| Wiring Category | 802.3 compliant - twisted pair |
| Connector Type | Ethernet (RJ45) |
Certifications & Compliance
| Certification | Details |
|---|---|
| UL | UL Listed Industrial Control Equipment |
| CSA | CSA Certified for Class I, Division 2 Group A, B, C, D Hazardous Locations |
| FM | FM Approved for use in Class I, Division 2 Group A, B, C, D Hazardous Locations |
| CE | European Union 89/336/EEC EMC Directive Compliance |
| C-Tick | Australian Radiocommunications Act Compliance |
| EEx | European Union 94/9/EC ATEX Directive Compliance |
| ODVA | ODVA Conformance tested to ODVA EtherNet/IP specifications |
