Product Description
Product Details
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1756-A13 |
|
Description |

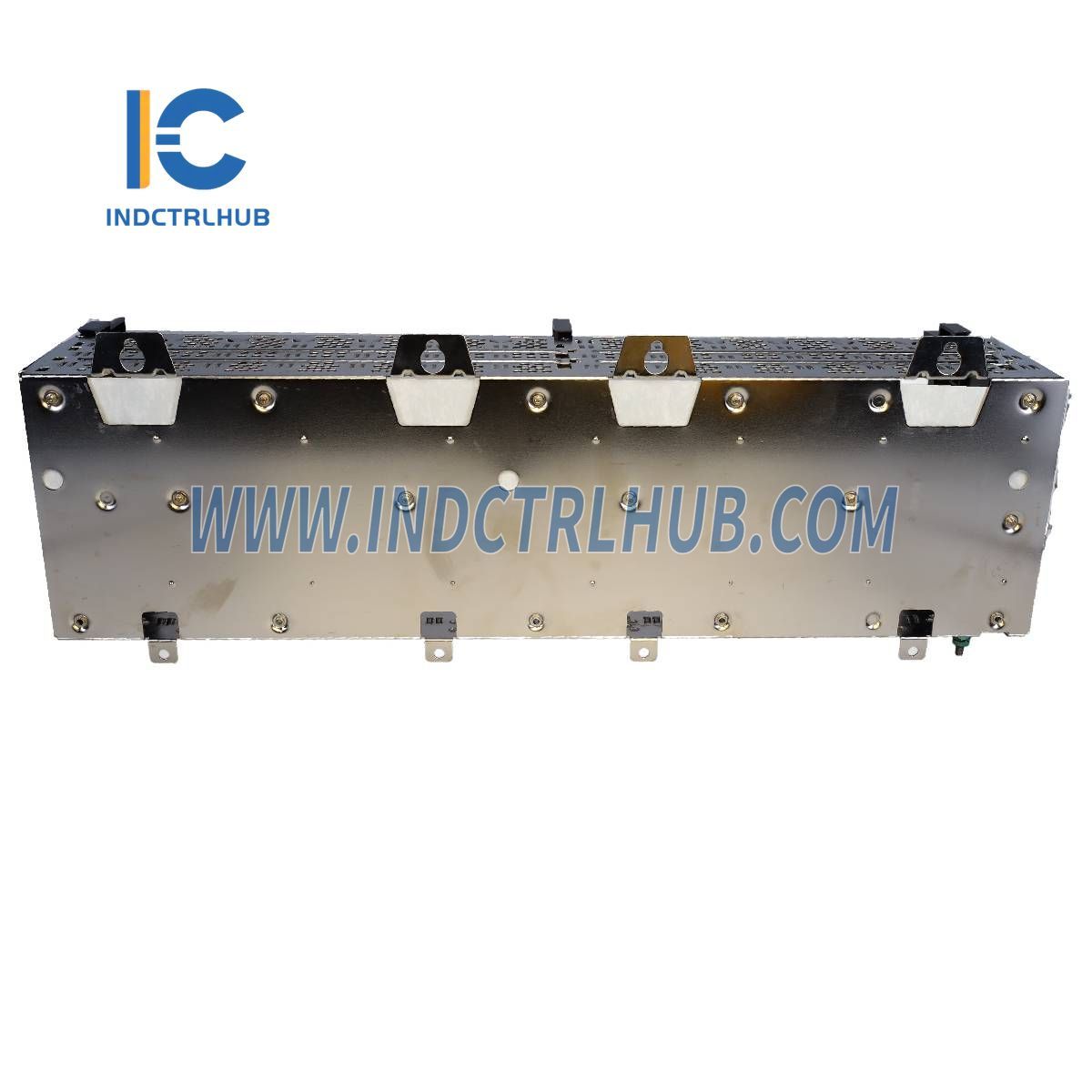

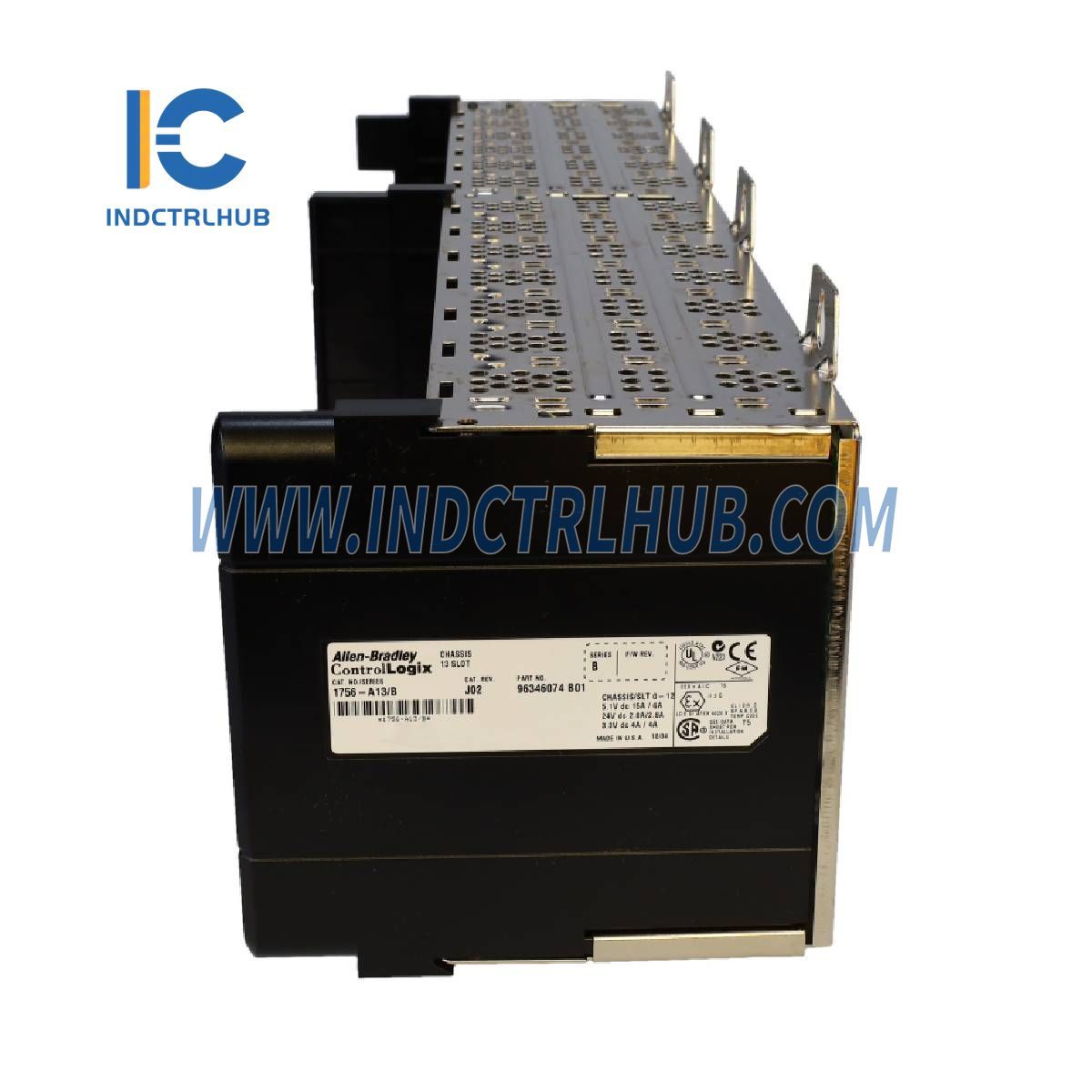

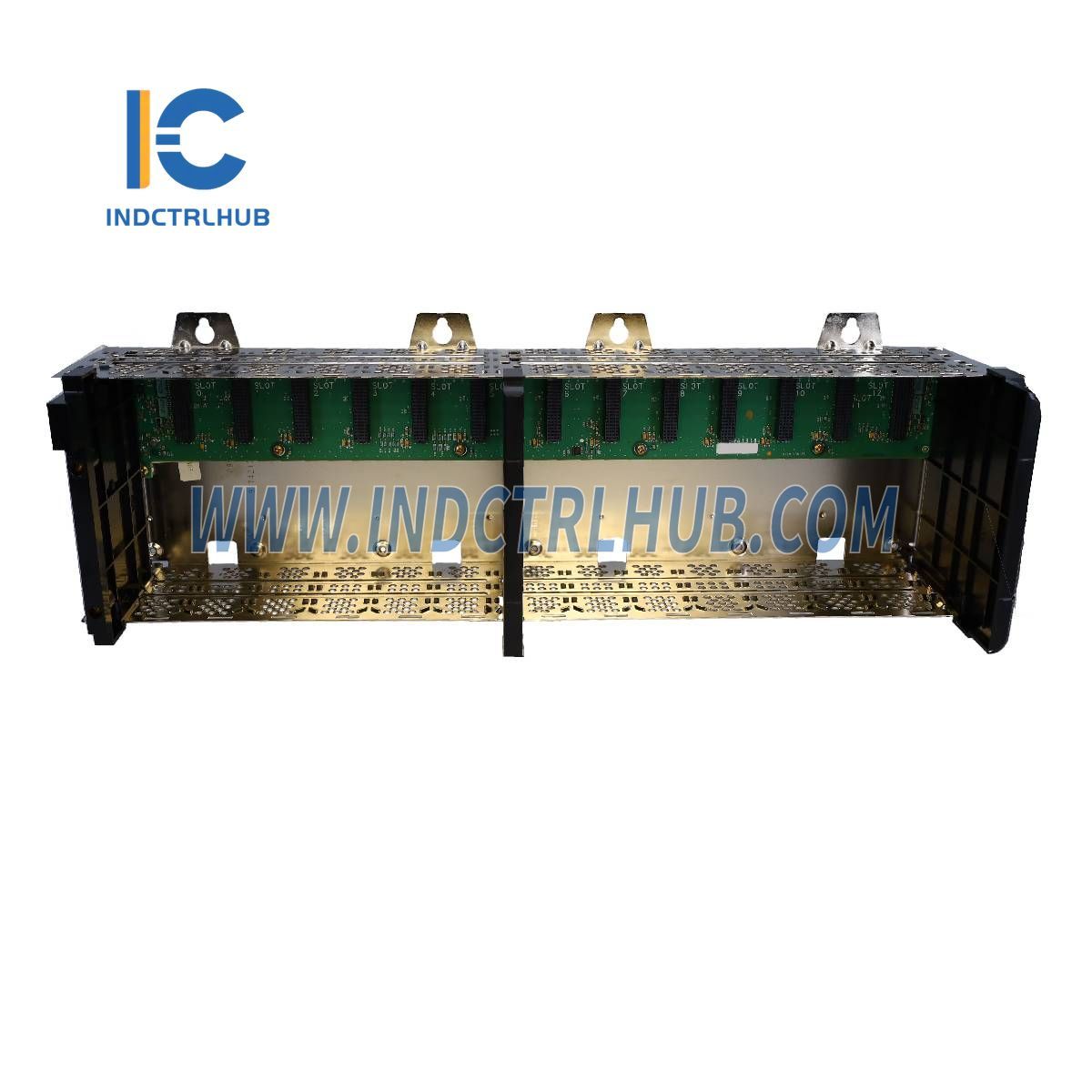

1756 ControlLogix Chassis |
Technical Specifications
|
Attribute |
1756-A13 |
|---|---|
|
Backplane Current (max) |
|
|
@ 1.2V DC |
1.5 A |
|
@ 3.3V DC |
4 A |
|
@ 5.1V DC |
15 A |
|
@ 24V DC |
2.8 A |
|
Power Dissipation (max) |
5.4 W |
|
Isolation Voltage |
Determined by installed power supply and modules |
|
Slots |
13 |
|
Mounting Method |
Only horizontal |
|
Cabinet Size (HxWxD) (min) |
50.8 x 81.3 x 20.3 cm (20 x 32 x 8 in.) |
|
Weight (approx.) |
1.90 kg (4.2 lb) |
|
Location |
Panel |
|
Wire Size |
Functional Earth Ground: 8.3 mm² (8 AWG) solid/stranded copper wire (90°C or greater) Protective Earth Ground: 2.1 mm² (14 AWG) solid/stranded copper wire (90°C or greater) |
|
North American Temp Code |
T5 (Series B), T4 (Series C) |
|
IEC Temperature Code |
T4 (Series C), T5 (Series B) |
|
Enclosure Type Rating |
None (open-style) |
Environmental Specifications
|
Attribute |
1756-A13 |
|---|---|
|
Operating Temperature |
Series B: 0…60°C (32…140°F) Series C: -25…+60°C (-13…+140°F) |
|
Surrounding Air Temperature (max) |
60°C (140°F) |
|
Non-Operating Temperature |
-40…+85°C (-40…+185°F) |
|
Relative Humidity |
5…95% non-condensing |
|
Conformal Coating |
Series B: No Series C: Yes |
|
Vibration |
2 g @ 10…500 Hz |
|
Shock (Operating) |
30 g |
|
Shock (Non-Operating) |
Series B: 50 g Series C: 30 g |
|
Emissions Compliance |
IEC 61000-6-4 |
|
Electrostatic Discharge Immunity |
IEC 61000-4-2: 6 kV contact, 8 kV air |
|
Radiated RF Immunity |
IEC 61000-4-3: 10V/m (80…2000 MHz), 3V/m (2000…2700 MHz) |
