Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

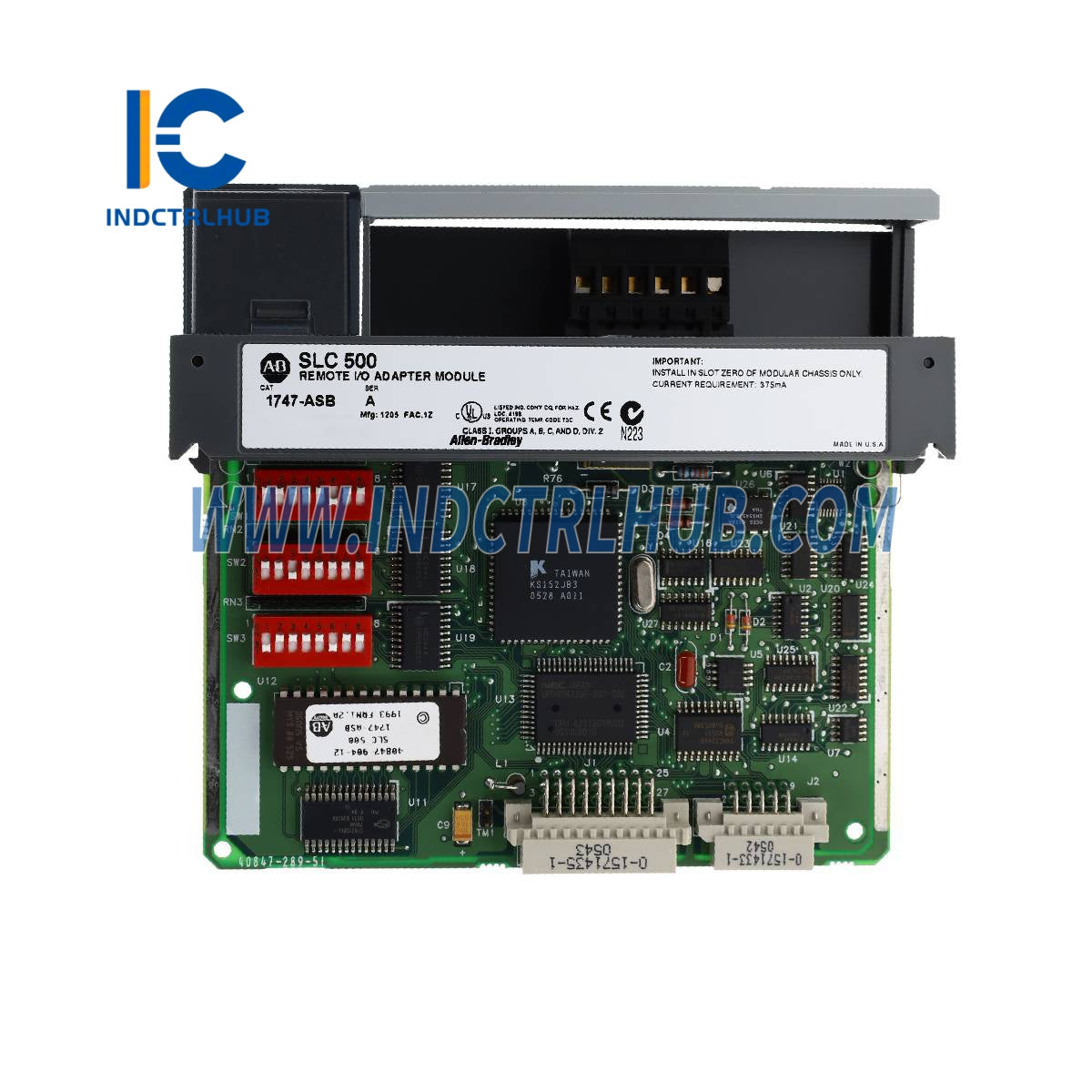

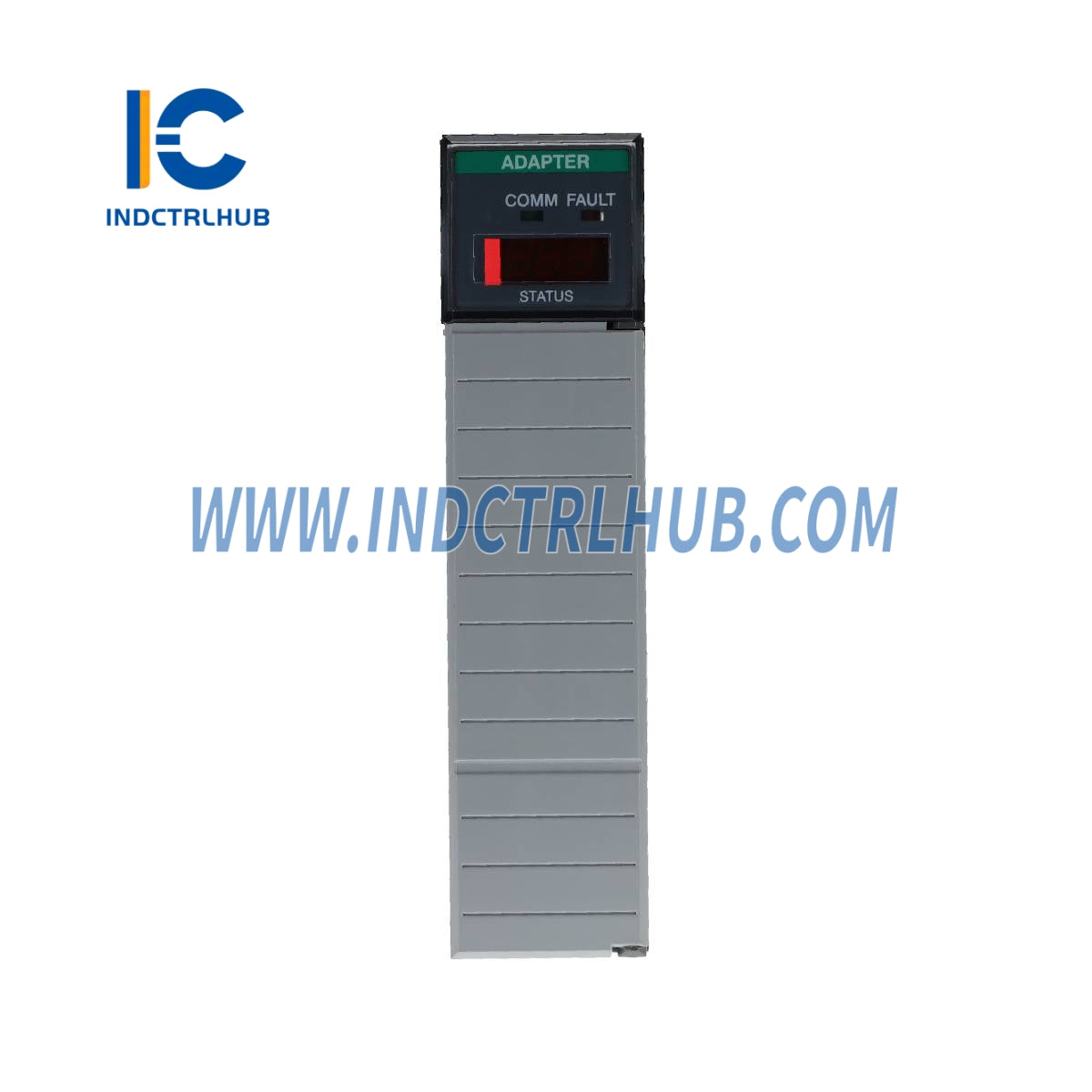

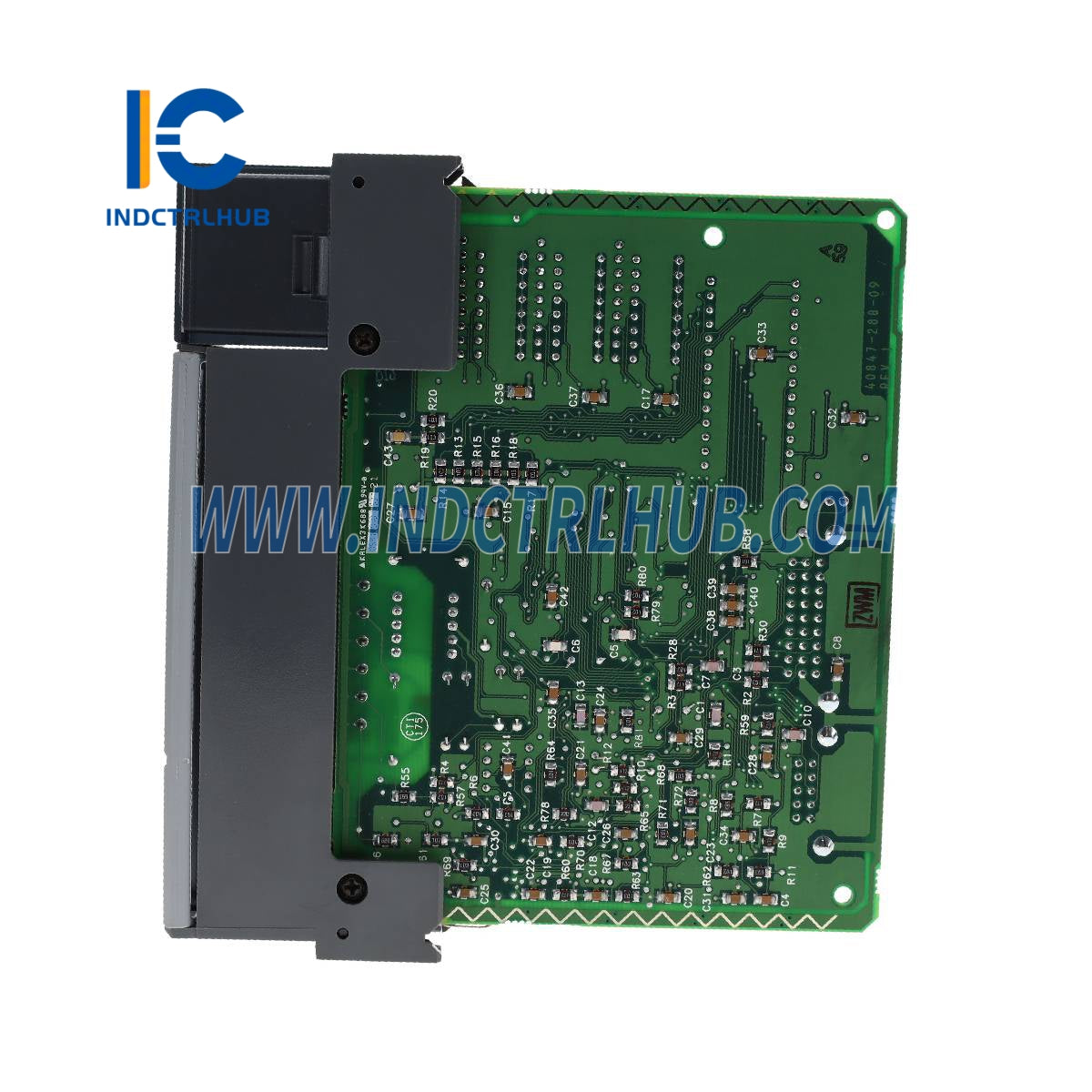

1747-ASB |
|
Description |
SLC 500 DH+ Communication Adapter |
|
Product Series |
SLC 500 |
🔹 Specifications
Adapter Operating Specifications
|
Specification |
Description |
|---|---|
|
Backplane Current Consumption |
375 mA at 5V DC |
|
Operating Temperature |
32°F to 140°F (0°C to 60°C) |
|
Storage Temperature |
-40°F to +185°F (-40°C to +85°C) |
|
Humidity |
5% to 95% non-condensing |
|
Noise Immunity |
NEMA standard ICS 2-230 |
|
Vibration |
Displacement: 0.015 inch, peak-to-peak at 5-57 Hz, Acceleration: 2.5Gs at 57-2000 Hz |
|
Shock (operating) |
30Gs |
Agency Certification
|
Certification |
Description |
|---|---|
|
UL Listed |
Yes |
|
CSA Certified |
Yes |
|
Class I, Division 2 Groups A, B, C, D |
Yes |
|
CE Compliant |
Yes (for all applicable directives) |
|
Marine Certified |
Yes |
|
C-tick Marked |
Yes (for all applicable acts) |
Baud Rate, Maximum Cable Distance, and Resistor Size
|
Baud Rate |
Maximum Cable Distance (Belden 9463) |
Resistor Size (Extended Node Capability) |
|---|---|---|
|
57.6K baud |
3048 meters (10,000 feet) |
82Ω 1/2 Watt |
|
115.2K baud |
1524 meters (5,000 feet) |
|
|
230.4K baud |
762 meters (2,500 feet) |
|
Baud Rate |
Maximum Cable Distance (Belden 9463) |
Resistor Size (Not Using Extended Node Capability) |
|---|---|---|
|
57.6K baud |
3048 meters (10,000 feet) |
150Ω 1/2 Watt |
|
115.2K baud |
1524 meters (5,000 feet) |
|
|
230.4K baud |
762 meters (2,500 feet) |
82Ω 1/2 Watt |
