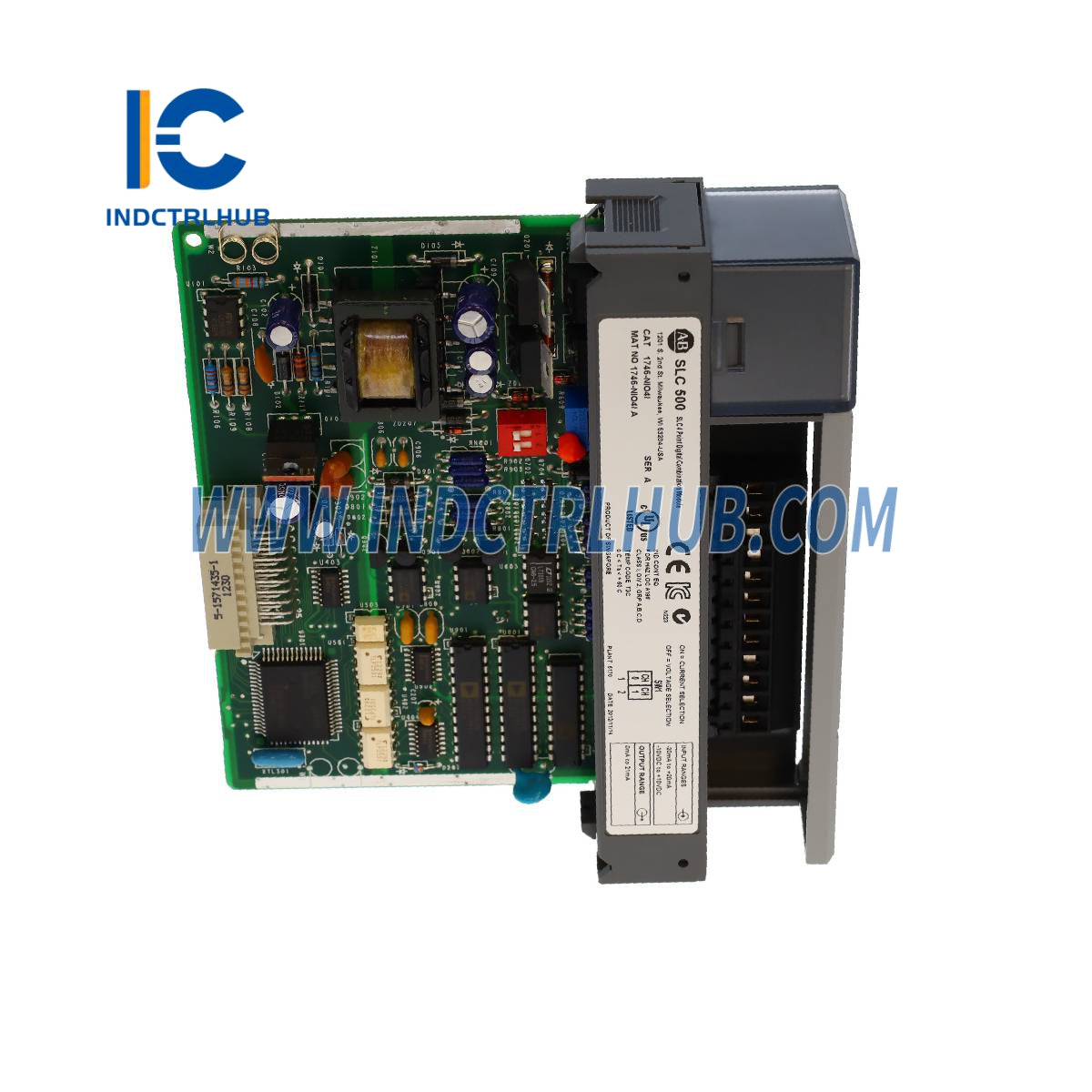

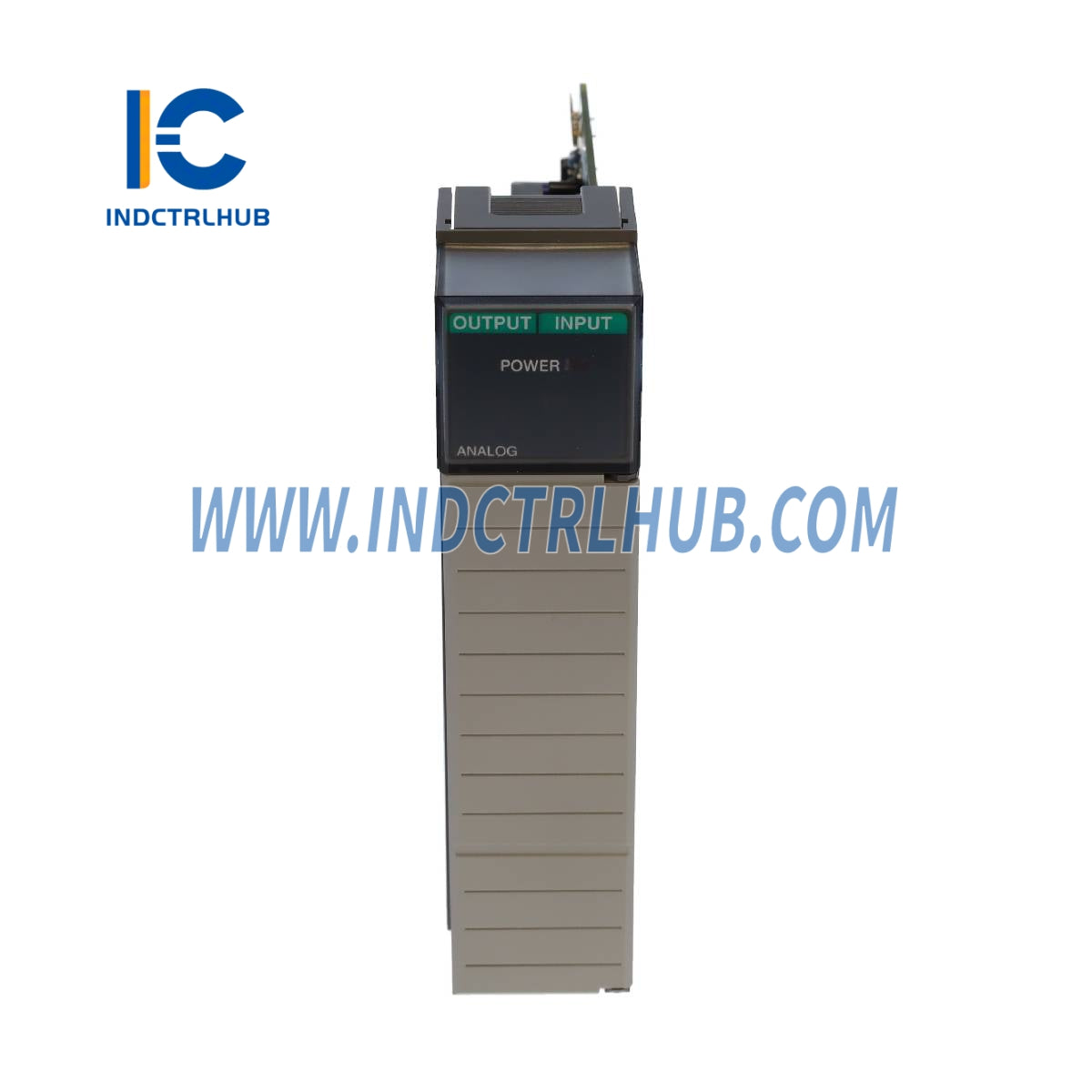

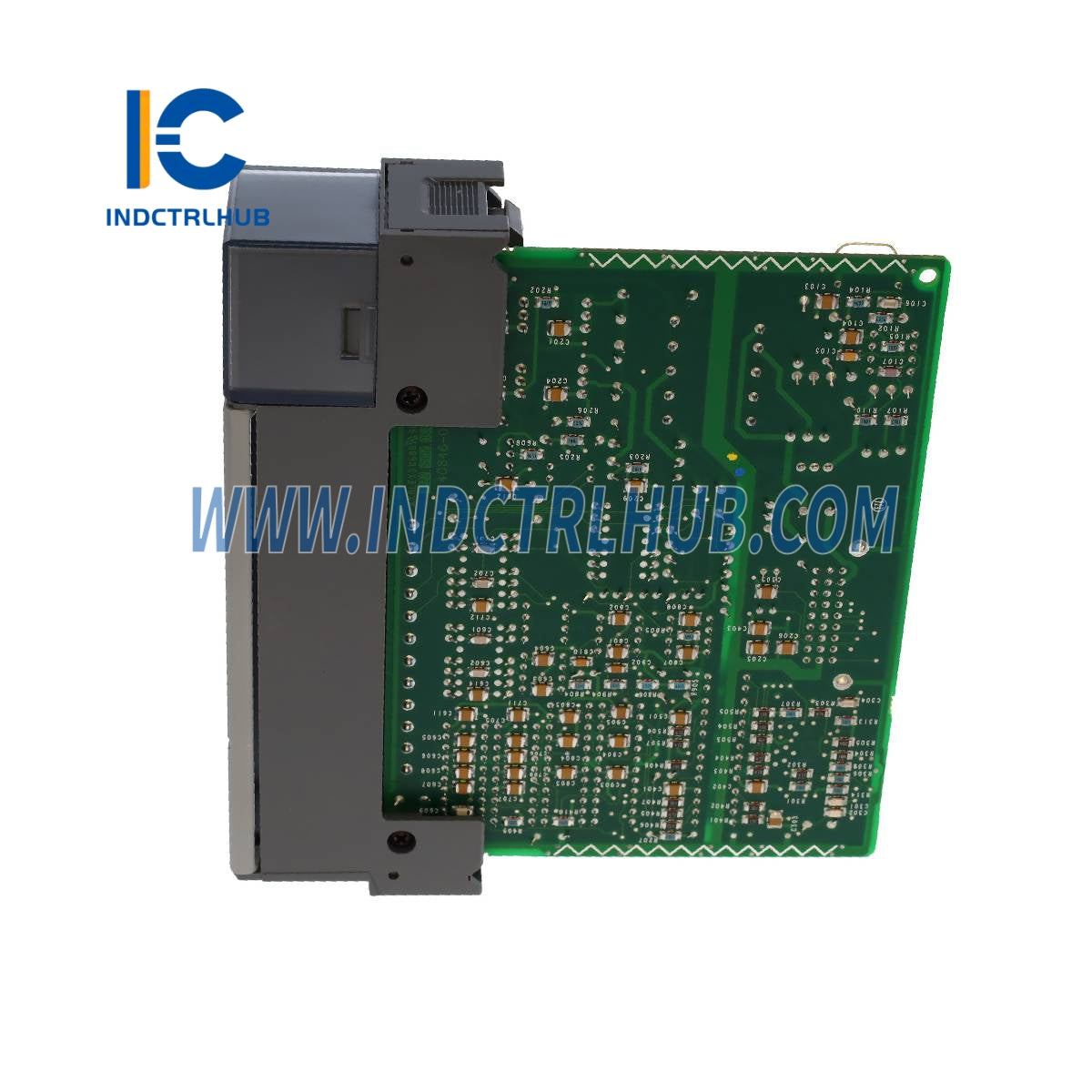

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1746-NI04I |
|
Description |
Analog Input Module |
🔹 Specifications
|
Attribute |
1746-NI04I Specification |
|---|---|
|
Converter Resolution |
16-bit |
|
Repeatability |
±1 LSB |
|
Location of LSB in I/O Image Word |
0000 0000 0000 0001 |
|
Non-Linearity |
0.01% |
|
Common Mode Voltage Range |
-20V to +20V |
|
Common Mode Rejection (Min.) |
0 to 10 Hz: 50 dB 60 Hz: 105 dB |
|
Normal Mode Rejection at 60 Hz (Min.) |
55 dB |
|
Channel Bandwidth |
10 Hz |
|
Step Response |
60 ms at 95% |
|
Conversion Method |
Delta-Sigma Modulation |
|
Impedance to ANL COM |
500K ohms (Series A) 380K ohms (Series B & later) |
|
Impedance Channel to Channel |
500K ohms (Series A) 1M ohms (Series B & later) |
