Product Description

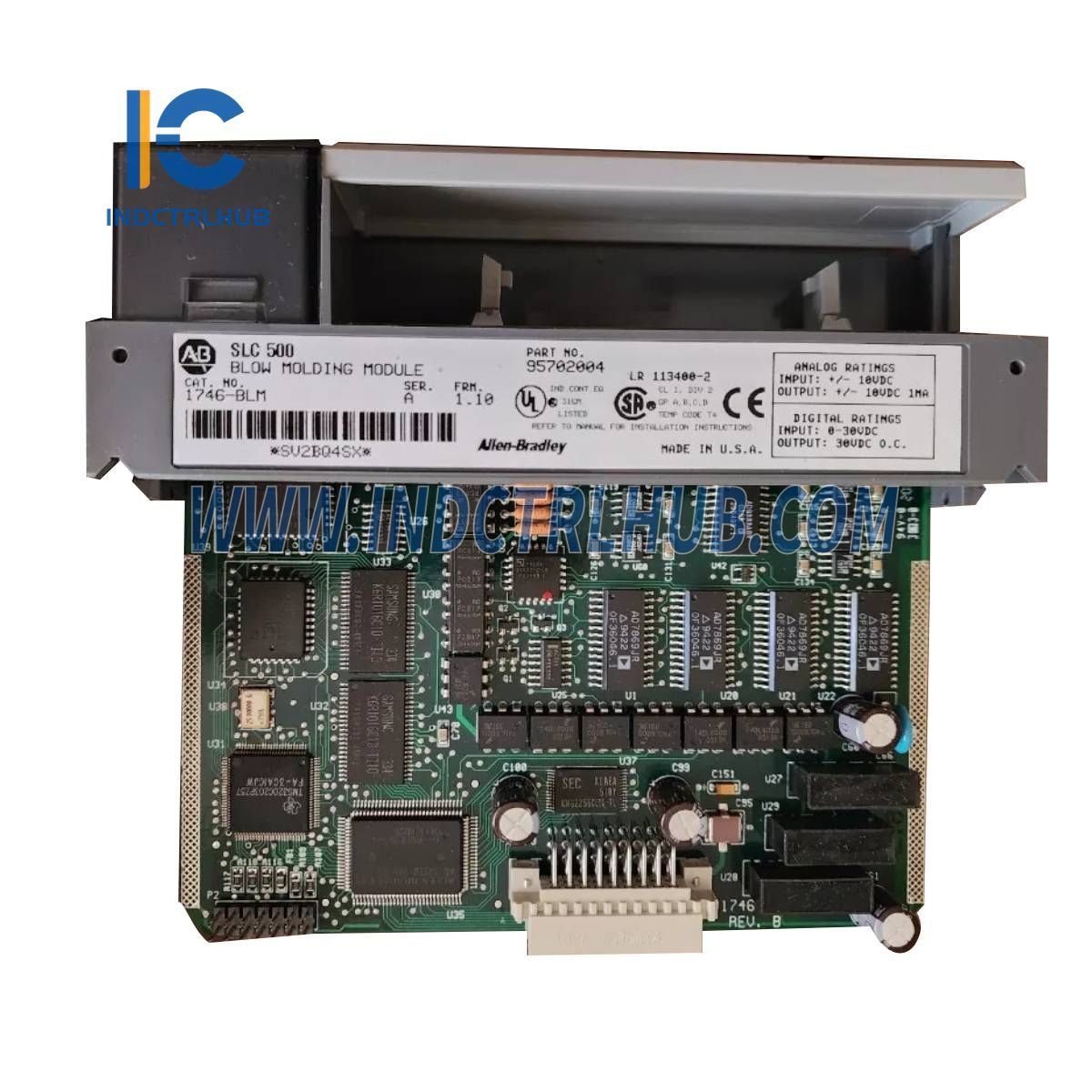

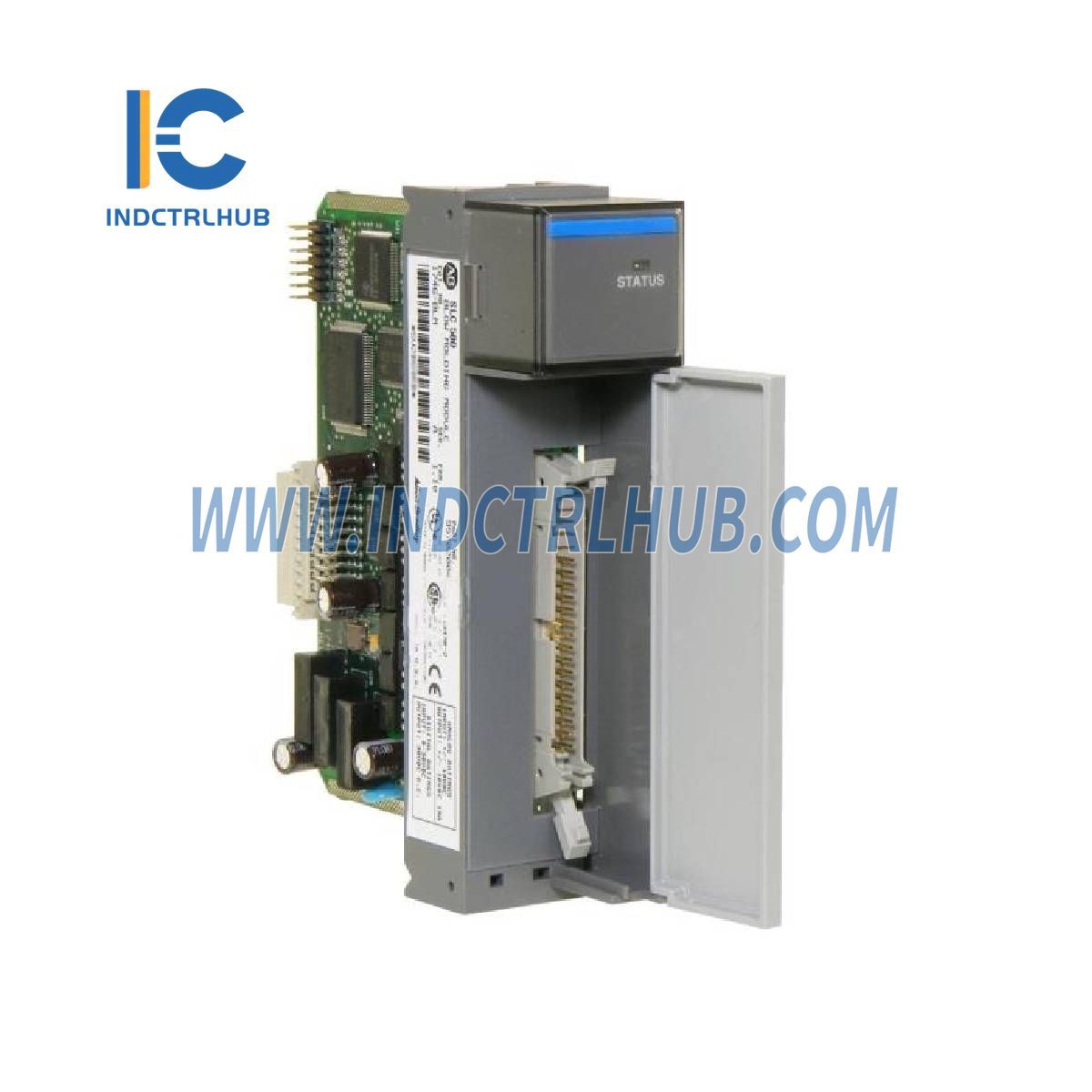

Allen-Bradley 1746-BLM Blow Molding Module
The Allen-Bradley 1746-BLM is a Blow Molding Module designed for industrial automation applications. It features both analog and digital inputs and outputs, offering high precision and reliability for controlling blow molding processes.
Specifications
Analog and Digital Features
| Parameter | Analog Inputs | Analog Outputs | Digital Inputs | Digital Outputs |
|---|---|---|---|---|
| Conversion Rate | 10 kHz | 10 kHz | - | - |
| Resolution | 14 bits | 14 bits | - | - |
| Differential Input Range | ±10V DC | - | - | - |
| Output Voltage Range | - | ±10V DC | - | ±10V DC |
| Maximum Continuous Current | - | 2mA (10KΩ linear pot) | - | - |
| Isolation from SLC Backplane | 500V DC | 500V DC | 500V DC | 500V DC |
| Type | - | - | Optocoupler | Open Collector |
| Input Voltage Range | - | - | 0–30V DC | - |
| Protection | - | - | Polarity Reversal | - |
| Maximum OFF State Voltage | - | - | 30V DC | - |
Power and Environmental Specifications
- Power Requirement: 5 Watts (1A @ +5V DC)
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to +85°C (-40 to 185°F)
- Relative Humidity: 5 to 95% (non-condensing)
- Environmental Agency Certification: Yes
