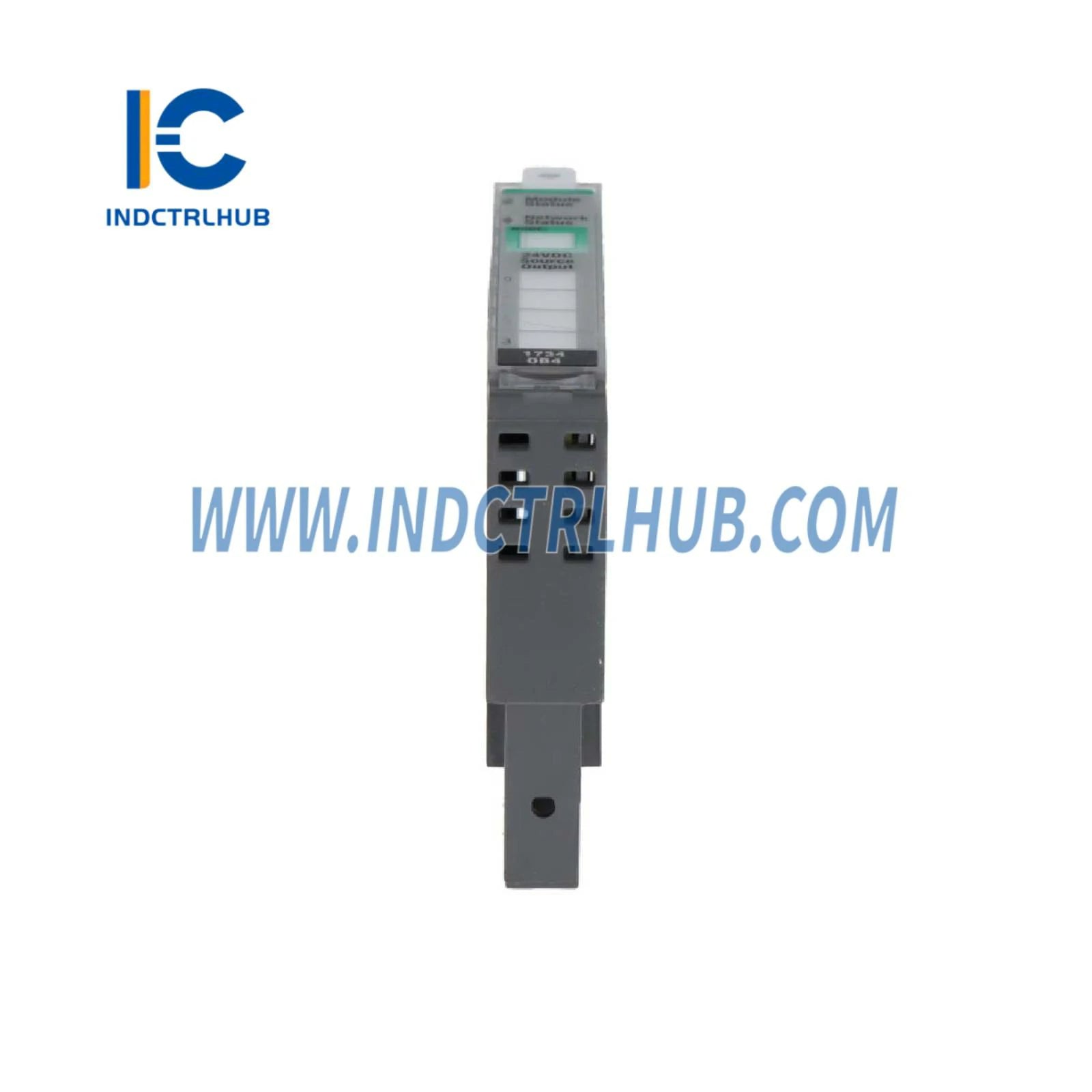

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1734-OB4 |
|
Description |
POINT I/O 4-Channel Digital DC Output Module |

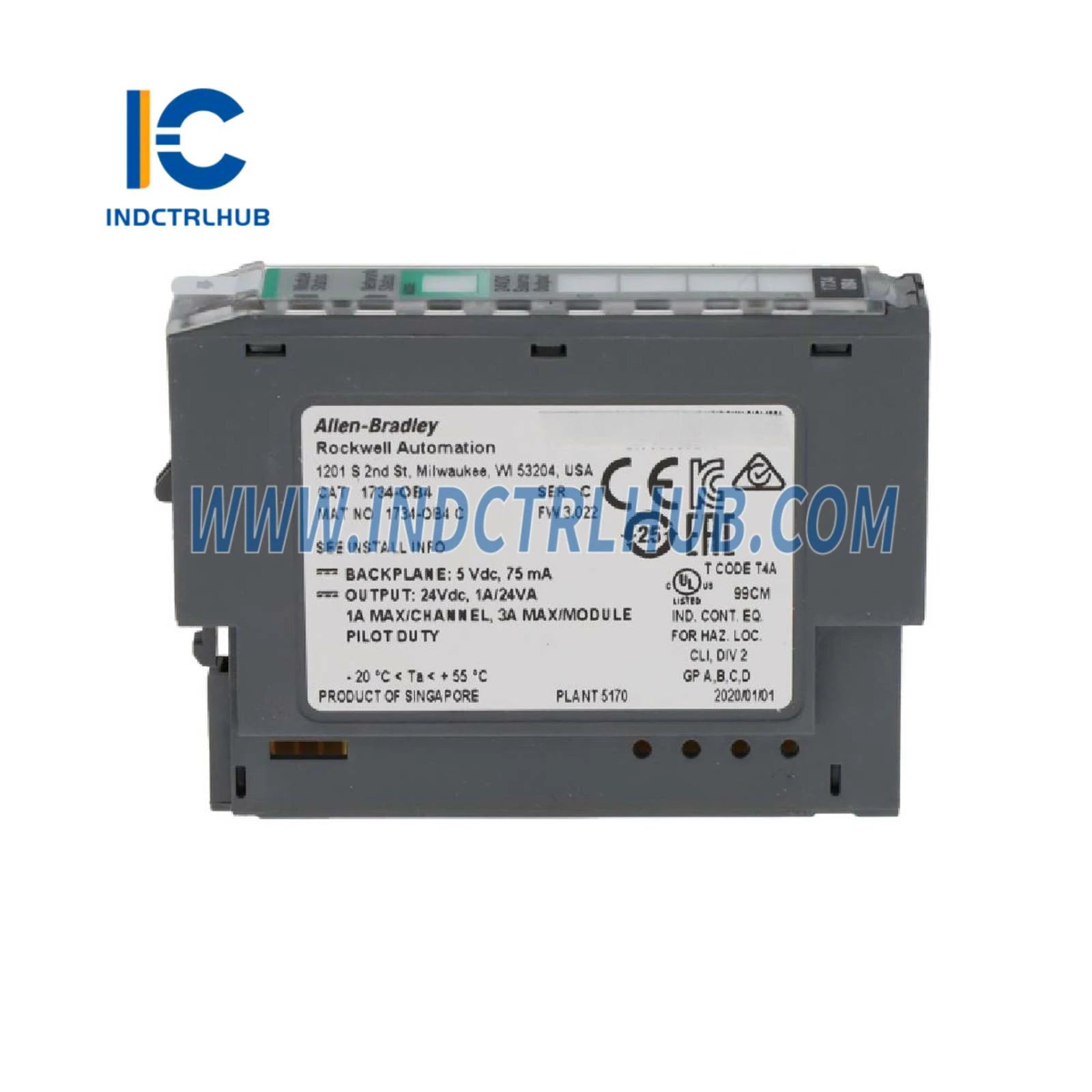

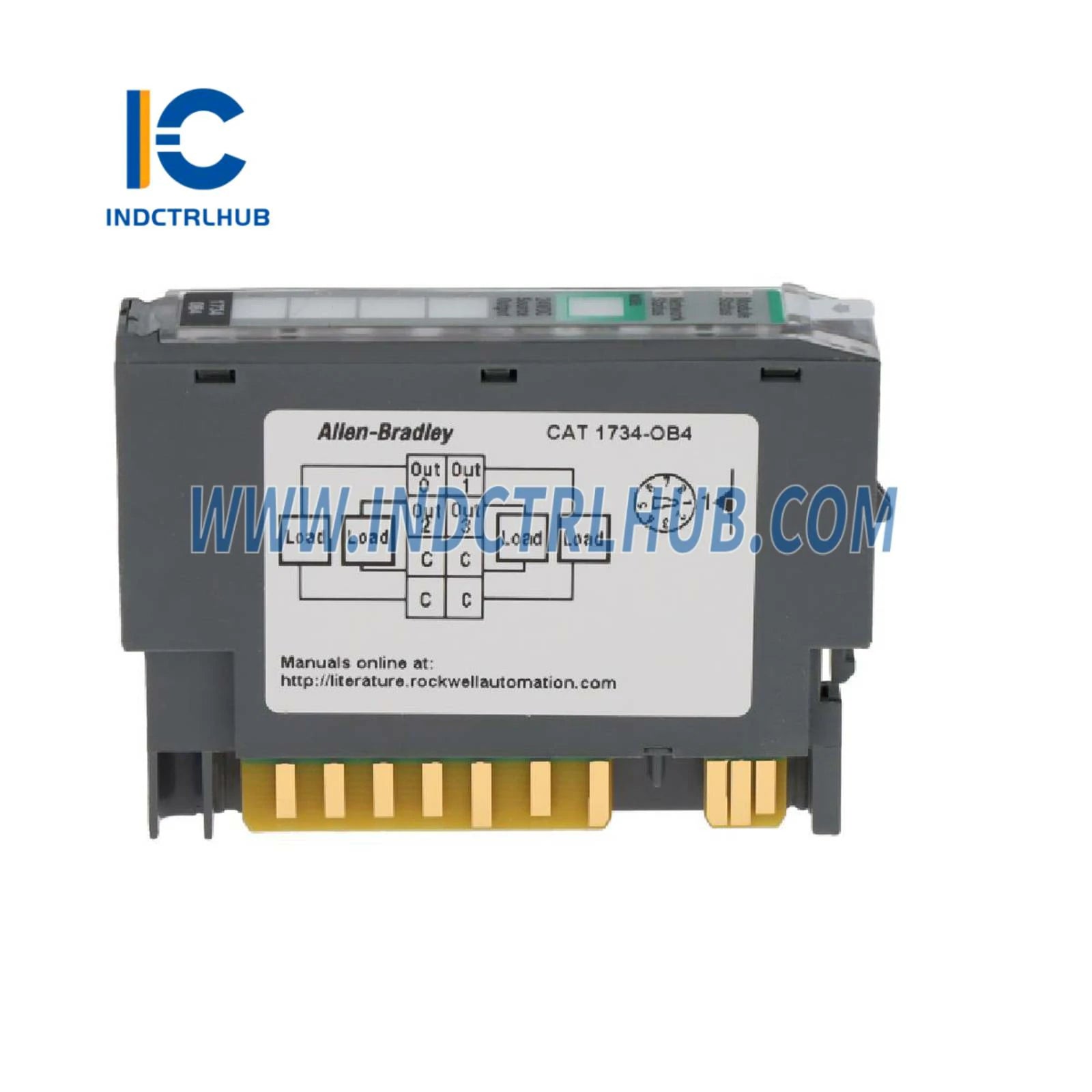

🔹 General Specifications
|
Attribute |
Value |
|---|---|
|
Terminal Base |
1734-TB or 1734-TBS wiring base assembly |
|
Terminal Base Screw Torque |
0.8 N•m (7 lb•in) |
|
Indicators |
4 yellow – Output status, 2 green/red – Module/network status |
|
POINTBus™ Current (Max @ 5V DC) |
75 mA |
|
Power Dissipation (Max @ 28.8V DC) |
1.2 W |
|
Thermal Dissipation (Max @ 28.8V DC) |
4.1 BTU/hr |
|
Isolation Voltage |
50V (continuous), reinforced insulation type (Type tested @ 2500V DC for 60 s, field-side to system) |
|
External DC Power Supply Voltage (Nom.) |
24V DC |
|
External DC Power Voltage Range |
10…28.8V DC |
|
External DC Power Supply Current |
16 mA |
|
Dimensions (HxWxD), Approx. |
56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.) |
|
Weight, Approx. |
33.17 g (1.17 oz) |
|
Wiring Category |
2 – on signal ports |
|
Wire Size |
Determined by the installed terminal block |
|
North American Temp Code |
T4A |
|
UKEX/ATEX Temp Code |
T4 |
|
IECEx Temp Code |
T4 |
