Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

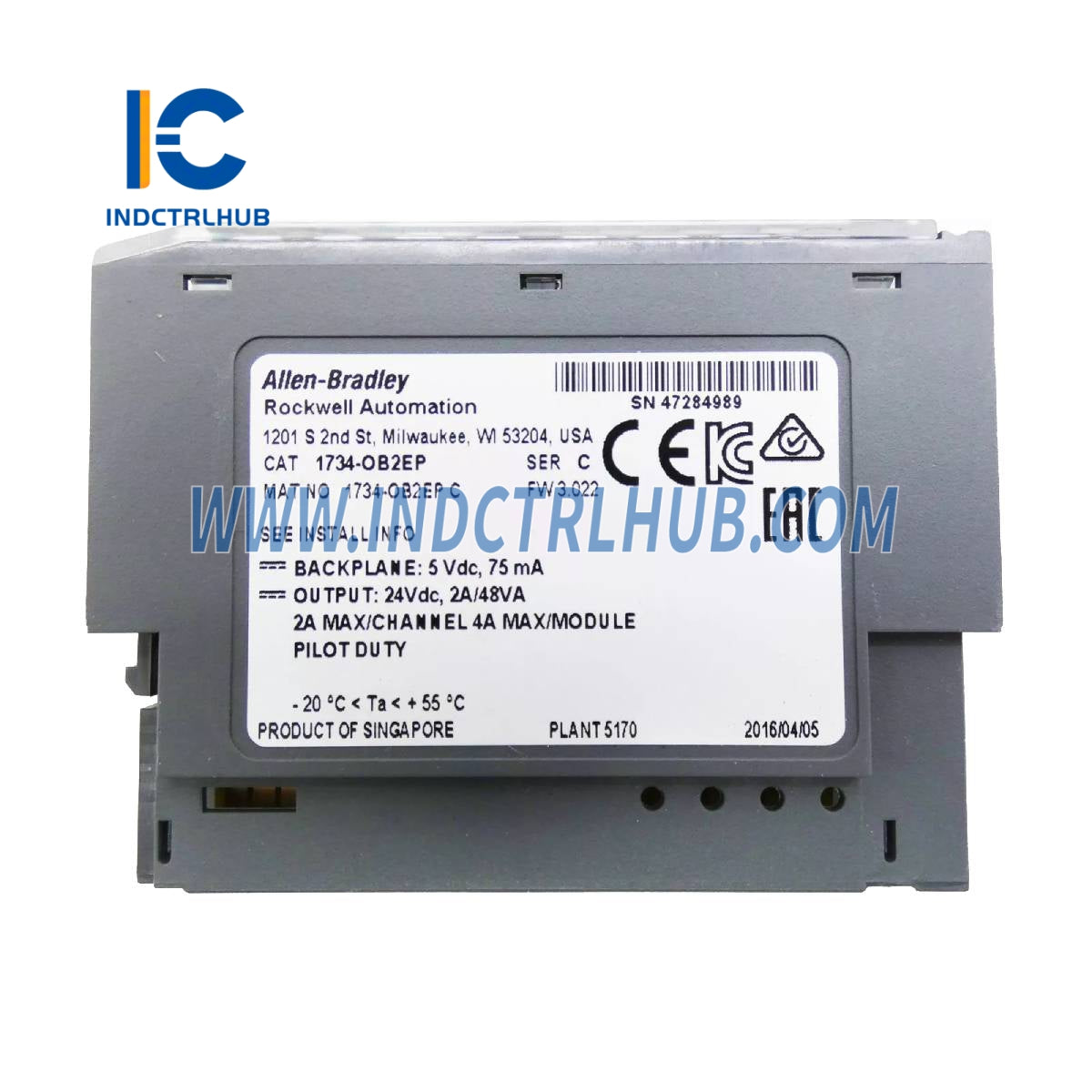

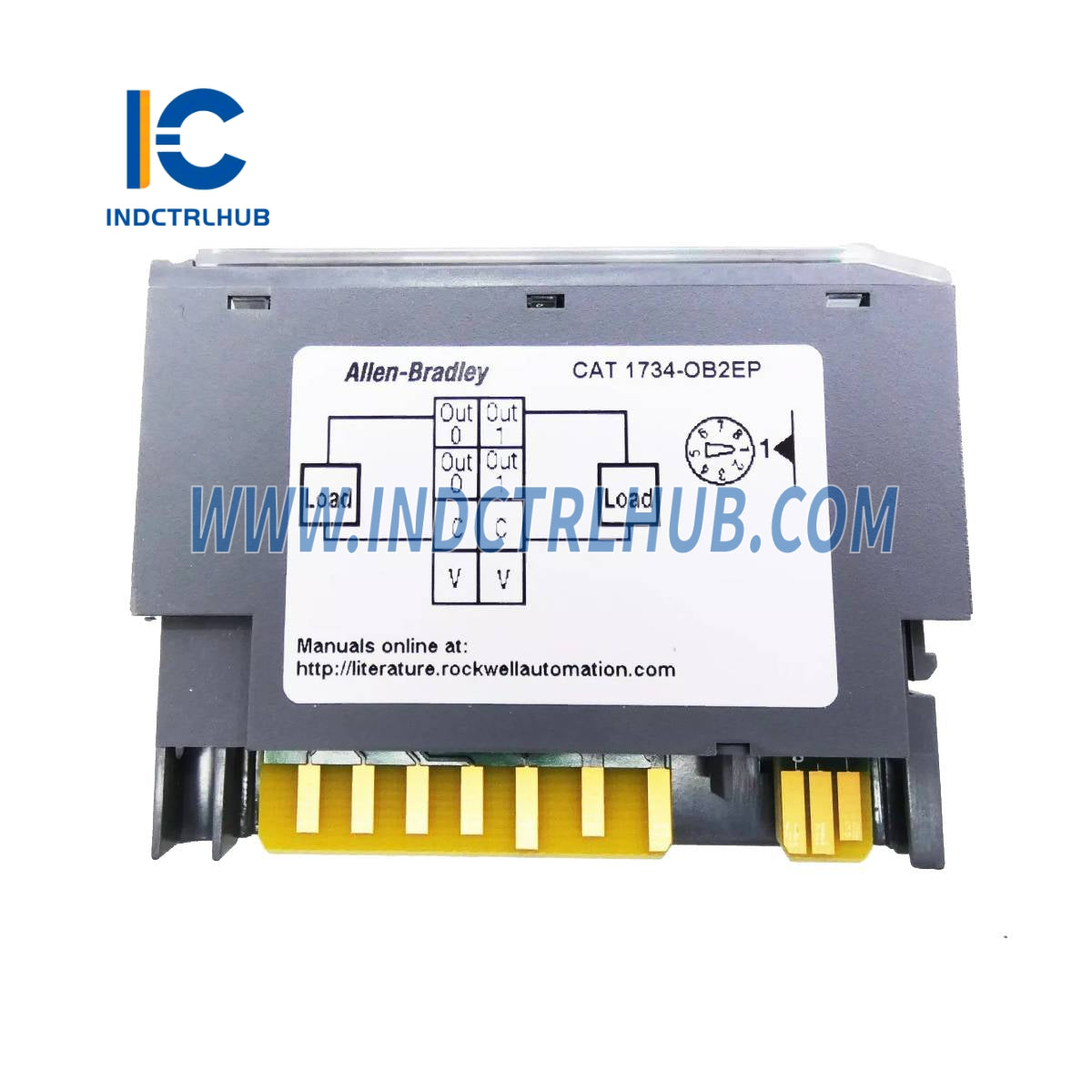

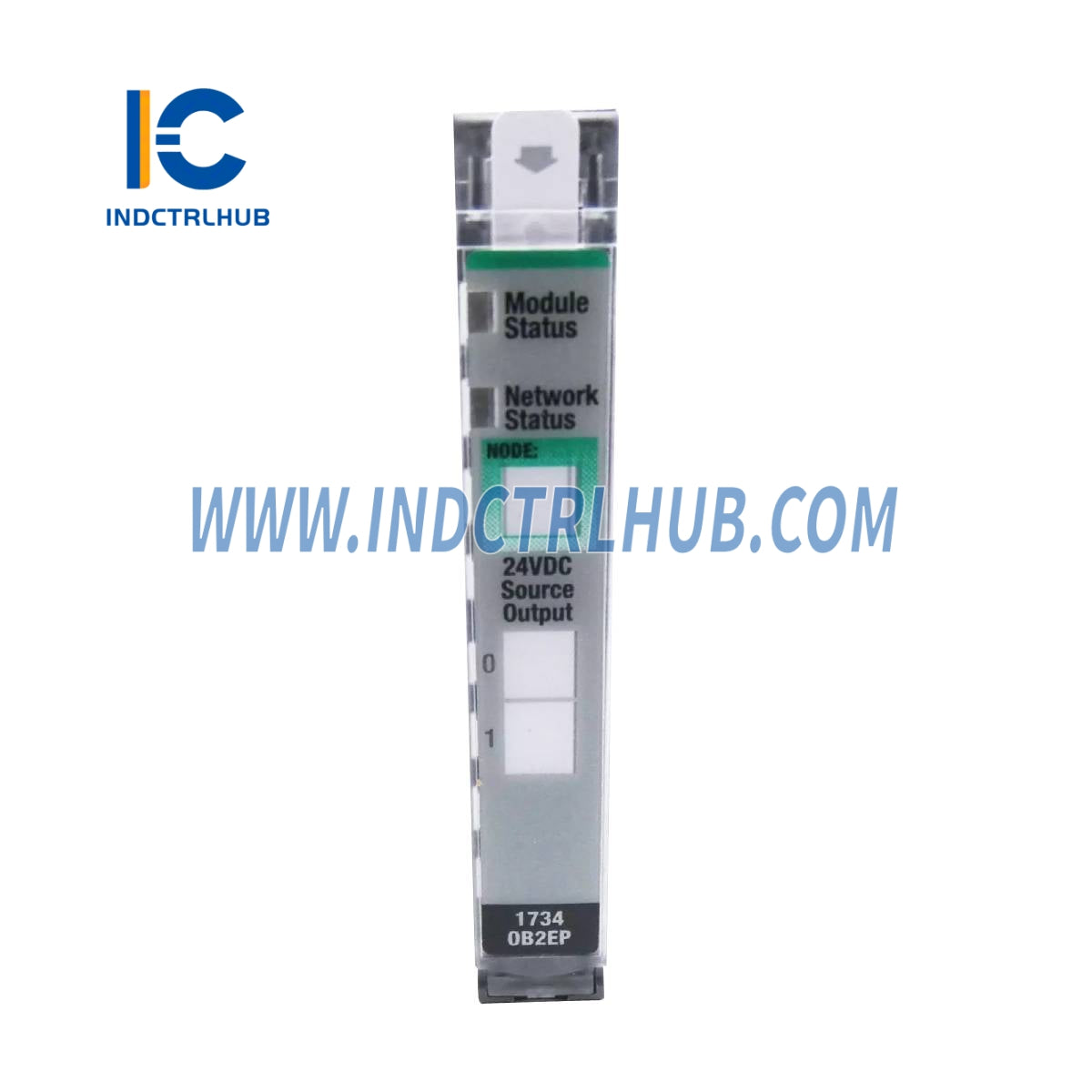

1734-OB2EP |
|
Description |
POINT I/O 2-Channel Protected Digital DC Output Module |
🔹 General Specifications
|
Attribute |
Value |
|---|---|
|
Terminal Base |
1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
|
Terminal Base Screw Torque |
0.6 N•m (7 lb•in) |
|
Keyswitch Position |
1 |
|
POINTBus™ Current (Max) |
75 mA @ 5V DC |
|
Power Dissipation (Max) |
3.4 W @ 28.8V DC |
|
Thermal Dissipation (Max) |
11.6 BTU/hr @ 28.8V DC |
|
Isolation Voltage |
50V continuous (Tested to 1250V AC for 60 s between outputs and POINTBus) |
|
External DC Power - Supply Voltage (Nom.) |
5V DC |
|
External DC Power - Supply Voltage Range |
10…28.8V DC |
|
External DC Power - Supply Current (Max) |
13 mA @ 28.8V DC, no load condition |
|
Dimensions (HxWxD), Approx. |
56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.) |
|
Weight, Approx. |
32.6 g (1.15 oz) |
|
Wire Size |
0.25…2.5 mm² (22…14 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max |
|
Wiring Category |
2 – on signal ports |
|
Enclosure Type Rating |
None (open-style) |
