Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1734-CTM |
|
Description |

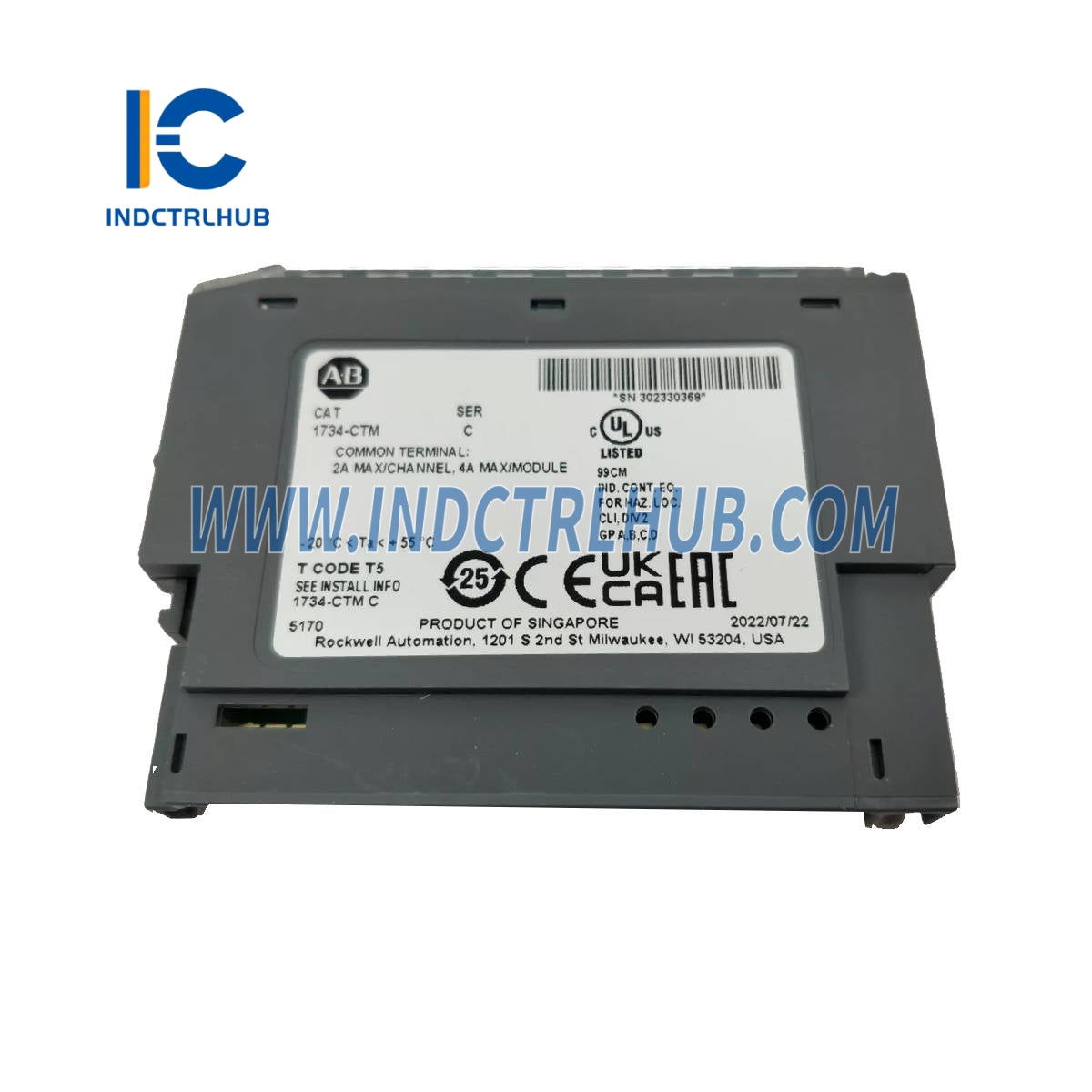

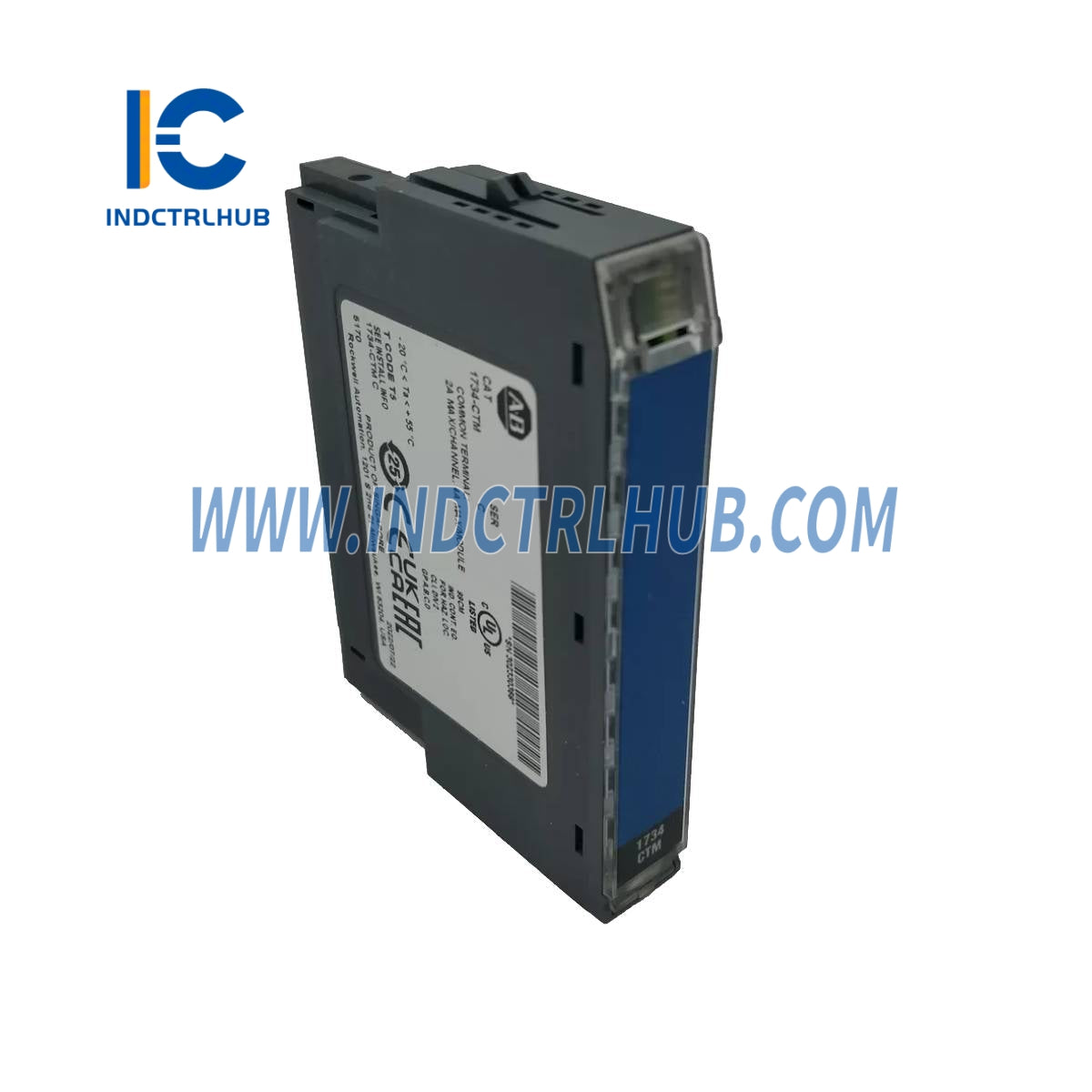

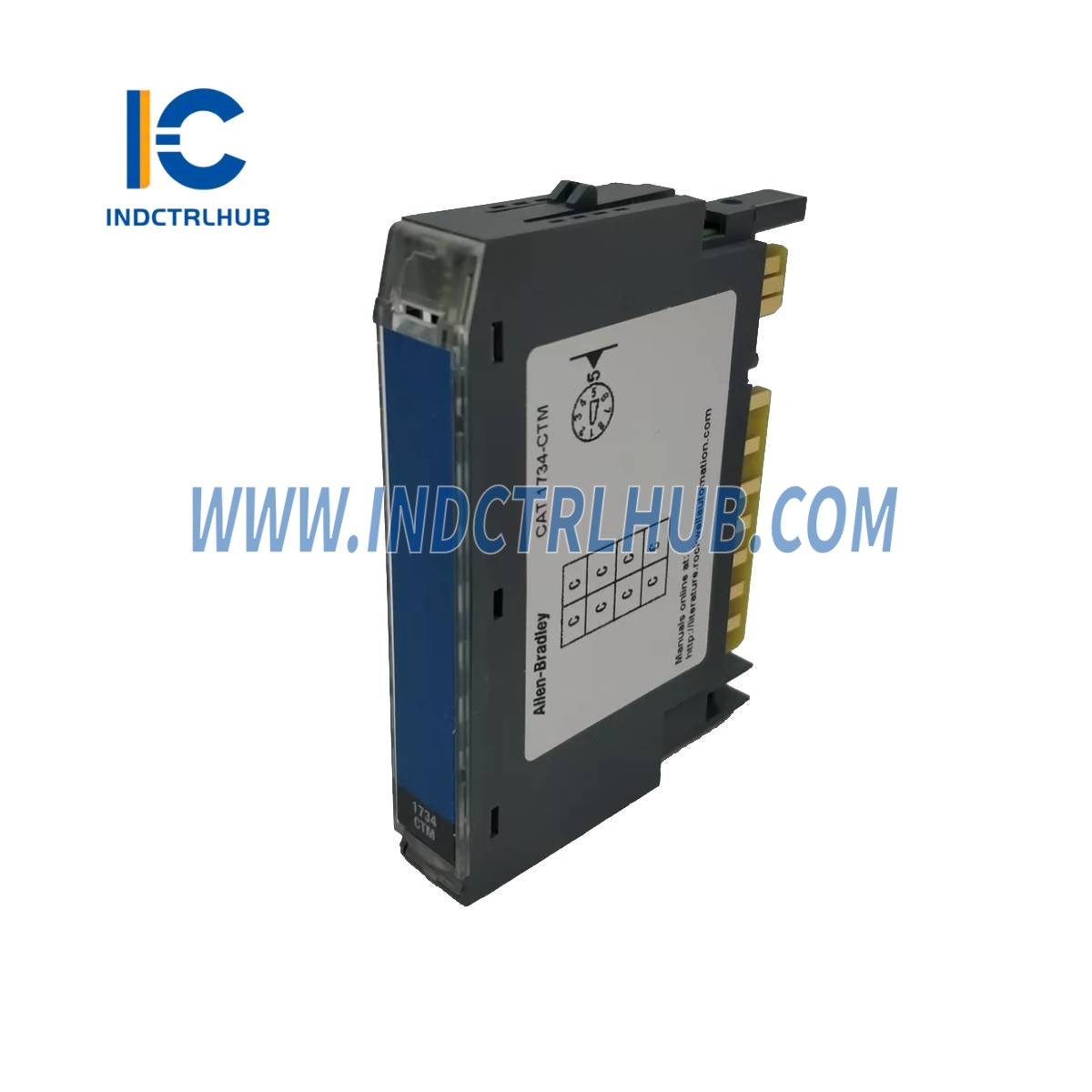

Terminal Module for POINT I/O Systems |
🔹 General Specifications
|
Attribute |
Value |
|---|---|
|
Indicators |
None |
|
Keyswitch Position |
5 |
|
Module Location |
1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS wiring base assembly |
|
POINTBus™ Current (Max) |
None |
|
Power Dissipation (Max) |
None |
|
Thermal Dissipation (Max) |
None |
|
Isolation Voltage |
250V (continuous), Basic Insulation Type Type tested at 1600V DC for 60s (field-side to system) |
|
Field Power Bus Supply Voltage Range |
10…28.8V DC, 120/240V AC |
|
Field Power Bus Output Current (Max) |
2 A per point, 4 A per module |
|
Terminal Base Screw Torque |
0.8 N•m (7 lb•in) |
|
Dimensions (HxWxD), Approx. |
77.5 x 12.1 x 56.6 mm (3.05 x 0.48 x 2.23 in.) |
|
Weight, Approx. |
30.9 g (1.09 oz) |
|
Wire Size |
0.25…2.5 mm² (22…14 AWG) solid or stranded copper wire rated at 75°C (167°F) or greater, 1.2 mm (3/64 in.) insulation max |
|
Enclosure Type Rating |
None (Open-Style) |
🔹 Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Operating Temperature |
-20 °C…+55 °C (-4 °F…+131 °F) IEC 60068-2-1 (Test Ad, Operating Cold) IEC 60068-2-2 (Test Bd, Operating Dry Heat) IEC 60068-2-14 (Test Nb, Operating Thermal Shock) |
|
Non-Operating Temperature |
-40…+85 °C (-40…+185 °F) IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold) IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat) IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) |
|
Relative Humidity |
5…95% non-condensing IEC 60068-2-30 (Test Db, Unpackaged Damp Heat) |
|
Vibration |
5 g @ 10…500 Hz IEC 60068-2-6 (Test Fc, Operating) |
|
Shock (Operating) |
30 g IEC 60068-2-27 (Test Ea, Unpackaged Shock) |
|
Shock (Non-Operating) |
50 g IEC 60068-2-27 (Test Ea, Unpackaged Shock) |
