Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

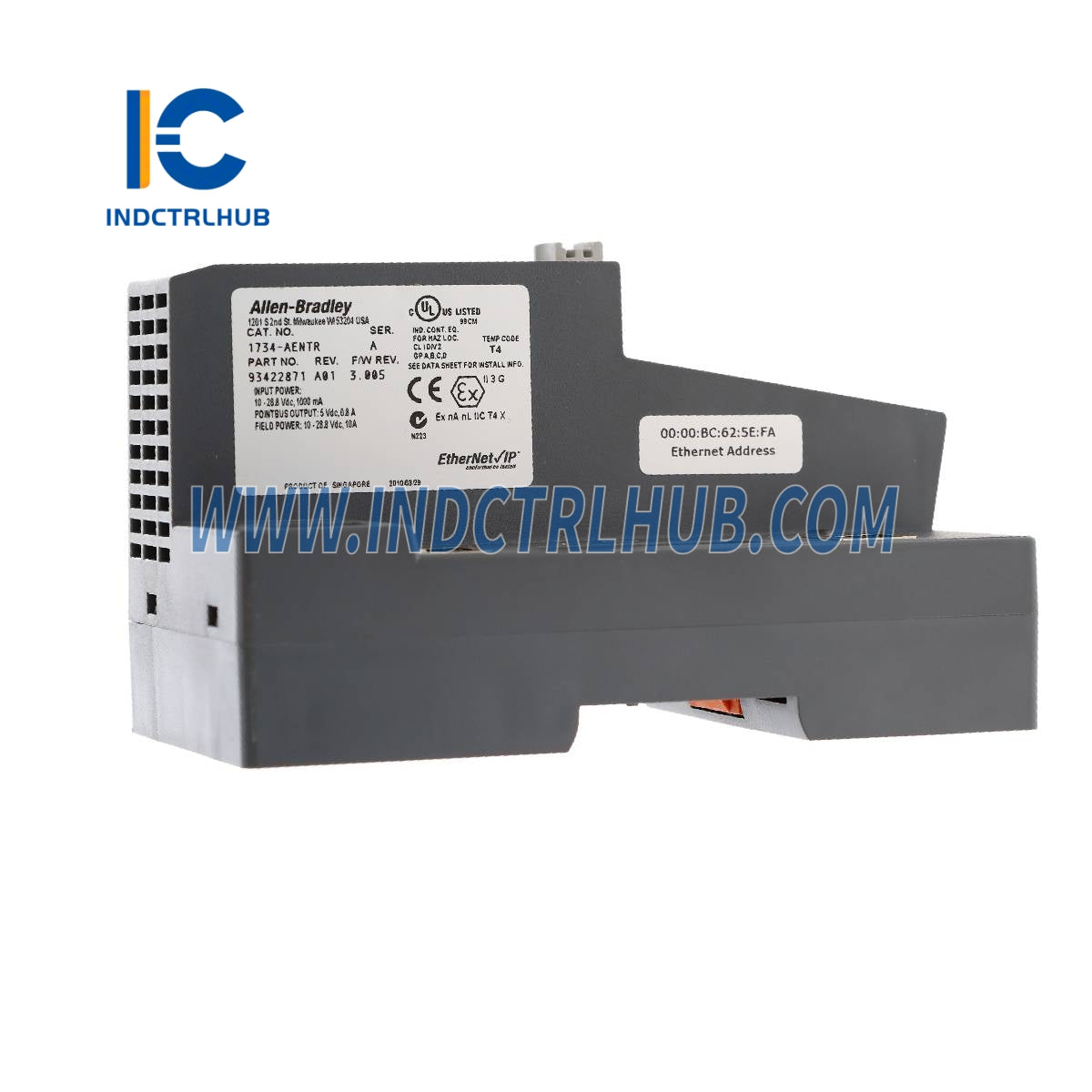

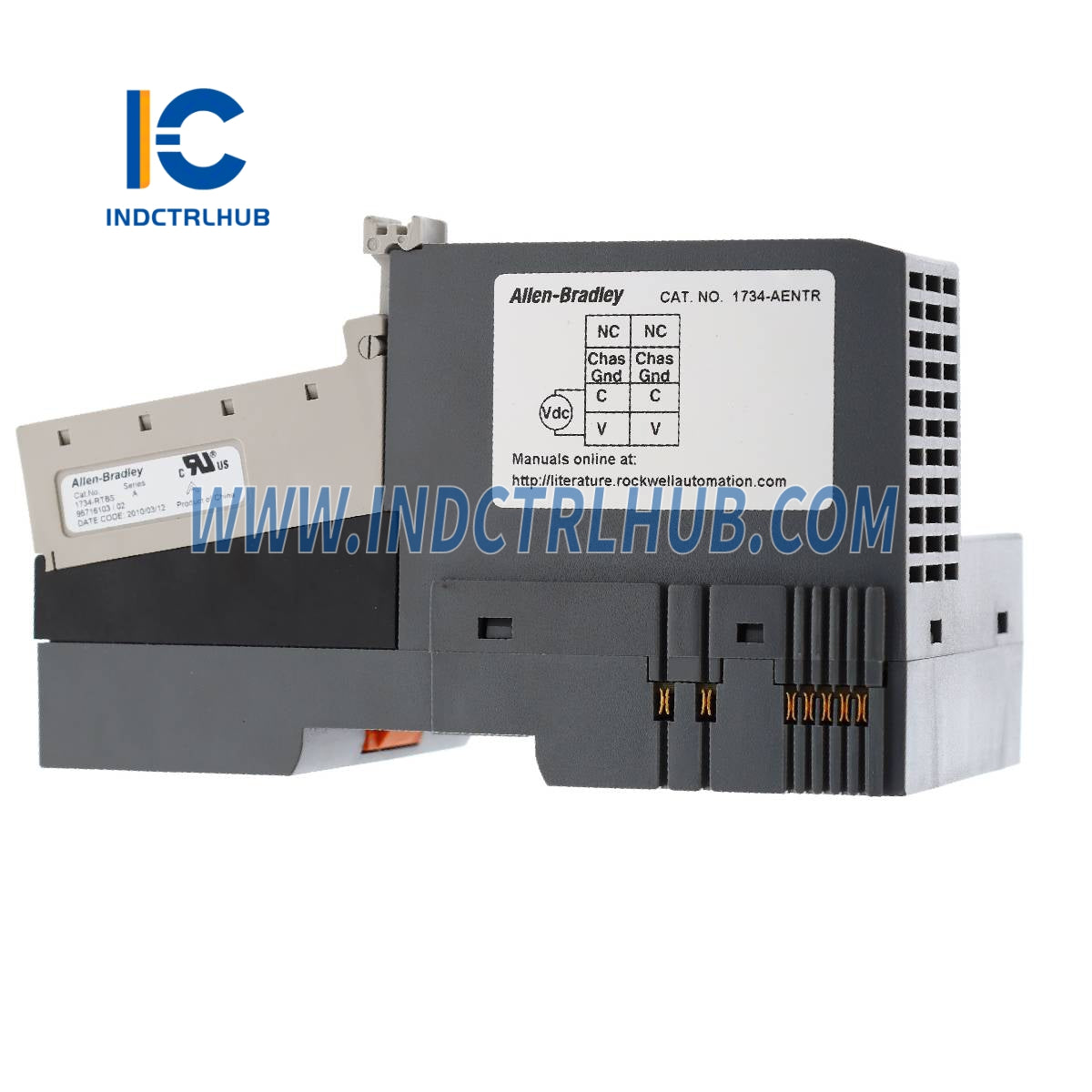

1734-AENTR |
|
Description |
POINT I/O Ethernet Adapter |
🔹 Technical Specifications
|
Attribute |
Value |
|---|---|
|
Indicators |

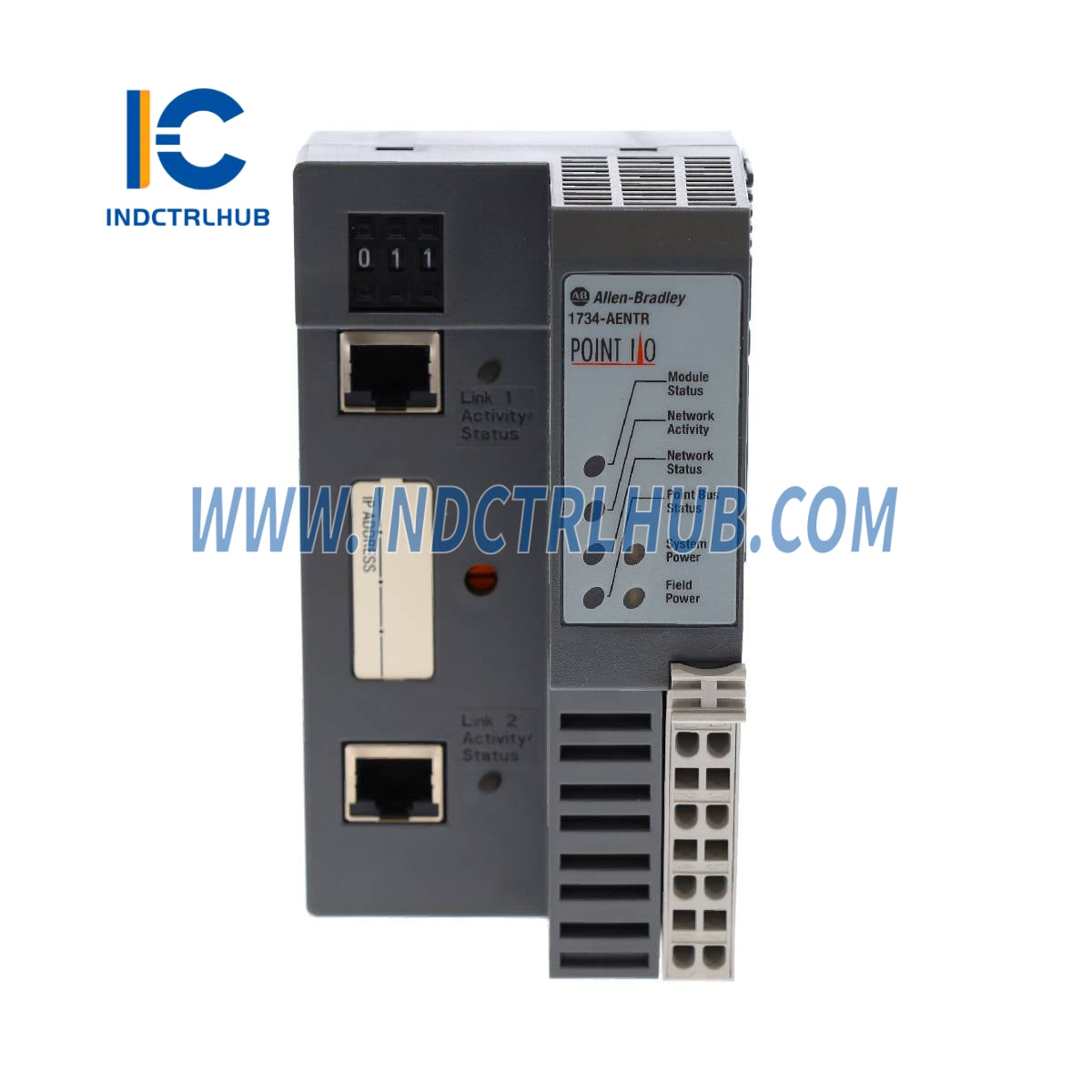

- 3 red/green status indicators (Module, Network, POINTBus) - 1 green/yellow status indicator (Network activity) - 2 green/yellow indicators (Link 1 & Link 2 activity/status) - 2 green power supply indicators (System power & Field power) |
|
Power Consumption (Max) |
10.4 W @ 28.8V DC |
|
Power Dissipation (Max) |
6.3 W @ 28.8V DC |
|
Thermal Dissipation (Max) |
21.5 BTU/hr @ 28.8V DC |
|
Input Overvoltage Protection |
Reverse polarity protected |
|
Isolation Voltage |
50V (continuous), Reinforced Insulation Type, between all circuits Type tested @ 500V AC for 60s |
|
Field Power Supply |
10…28.8V DC @ 10A |
|
Field Power Output |
10…28.8V DC @ 9A |
|
Module Input |
10…28V DC @ 1000 mA |
|
POINTBus Output (Max) |
5V DC @ 0.8A |
🔹 Physical Specifications
|
Attribute |
Value |
|---|---|
|
Dimensions (HxWxD), Approx. |
76.2 x 73.0 x 133.4 mm (3.0 x 2.87 x 5.25 in.) |
|
Weight, Approx. |
0.28 Kg (0.62 lb) |
|
Enclosure Type Rating |
None (Open-Style) |
|
Terminal Base Screw Torque |
0.8 Nm (7 lb-in) |
🔹 Wiring & Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Wire Category |
1 – on power ports 1 – on communications ports |
|
Wire Size (Power Connections) |
0.34…2.1 mm² (22…14 AWG) solid or stranded copper wire rated at 75°C (167°F) or greater, 1.2 mm (3/64 in.) insulation max 90°C (194°F) for ControlLogix |
|
Ethernet Wiring |
RJ45 connector according to IEC 60603-7 2 or 4 pair Category 5e min cable (TIA 568-B.1) Category 5 cable (ISO/IEC 24702) |
|
North American Temp Code |
T4 |
|
ATEX Temp Code |
T4 |
🔹 Power Supply Specifications
|
Attribute |
Value |
|---|---|
|
Input Voltage Rating |
24V DC @ 10A |
|
Input Voltage Range |
10…28.8V DC |
|
Field Side Power (Max) |
24V DC @ 400 mA |
|
Inrush Current (Max) |
6 A for 10 ms |
|
Input Overvoltage Protection |
Reverse polarity protected |
|
POINTBus Output Current (Max) |
5V DC @ 0.8A |
|
Interruption Protection |
Output voltage stays within specifications when input drops out for 10 ms @ 10V with max load |
