Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

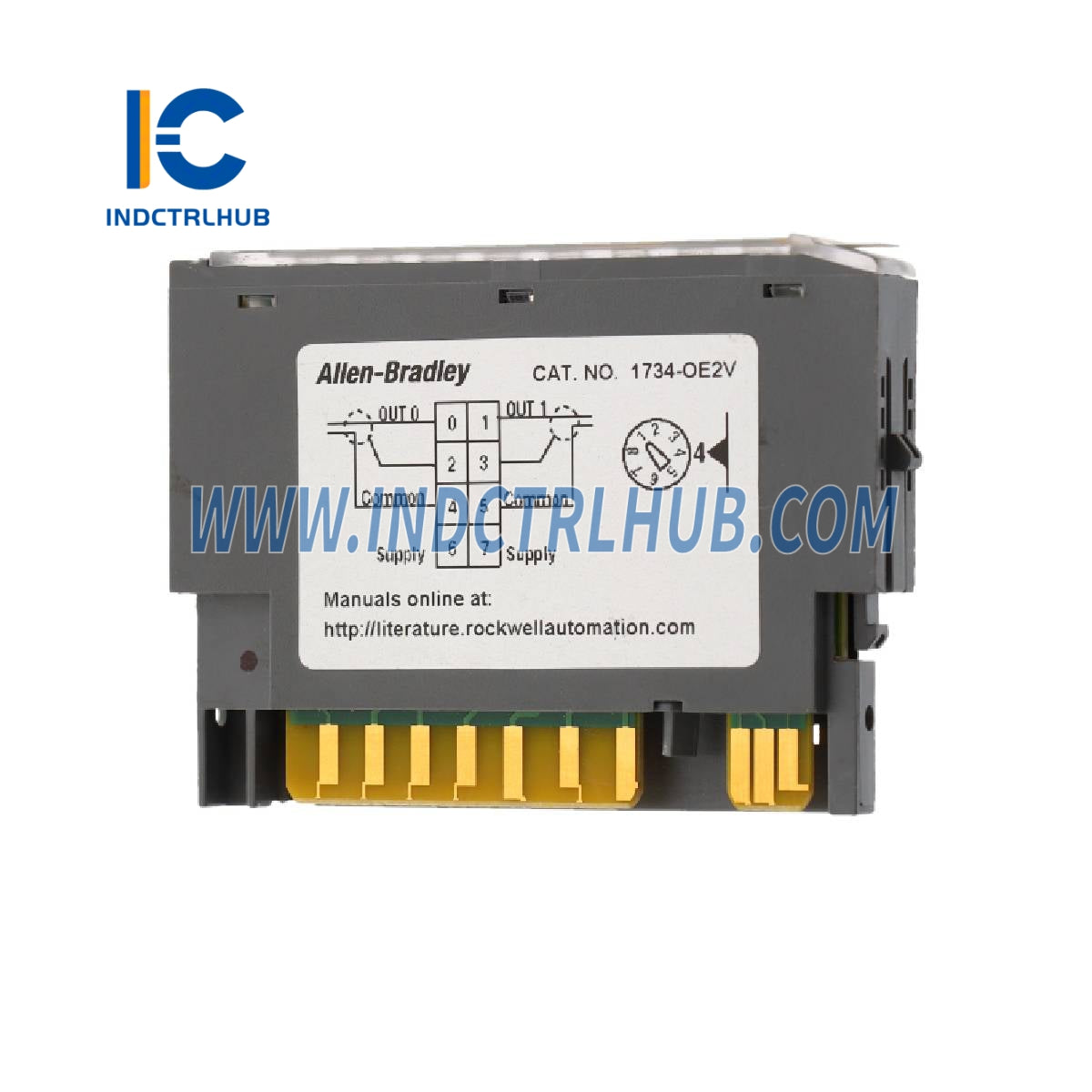

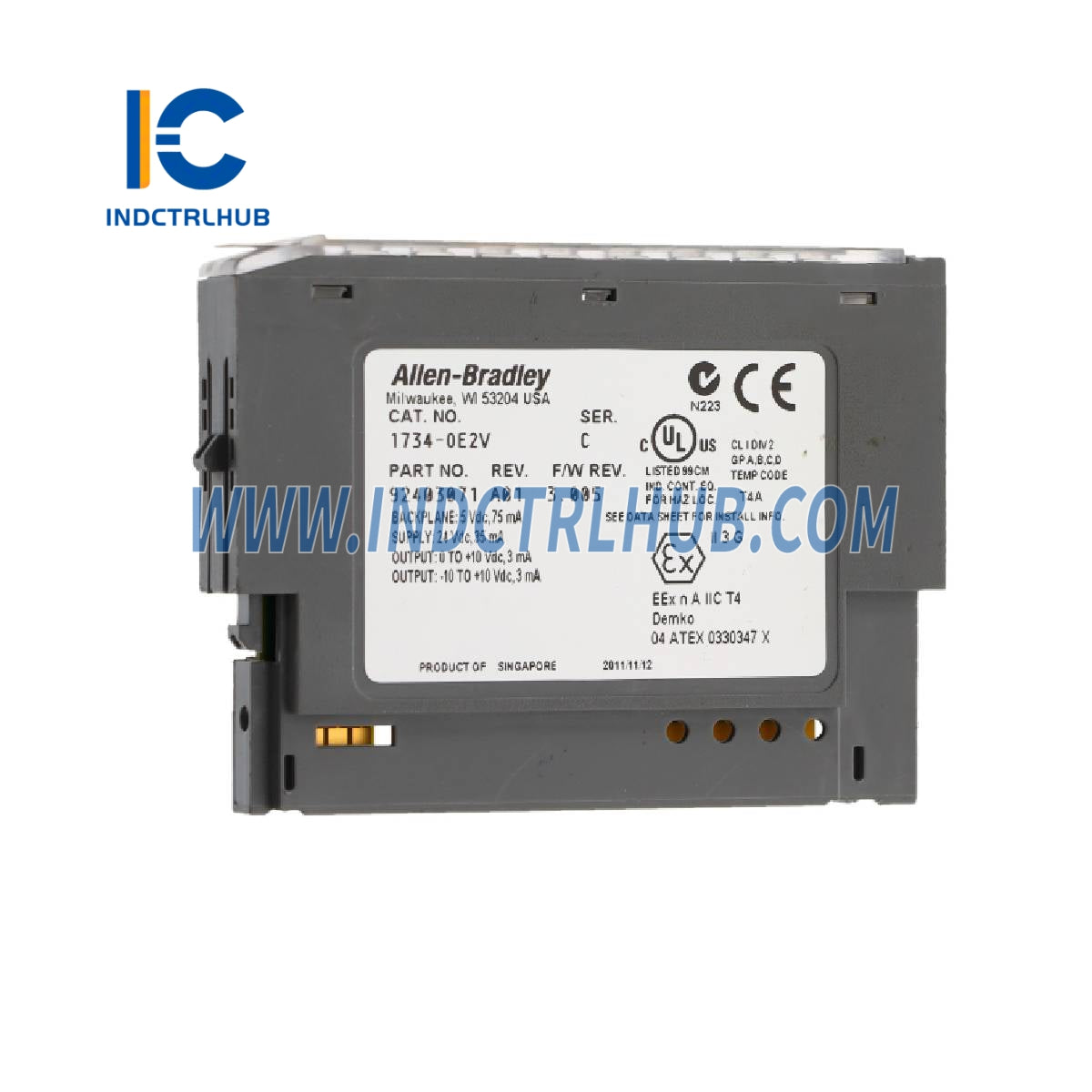

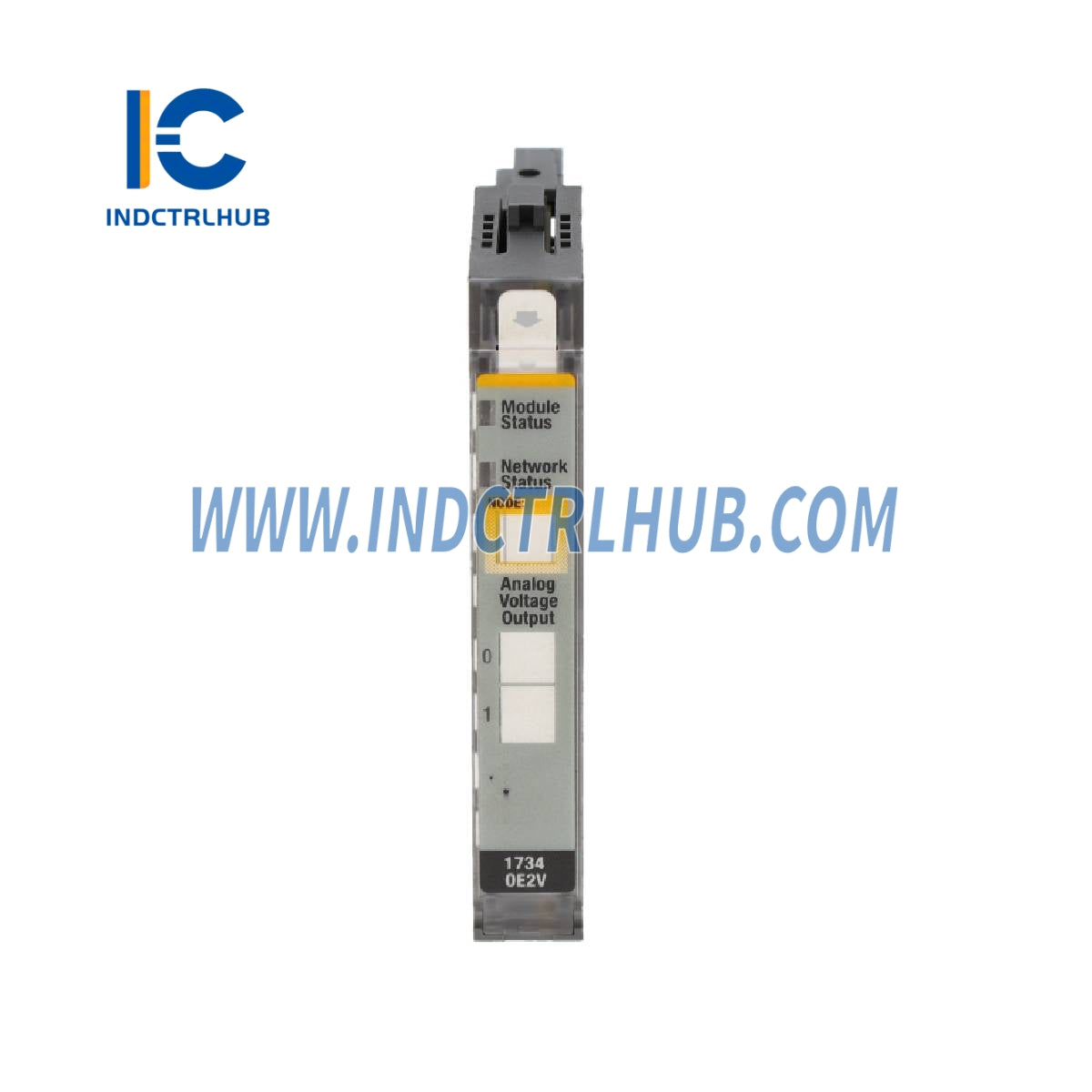

1734-OE2V |
|
Description |
POINT I/O 2-Channel Analog Voltage Output Module |
🔹 Network Status Indicators
|
Status |
Description |
|---|---|
|
Off |
Device is not online (not powered or not completed dup_MAC-ID test) |
|
Flashing Green |
Device is online but has no established connections |
|
Green |
Device is online and has established connections |
|
Flashing Red |
One or more I/O connections are in a timed-out state |
|
Red |
Critical link failure – failed communication device |
|
Flashing Red/Green |
Communication faulted device – detected network access error |
🔹 Output Status Indicators
|
Status |
Description |
|---|---|
|
Off |
Device is in CAL mode |
|
Flashing Green |
Channel is being calibrated |
|
Green |
Normal operation; channel is actively controlling outputs |
|
Flashing Red |
Low or high clamp detected; no field power present |
|
Red |
No field power present |
🔹 Output Specifications
|
Attribute |
1734-OE2V / 1734-OE2VK |
|---|---|
|
Number of Outputs |
2 single-ended, non-isolated, voltage |
|
Resolution |
14-bit (13 plus sign) |
|
Output Voltage |
0V until communication established |
|
Voltage Range |
0…10V (configurable) (-0.0V under, +0.5V over) |
|
Absolute Accuracy |
0.1% full scale @ 25°C |
|
Accuracy Drift with Temperature |
5 ppm/°C |
|
Step Response (to 63% of FS) |
24 µs |
|
Current Load on Voltage Output |
3 mA |
|
Conversion Type |
Digital to Analog Converter |
|
Conversion Rate |
20 µs |
|
Data Format |
Signed Integer |
|
Calibration |
Factory-calibrated |
|
Terminal Base Compatibility |
1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, 1734-TOPS |
|
Terminal Base Screw Torque |
0.6 N•m (7 lb•in) |
|
Indicators (Logic Side) |
1 Green/Red (Module Status), 1 Green/Red (Network Status), 2 Green/Red (Output Status) |
|
Keyswitch Position |
4 |
🔹 Power & Electrical Specifications
|
Attribute |
Value |
|---|---|
|
POINTBus™ Current (Max) |
75 mA @ 5V DC |
|
Power Dissipation (Max) |
1.0 W |
|
Thermal Dissipation (Max) |
3.4 BTU/hr |
|
Isolation Voltage |
50V Continuous (Tested to 2200V DC for 60s) |
|
External DC Power |
24V DC (Nominal), 10…28.8V DC (Range) |
|
Supply Current |
35 mA @ 24V DC (including outputs @ 3 mA) |
🔹 Physical & Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Dimensions (H x W x D) |
Approx. 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in.) |
|
Weight (Approx.) |
36 g (1.27 oz) |
|
Wire Category |
1 - on signal ports |
|
Wire Size |
0.25…2.5 mm² (22…14 AWG) solid or stranded copper wire, rated at 75°C (167°F) or greater, 1.2 mm (3/64 in.) insulation max |
|
Enclosure Type Rating |
None (Open-Style) |
|
North American Temp Code |
T4 / T4A |
|
UKEX/ATEX Temp Code |
T4 |
|
IECEx Temp Code |
T4 |
