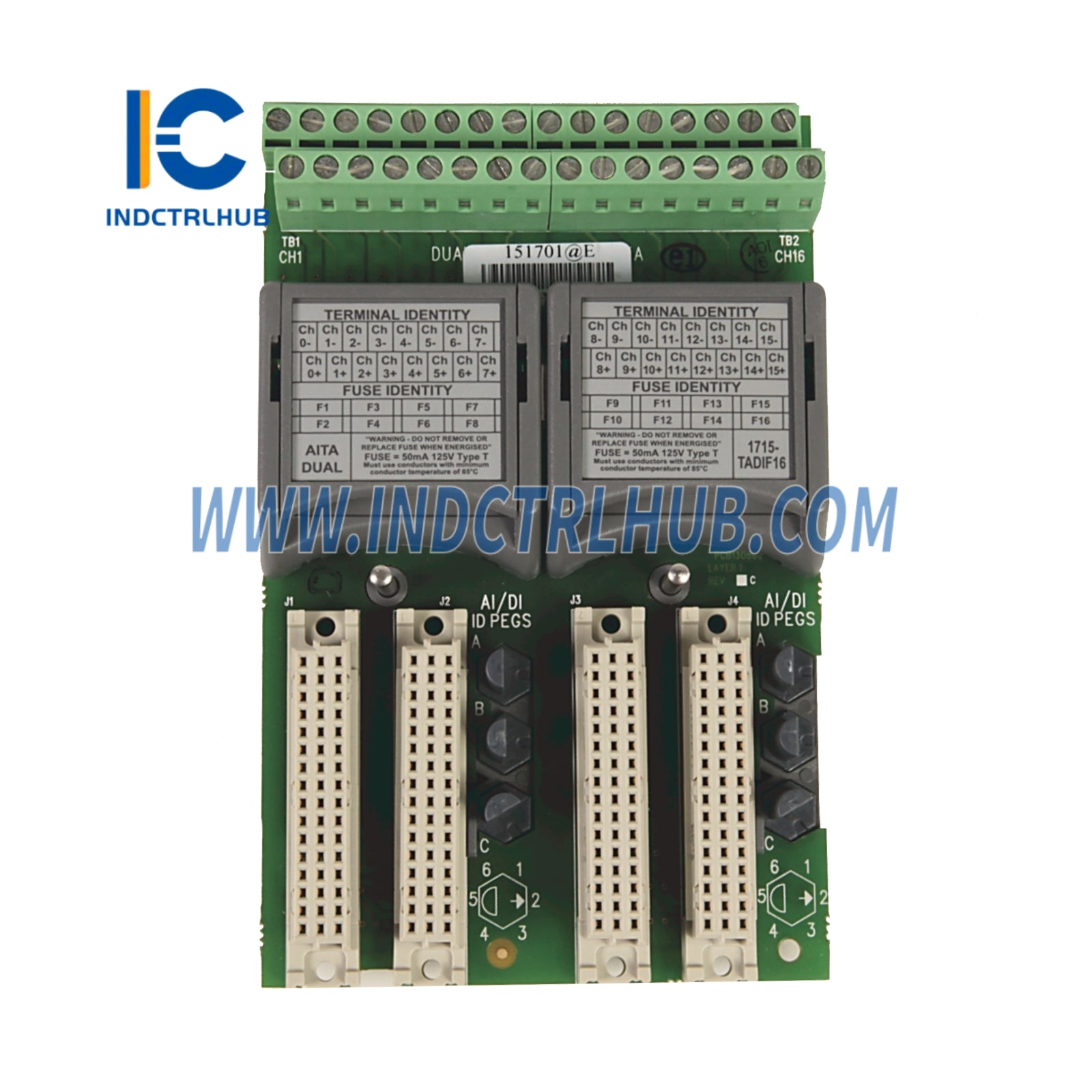

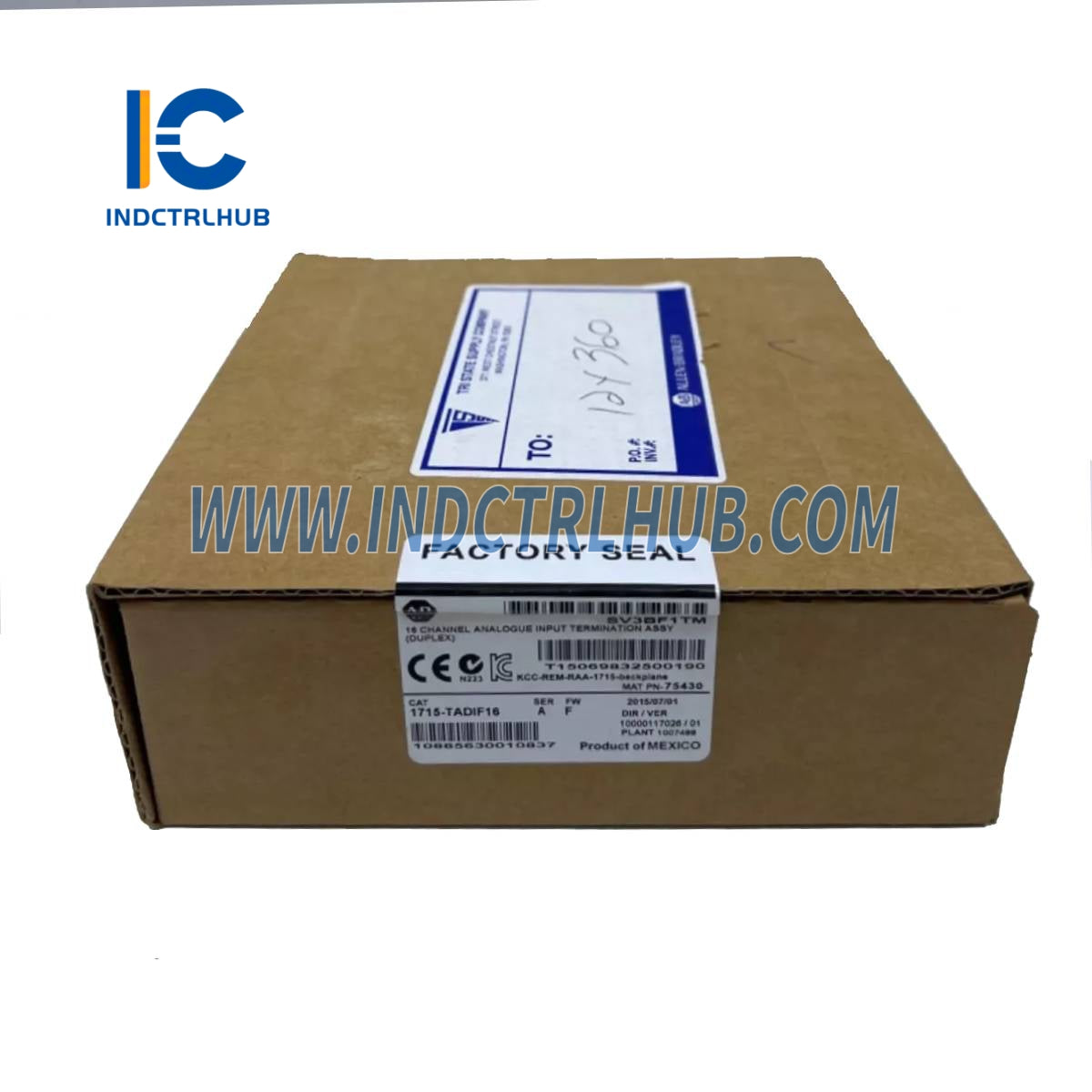

ALLEN BRADLEY 1715-TADIF16 1715-IF16 Analog Input Module

Model/Part Number

1715-IF16

Description

1715-IF16 Analog Input Module with 1715-A3IO Module Base and 1715-TASIF16, 1715-TADIF16 Termination Assemblies

Operating Voltage Range

18-32V DC

Power Requirements

- 1715-IF16 backplane: 260mA @ 18-32V DC  - 1715-TASIF16, 1715-TADIF16 I/O: 0-24mA per channel @ 18-32V DC

Slew Rate (Max)

700 mA/s

Power Dissipation

- System: 4.0W max  - Field loop: 0.075W per field loop max

Isolation Voltage

- 50V (continuous), basic insulation type  - I/O ports to backplane  - No isolation between individual I/O ports with 1715-TASIF16 termination assembly  - 50V isolation between individual ports with 1715-TADIF16 termination assembly  - Type tested at 500V AC for 60s

Input Resolution

0.0039 mA/cnt (12 bits over 4-20 mA range)

Weight

- 1715-IF16 module: 360g (12.70 oz)  - I/O base unit: 133g (5 oz)  - Termination assembly: 133g (5 oz) / 260g (10 oz)

Dimensions (H x W x D)

166 x 42 x 118 mm (6.5 x 1.625 x 4.625 in.)

Wire Size

0.33-1.5 mm² (22-16 AWG) solid or stranded shielded copper wire, rated at 85°C (185°F) or greater

Wiring Category

2 - on shielded signal ports

Wire Type

Shielded

Fuse Type

50mA, 125V, Type T

Temperature Rating

- North American: T4  - IEC: T4

Enclosure Type

None (Open-style)
