Product Description
š¹ General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |

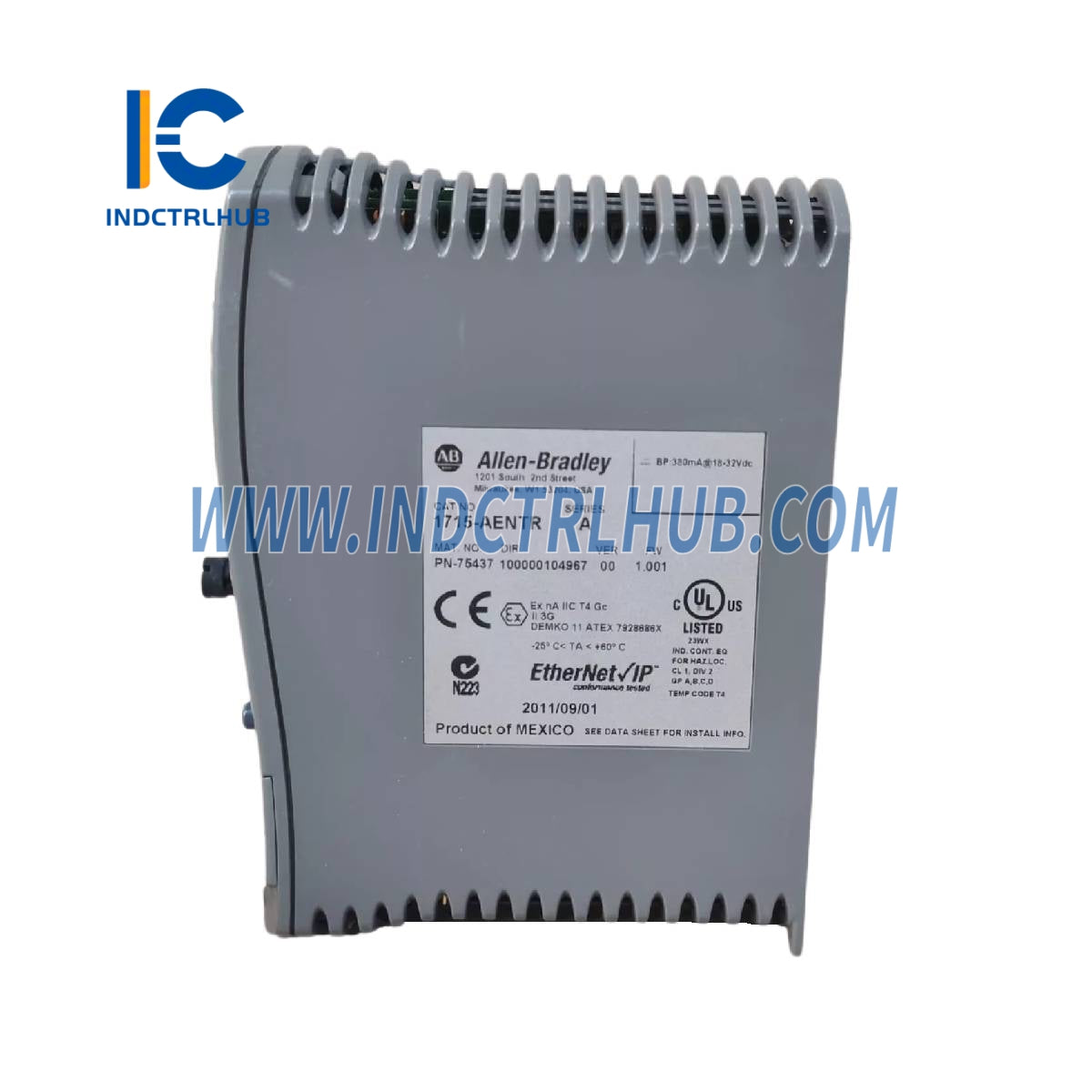

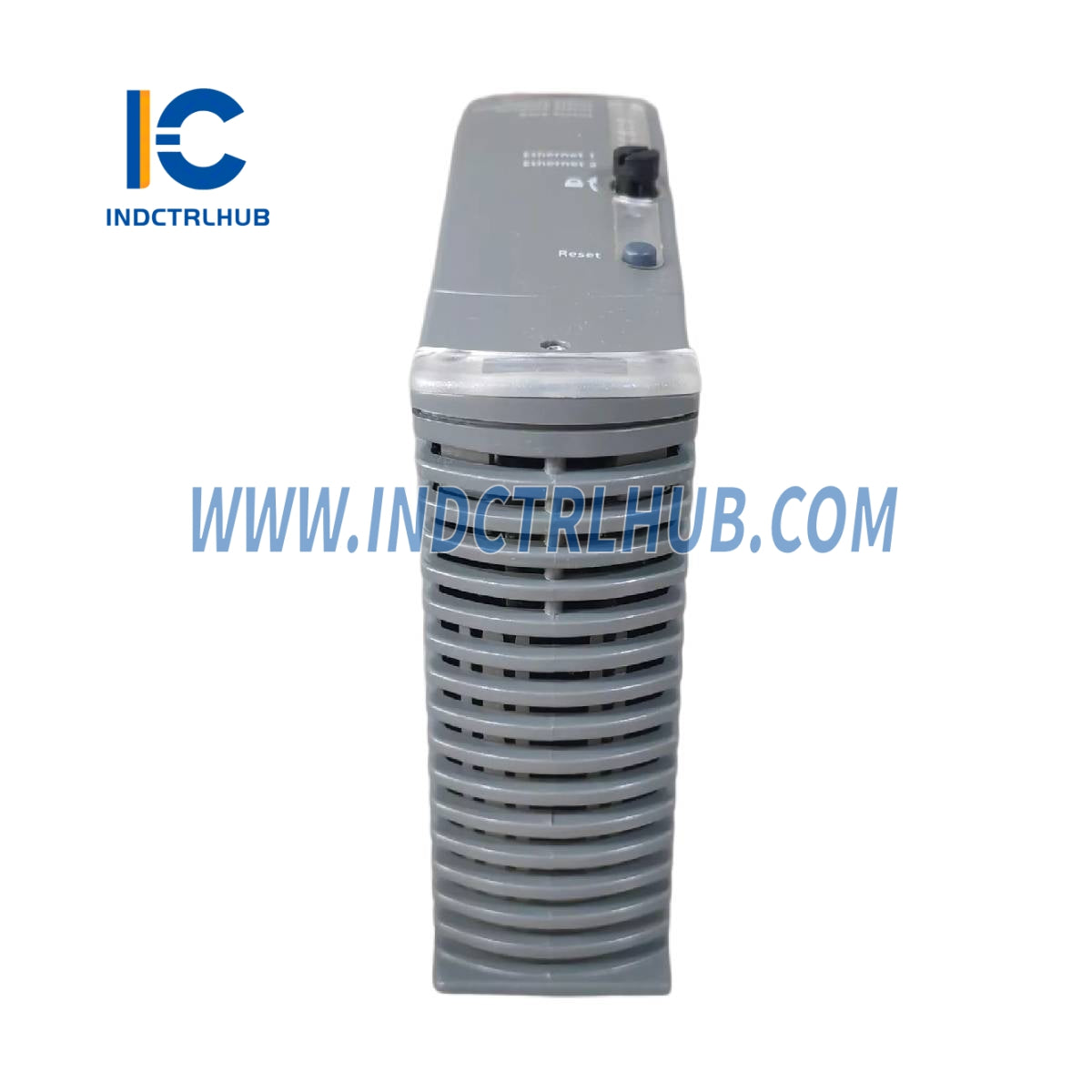

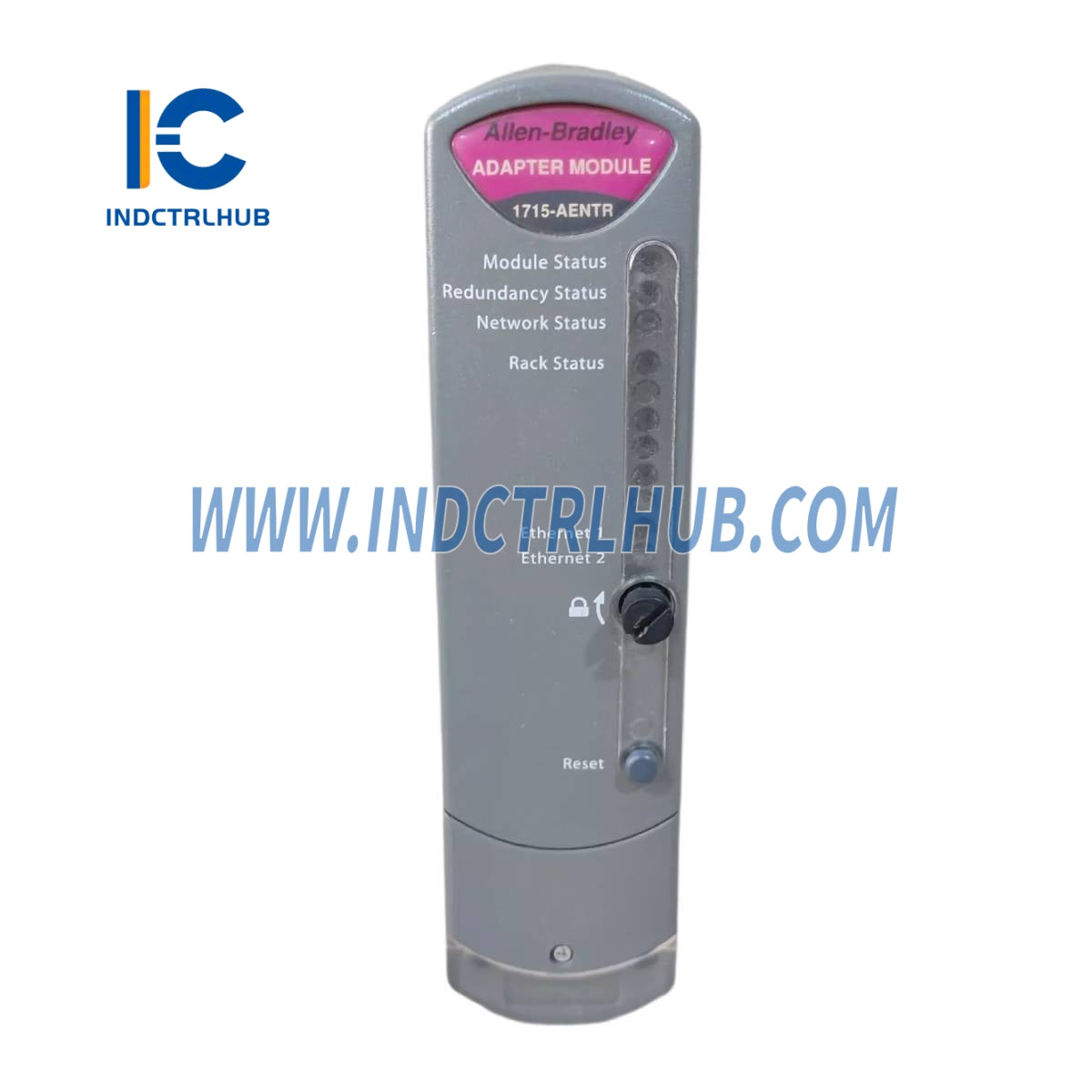

1715-AENTR/A (EtherNet/IP Adapter) & 1715-A2A (Module Base) |
|
Description |
1715 Redundant I/O System |
Ā
š¹ Technical Specifications
|
Attribute |
Value |
|---|---|
|
Maximum Modules Supported |
24 per adapter pair |
|
Operating Voltage Range |
18-32V DC |
|
Power Requirements |
- 1715-AENTR backplane: 380mA @ 18-32V DCĀ Ā - 1715-A2A input power: 10.4A total max, 400mA max per slot @ 18-32V DC |
|
Fault-Tolerant Power Limit |
< 3.2A |
|
Power Dissipation |
8W max per adapter |
|
Isolation Voltage |
50V (continuous), basic insulation typeĀ Ā No isolation between individual Ethernet or DC power portsĀ Ā Type tested @ 500V AC for 60s |
|
Base Unit |
1715-A2A (2-slot adapter base unit) |
|
Fuse Type |
4A, 125V, Type T |
Ā
š¹ Mechanical Specifications
|
Attribute |
Value |
|---|---|
|
Weight |
- 1715-AENTR module: 420g (14.82 oz)Ā Ā - 1715-A2A base unit: 283g (9.98 oz) |
|
Wiring Category |
2 - on power portsĀ Ā 2 - on communication ports |
|
Wire Size |
- DC Power: Single 2.5 mmĀ² (12 AWG) solid/stranded copper, rated 85Ā°C (185Ā°F), 7mm strip lengthĀ Ā - Ground Connection: 4 mmĀ² (10 AWG) min |
|
Wire Type (Ethernet) |
Shielded RJ45 connector (IEC 60603-7)Ā Ā Category 5e min (TIA 568-B.1) or shielded Category 5 (ISO/IEC 24702) |
|
Enclosure Type |
None (Open-style) |
Ā
š¹ Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Operating Temperature |
-25 to 60Ā°C (-13 to 140Ā°F) |
|
Maximum Surrounding Air Temperature |
60Ā°C (140Ā°F) |
|
Non-Operating Temperature |
-40 to 85Ā°C (-40 to 185Ā°F) |
|
Relative Humidity |
10-95% non-condensing |
|
Vibration Resistance |
2g @ 10-500Hz (IEC 60068-2-6) |
|
Shock (Operating) |
- DIN rail mount: 25gĀ Ā - Panel mount: 30g |
|
Shock (Non-Operating) |
- Installed: 30gĀ Ā - Uninstalled (with slot fillers): 50g |
Ā
š¹ EMC & Immunity
|
Attribute |
Value |
|---|---|
|
Emissions |
CISPR 11 (IEC 61000-6-4) Class A |
|
ESD Immunity |
IEC 61000-4-2: 6kV contact, 8kV air discharge |
|
Radiated RF Immunity |
IEC 61000-4-3:Ā Ā 20V/m (80-1000MHz, 1kHz 80% AM)Ā Ā 10V/m (1000-2000MHz, 1kHz 80% AM)Ā Ā 10V/m (900MHz, 200Hz 50% pulse 100% AM)Ā Ā 10V/m (1890MHz, 200Hz 50% pulse 100% AM)Ā Ā 3V/m (2000-2700MHz, 1kHz 80% AM) |
|
EFT/B Immunity |
IEC 61000-4-4:Ā Ā Ā±3kV at 5kHz on power portsĀ Ā Ā±2kV at 5kHz on shielded Ethernet ports |
|
Surge Transient Immunity |
IEC 61000-4-5:Ā Ā Ā±1kV line-line (DM), Ā±2kV line-earth (CM) on power portsĀ Ā Ā±2kV line-earth (CM) on shielded Ethernet ports |
|
Conducted RF Immunity |
IEC 61000-4-6: 10V rms (150kHz-80MHz, 1kHz 80% AM) |
