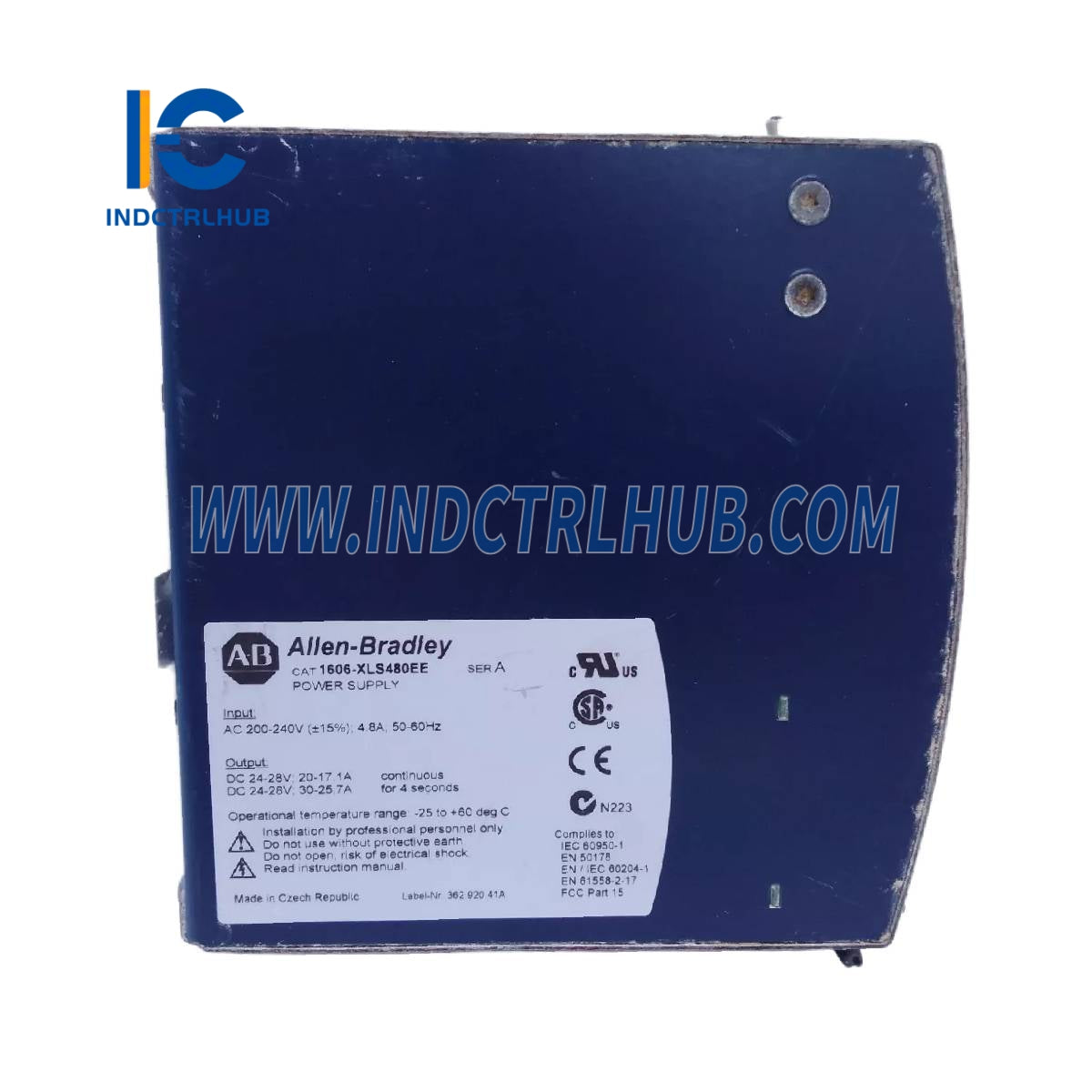

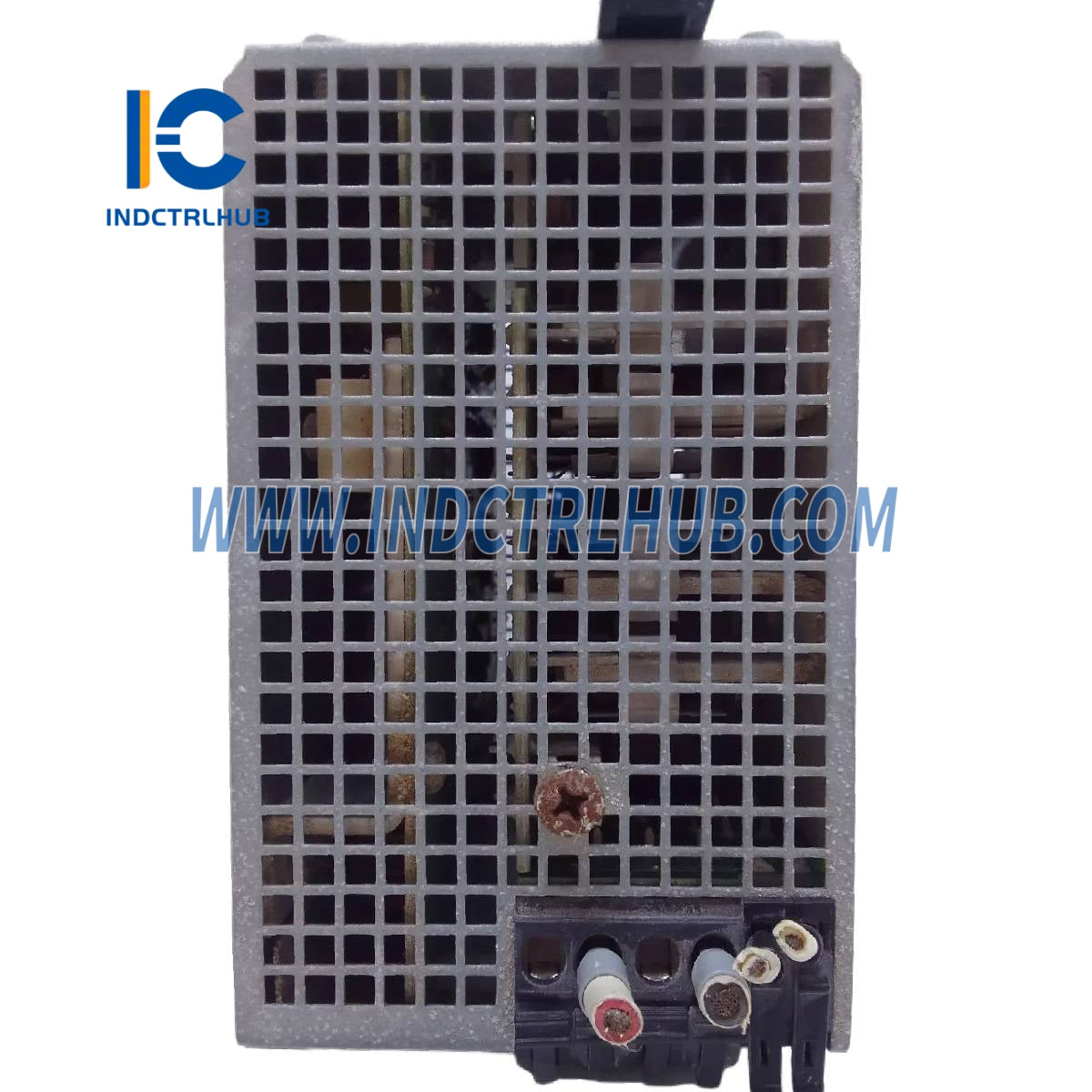

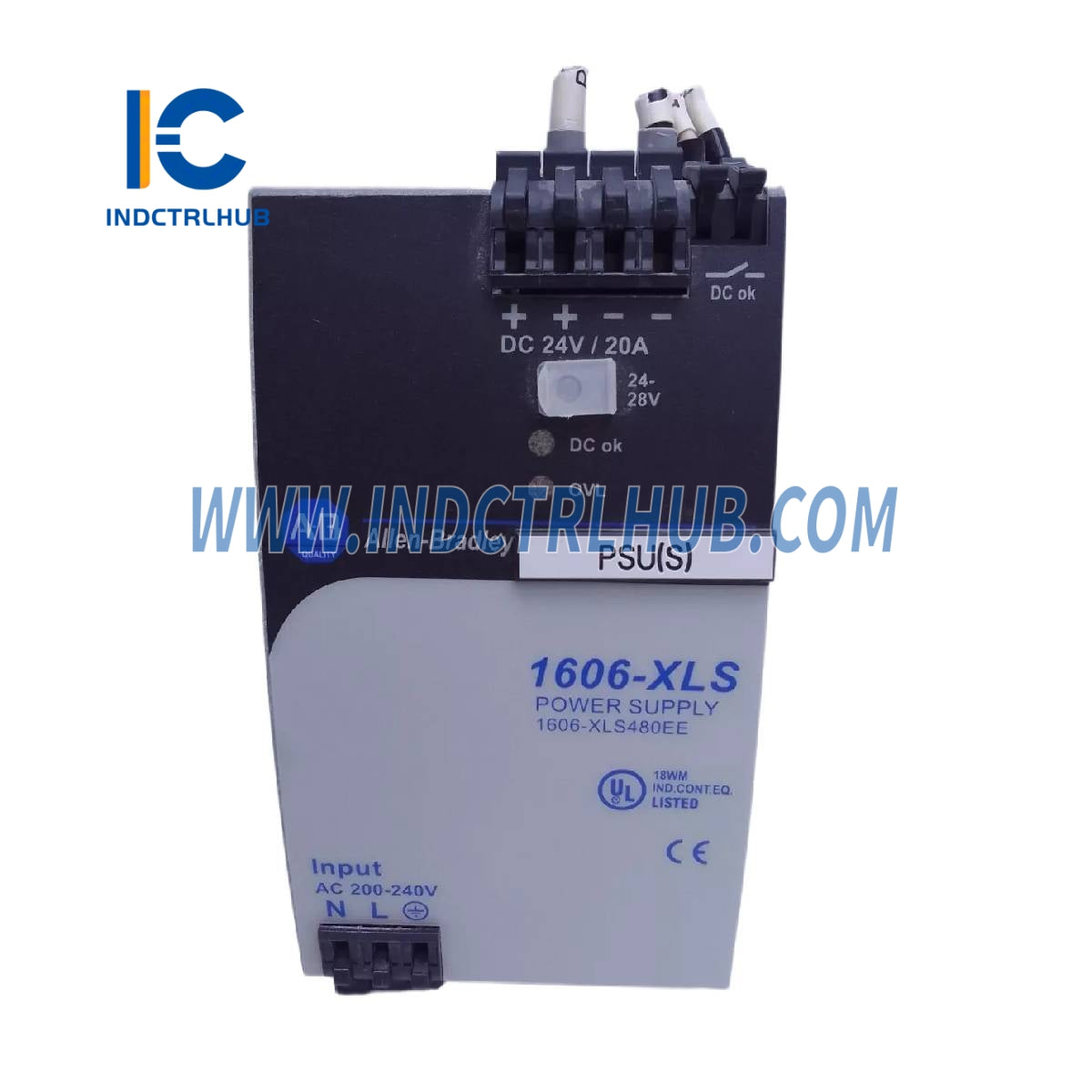

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1606-XLS480EE |
|
Description |
20A Single Phase Input |
🔹 Input Specifications
|
Parameter |
Value |
|---|---|
|
AC Input Voltage |
200-240V ±15% |
|
Line Frequency |
50-60Hz ±6% |
|
AC Input Current |
4.45A at 230V AC |
|
Power Factor |
0.5 at 230V AC |
|
AC Inrush Current |
40A peak at 230V AC |
🔹 Output Specifications
|
Parameter |
Value |
|---|---|
|
Output Voltage (Preset) |
DC 24V (Adjustable 24-28V) |
|
Output Current |
20A continuous (24V) 30A for ~4s (24V) |
|
Output Power |
480W continuous (24V) 720W for ~4s (24V) |
|
Output Ripple |
<100mVpp (20Hz to 20MHz) |
🔹 Performance & Reliability
|
Parameter |
Value |
|---|---|
|
Efficiency |
94.5% at 230V AC |
|
Power Losses |
28.3W at 230V AC |
|
Hold-Up Time |
~46ms at 230V AC |
🔹 Environmental & Safety Specifications
|
Parameter |
Value |
|---|---|
|
Operational Temperature |
-25°C to +70°C |
|
Output De-rating (Temperature) |
12W/°C from 60°C to 70°C |
🔹 Mechanical & Installation
|
Parameter |
Value |
|---|---|
|
Dimensions (W x H x D) |
70 x 124 x 127 mm |
|
Weight |
880g (1.94 lb) |
|
DIN Rail Mounting |
35mm DIN-rail (EN 60715 or EN 50022, 7.5mm or 15mm height) |
