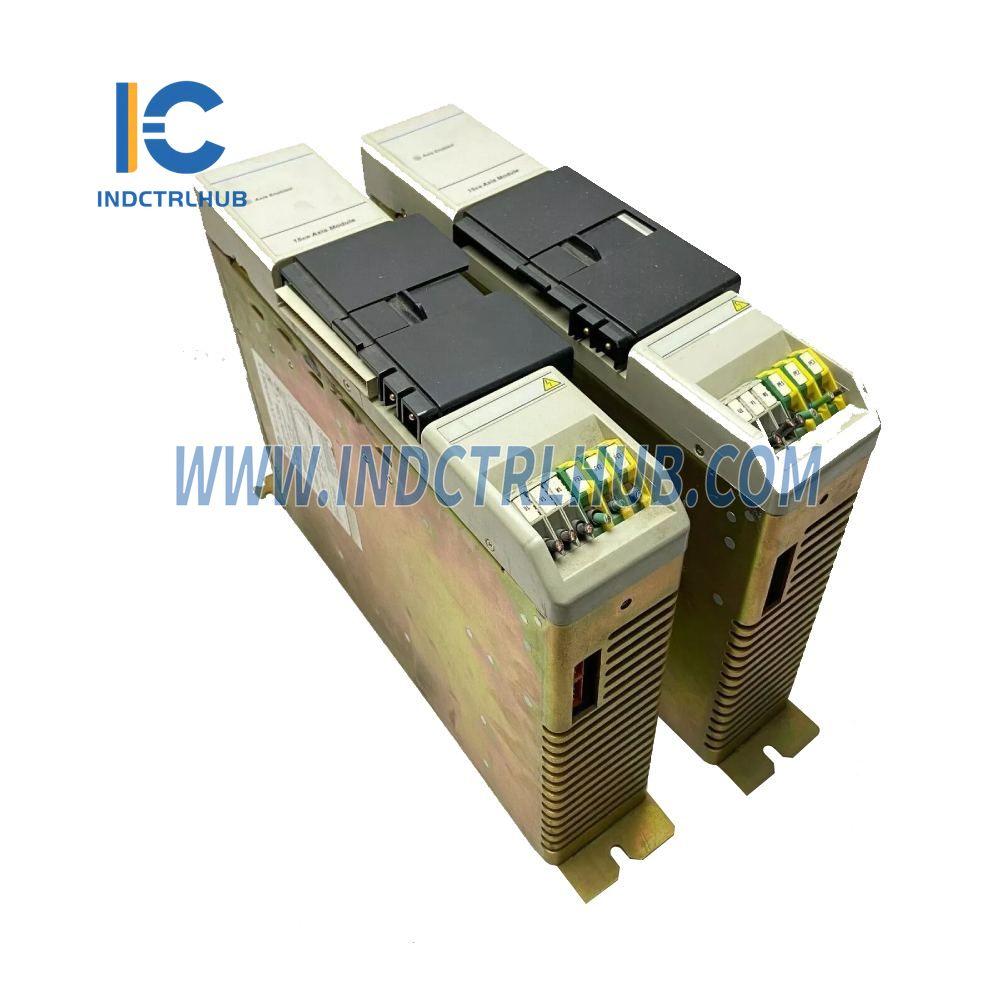

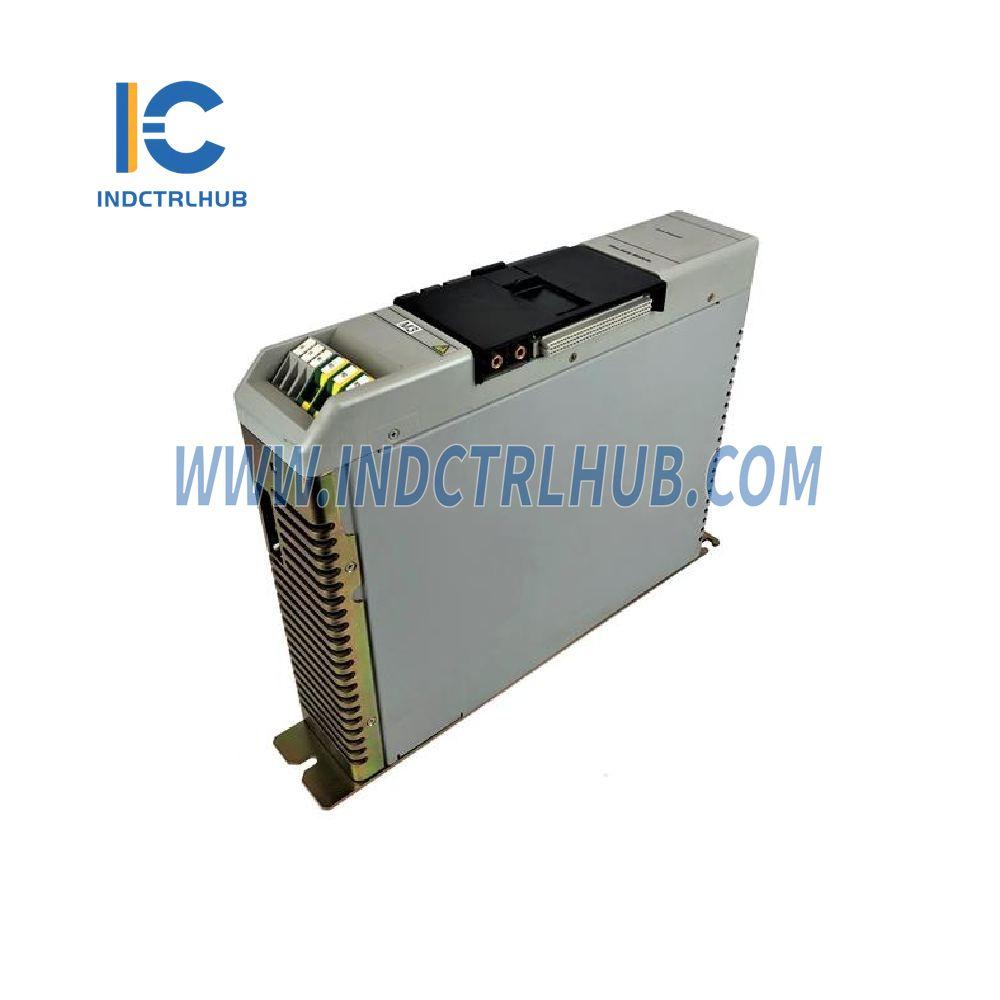

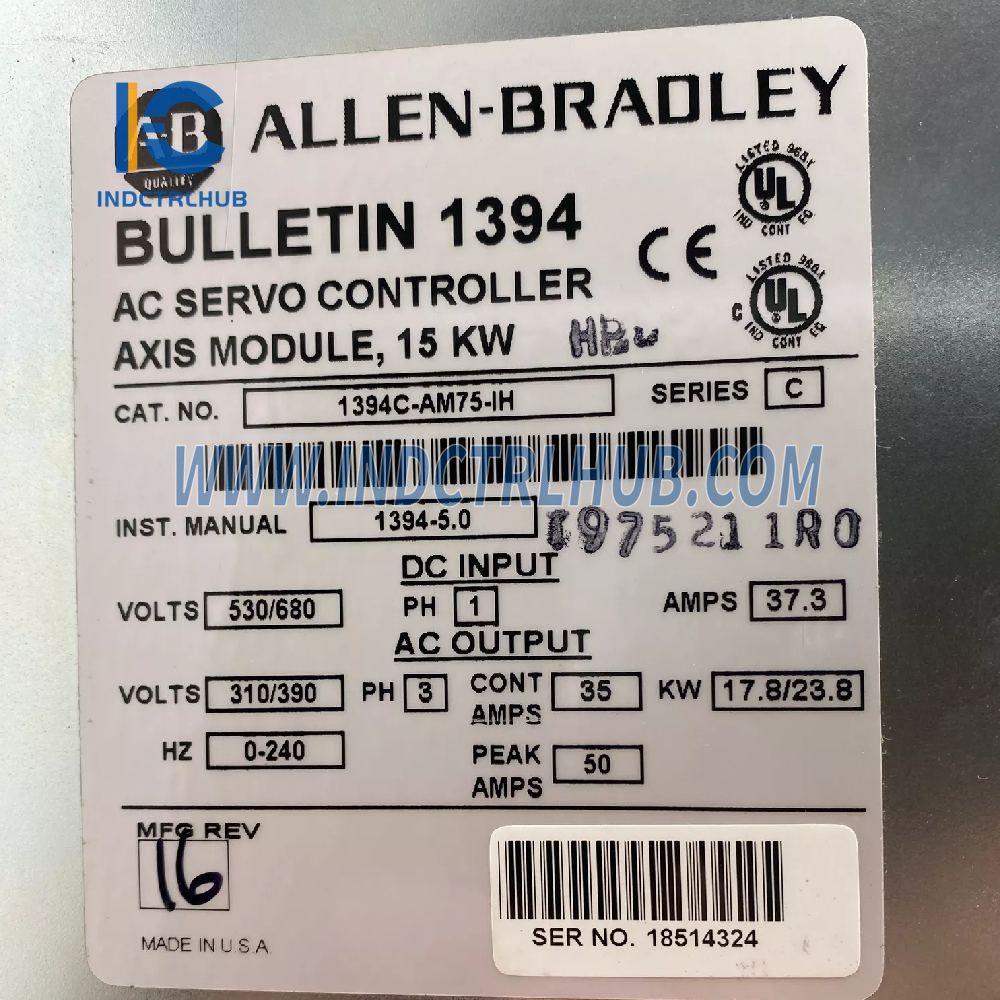

Allen-Bradley 1394C-AM75-IH AC Servo Controller Axis Module

Allen-Bradley 1394C-AM75-IH AC Servo Controller Axis Module

  • Manufacturer: Allen-Bradley

  • Product No.: 1394C-AM75-IH

  • Condition:1000 in stock

  • Product Type: Axis Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 6730g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1394C-AM75-IH
  • Description: AC Servo Controller Axis Module

Specifications

Item Description
Speed Regulation 0…0.05% of base speed with 100% torque disturbance
Static Gain (rms A/mV) 22.8
Peak Current Limit Adjust 143%
Modulation Frequency 5 kHz ±10%
Drift 0.03 rpm/°C
Nominal Input Voltage 530/680V dc
Continuous Current (rms) 35.0 A
Peak Current (rms - 1 second) 50.0 A
Continuous
power out 360/460V
nominal
17.8/23.8 kW
Efficiency 98%
Weight 6.73 kg (14.8 lb)
Capacitance 660 µF


System Power Dissipation Specifications

Usage as % of Rated Power Output watts
20% 85
40% 145
60% 212
80% 279
100% 346


View full details

Product Description

Product Details

  • Manufacturer: Allen-Bradley
  • Model/Part Number: 1394C-AM75-IH
  • Description: AC Servo Controller Axis Module

Specifications

Item Description
Speed Regulation 0…0.05% of base speed with 100% torque disturbance
Static Gain (rms A/mV) 22.8
Peak Current Limit Adjust 143%
Modulation Frequency 5 kHz ±10%
Drift 0.03 rpm/°C
Nominal Input Voltage 530/680V dc
Continuous Current (rms) 35.0 A
Peak Current (rms - 1 second) 50.0 A
Continuous
power out 360/460V
nominal
17.8/23.8 kW
Efficiency 98%
Weight 6.73 kg (14.8 lb)
Capacitance 660 µF


System Power Dissipation Specifications

Usage as % of Rated Power Output watts
20% 85
40% 145
60% 212
80% 279
100% 346
