Product Description
Product Details

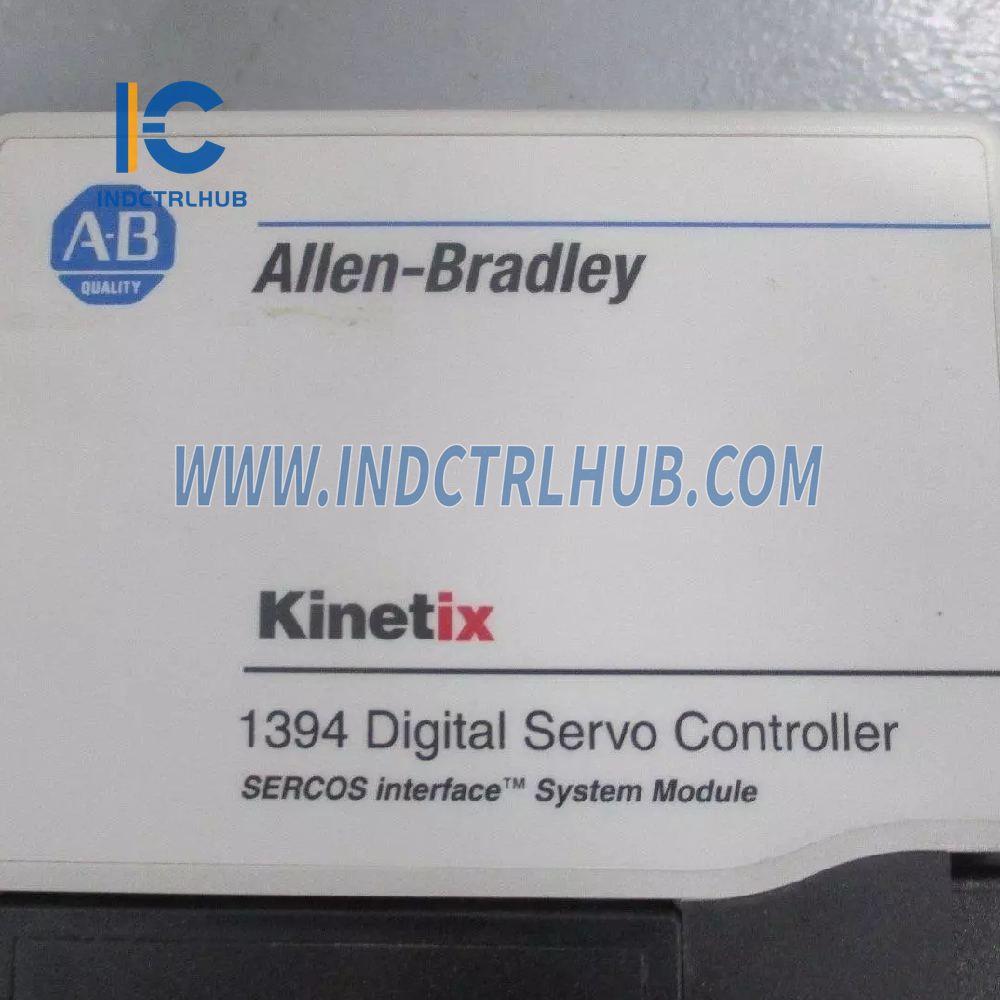

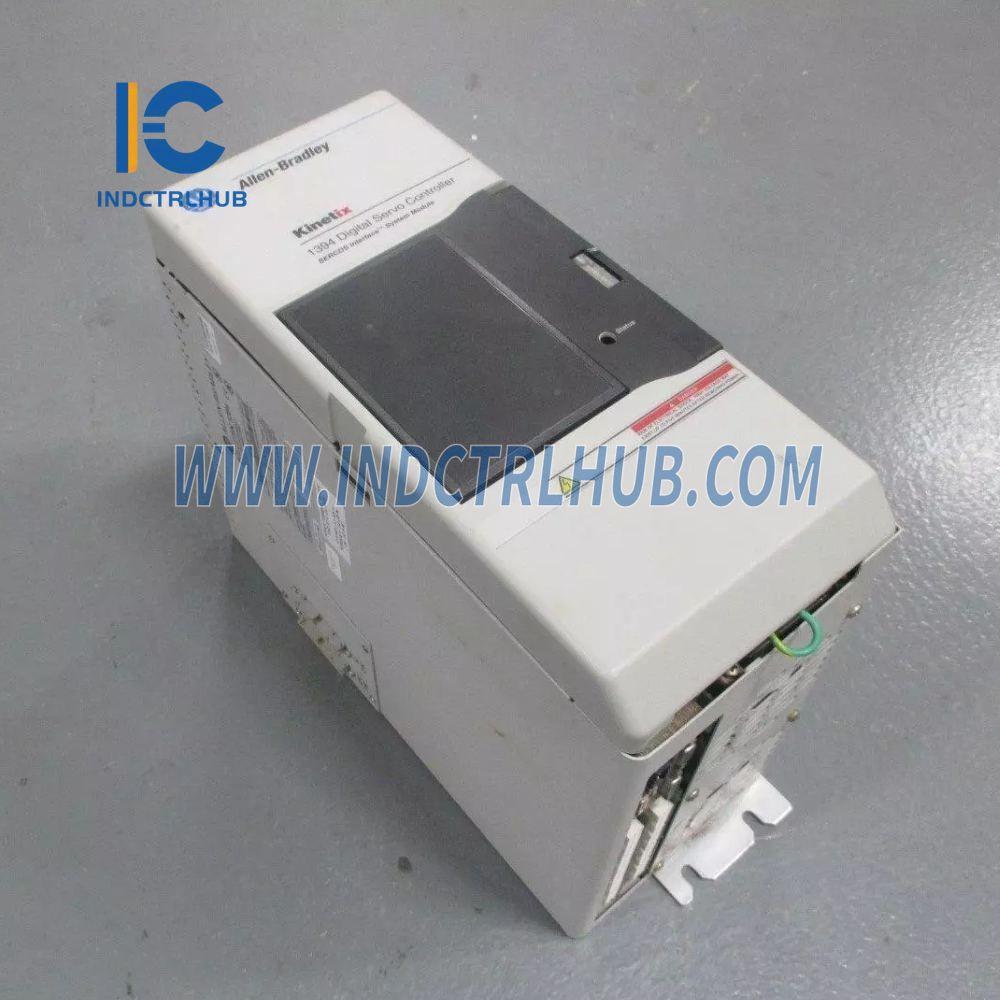

- Manufacturer: Allen-Bradley
-

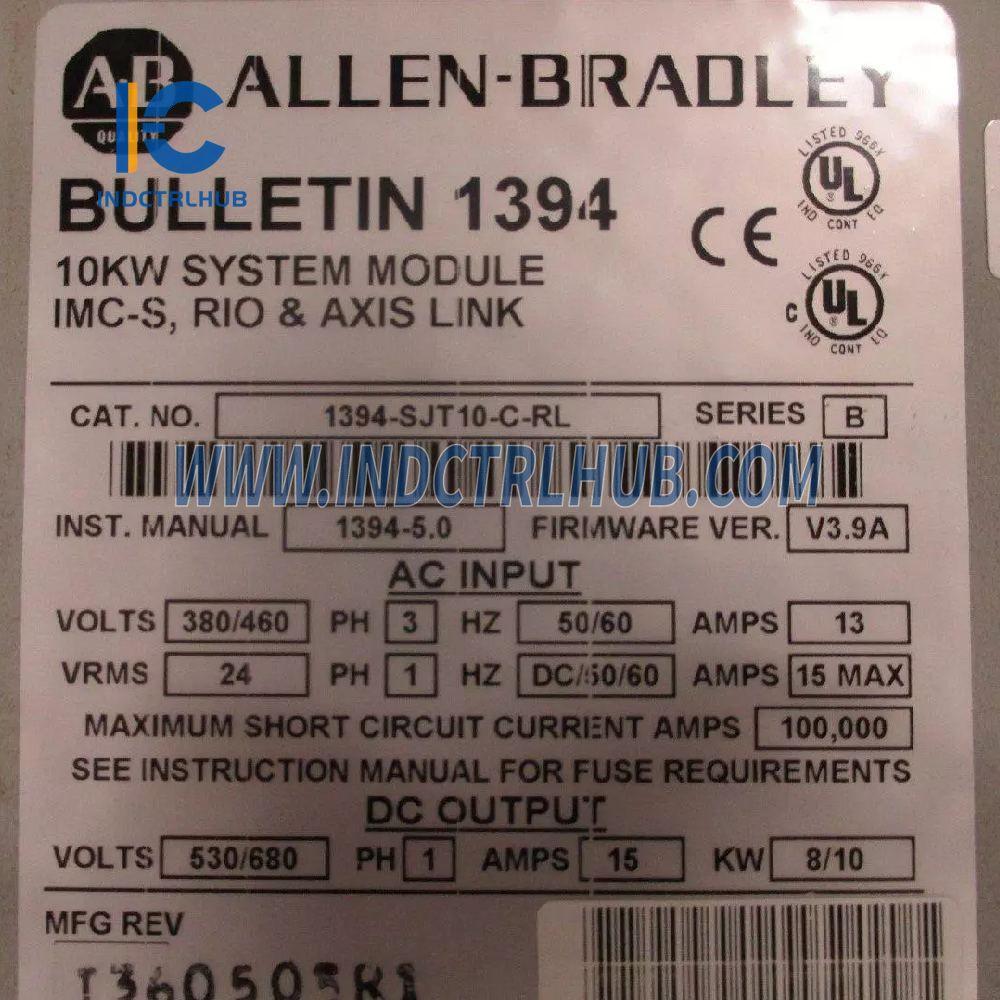

Model/Part Number: 1394-SJT10-C-R
L - Description: System Module Power
Specifications
| Item | Description |
|---|---|
| Rated AC Input Voltage | 324…528V ac, 50/60 Hz 3-phase |
| AC Input Current (Arms) | 13.0 A |
| Peak Inrush Current (Series A and B) | 1300 A |
| Peak Inrush Current (Series C and D) | 8 A |
| Line Loss Ride Through | 20 ms |
| Nominal Bus Output Voltage | 530/680V dc |
| Continuous Power Output | 8/10 kW |
| Peak Power Output | 28 kW |
| Efficiency | 99% |
| Weight | 10.68 kg (23.5 lb) |
| Continuous Current Output (Adc) | 14.73 A |
| Intermittent Current Output (Adc) | 29.46 A |
| Capacitance | 345 µF |
| Inductance | 750 µH |
| Internal Shunt Resistor | 200 W continuous, 40,000 W peak (two second maximum on time) |
System Power Dissipation Specifications
| Usage as % of Rated Power Output | Power Dissipation (Watts) |
|---|---|
| 20% | 70 |
| 40% | 77 |
| 60% | 84 |
| 80% | 81 |
| 100% | 98 |
