Product Description
Product Details
- Manufacturer: Allen-Bradley

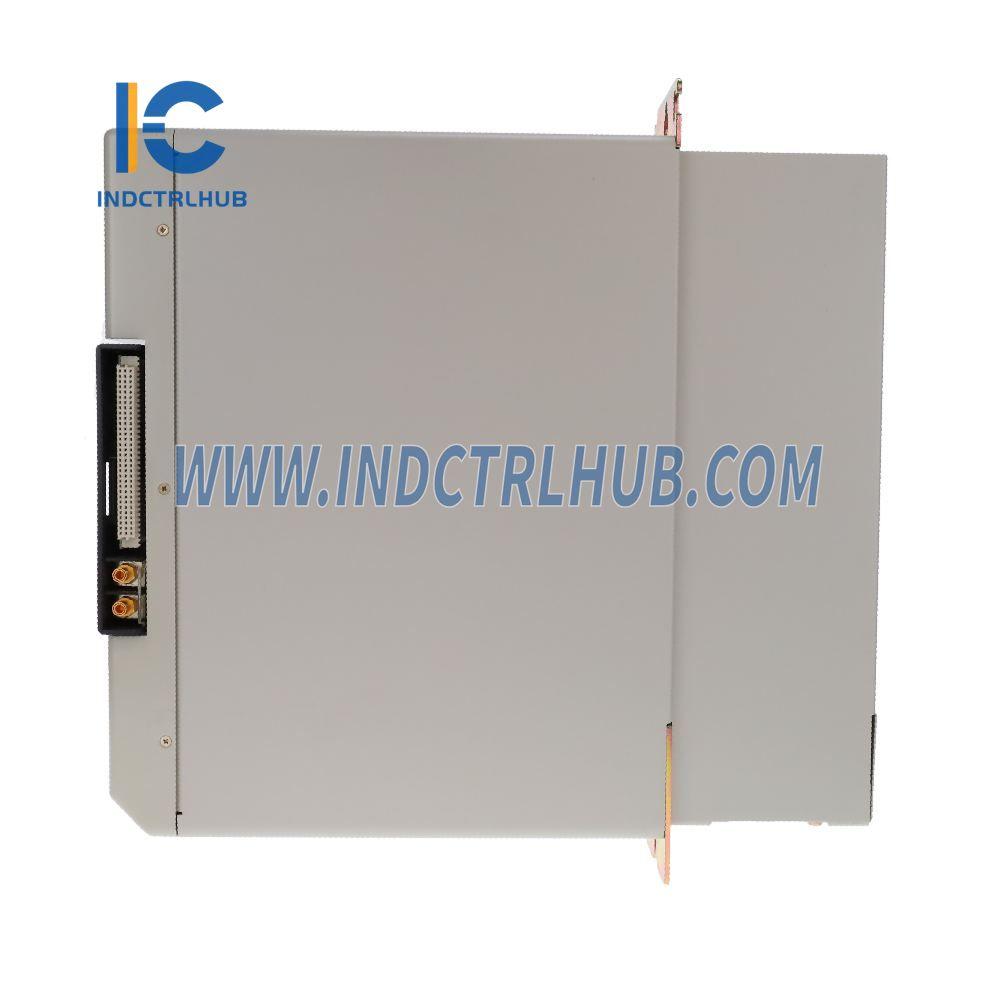

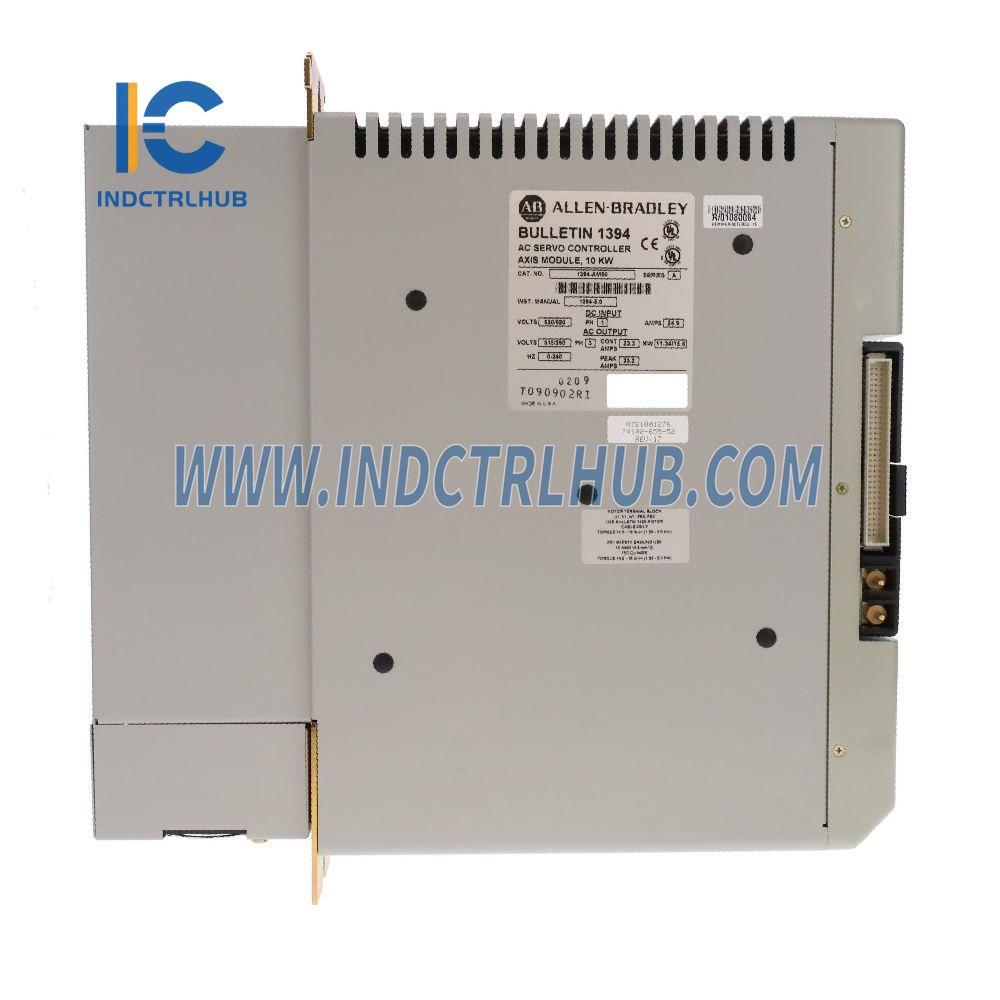

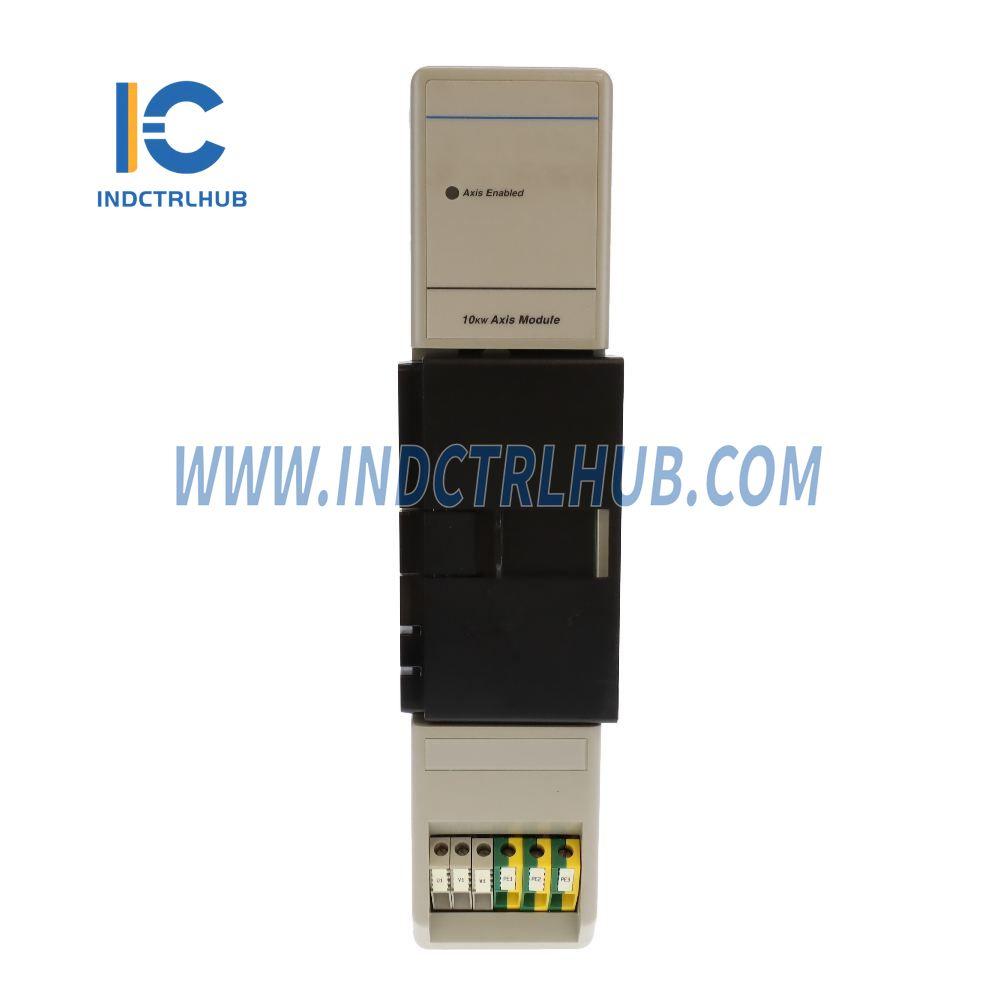

- Model/Part Number: 1394-AM50
- Description: AC Servo Controller Axis Module
Specifications
| Item | Description |
|---|---|
| Speed Regulation | 0…0.05% of base speed with 100% torque disturbance |
| Static Gain (rms A/mV) | 22.8 |
| Peak Current Limit Adjust | 143% |
| Modulation Frequency | 5 kHz ±10% |
| Drift | 0.03 rpm/°C |
| Nominal Input Voltage | 530/680V dc |
| Continuous Current (rms) | 23.3 A |
| Peak Current (rms - 1 second) | 33.2 A |
| Continuous power out 360/460V nominal |
11.34/15.6 kW |
| Efficiency | 98% |
| Weight | 7 kg (15.44 lb) |
| Capacitance | 465 µF |
System Power Dissipation Specifications
| Usage as % of Rated Power Output |
1394-AM50 | 1394-AM50 (inside the cabinet) |
1394AM50 (outside theca binet) |
|---|---|---|---|
| 20% | 56 | 18 | 38 |
| 40% | 95 | 18 | 77 |
| 60% | 139 | 18 | 138 |
| 80% | 183 | 18 | 165 |
| 100% | 227 | 18 | 209 |
