Product Description
Product Details

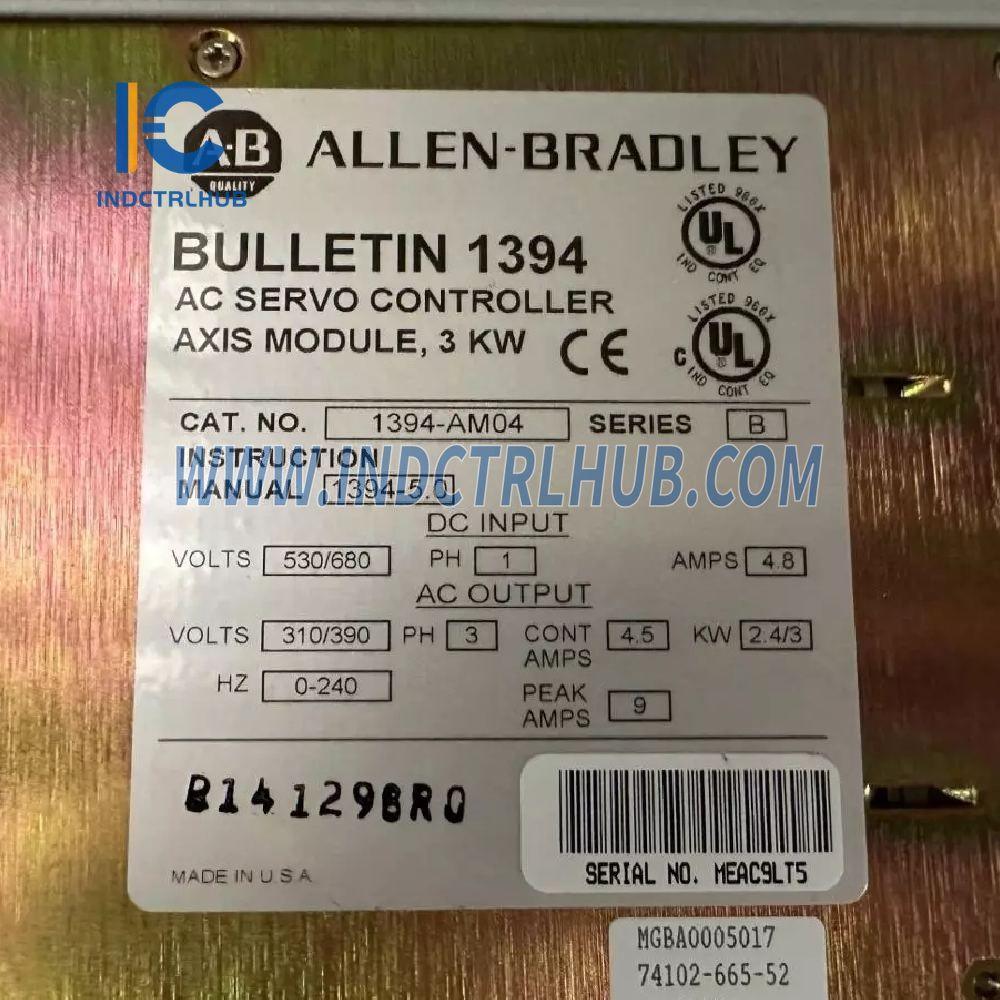

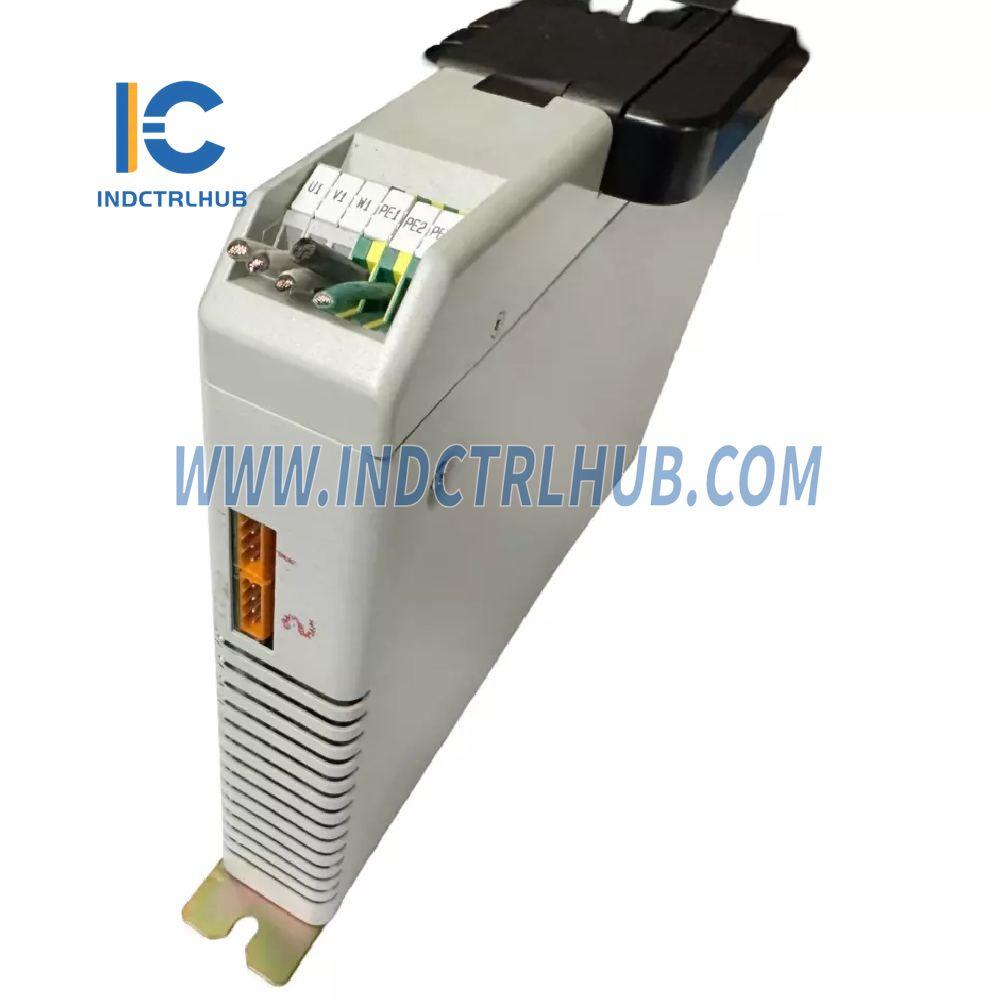

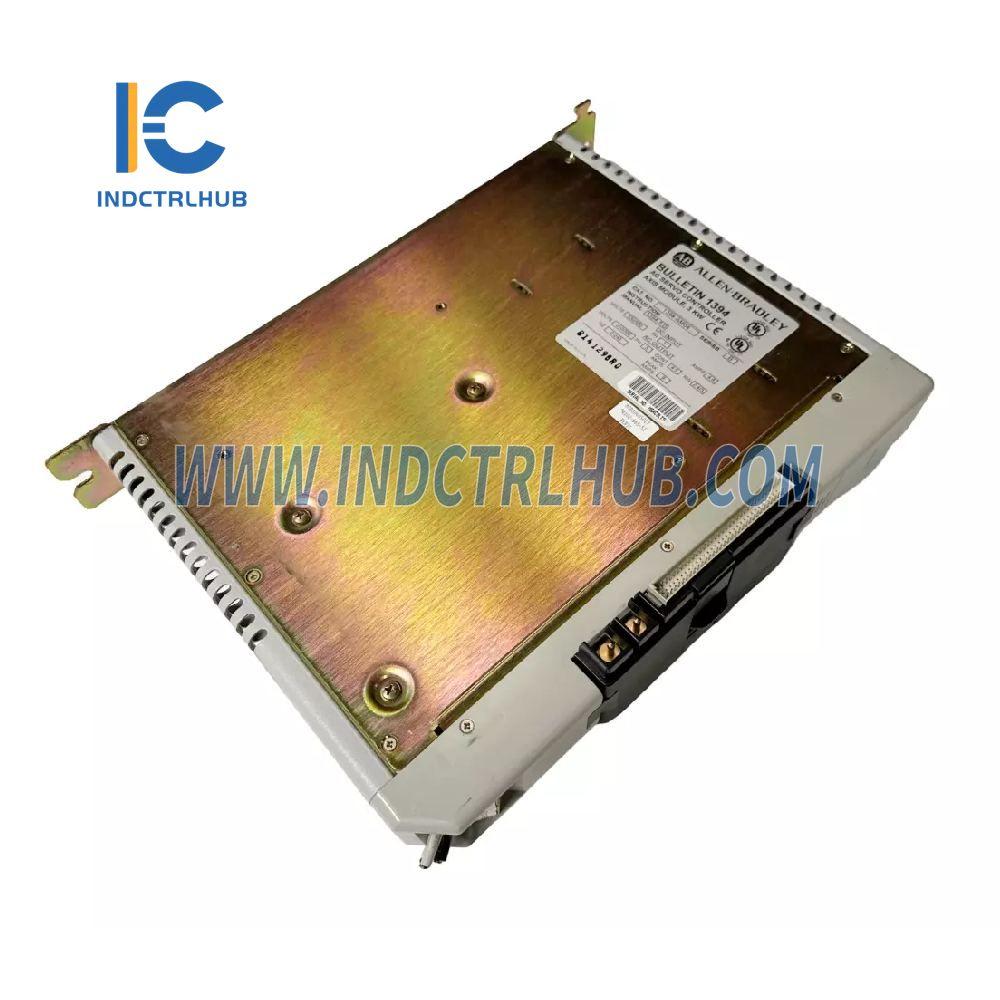

- Manufacturer: Allen-Bradley
- Model/Part Number: 1394-AM04
- Description: AC Servo Controller Axis Module
Specifications
| Item | Description |
|---|---|
| Speed Regulation | 0…0.05% of base speed with 100% torque disturbance |
| Static Gain (rms A/mV) | 2.6 |
| Peak Current Limit Adjust | 200% |
| Modulation Frequency | 5 kHz ±10% |
| Drift | 0.03 rpm/°C |
| Nominal Input Voltage | 530/680V dc |
| Continuous Current (rms) | 4.5 A |
| Peak Current (rms - 1 second) | 9.0 A |
| Continuous power out 360/460V nominal |
2.4/3 kW |
| Efficiency | 98% |
| Weight | 5 kg (11.02 lb) |
| Capacitance | 110 µF |
System Power Dissipation Specifications
| Usage as % of Rated Power Output | Power Dissipation (Watts) |
|---|---|
| 20% | 27 |
| 40% | 36 |
| 60% | 45 |
| 80% | 54 |
| 100% | 63 |
