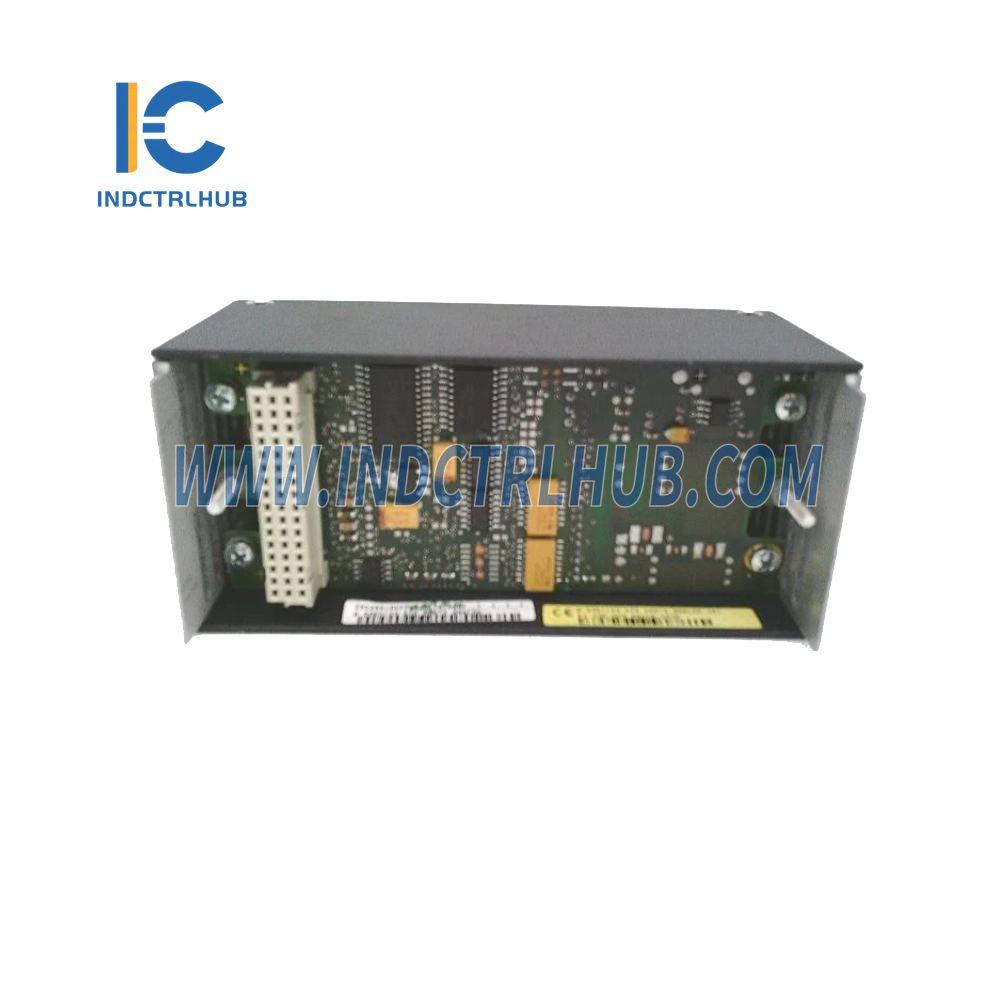

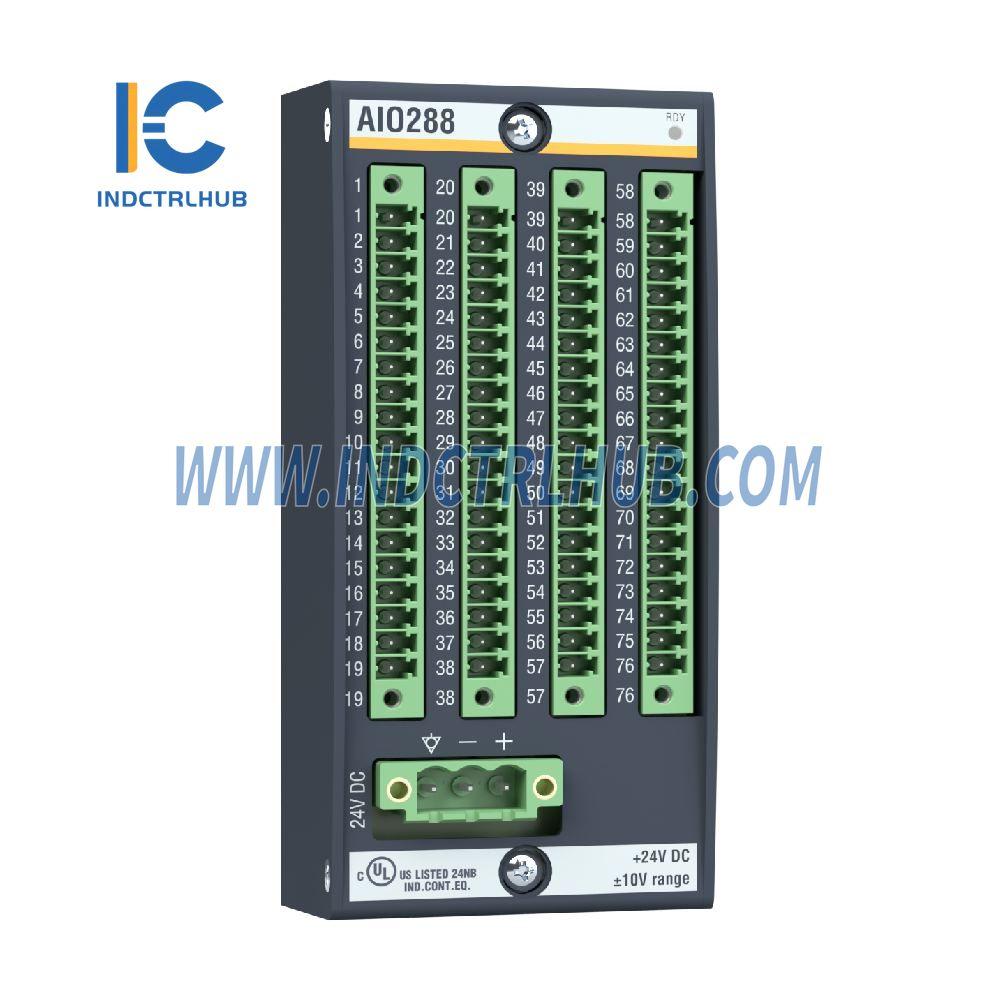

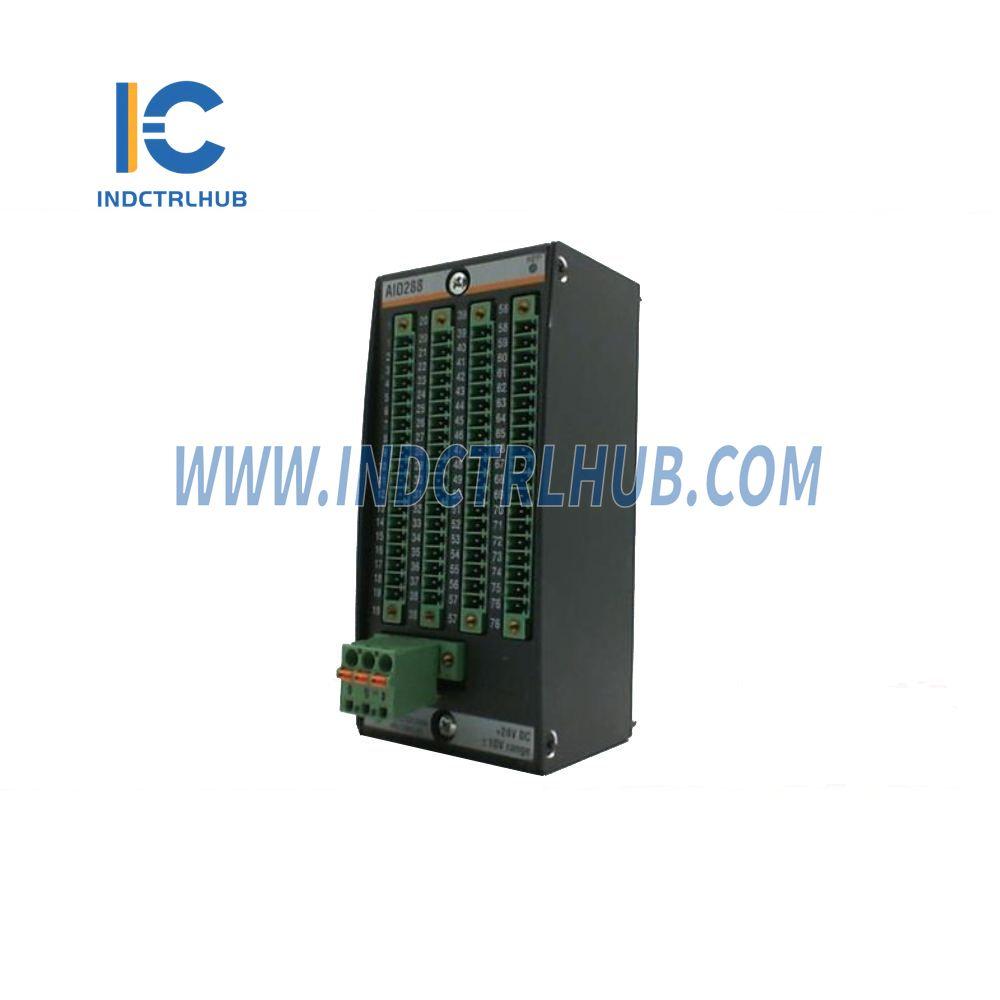

AIO288 BACHMANN Analog Input/Output Module

AIO288 BACHMANN Analog Input/Output Module

  • Manufacturer: BACHMANN

  • Product No.: AIO288

  • Condition:1000 in stock

  • Product Type: Analog Input/Output Module

  • Product Origin: Austria

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details
Manufacturer: BACHMANN
Model/Part Number: AIO288
Description: Analog Input/Output Module

General Description
The AIO288 is a high-precision analog input/output module designed for versatile industrial applications. It provides excellent accuracy, fast sampling, and robust isolation, suitable for harsh operating environments.

Voltage Inputs

Parameter Specification
Max Quantity 8
Voltage Range ±1 V or ±10 V
Input Impedance > 100 kΩ
Digital Resolution 14-bit
Common Mode Voltage (Max) ±1 V
Accuracy (@ 25 °C) ±0.05% of input voltage range
Cutoff Frequency 1.5 kHz (3 dB)
Cross-Talk Attenuation > 60 dB
Sample Time 200 µs

Voltage Outputs

Parameter Specification
Max Quantity 8
Voltage Range ±10 V
Digital Resolution 14-bit
Common Mode Voltage (Max) ±1 V
Accuracy (@ 25 °C) ±0.025% of output voltage range
Settling Time 400 µs (1% of output current range)
Cross-Talk Attenuation > 60 dB
Refresh Cycle Time 200 µs

Current Inputs

  • Max Quantity: 8
  • Range: 0 .. 20 mA
  • Input Impedance: 243 Ω
  • Digital Resolution: 14-bit
  • Maximum Input Current: 35 mA (destruction limit)
  • Accuracy (@ 25 °C): ±0.1% of input current range
  • Cutoff Frequency: 1.5 kHz (3 dB)
  • Sample Time: 200 µs

Temperature Inputs

  • Sensor Types: Pt100, Pt1000 (selectable)
  • Max Quantity: 4
  • Connection Type: 2- or 4-wire (optional)
  • Temperature Range: -100 .. +500 °C
  • Input Impedance: > 100 kΩ
  • Accuracy (@ 25 °C): ±0.1% of input current range
  • Cutoff Frequency: 1.5 kHz (3 dB)
  • LSB Value: 0.1 K
  • Sample Time: 200 µs

Potentiometer Power Supply

  • Max Quantity: 4
  • Voltage Range: ±10 V
  • Error (@ 25 °C): ±100 mV
  • Max Load: 40 mA

External Power Supply

  • Voltage Range: 18 .. 34 V DC
  • Current Consumption: 230 mA @ +5 V DC
  • Galvanic Isolation: 500 V

Ambient Conditions

Parameter Specification
Operating Temperature -30 .. +60 °C
Humidity (Operation) 5 .. 95% (with or without condensation)
Storage Temperature -40 .. +85 °C
Humidity (Storage) 5 .. 95% (with condensation)

Execution Variants

  • AIO288 Analog input/output module
    • Specifications:
      • 8x Inputs (±10 V, ±1 V, 20 mA)
      • 4x Temperature Inputs (Pt100/Pt1000)
      • 8x Outputs (±10 V)
      • 4x Potentiometer Power Supplies
      • 14-bit resolution, 0.1% accuracy, 200 µs sample time
      • 500 V galvanic isolation
View full details
