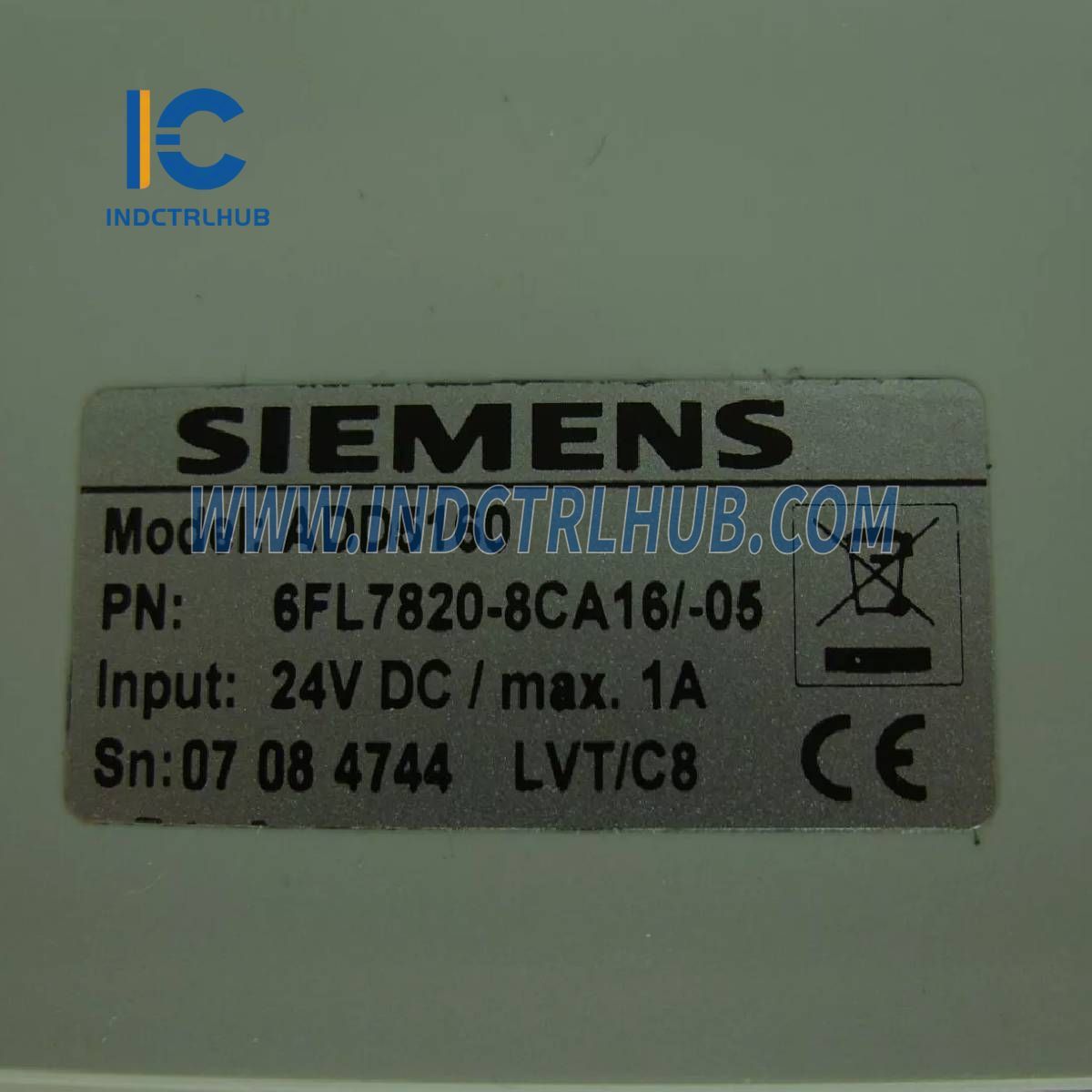

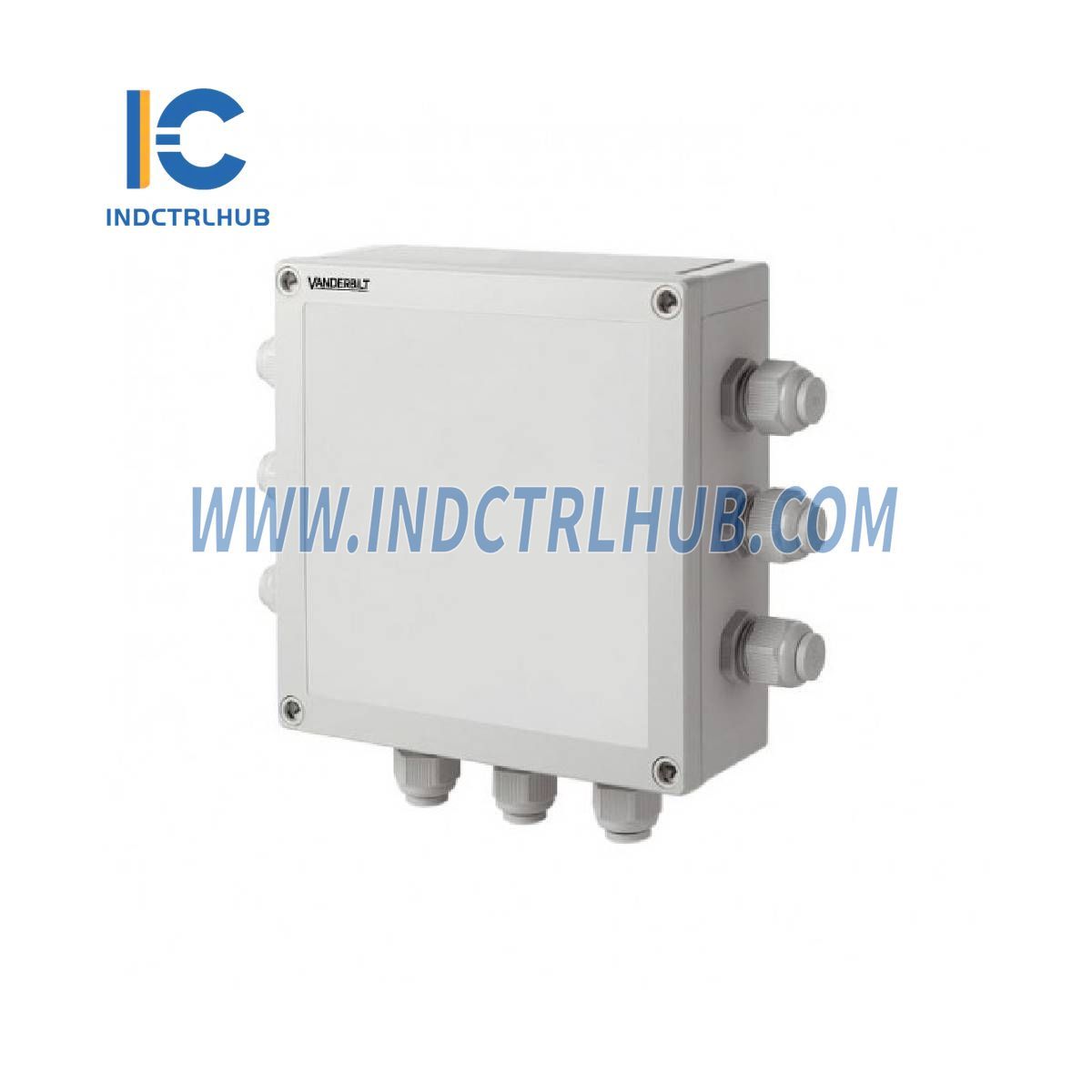

ADD5160 6FL7820-8CA16 | SIEMENS DUAL READER INTERFACE MODULE

ADD5160 6FL7820-8CA16 | SIEMENS DUAL READER INTERFACE MODULE

  • Manufacturer: PLC MODULE

  • Product No.: ADD5160 6FL7820-8CA16

  • Condition:1000 in stock

  • Product Type: DUAL READER INTERFACE MODULE

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information

Manufacturer: SIEMENS
Model/Part Number: ADD5160 6FL7820-8CA16
Product Type: Dual Reader Interface Module

Interface

Parameter Value
FLN Connection to Controller RS485
Connection to Readers One RS485 bus for up to two RS485 readers (CerPass protocol) OR two Wiegand/Clock&Data ports

Power Supply

Parameter Value
Operating Voltage 12 to 32 VDC ±20%
Power Output (Reader) 300 mA
Power Output (Ancillary) 1 A
Power Consumption 25 W

Inputs/Outputs

Parameter Value
Outputs 1 x Lock output relay (30 VDC, 2 A)
1 x Auxiliary relay (30 VDC, 2 A)
Inputs 1 x REX button
1 x Door contact
3 x Auxiliary (unsupervised or supervised)
Tamper Switch Optional, auxiliary input

Indicators

Parameter Value
Indicators Power, Activity, Communication

Environmental Conditions

Parameter Value
Operating Temperature 0 to +50 °C

Dimensions & Weight

Parameter Value
Dimensions (W x H x D) 180 x 180 x 60 mm
Weight (Approx.) 0.5 kg
View full details

Product Description

Product Information

Manufacturer: SIEMENS
Model/Part Number: ADD5160 6FL7820-8CA16
Product Type: Dual Reader Interface Module

Interface

Parameter Value
FLN Connection to Controller RS485
Connection to Readers One RS485 bus for up to two RS485 readers (CerPass protocol) OR two Wiegand/Clock&Data ports

Power Supply

Parameter Value
Operating Voltage 12 to 32 VDC ±20%
Power Output (Reader) 300 mA
Power Output (Ancillary) 1 A
Power Consumption 25 W

Inputs/Outputs

Parameter Value
Outputs 1 x Lock output relay (30 VDC, 2 A)
1 x Auxiliary relay (30 VDC, 2 A)
Inputs 1 x REX button
1 x Door contact
3 x Auxiliary (unsupervised or supervised)
Tamper Switch Optional, auxiliary input

Indicators

Parameter Value
Indicators Power, Activity, Communication

Environmental Conditions

Parameter Value
Operating Temperature 0 to +50 °C

Dimensions & Weight

Parameter Value
Dimensions (W x H x D) 180 x 180 x 60 mm
Weight (Approx.) 0.5 kg
