Product Description
Product Information
Manufacturer: SIEMENS

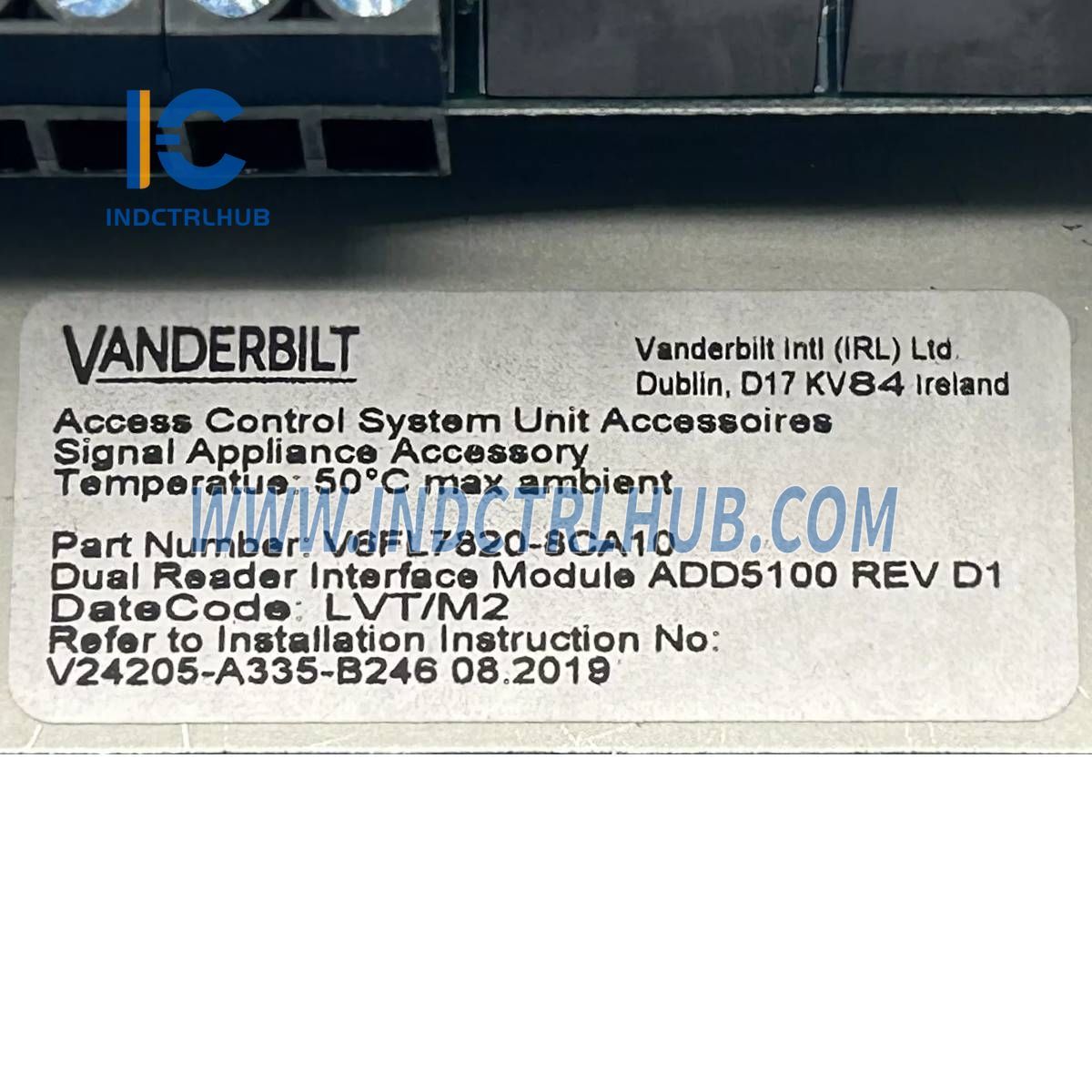

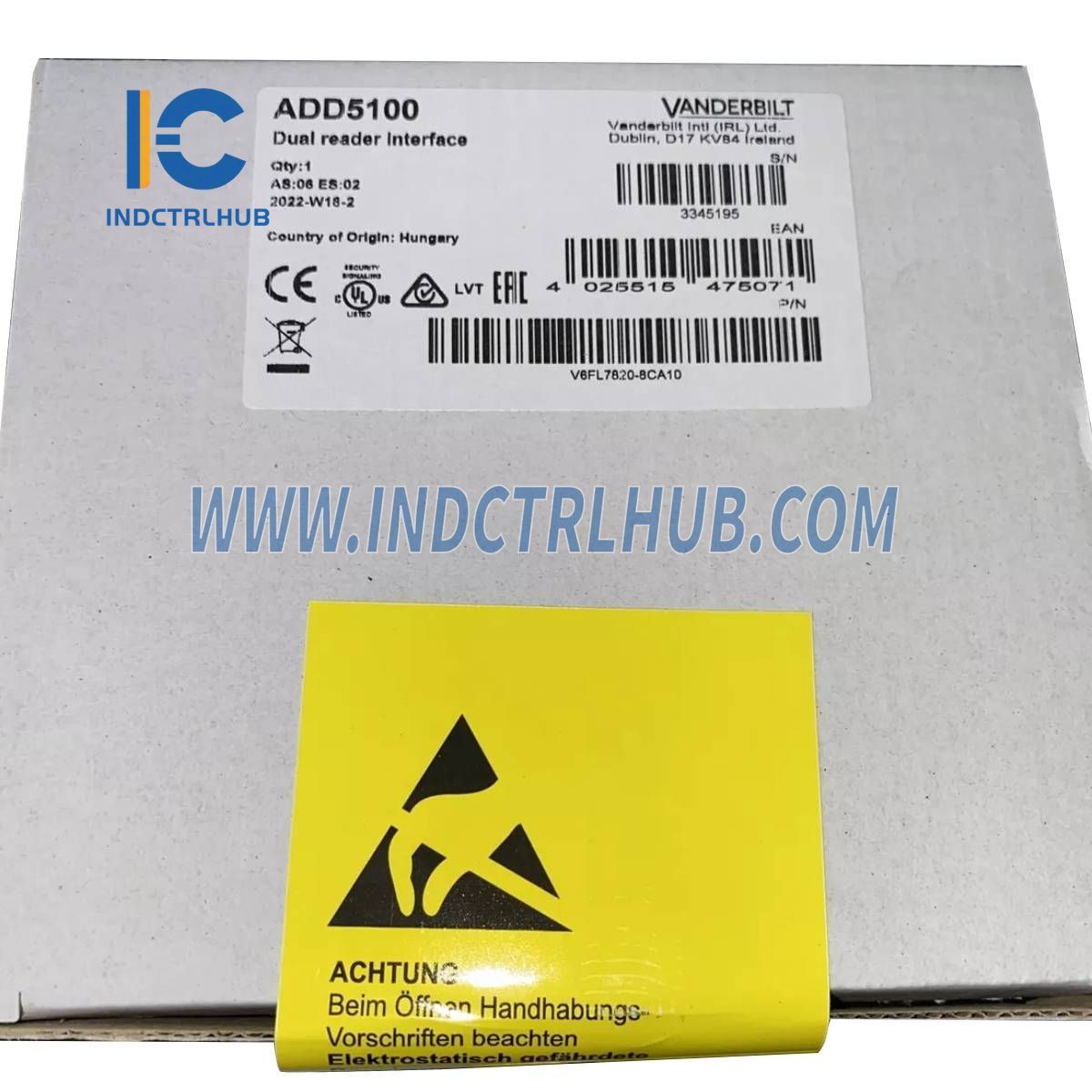

Model/Part Number: ADD5100 6FL7820-8CA10

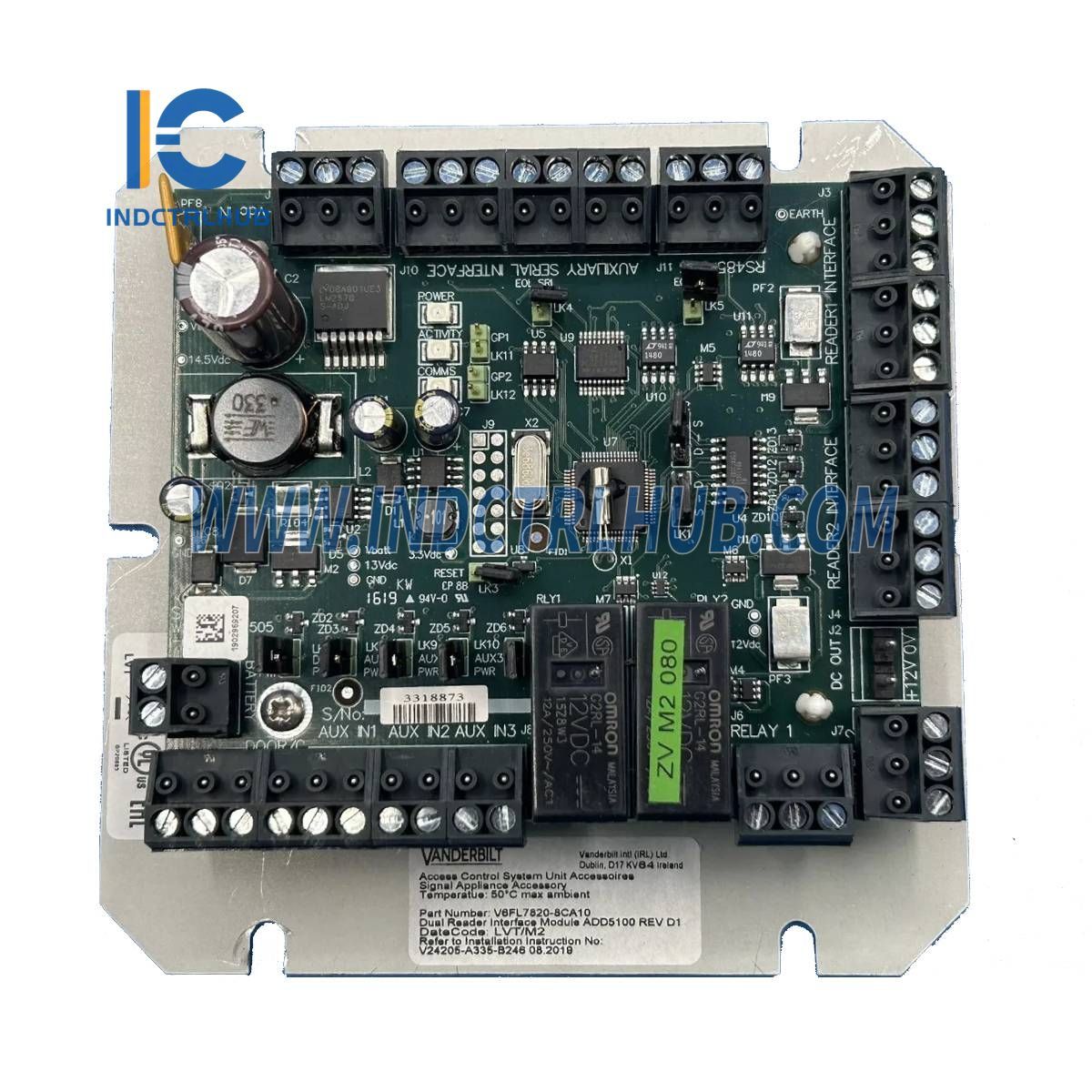

Product Type: Dual Reader Interface Module
Interface
| Parameter |
Value |
| FLN Connection to Controller |
RS485 |
| Connection to Readers |
One RS485 bus for up to two RS485 readers (CerPass protocol) OR two Wiegand/Clock&Data ports |
Power Supply
| Parameter |
Value |
| Operating Voltage |
12 to 32 VDC ±20% |
| Power Output (Reader) |
300 mA |
| Power Output (Ancillary) |
1 A |
| Power Consumption |
25 W |
Inputs/Outputs
| Parameter |
Value |
| Outputs |
1 x Lock output relay (30 VDC, 2 A)
1 x Auxiliary relay (30 VDC, 2 A) |
| Inputs |
1 x REX button
1 x Door contact
3 x Auxiliary (unsupervised or supervised) |
| Tamper Switch |
Optional, auxiliary input |
Indicators
| Parameter |
Value |
| Indicators |
Power, Activity, Communication |
Environmental Conditions
| Parameter |
Value |
| Operating Temperature |
0 to +50 °C |
Dimensions & Weight
| Parameter |
Value |
| Dimensions (W x H x D) |
125 x 125 x 34 mm |
| Weight (Approx.) |
0.30 kg |
