Product Description
Product Information
- Manufacturer: SIEMENS
- Model/Part Number: 6SL3224-0BE34-5UA0

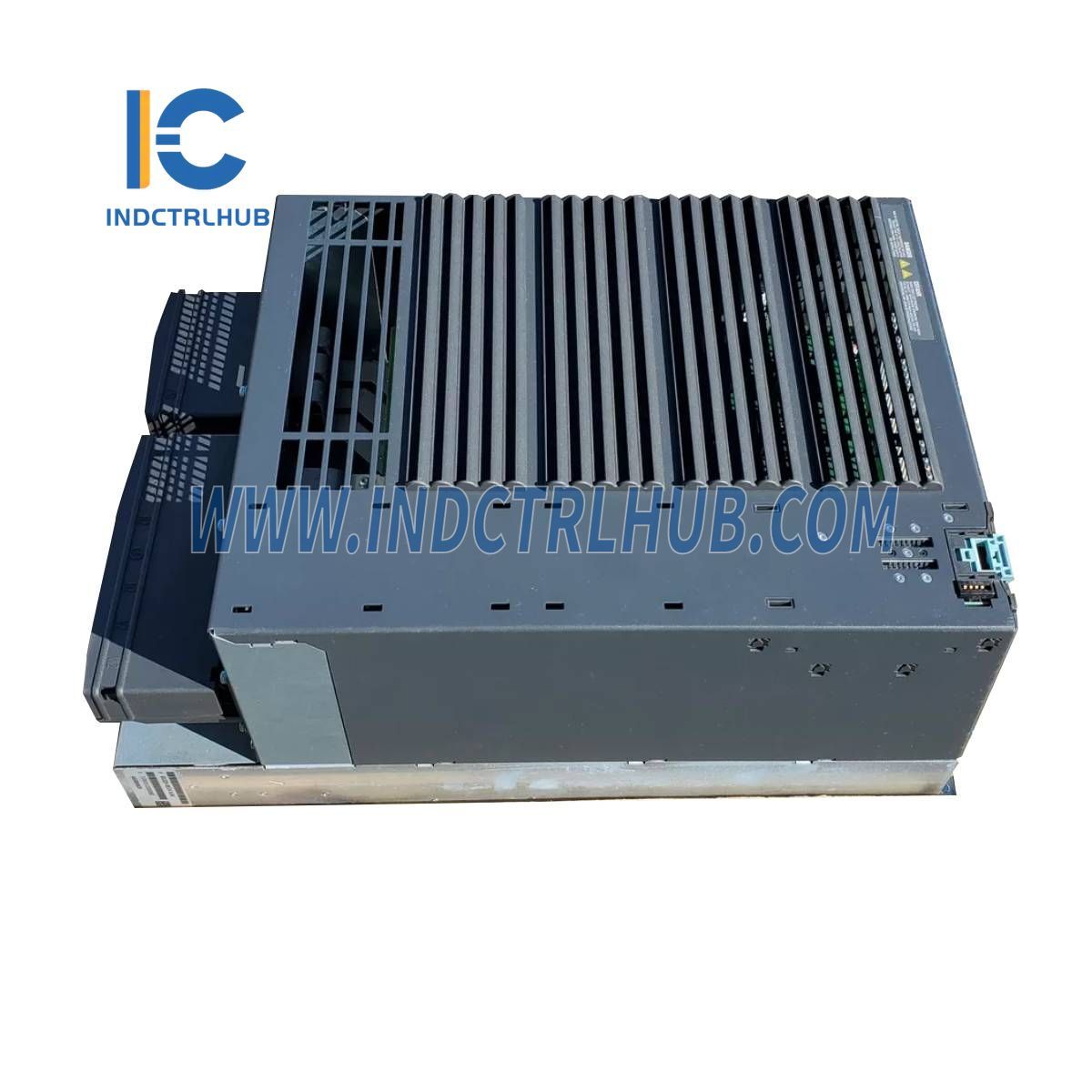

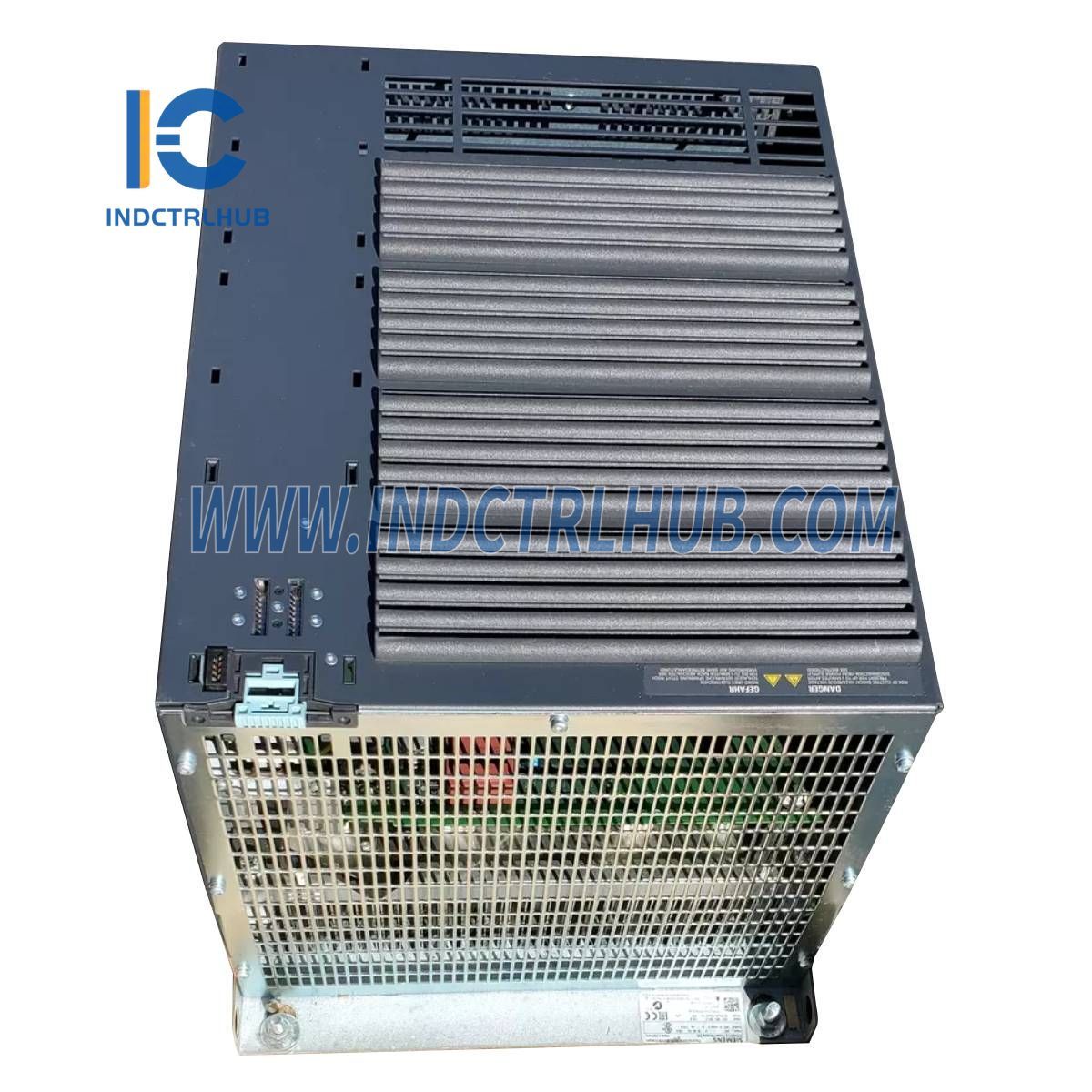

- Description: Power Module
Electrical Specifications
Input
| Parameter | Specification |
|---|---|
| Number of Phases | 3 AC |
| Line Voltage | 380 ... 480 V ±10 % |
| Line Frequency | 47 ... 63 Hz |
| Rated Current with Line Reactor | 115.00 A |
| Rated Current without Line Reactor | 129.00 A |
Output
| Parameter | Specification |
|---|---|
| Number of Phases | 3 AC |
| Rated Voltage | 400V IEC / 480V NEC |
| Rated Power (LO Mode) | 55.00 kW / 75.00 hp |
| Rated Power (HO Mode) | 45.00 kW / 60.00 hp |
| Rated Current (LO Mode) | 110.00 A |
| Rated Current (HO Mode) | 90.00 A |
| Max. Output Current | 180.00 A |
| Pulse Frequency | 4 kHz |
| Output Frequency for Vector Control | 0 ... 200 Hz |
| Output Frequency for V/f Control | 0 ... 550 Hz |
Environmental Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature (LO Mode) | 0 ... 40 °C (32 ... 104 °F) |
| Operating Temperature (HO Mode) | 0 ... 50 °C (32 ... 122 °F) |
| Transport Temperature | -25 ... 55 °C (-13 ... 131 °F) |
| Storage Temperature | -25 ... 55 °C (-13 ... 131 °F) |
Mechanical & Protection Features
| Parameter | Specification |
|---|---|
| Degree of Protection | IP20 / UL Open Type |
| Frame Size | FSF |
| Net Weight | 36.00 kg (79.37 lb) |
| Dimensions (W x H x D) | 350 mm x 634 mm x 316 mm (13.78 in x 24.96 in x 12.44 in) |
