Product Description

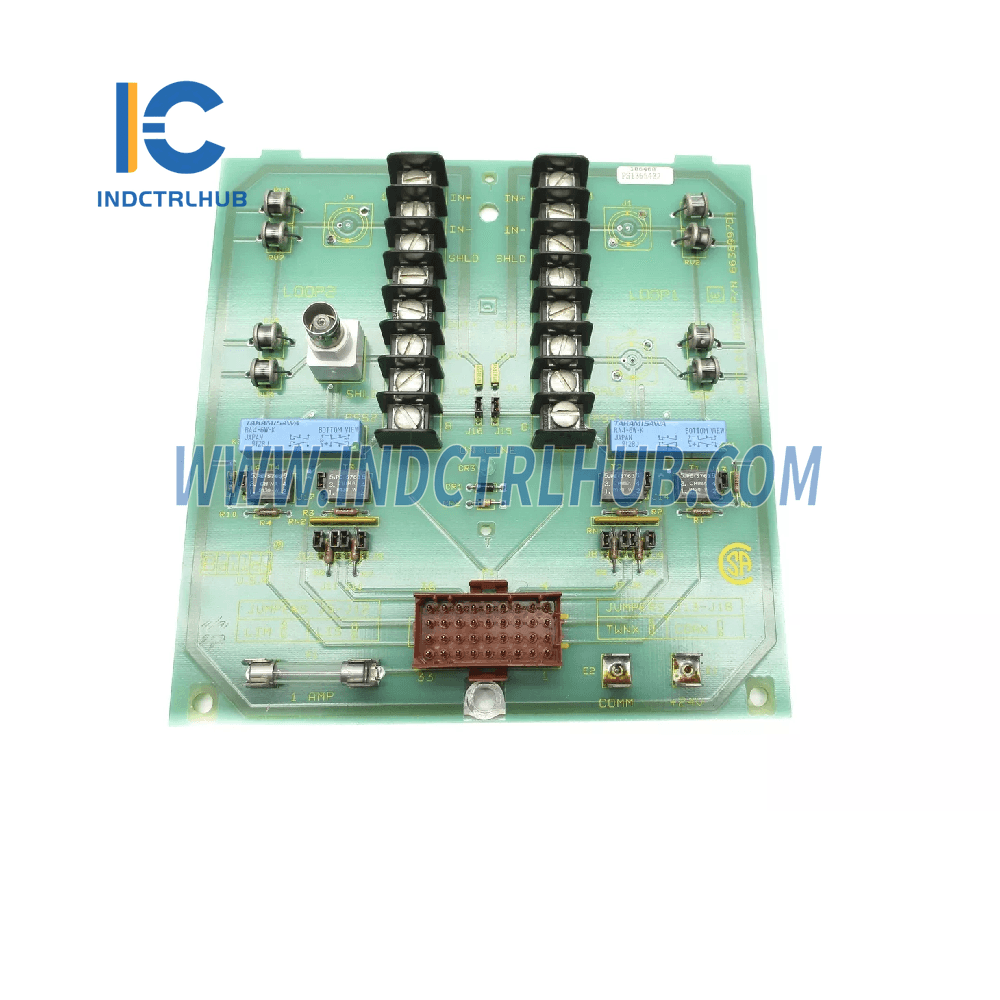

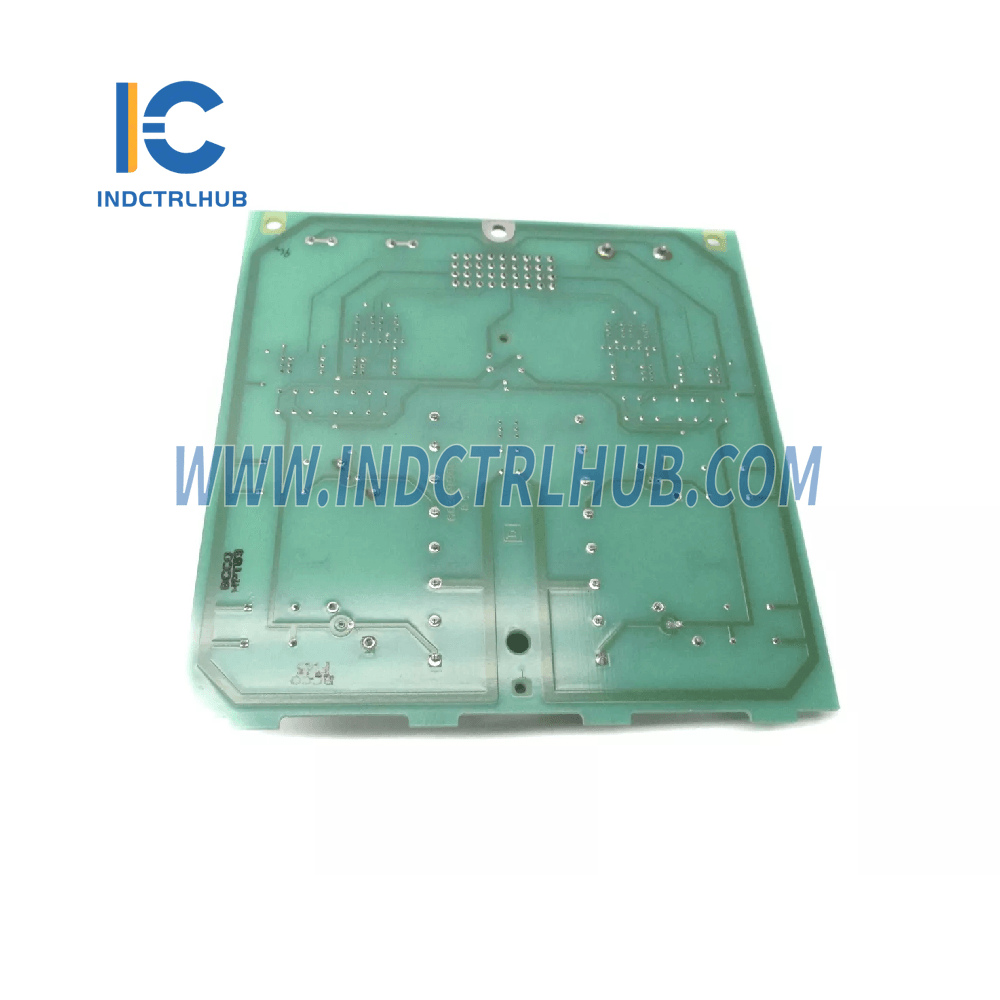

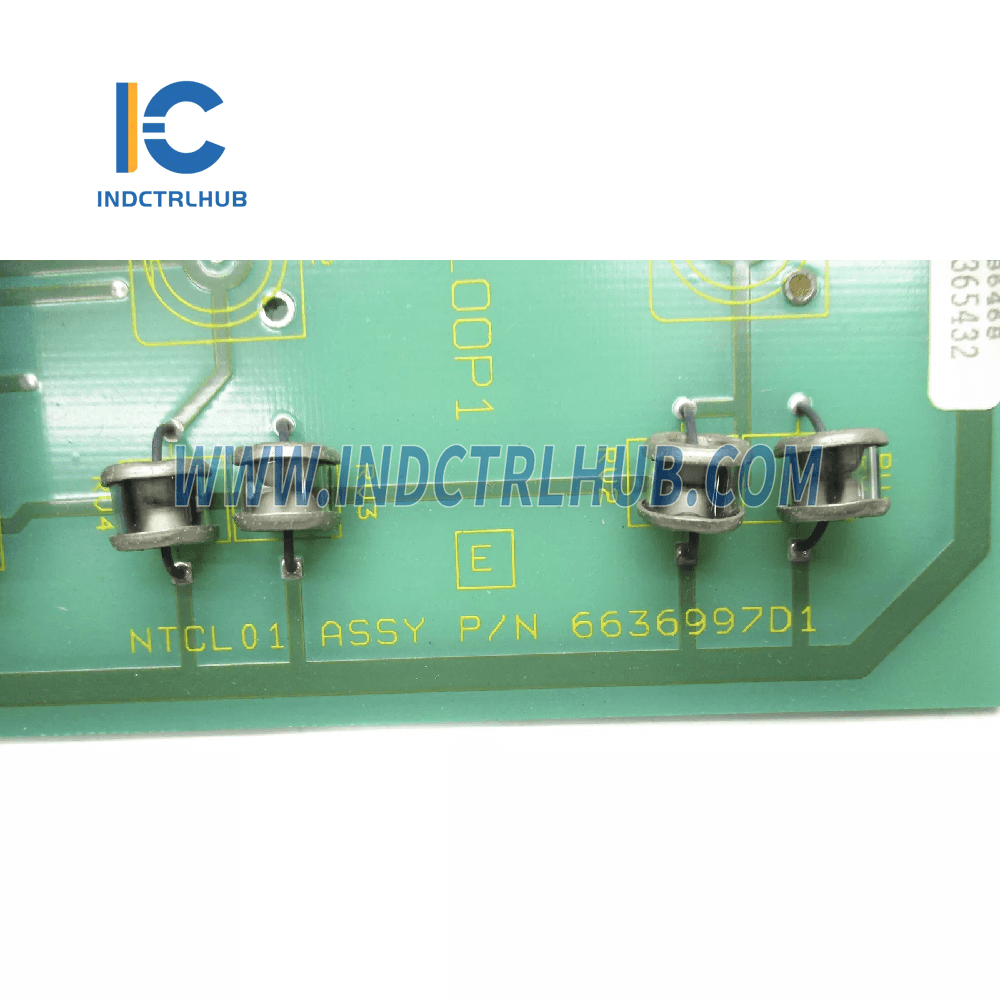

NTCL01 - INFI-Net Communication Link Termination Unit
The NTCL01 is an ABB Module Termination Unit (MTU) designed for communication links in industrial automation systems. It is compatible with NIS and NKLS modules, ensuring efficient integration within ABB’s control and communication networks.
General Information
| Attribute | Details |
|---|---|
| Product ID | NTCL01 |
| ABB Type Designation | NTCL01 |
| Catalog Description | INFI-Net Communication Link Termination Unit |
| Long Description | Use with NIS, NKLS |
| Product Type | Module_Termination_Unit |
| Medium Description | Use with NIS, NKLS |
Dimensions
| Attribute | Measurement |
|---|---|
| Net Depth / Length | 96.52 mm |
| Net Height | 236.22 mm |
| Net Width | 220.98 mm |
| Net Weight | 0.3 kg |
Ordering Information
| Attribute | Details |
|---|---|
| HS Code | 853710-- Boards, panels, consoles, desks, cabinets, etc., for electric control or distribution. |
| Customs Tariff Number | 85371091 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 0 |
| SCIP | ef42420c-e2ea-44f3-ab55-c13af1c0d1fb India (IN) |
Environmental Compliance
- WEEE Directive: Category 5 compliant (Small Equipment).
- Battery Information: No batteries included.
Applications
The NTCL01 is a key component in ABB’s Symphony Harmony INFI 90 and S+ HR control systems. It is widely used in industrial automation setups, particularly in:
- INFI-Net Communication Links for secure data transfer.
- Integration with NIS and NKLS modules for enhanced control and monitoring.
- ASI Analog Slave Input Systems in conjunction with IMASI23 prefabricated cables.
Product Categories
- Control System Products > Control & Communication > S+ HR > Termination Units > NTCL01 INFI-Net Communication Link TU
- Control Systems > Symphony Harmony INFI 90 > I/Os > ASI Analog Slave Inputs > IMASI23 > Prefabricated Cables
