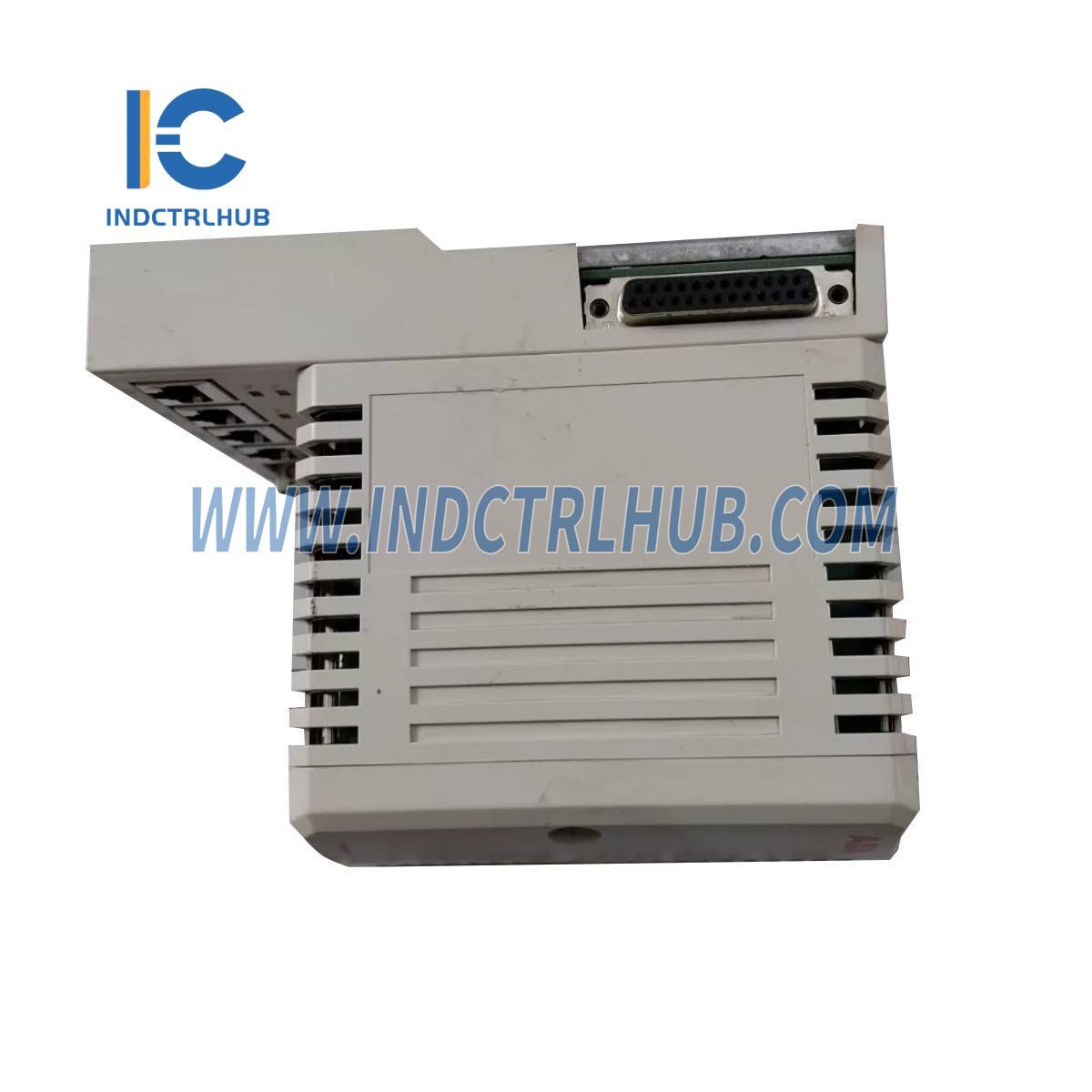

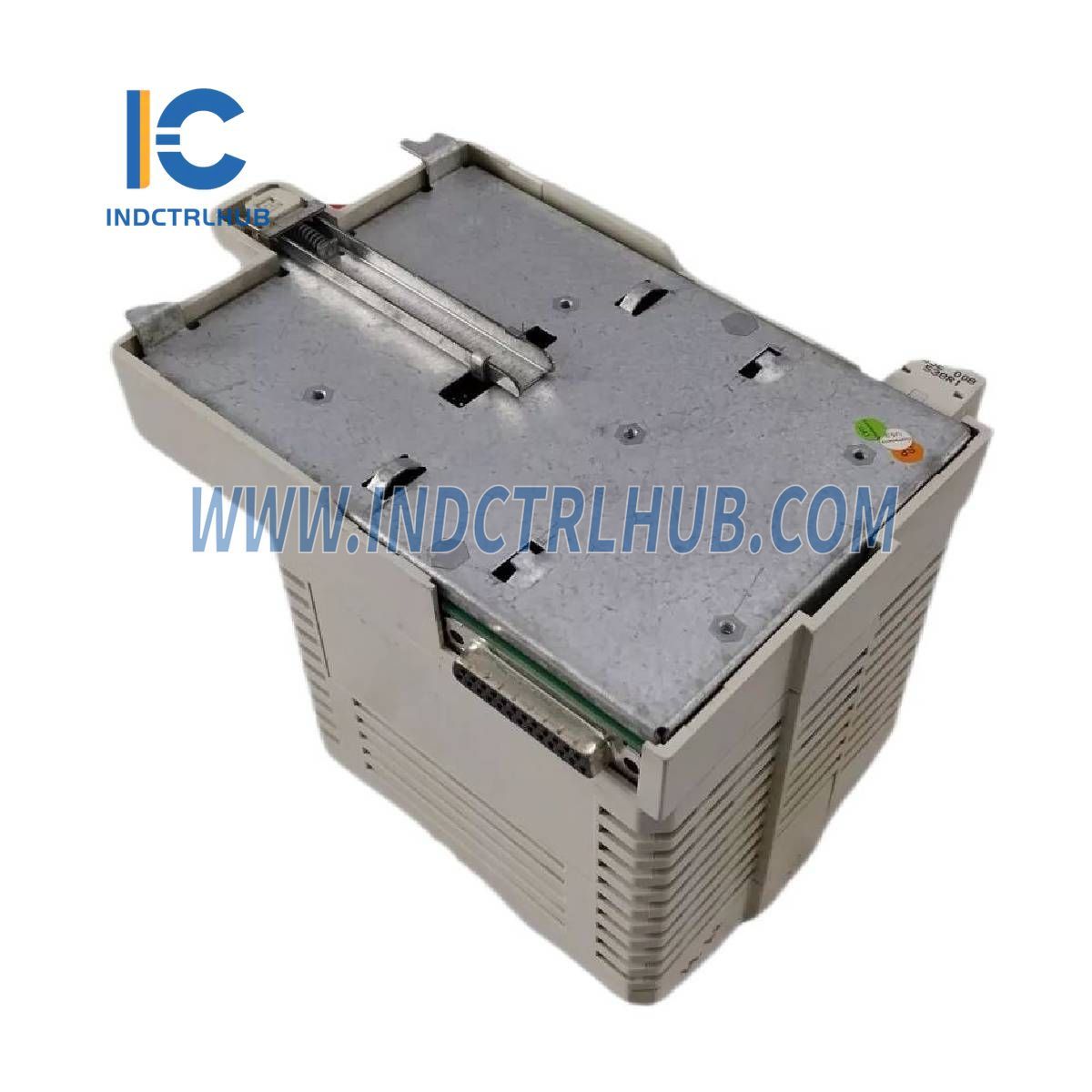

3BSE082896R1 | ABB PM858K02 Redundant Processor Unit

3BSE082896R1 | ABB PM858K02 Redundant Processor Unit

  • Manufacturer: ABB

  • Product No.: 3BSE082896R1

  • Condition:1000 in stock

  • Product Type: Redundant Processor Unit

  • Product Origin: Switzerland

  • Payment: T/T, Western Union

  • Weight: 2700g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The ABB PM858K02 3BSE082896R1 Redundant Processor Unit is a high-performance processing solution designed for ABB’s 800xA control system, specifically tailored for redundant configurations to ensure continuous operation in industrial automation environments. Featuring dual PM858 CPUs operating at 33 MHz with 16 MB of memory, this unit includes essential components such as baseplates (TP830), ModuleBus terminators (TB807), CEX-bus and RCU-Link cables (TK850, TK851), and backup batteries, all packaged for seamless integration. Weighing 2.7 kg and measuring 119 x 186 x 135 mm, it is compatible with 800xA 6.0.2, Compact Control Builder 6.0.0-1, and later versions, offering robust control capabilities for critical process applications. Manufactured without a license, it adheres to RoHS and WEEE environmental standards.

Technical Information

Parameter Specifications
Manufacturer ABB
Model/Part Number PM858K02 3BSE082896R1
Description Redundant Processor Unit
Product ID 3BSE082896R1
ABB Type Designation PM858K02
Catalog Description PM858K02 Redundant Processor Unit

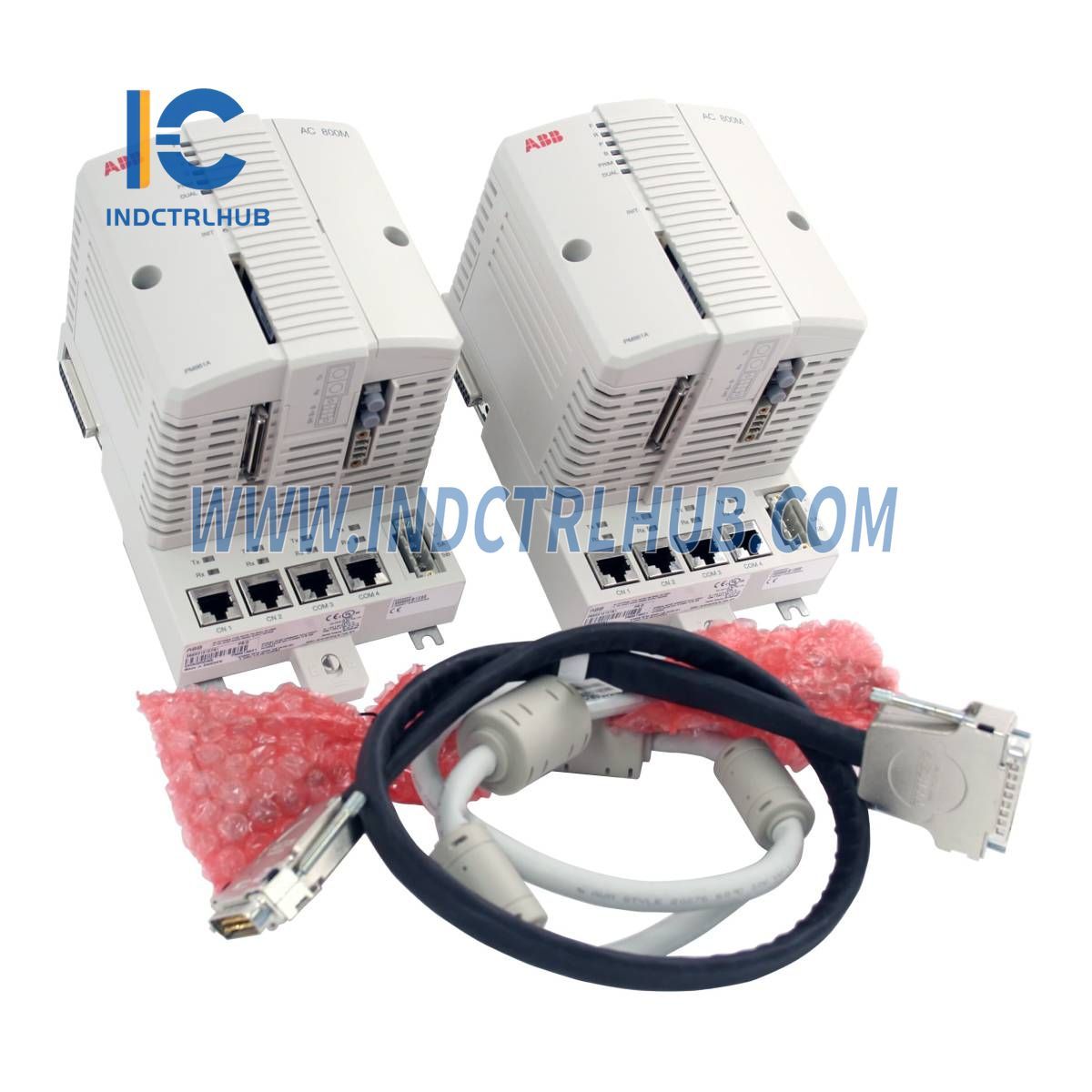

Long Description 33 MHz and 16 MB, Package including: 2 pcs PM858 (CPU), 2 pcs TP830 (Baseplate), 2 pcs TB807 (ModuleBus Terminator), TK850 (CEX-bus expansion cable), TK851 (RCU-Link cable), 2 pcs Battery for memory backup (4943013-6), No license included
Product Type Central_Unit
Processor Specifications 33 MHz, 16 MB RAM
Components Included - 2 x PM858 CPU
- 2 x TP830 Baseplate
- 2 x TB807 ModuleBus Terminator
- TK850 CEX-bus expansion cable
- TK851 RCU-Link cable
- 2 x Battery (4943013-6) for memory backup
License Not included
Compatibility 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards
HS Code 853710 (Boards, panels, consoles for electric control, voltage ≤ 1000 V)
Customs Tariff Number 85371091
Product Net Depth / Length 135 mm (5.31 in)
Product Net Height 186 mm (7.32 in)
Product Net Width 119 mm (4.69 in)
Product Net Weight 2.7 kg (5.95 lb)
Gross Weight 2.7 kg (5.95 lb)
Made To Order No
Minimum Order Quantity 1 piece
Order Multiple 1 piece
Quote Only No
Selling Unit of Measure Piece
Dangerous Goods UN Classification Class 9: Miscellaneous Dangerous Substances and Articles
Dangerous Goods UN Number UN3091-PI970
RoHS Status Following EU Directive 2011/65/EU
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries 2
Battery Chemical Composition Lithium
Battery Type Portable
Battery Weight 9 g (0.009 kg, 0.02 lb) each
SCIP f058438c-31e2-4439-9f9e-4242c41d85d3 (Sweden, SE)



View full details

Product Description

Product Overview

The ABB PM858K02 3BSE082896R1 Redundant Processor Unit is a high-performance processing solution designed for ABB’s 800xA control system, specifically tailored for redundant configurations to ensure continuous operation in industrial automation environments. Featuring dual PM858 CPUs operating at 33 MHz with 16 MB of memory, this unit includes essential components such as baseplates (TP830), ModuleBus terminators (TB807), CEX-bus and RCU-Link cables (TK850, TK851), and backup batteries, all packaged for seamless integration. Weighing 2.7 kg and measuring 119 x 186 x 135 mm, it is compatible with 800xA 6.0.2, Compact Control Builder 6.0.0-1, and later versions, offering robust control capabilities for critical process applications. Manufactured without a license, it adheres to RoHS and WEEE environmental standards.

Technical Information

Parameter Specifications
Manufacturer ABB
Model/Part Number PM858K02 3BSE082896R1
Description Redundant Processor Unit
Product ID 3BSE082896R1
ABB Type Designation PM858K02
Catalog Description PM858K02 Redundant Processor Unit
Long Description 33 MHz and 16 MB, Package including: 2 pcs PM858 (CPU), 2 pcs TP830 (Baseplate), 2 pcs TB807 (ModuleBus Terminator), TK850 (CEX-bus expansion cable), TK851 (RCU-Link cable), 2 pcs Battery for memory backup (4943013-6), No license included
Product Type Central_Unit
Processor Specifications 33 MHz, 16 MB RAM
Components Included - 2 x PM858 CPU
- 2 x TP830 Baseplate
- 2 x TB807 ModuleBus Terminator
- TK850 CEX-bus expansion cable
- TK851 RCU-Link cable
- 2 x Battery (4943013-6) for memory backup
License Not included
Compatibility 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards
HS Code 853710 (Boards, panels, consoles for electric control, voltage ≤ 1000 V)
Customs Tariff Number 85371091
Product Net Depth / Length 135 mm (5.31 in)
Product Net Height 186 mm (7.32 in)
Product Net Width 119 mm (4.69 in)
Product Net Weight 2.7 kg (5.95 lb)
Gross Weight 2.7 kg (5.95 lb)
Made To Order No
Minimum Order Quantity 1 piece
Order Multiple 1 piece
Quote Only No
Selling Unit of Measure Piece
Dangerous Goods UN Classification Class 9: Miscellaneous Dangerous Substances and Articles
Dangerous Goods UN Number UN3091-PI970
RoHS Status Following EU Directive 2011/65/EU
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries 2
Battery Chemical Composition Lithium
Battery Type Portable
Battery Weight 9 g (0.009 kg, 0.02 lb) each
SCIP f058438c-31e2-4439-9f9e-4242c41d85d3 (Sweden, SE)
