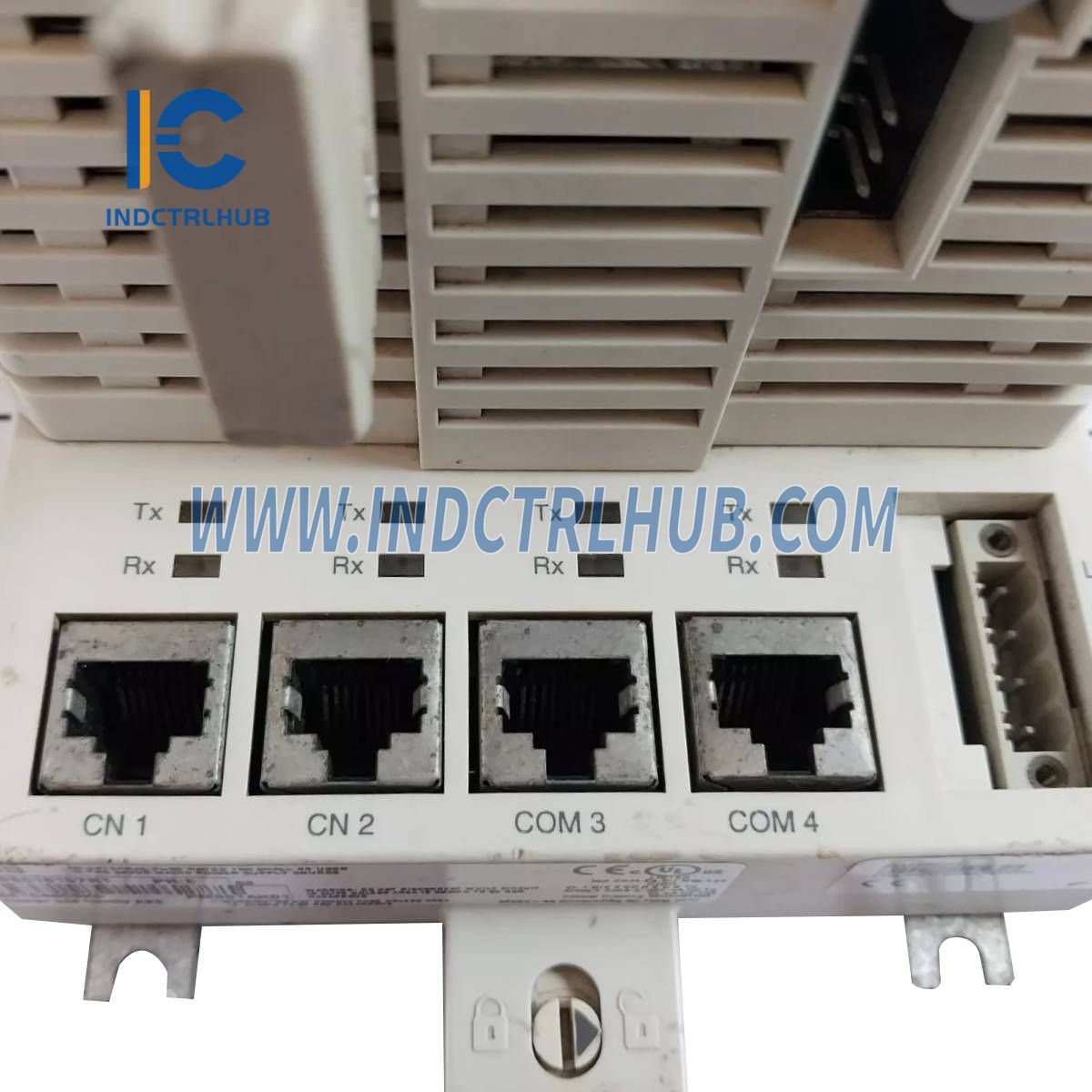

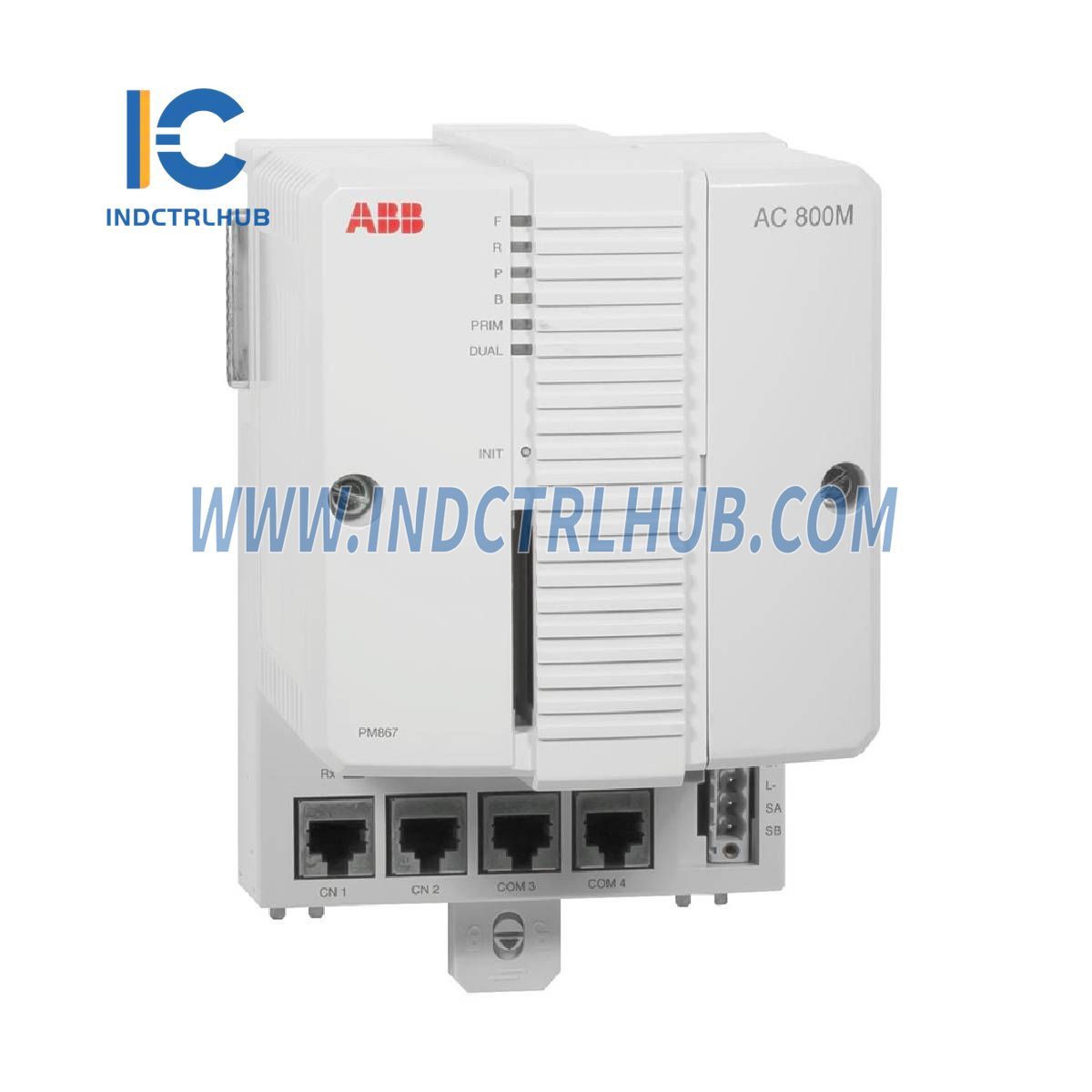

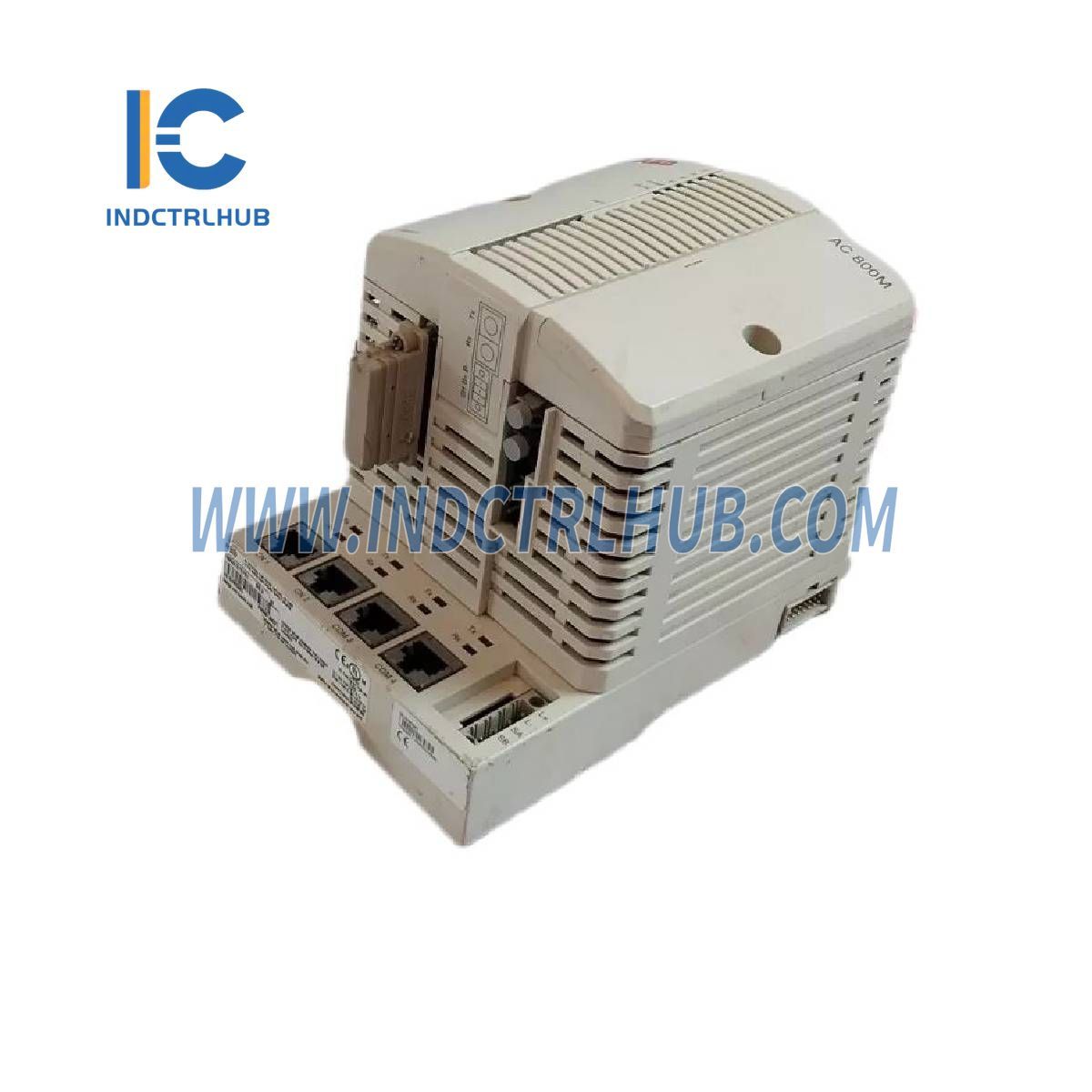

3BSE081638R1 | ABB PM867K02 High-Integrity Redundant Processor Unit

Overview

The ABB PM867K02 (3BSE081638R1) is a High-Integrity Redundant Processor Unit, designed for safety-critical applications within the AC 800M control system. Certified for SIL3, it requires configuration as per the Safety Manual. The PM867K02 ensures reliability, redundancy, and high-integrity processing, making it ideal for demanding industrial automation environments.

Product Specifications

General Information

• Product ID: 3BSE081638R1

• ABB Type Designation: PM867K02

• Catalog Description: PM867K02 Redundant Processor Unit HI

• Processor Speed: 133 MHz

• Memory: 64 MB

• Certification: SIL3 (Requires configuration according to the Safety Manual)

Package Includes

• 2× PM867 CPU Units

• 2× TP830 Baseplates

• 2× TB807 ModuleBus Terminators

• 1× TK850 CEX-bus Extension Cable

• 1× TK851 RCU-Link Cable

• 2× Lithium Backup Batteries (4943013-6)

• No license included

Compatibility: Only compatible with 800xA 6.0.2 and onwards.

Ordering & Compliance

• HS Code: 853710

• Customs Tariff Number: 85371091

• RoHS Compliance: Yes (EU Directive 2011/65/EU)

• WEEE Category: 5 (Small Equipment - No External Dimension > 50 cm)

• SCIP Number: 7ec5b29b-0920-45fe-b81d-b3a197fb7765 (Sweden)

Physical Dimensions & Weight

Battery Information

• Number of Batteries: 2

• Battery Type: Portable Lithium

• Battery Weight: 9 g

• UN Classification: Class 9 – Miscellaneous Dangerous Substances and Articles

• UN Number: UN3091-PI970

Applications & Compatibility

The PM867K02 is used in:
✅ AC 800M High-Integrity Systems
✅ 800xA System (Version 6.0.2 and onwards)
✅ Safety-Critical Control & Communication Applications
