Product Description
Product Overview

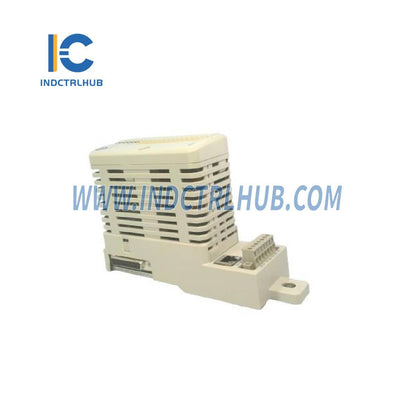

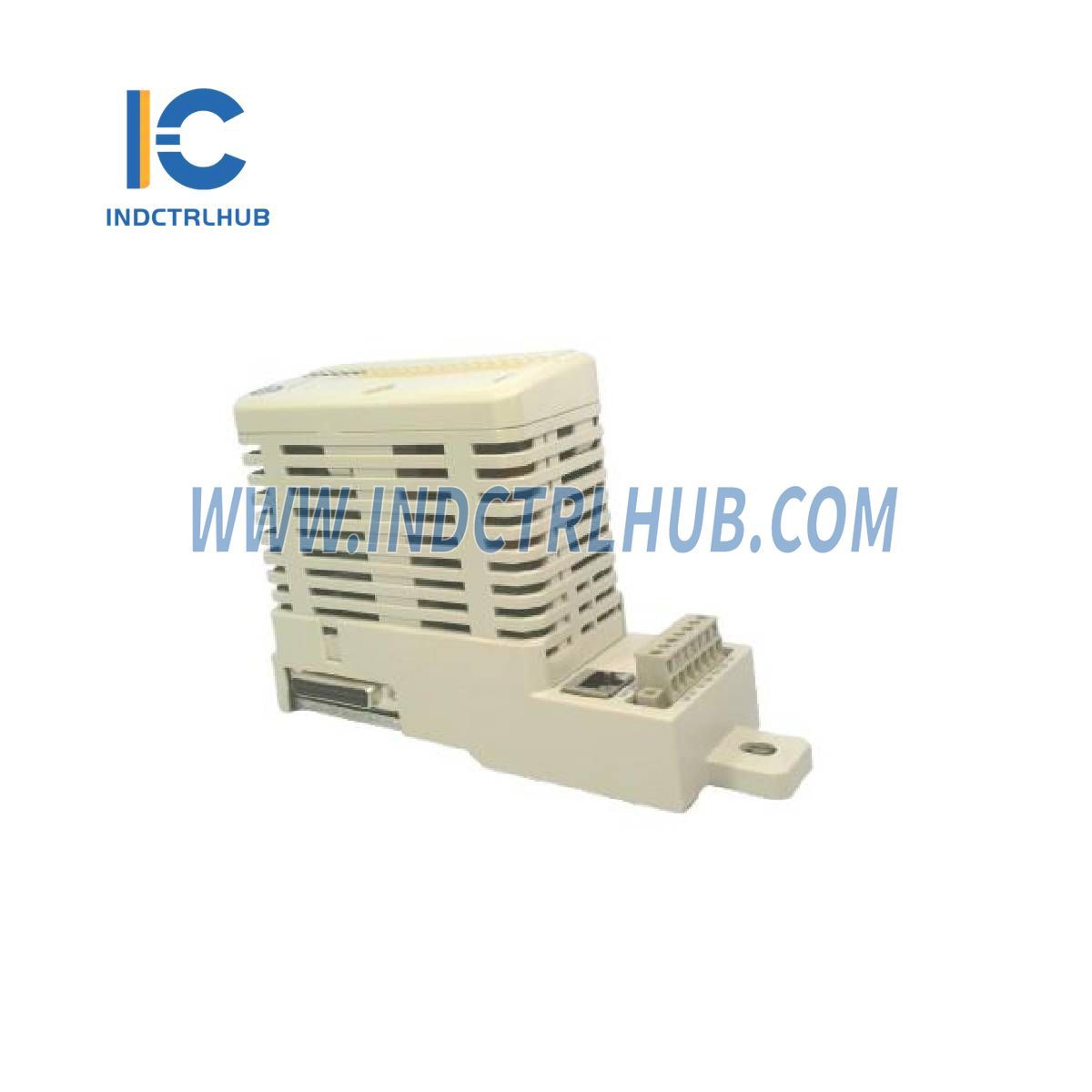

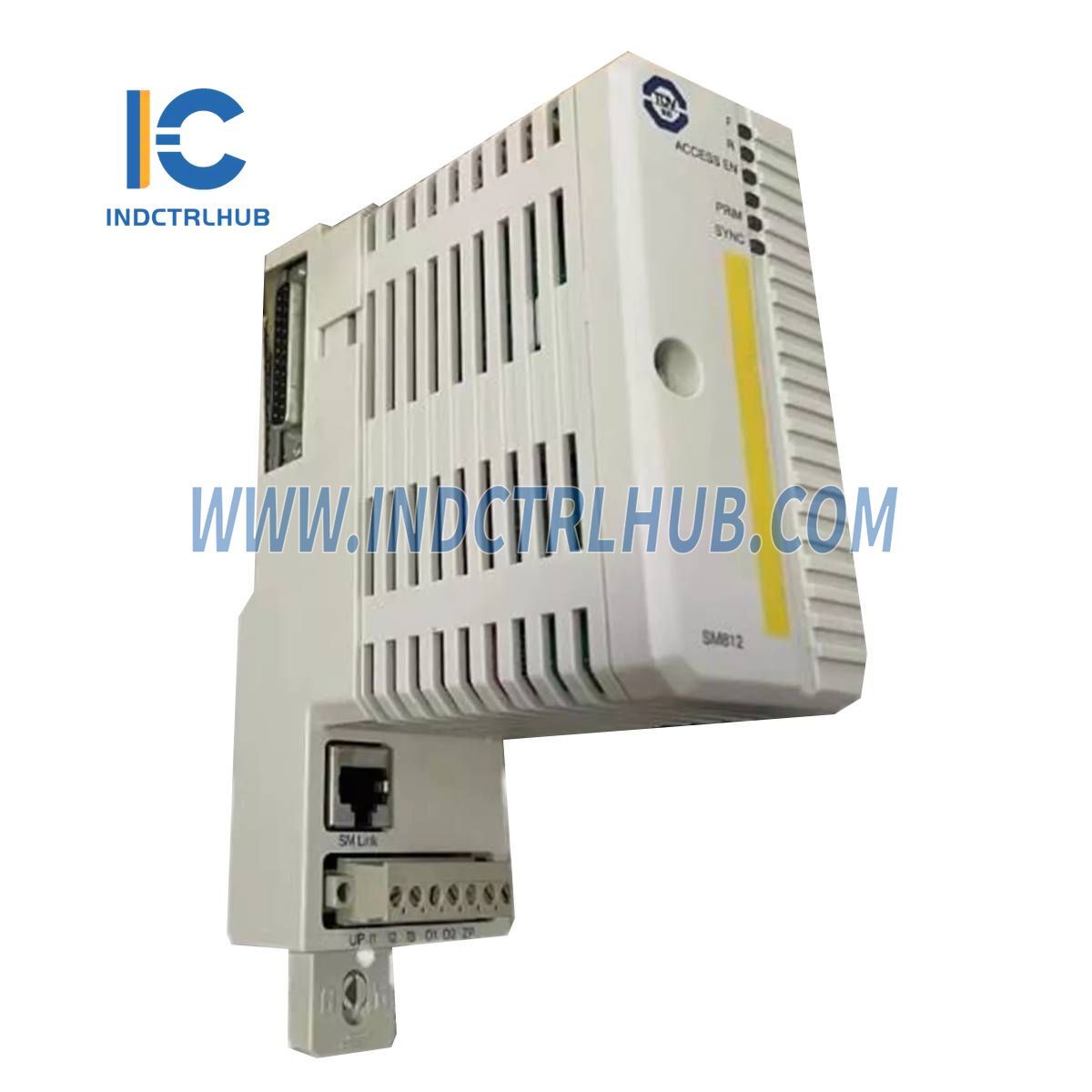

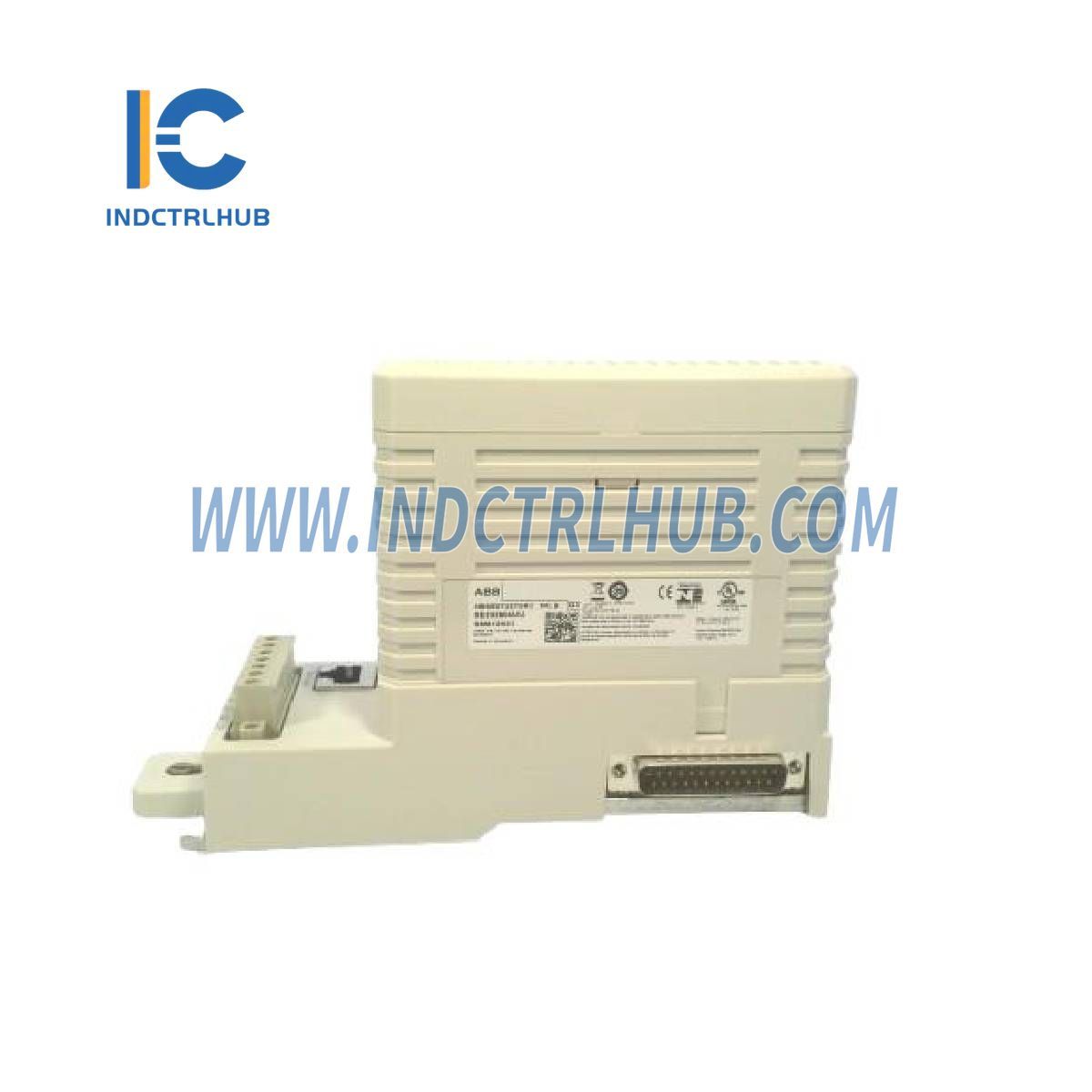

The ABB SM812K01 (Product ID: 3BSE072270R1) is a Safety CPU Module designed for high-integrity industrial control systems, certified for SIL3 (Safety Integrity Level 3). It is compatible with PM857, PM863, and PM867 processors in the 800xA 6.0.2 system and later versions, requiring specific safety configuration per the Safety Manual to ensure reliable operation in critical applications.
Technical Specifications
The SM812K01 Safety CPU Module has the following specifications:
| Item | Specification |
|---|---|
| Model | SM812K01 |
| Product ID | 3BSE072270R1 |
| Catalog Description | SM812K01 Safety CPU module |
| Long Description | High integrity, certified for SIL3. Requires configuration according to Safety Manual. Local organizations must comply with the Qualifications to secure successful sales of ABB safety systems, to order safety equipment. Use with PM857, PM863, and PM867. Package including: - SM812, Safety Module - TP868, Baseplate - TK852V10, Synchronization link cable Only compatible for 800xA 6.0.2 and onwards. Please see Product Update for more information |
| Safety Certification | SIL3 |
| Compatibility | PM857, PM863, PM867; 800xA 6.0.2 and later |
| Package Contents | - SM812, Safety Module - TP868, Baseplate - TK852V10, Synchronization link cable |
| Product Net Depth / Length | 127.5 mm |
| Product Net Height | 186 mm |
| Product Net Width | 59 mm |
| Product Net Weight | 0.63 kg |
Additional Details
The SM812K01 includes the following additional information:
| Category | Details |
|---|---|
| ABB Type Designation | SM812K01 |
| Medium Description | High integrity, certified for SIL3. Requires configuration according to Safety Manual. Local organizations must comply with the Qualifications to secure successful sales of ABB safety systems, to order safety equipment. Use with PM857, PM863, and PM867. Package including: - SM812, Safety Module - TP868, Baseplate - TK852V10, Synchronization link cable Only compatible for 800xA 6.0.2 and onwards. Please see Product Update for more information |
| Product Type | Central_Unit |
| HS Code | 853710 - Boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading 85.35 or 85.36, for electric control or the distribution of electricity, including those incorporating instruments or apparatus of Chapter 90, and numerical control apparatus, other than switching apparatus of heading 85.17. - For a voltage not exceeding 1,000 V |
| Customs Tariff Number | 85371091 |
| Dangerous Goods UN Classification | Class 9: Miscellaneous Dangerous Substances and Articles, Including Environmentally Hazardous Substances |
| Dangerous Goods UN Number | UN3091-PI970 |
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 0 |
| SCIP | c3fb1fc7-a887-4836-9613-3c020ae781ef Sweden (SE) |
