Product Description
Product Overview

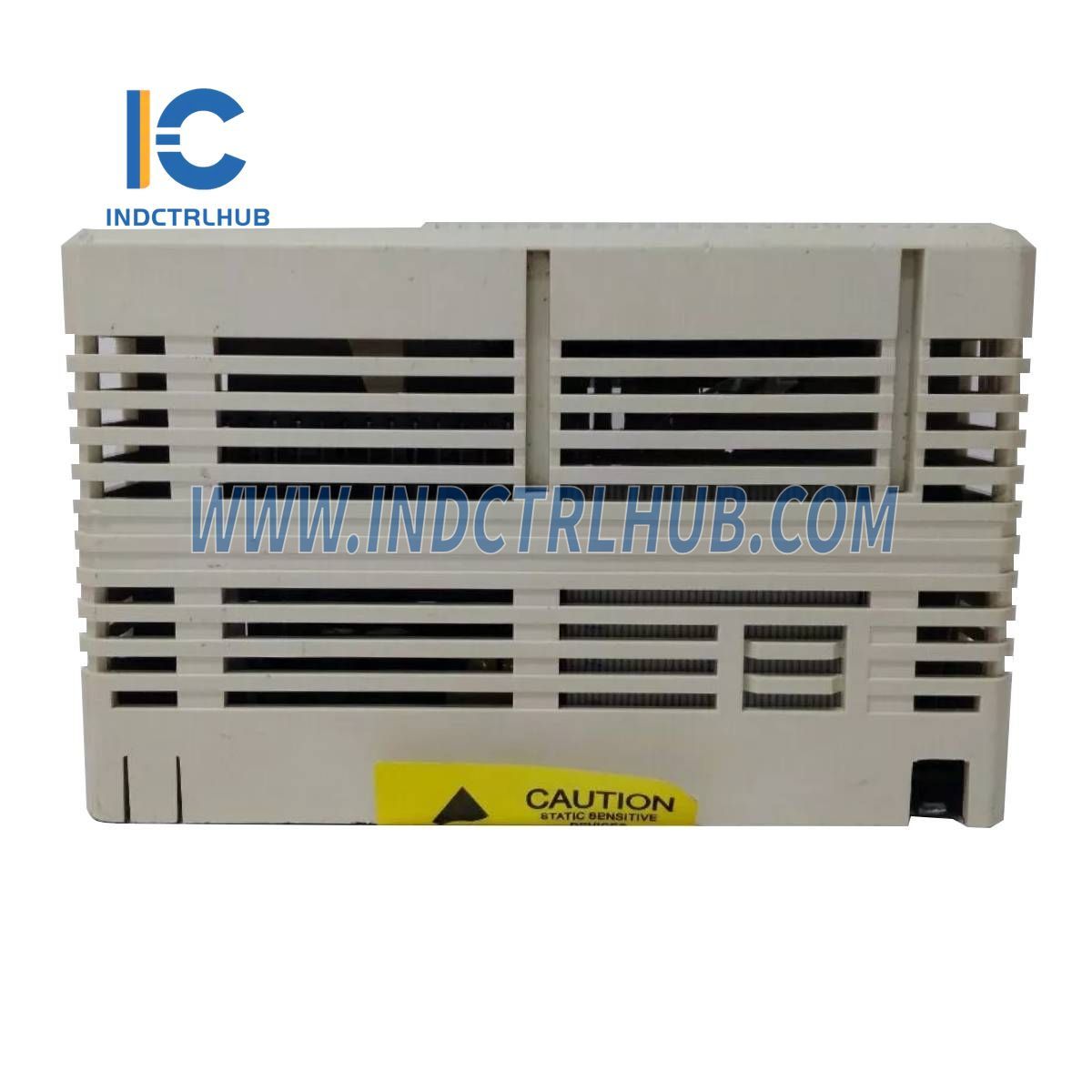

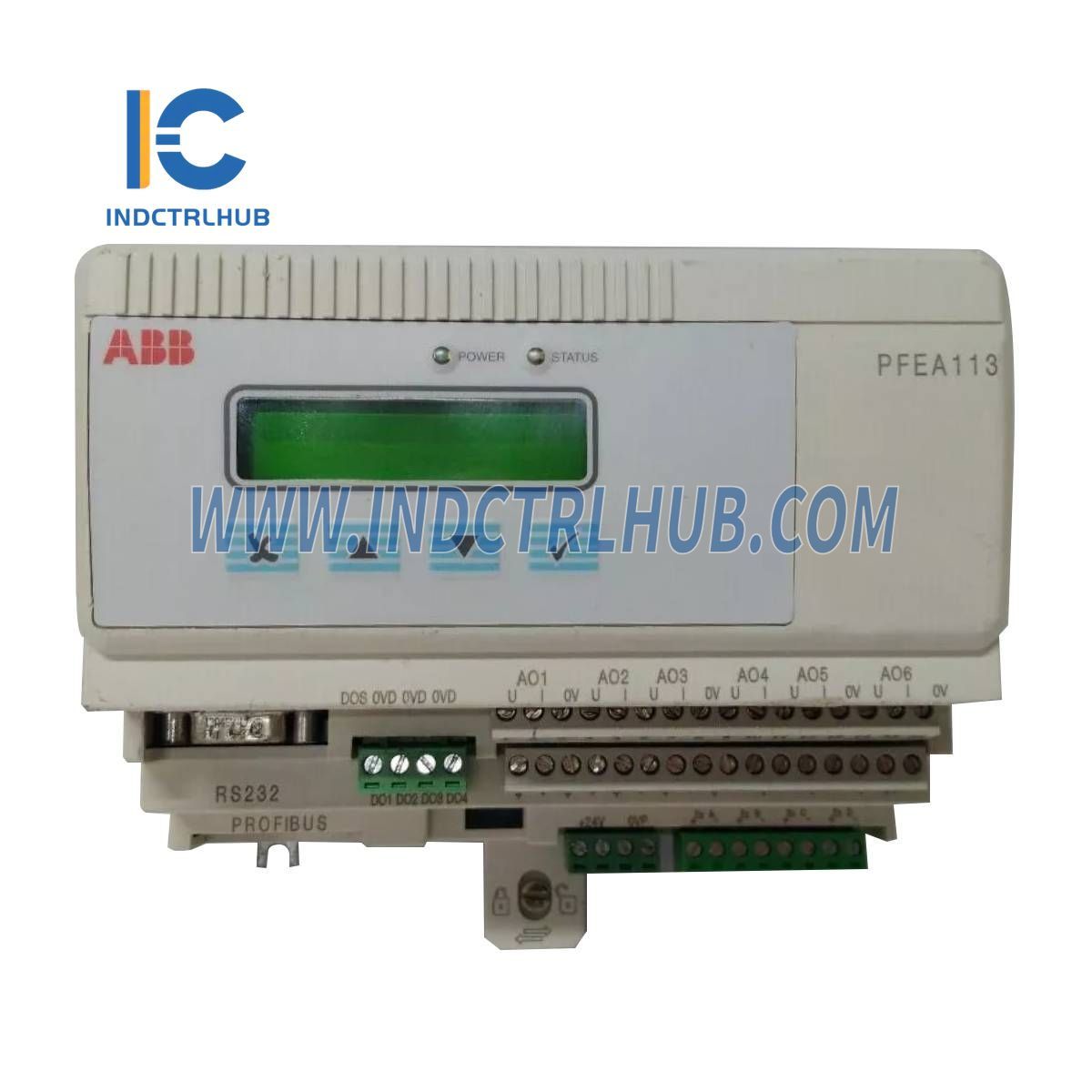

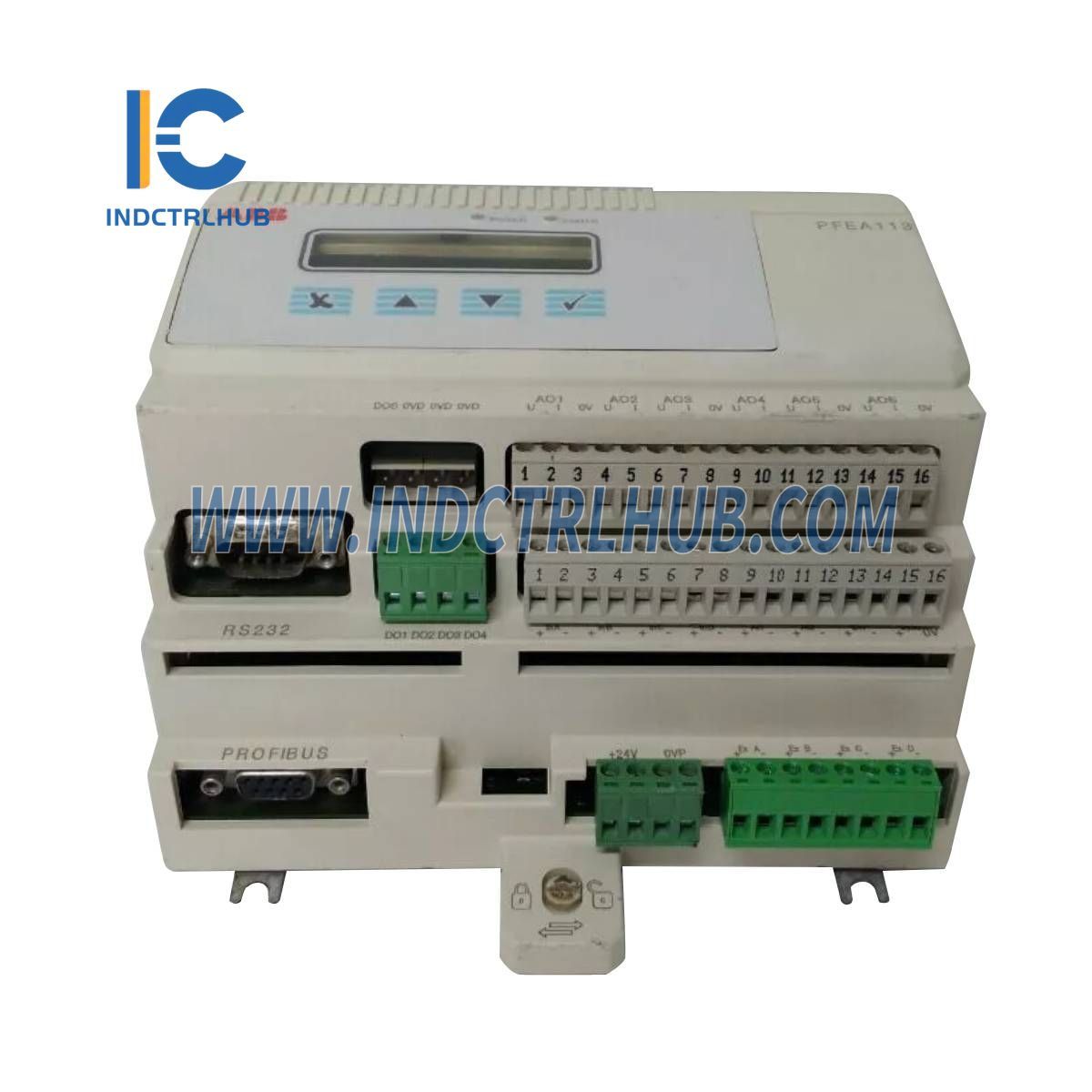

The ABB PFEA113-20 (Product ID: 3BSE028144R0020) is a Tension Electronics unit designed for web tension measurement in industrial applications. With an IP20 rating, it supports precise force measurement for systems like the PFC300, PFT300, PFR100, and PFT100 series, featuring multiple input/output channels and Profibus-DP communication.
Technical Specifications
The PFEA113-20 Tension Electronics has the following specifications:
| Item | Specification |
|---|---|
| Model | PFEA113-20 |
| Product ID | 3BSE028144R0020 |
| Catalog Description | Tension Electronics PFEA113-20 |
| Medium Description | Tension Electronics, IP20 |
| Technical Information | PFEA113-20 Tension Electronics, IP20 4 load cells input, 6 AO selectable V/C, 4 DO, 1 DI, 2 AI. Display shows Sum, Diff, and individual. Profibus-DP. Includes a CD user manual |
| Protection Rating | IP20 |
| Inputs | 4 load cells, 2 analog inputs (AI), 1 digital input (DI) |
| Outputs | 6 analog outputs (AO, selectable voltage/current), 4 digital outputs (DO) |
| Communication | Profibus-DP |
| Gross Weight | 1.05 kg |
| Net Weight | 1.05 kg |
Additional Details
The PFEA113-20 includes the following additional information:
| Category | Details |
|---|---|
| ABB Type Designation | PFEA113-20 |
| Core Credit | 0.00 |
| Country of Origin | Sweden (SE) |
| Customs Tariff Number | 85389091 |
| Frame Size | Spare_Parts |
| Invoice Description | Tension Electronics PFEA113-20 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Package Level 1 Gross Weight | 1.05 kg |
| Package Level 1 Units | 1 piece |
| Part Type | New |
| Product Name | Unclassified |
| Product Type | Unclassified |
| Quote Only | No |
| Replaced Product ID (OLD) | 3BSE028144R20 |
| Selling Unit of Measure | Piece |
| Stocked At (Warehouses) | Malmö, Sweden |
| UNSPSC | 39120000 |
| WEEE Category | Product Not in WEEE Scope |
| Parts Category | Parts & Services › Measurement and Analytics › Force Measurement › Web Tension Measurement PFC300, PFT300 Parts & Services › Measurement and Analytics › Force Measurement › Web Tension Measurement PFR100 Parts & Services › Measurement and Analytics › Force Measurement › Web Tension Measurement PFT100 |
