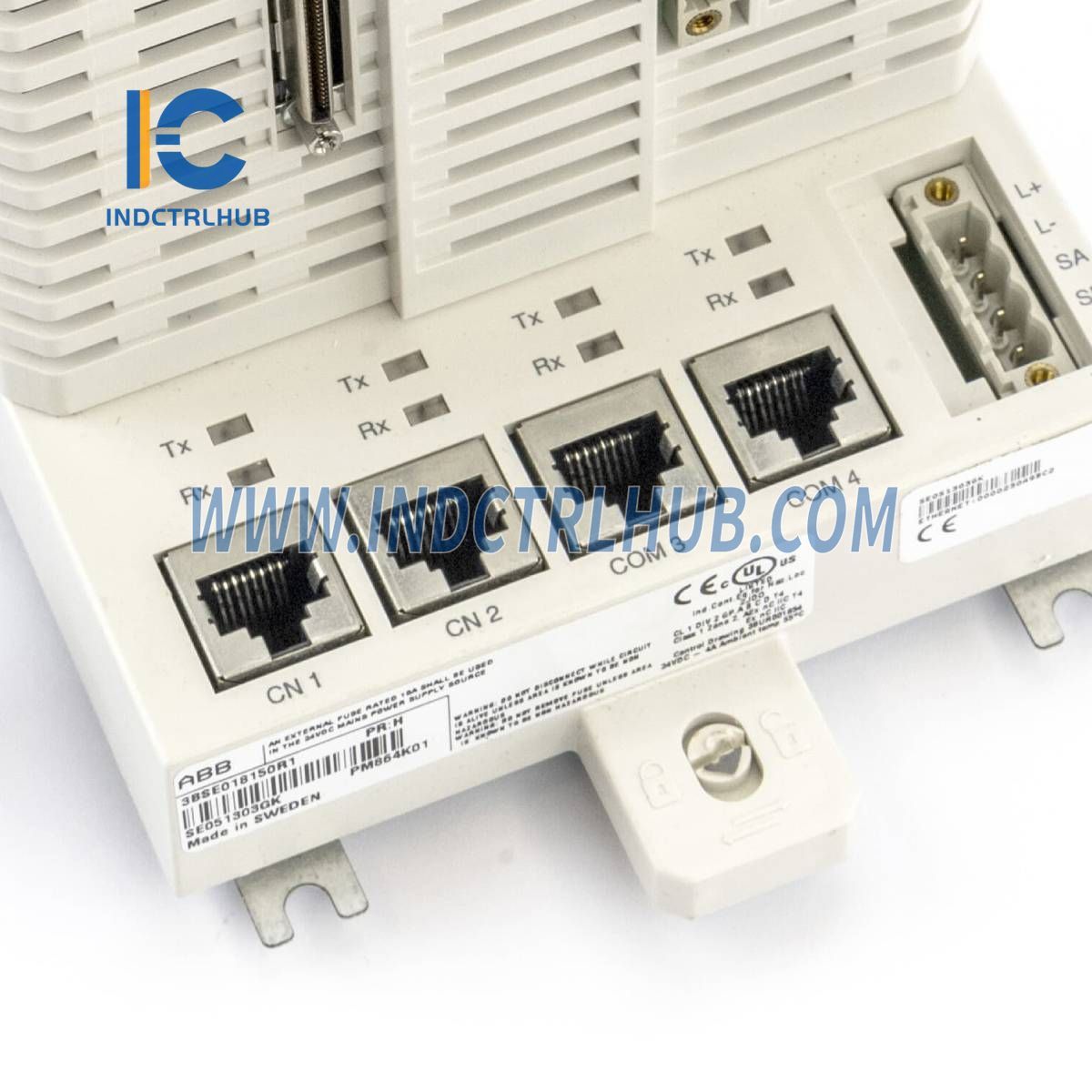

3BSE018150R1 | ABB PM864K01 Processor Unit Kit

3BSE018150R1 | ABB PM864K01 Processor Unit Kit

  • Manufacturer: ABB

  • Product No.: 3BSE018150R1

  • Condition:1000 in stock

  • Product Type: Processor Unit Kit

  • Product Origin: Switzerland

  • Payment: T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

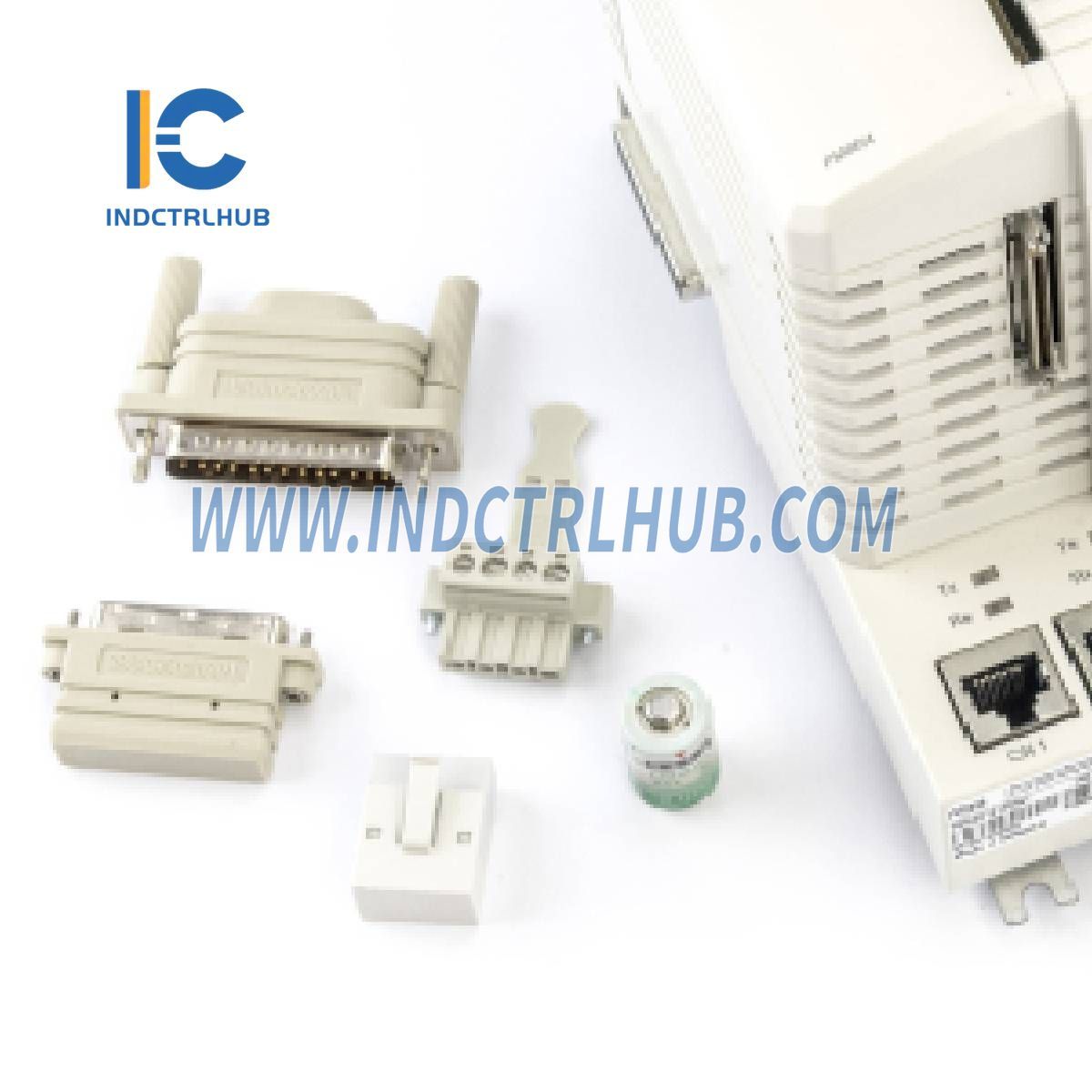

The ABB PM864K01 3BSE018150R1 Processor Unit Kit is a compact processing solution designed for ABB’s AC 800M controllers within the 800xA and Compact Product Suite control systems (versions 2.1 SB2, 4.1, 5.0, 5.1). This kit includes a PM864 CPU, TP830 Baseplate (115 mm width), CEX-bus and ModuleBus terminators (TB850, TB807), an RCU-Link terminator (TB852), a memory backup battery (4943013-6), and a 4-position power plug (3BSC840088R4). Measuring 99 x 108 x 112.5 mm and weighing 1.1 kg (2.43 lb), it is a non-RoHS 2 compliant spare part intended for repair, reuse, or upgrades of systems installed before July 22, 2017, requiring Control Software version 3.2/10 or later. For new installations, ABB recommends the PM866AK01. It meets WEEE standards and includes a lithium battery classified under UN3091-PI969 for transport.

Technical Information

Parameter Specifications
Manufacturer ABB
Model/Part Number PM864K01 3BSE018150R1
Description Processor Unit Kit
Product ID 3BSE018150R1
ABB Type Designation PM864K01
Catalog Description PM864K01 Processor Unit Kit
Product Type Central_Unit
Components Included - PM864 CPU
- TP830 Baseplate (width = 115 mm)
- TB850 CEX-bus Terminator
- TB807 ModuleBus Terminator
- TB852 RCU-Link Terminator
- Battery for memory backup (4943013-6)
- 4-pos Power Plug (3BSC840088R4)
RoHS Compliance Not compliant with EU Directive 2011/65/EU (RoHS 2)
Usage Note Spare part for systems pre-July 22, 2017; for repair, reuse, or upgrades only. For new installations, use PM866AK01.
Software Compatibility Control Software version 3.2/10 or later (replaces PM864AK01; no application changes needed)
Customs Tariff Number 85389091
Product Net Depth / Length 112.5 mm (4.43 in)
Product Net Height 108 mm (4.25 in)
Product Net Width 99 mm (3.90 in)
Product Net Weight 1.1 kg (2.43 lb)
Gross Weight 1.1 kg (2.43 lb) (assumed equal to Net Weight)
Dangerous Goods UN Classification Class 9: Miscellaneous Dangerous Substances and Articles
Dangerous Goods UN Number UN3091-PI969
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries 1
Battery Chemical Composition Lithium
Battery Type Portable
Battery Weight 9 g (0.009 kg, 0.02 lb)
Product Category Products > Control Systems > 800xA > Controllers > AC 800M Hardware > AC 800M Hardware 2.1 (SB2) > Central Units
Parts & Services > Control Systems > 800xA > Controllers > AC 800M Hardware > AC 800M Hardware 4.1, 5.0, 5.1 > Central Units
