Product Description

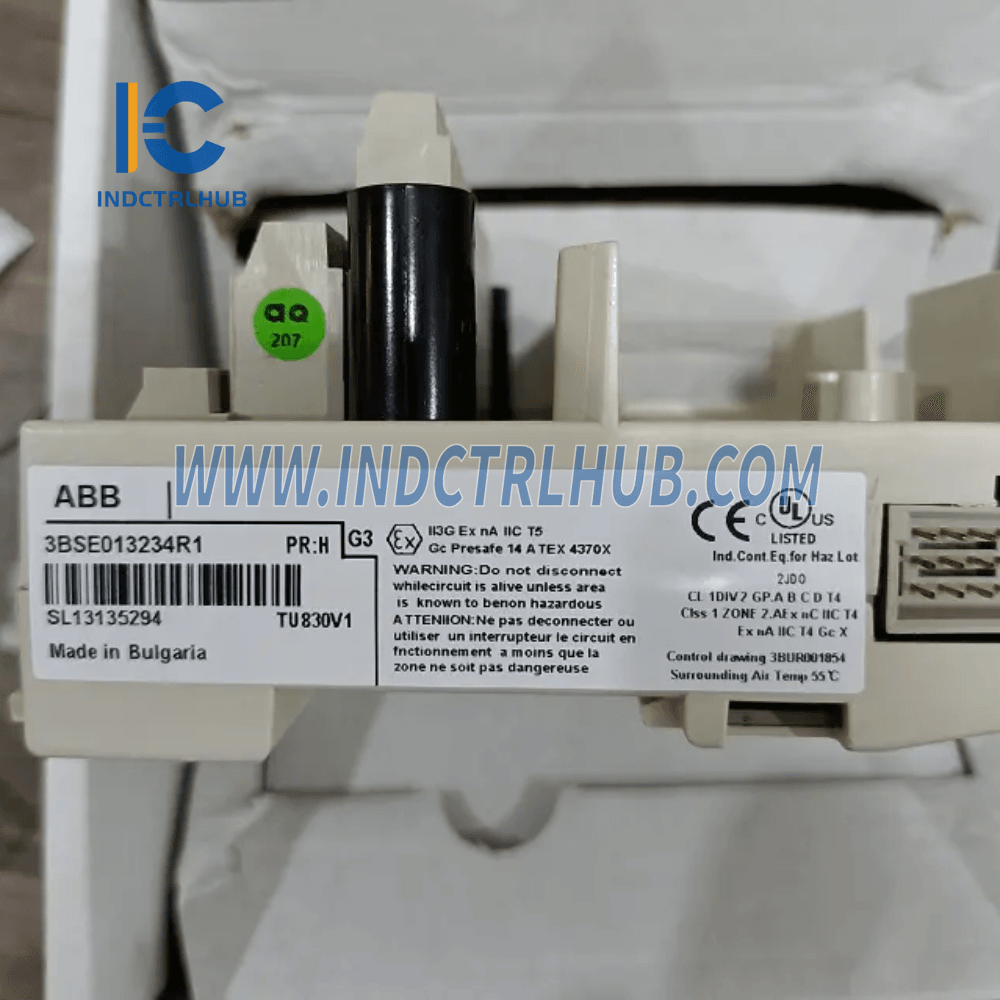

General Information
-
Article Number: 3BSE013234R1
-
Product ID: 3BSE013234R1
-
Manufacturer: ABB
-
ABB Type Designation: TU830V1
-
Catalog Description: TU830V1 Extended Module Termination Unit, MTU, 50V
-
Country of Origin: Bulgaria (BG)
-
Customs Tariff Number: 85389091

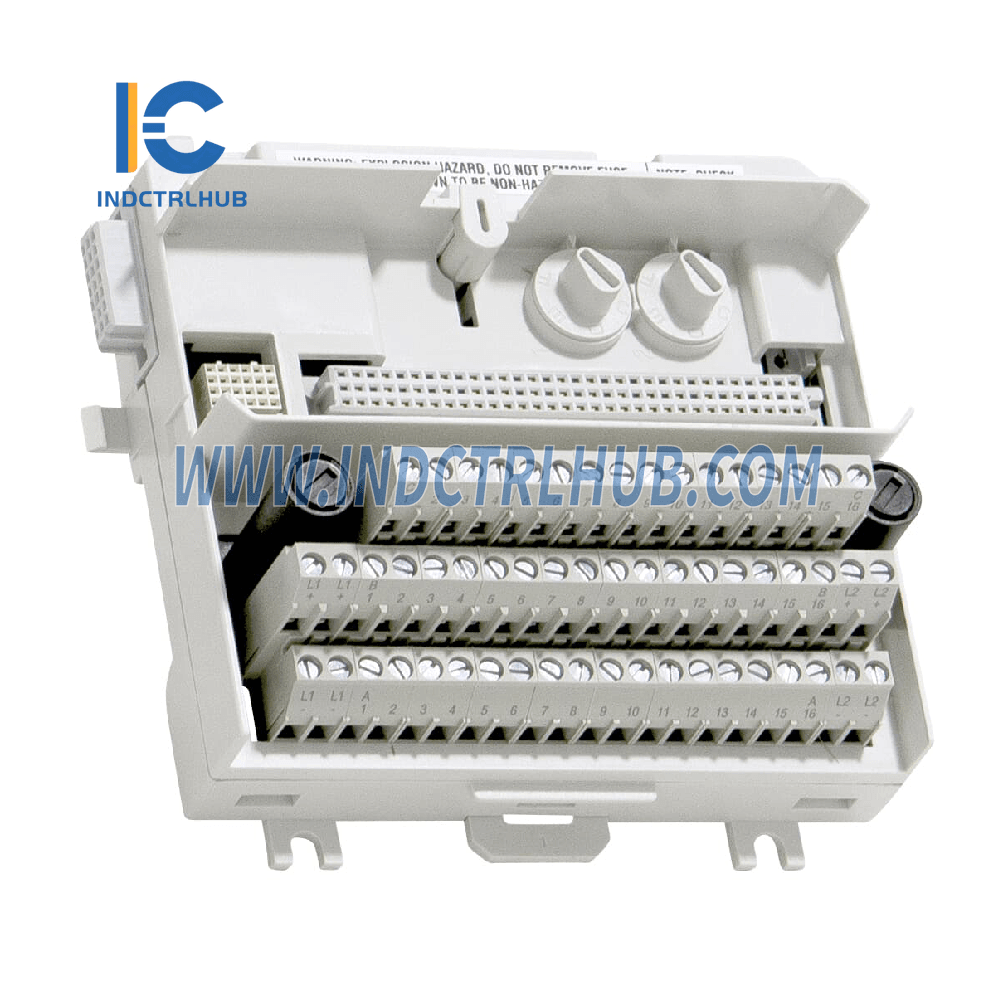

Features and Benefits
- Supports up to 16 I/O channels and two process voltage connections.
- Provides complete installation of I/O modules using 3-wire connections, fuses, and field power distribution.
- Distributes ModuleBus signals and generates correct addressing for I/O modules.
-
Mechanical keying prevents insertion of incorrect I/O modules.
- Includes a latching device for grounding to the DIN rail.
- Facilitates DIN rail mounting.
Technical Information
| Parameter |
Details |
| Channel Count |
Up to 16 |
| Process Voltage |
Up to 50 V |
| Maximum Current Per Channel |
2 A |
| Maximum Process Current |
5 A |
| Fuse Rating |
6.3 A (per isolated group) |
| Wire Sizes Supported |
Solid: 0.2 - 4 mm²; Stranded: 0.2 - 2.5 mm² |
| Recommended Torque |
0.5 - 0.6 Nm |
| Dielectric Test Voltage |
500 V a.c. |
| Mounting Options |
Both directions, 55°C (131°F) |
| Mechanical Protection |
IP20 (IEC 60529) |
| Process Connections |
56 |
Environment and Certifications
| Parameter |
Details |
| CE Marking |
Yes |
| Operating Temperature |
0 to +55 °C (+32 to +131 °F) |
| Storage Temperature |
-40 to +70 °C (-40 to +158 °F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Pollution Degree |
Degree 2 (IEC 60664-1) |
| Corrosion Protection |
ISA-S71.04: G3 |
| Overvoltage Categories |
IEC/EN 60664-1, EN 50178 |
| Marine Certification |
ABS, BV, DNV-GL, LR |
| Electrical Safety Standards |
EN 61010-1, UL 61010-1 |
| Hazardous Location Approval |
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
Dimensions
| Dimension |
Value |
| Width |
126 mm (5 in.) including connector |
| Depth |
64 mm (2.52 in.) including terminals |
| Height |
110 mm (4.3 in.) |
| Weight |
0.28 kg (0.6 lbs) |
Compatibility
-
Compatible I/O Modules:
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820, DP840
Categories
- Products > Control Systems > 800xA > I/Os > S800 I/O > I/O Modules
- Products > Control Systems > Compact Product Suite > I/Os > S800 I/O > I/O Modules
Summary
The ABB TU830V1 Extended Module Termination Unit (MTU, 50V) is a highly reliable and versatile termination unit designed for seamless integration with ABB's S800 I/O series and other compatible control systems. With support for up to 16 I/O channels, robust process voltage handling, and easy DIN rail mounting, it provides a compact and efficient solution for field wiring and signal distribution. Its design ensures enhanced safety and reliability, adhering to strict industrial and environmental standards.
