Product Description
Product Summary:
| Attribute | Details |
|---|---|
| Product Type | Power Supply |

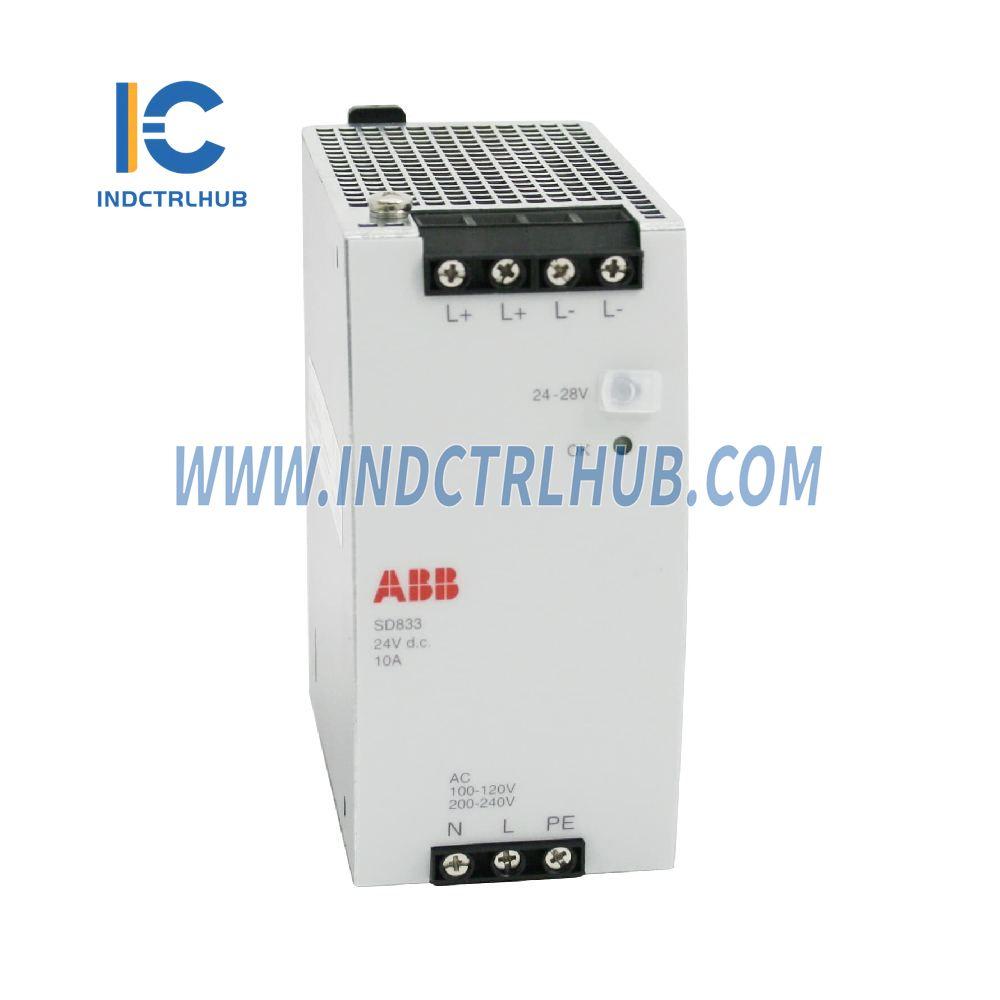

| Model | SD83x series (3BSC610066R1) |
| Output Voltage | 24 V DC |
| Rated Output Power | 240 W |
| Rated Output Current | 10 A |
| Input Voltage | 100-120 V AC or 200-240 V AC (auto-select) |
| Efficiency | 91/91.6 % |
| Output Voltage Regulation | <70 mV at max current |
| Ripple | <50 mV (peak-to-peak) |
| Over Voltage Protection (OVP) | <39 V |
| Maximum Ambient Temperature | 55°C |
| Output Over-Current Protection | Current limit function |
| Short Circuit Protection | 14-18 A |
| Primary Inrush Current | <10 A |
| Heat Dissipation | 22-24 W |
Key Features:
- Mounting: Simple DIN-rail mounting
- Safety Compliance: IEC 61131-2, UL 508, EN 50178
- Marine Certifications: DNV-GL, ABS
- RoHS Compliance: Yes
- WEEE Compliance: Yes
- Overvoltage Category: III (IEC/EN 60664-1)
- Pollution Degree: Degree 2 (IEC 60664-1)
- Short Circuit Protection: 14-18 A
- Primary Inrush Current: <10 A
- Soft Start Feature: Yes
Dimensions:
| Dimension | Value |
|---|---|
| Width | 60 mm (2.36") |
| Depth | 117 mm (4.61") |
| Height | 124 mm (4.88") |
| Weight | 700 g (1.5 lbs.) |
Environmental Ratings:
- Protection Rating: IP20 (IEC 60529)
- Corrosive Atmosphere: ISA-S71.04 G2
