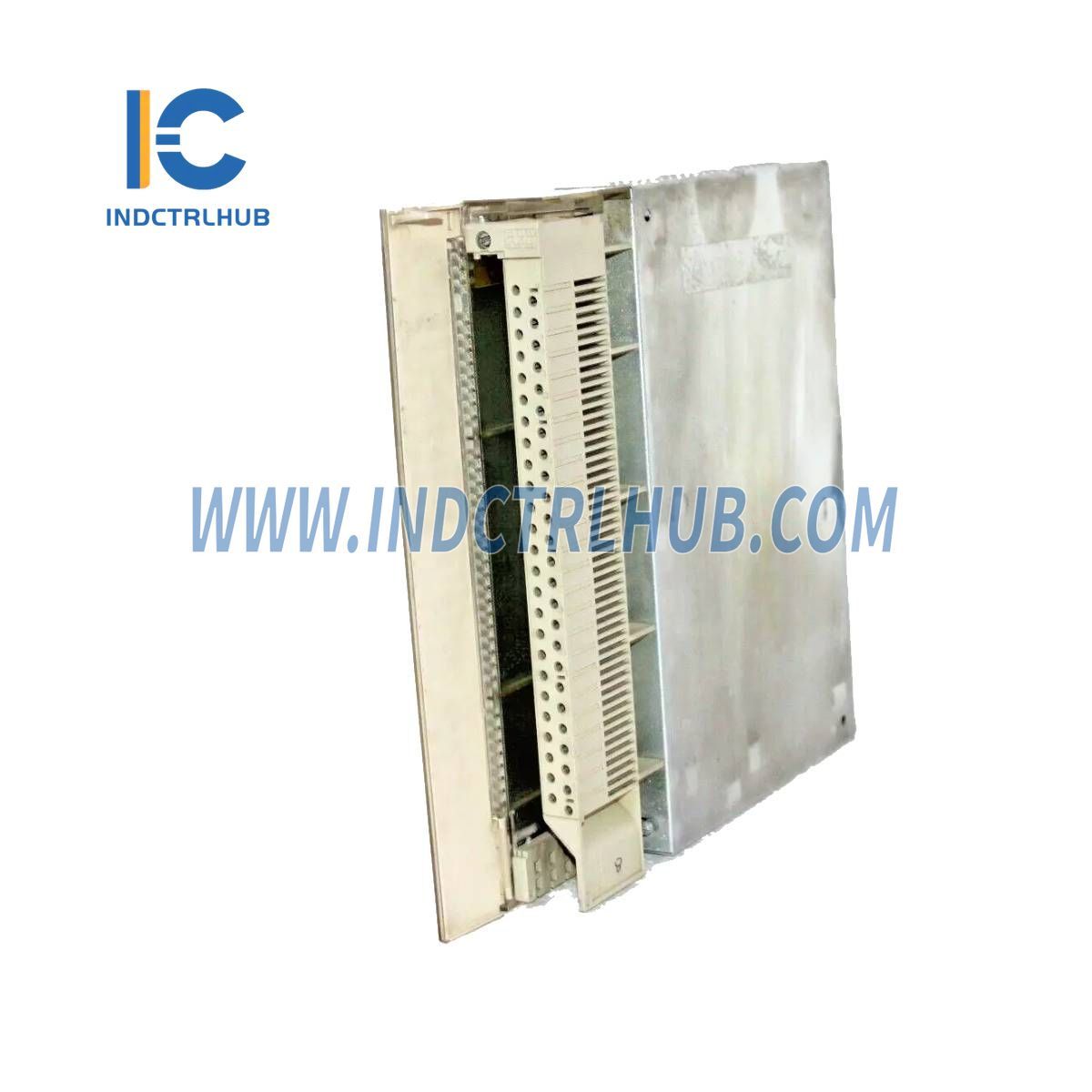

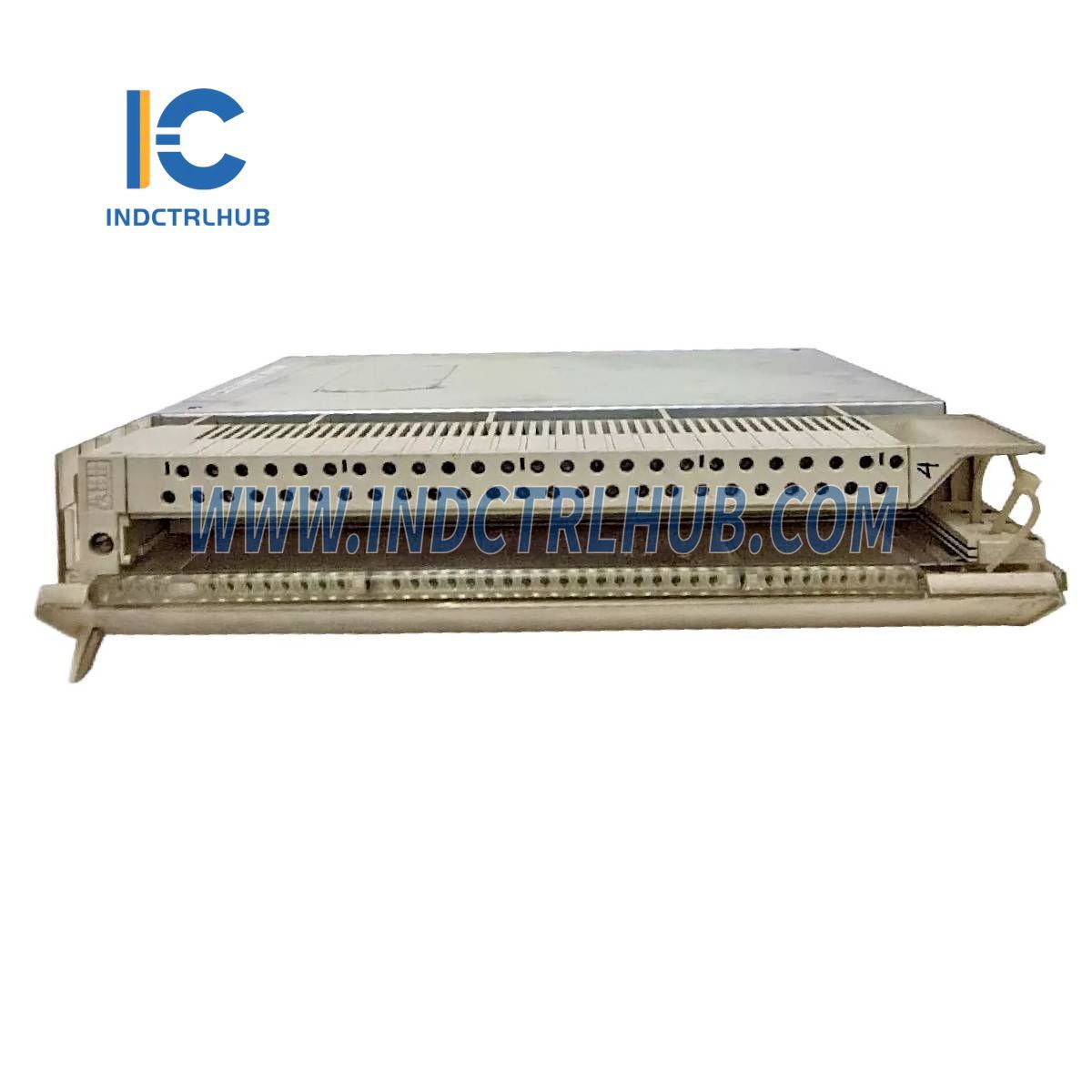

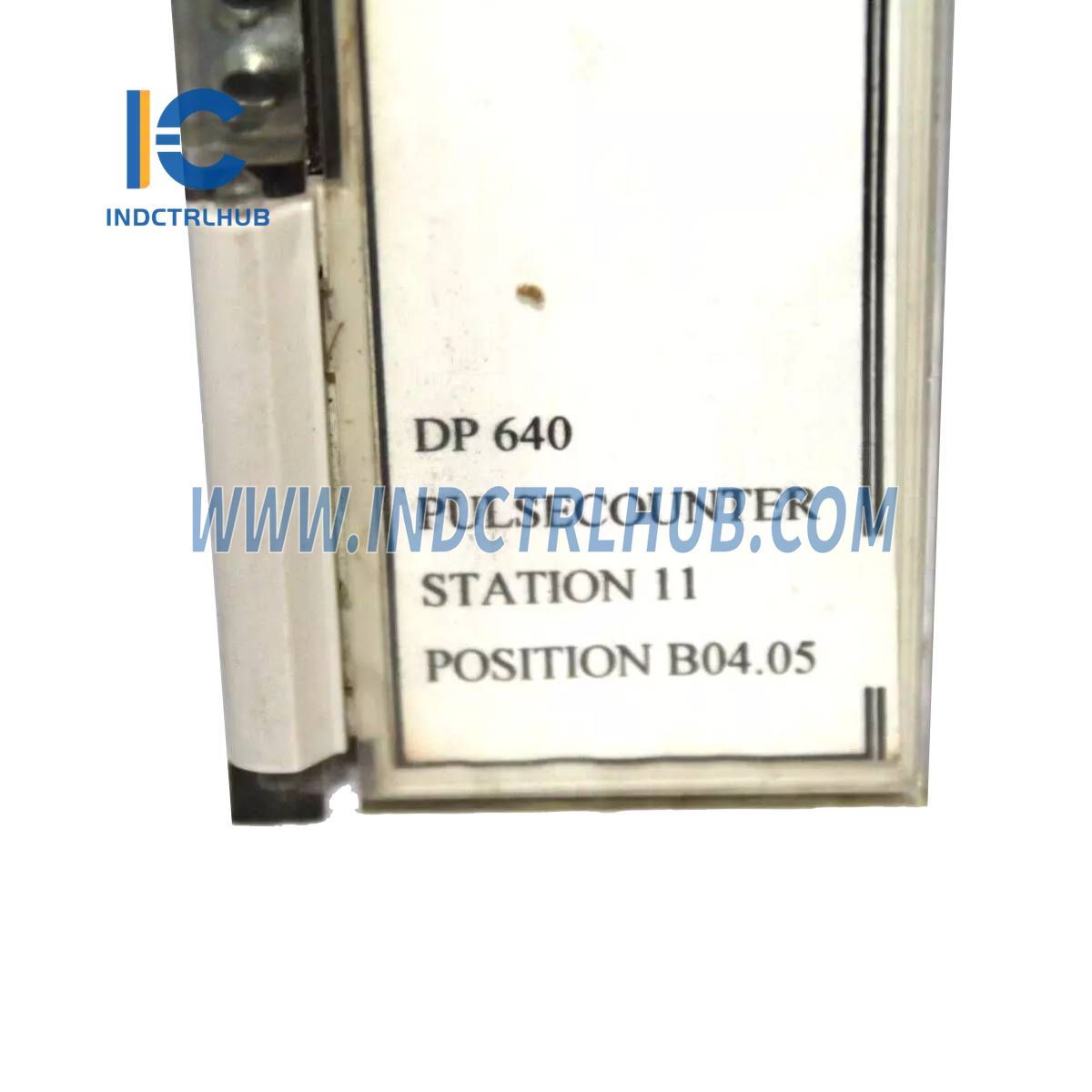

3BHT300057R1 | ABB DP640 Speed Meter Module

3BHT300057R1 | ABB DP640 Speed Meter Module

  • Manufacturer: ABB

  • Product No.: 3BHT300057R1

  • Condition:1000 in stock

  • Product Type: Speed Meter Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1330g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: ABB
  • Model/Part Number: DP640 3BHT300057R1
  • Description: Speed Meter Module

General Information

Attribute Details
Product ID 3BHT300057R1
ABB Type Designation DP640
Catalog Description DP640 Rotational Speed Meter Module
Long Description DP640 Rotational Speed Meter Module
Product Type I-O Module
Medium Description DP640 Rotational Speed Meter Module

Technical Information

Attribute Details
Functionality S600 I/O speed meter input, max 50 kHz, ±13 mA
Power Requirements 24 V DC or 5 V DC
Direction Detection Through second speed meter input
Overspeed Trip Logic Trip signal output via solid-state 24 V DC and dry contact 60 V DC
Isolation Speed meter inputs and solid-state output are individually opto-isolated
Channel Type DI (Digital Input)
Number of Input Channels 2

Compliance & Environmental

Attribute Details
RoHS Status Following EU Directive 2011/65/EU
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries 0

Ordering & Logistics

Attribute Details
HS Code 853890 - Parts suitable for use with the apparatus of heading 85.35, 85.36, or 85.37
Customs Tariff Number 85389091
Product Net Weight 1.33 kg
Product Net Dimensions 252 mm (Depth) x 273 mm (Height) x 40 mm (Width)

Applications & Compatibility

  • Products:

    • Control System Products → I/O Products → S600 I/O → S600 I/O - Modules → DP640 Rotational Speed Meters
    • Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 160 → Advant Controller 160 Version 2.2 → I/O Modules
  • Parts & Services:

    • Control Systems → Advant OCS with Master SW → I/Os → S600 I/O → I/O Modules
    • Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 160 → Older versions and Version 2.2
View full details

Product Description

Product Details

  • Manufacturer: ABB
  • Model/Part Number: DP640 3BHT300057R1
  • Description: Speed Meter Module

General Information

Attribute Details
Product ID 3BHT300057R1
ABB Type Designation DP640
Catalog Description DP640 Rotational Speed Meter Module
Long Description DP640 Rotational Speed Meter Module
Product Type I-O Module
Medium Description DP640 Rotational Speed Meter Module

Technical Information

Attribute Details
Functionality S600 I/O speed meter input, max 50 kHz, ±13 mA
Power Requirements 24 V DC or 5 V DC
Direction Detection Through second speed meter input
Overspeed Trip Logic Trip signal output via solid-state 24 V DC and dry contact 60 V DC
Isolation Speed meter inputs and solid-state output are individually opto-isolated
Channel Type DI (Digital Input)
Number of Input Channels 2

Compliance & Environmental

Attribute Details
RoHS Status Following EU Directive 2011/65/EU
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries 0

Ordering & Logistics

Attribute Details
HS Code 853890 - Parts suitable for use with the apparatus of heading 85.35, 85.36, or 85.37
Customs Tariff Number 85389091
Product Net Weight 1.33 kg
Product Net Dimensions 252 mm (Depth) x 273 mm (Height) x 40 mm (Width)

Applications & Compatibility

  • Products:

    • Control System Products → I/O Products → S600 I/O → S600 I/O - Modules → DP640 Rotational Speed Meters
    • Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 160 → Advant Controller 160 Version 2.2 → I/O Modules
  • Parts & Services:

    • Control Systems → Advant OCS with Master SW → I/Os → S600 I/O → I/O Modules
    • Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 160 → Older versions and Version 2.2

Download PDF file here:

Click to Download PDF
