Product Overview

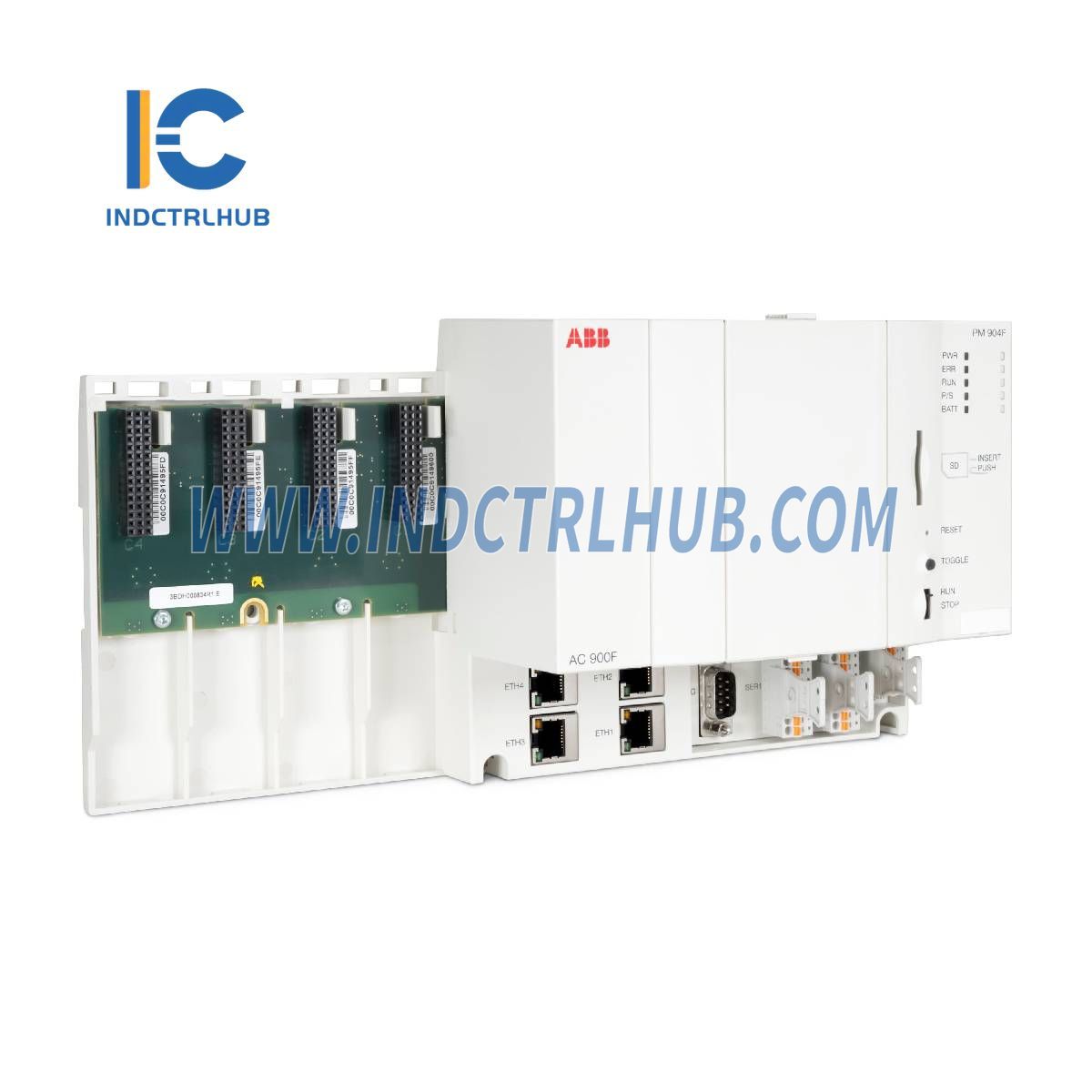

The ABB PM904F 3BDH001002R0001 CPU Module is a high-end base unit within ABB’s Freelance AC 900F controller family, designed for advanced industrial automation applications. Featuring an 800 MHz CPU clock, 48 MB of controller memory (16 MB battery-buffered SRAM and 32 MB DRAM), and four Ethernet interfaces, this module supports up to approximately 1,500 I/Os depending on the application. It includes four slots for assembling Communication Interface Modules and requires an external 24 V DC power supply. Measuring 285 x 152 x 95 mm and weighing 1.1 kg (2.43 lb), it is supplied without an operating system (requiring software version 2019 or higher) or included display unit (TD 951F) and battery (TA 951F). Compliant with RoHS Directive 2011/65/EU and WEEE standards, it is a robust, scalable solution for distributed control systems.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | ABB |
| Model/Part Number | PM904F 3BDH001002R0001 |
| Description | CPU Module |
| Product ID | 3BDH001002R0001 |
| ABB Type Designation | PM 904F |
| Catalog Description | PM 904F CPU Module |
| Long Description | High-end base unit of the Freelance AC 900F controller family, 8 MB battery-buffered SRAM, supports ~1,500 I/Os (application-dependent), 4 Ethernet interfaces, 800 MHz CPU clock, 48 MB controller memory (16 MB SRAM, 32 MB DRAM), 4 slots for Communication Interface Modules, requires external 24 V DC power supply, no OS included (load via software installation, version 2019+ required), excludes Display Unit TD 951F and Battery TA 951F |
| Product Type | Central_Unit |
| Processor Specifications | 800 MHz CPU clock |
| Memory | 48 MB total: 16 MB battery-buffered SRAM, 32 MB DRAM |
| I/O Capacity | Approx. 1,500 I/Os (application-dependent) |
| Ethernet Interfaces | 4 |
| Communication Slots | 4 slots for Communication Interface Modules |
| Power Supply | External 24 V DC (not included) |
| Operating System | Not included; requires loading during software installation (version 2019 or higher mandatory) |
| Additional Components | Display Unit TD 951F and Battery TA 951F not included |
| HS Code | 853710 (Boards, panels, consoles for electric control, voltage ≤ 1,000 V) |
| Customs Tariff Number | 85371091 |
| Product Net Depth / Length | 95 mm (3.74 in) |
| Product Net Height | 152 mm (5.98 in) |
| Product Net Width | 285 mm (11.22 in) |
| Product Net Weight | 1.1 kg (2.43 lb) |
| Gross Weight | 1.1 kg (2.43 lb) |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 (July 22, 2019) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 0 |
| SCIP | No SVHC present (United States, US) |
| Product Category | Control System Products > Control & Communication > AC 900F > AC 900F - Processor Modules > PM 904F CPU Module |
